Nissan Juke F15. Manual - part 296

DMS-14

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

INTEGRATED CONTROL SYSTEM

JRNWF0756GB

DMS

DIAGNOSIS AND REPAIR WORK FLOW

DMS-15

< BASIC INSPECTION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000012201601

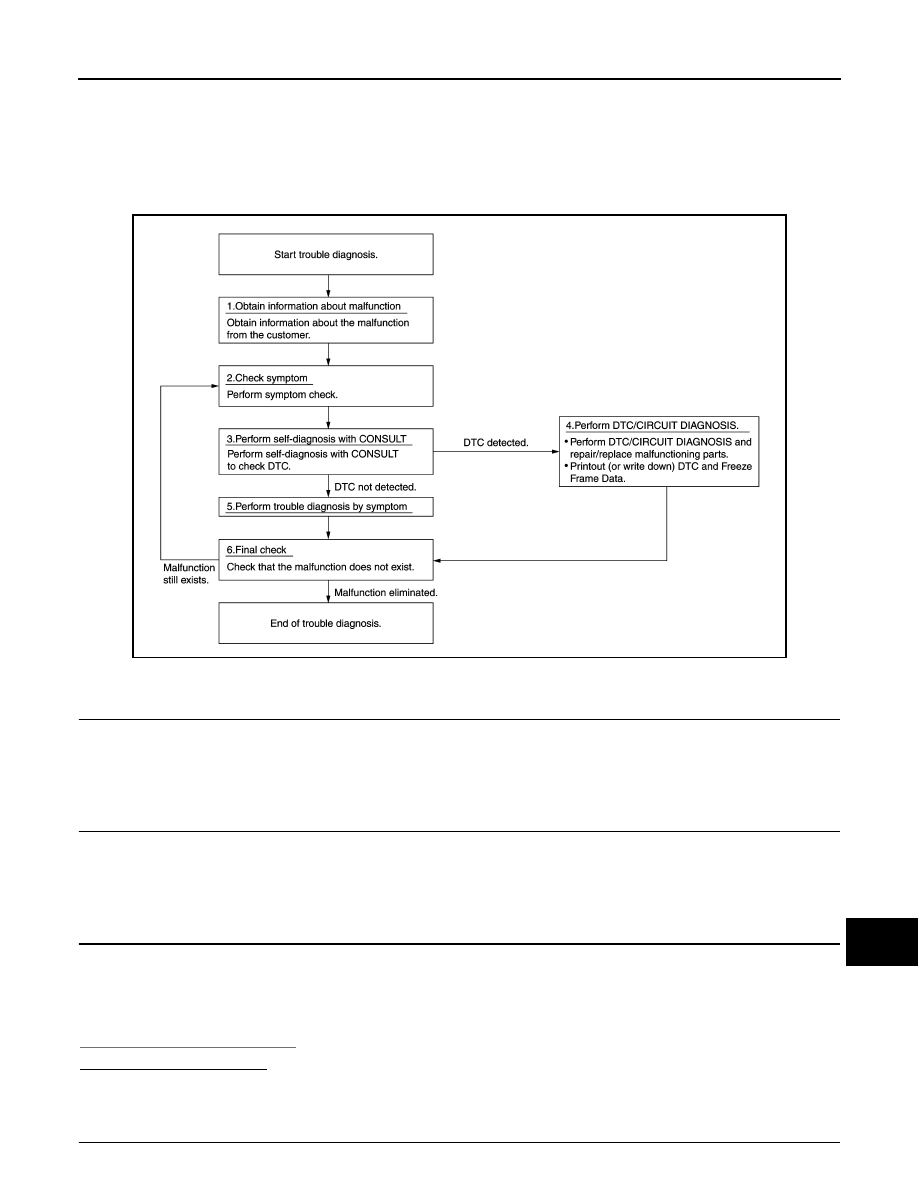

DESCRIPTION OF TROUBLE DIAGNOSIS FLOWCHART

DETAILS OF TROUBLE DIAGNOSIS FLOWCHART

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurs.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CONSULT SELF-DIAGNOSIS

1. Perform “MULTI DISPLAY” “self diagnosis” by connecting CONSULT.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

NOTE:

If “CAN COM CIRC [U1000]” is displayed, start the diagnosis from the CAN communication system. Refer to

AV-222, "Diagnosis Procedure"

.

Is any DTC No. displayed?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

DTC/SYSTEM DIAGNOSIS

JSNIA4500GB

DMS-16

< BASIC INSPECTION >

[INTEGRATED CONTROL SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

1. Perform a DTC/system diagnosis and repair or replace any malfunctioning part.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

>> GO TO 6.

5.

PERFORM DIAGNOSIS BY SYMPTOM

Perform a diagnosis by symptom and repair or replace any malfunctioning part.

>> GO TO 6.

6.

FINAL CHECK

Check that the multi display unit functions normally.
Does it operate normally?

YES

>> End of trouble diagnosis

NO

>> GO TO 2.

DMS

MULTI DISPLAY UNIT

DMS-17

< REMOVAL AND INSTALLATION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REMOVAL AND INSTALLATION

MULTI DISPLAY UNIT

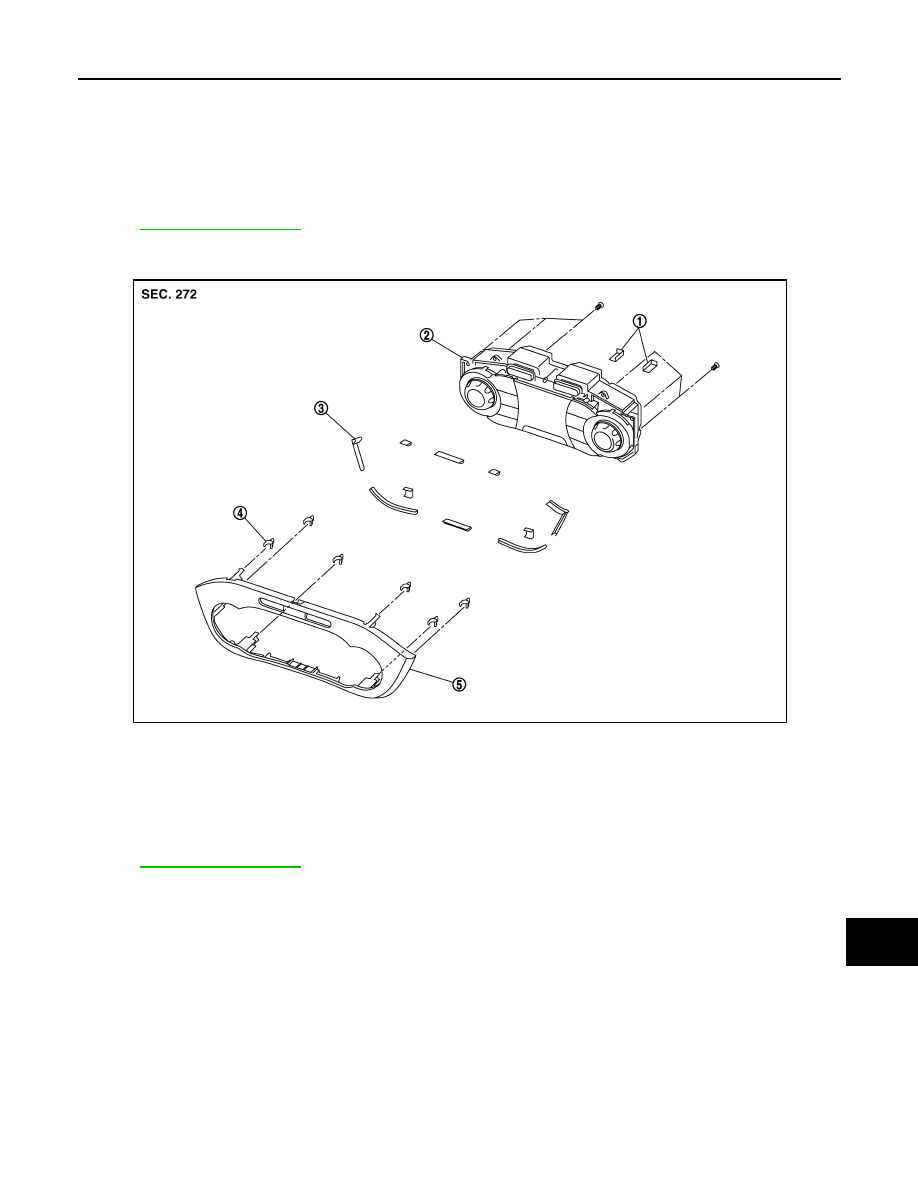

Exploded View

INFOID:0000000012201602

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000012201603

REMOVAL

Refer to

IP-12, "Exploded View"

.

CAUTION:

• When performing the work, use a shop cloth to protect the parts from damage.

• Always fix the harness clamp in position.

INSTALLATION

Install in the reverse order of removal.

1.

Silencer tape

2.

Multi display unit

3.

Silencer tape

4.

Clip

5.

Control finisher

JPNIA1860ZZ
