ECU DIAGNOSIS INFORMATION

AWD CONTROL MODULE

Reference Value

INFOID:0000000012199368

VALUES ON THE DIAGNOSIS TOOL

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Monitor item

Condition

Value/Status

SWITCH 1

AWD mode switch: 2WD

On

AWD mode switch: AWD-V or AWD

Off

SWITCH 2

AWD mode switch: AWD-V or AWD

On

AWD mode switch: 2WD

Off

SWITCH 3

AWD mode switch: AWD

On

AWD mode switch: 2WD or AWD-V

Off

IGN SW

Ignition switch: ON

On

Ignition switch: OFF

Off

WARNING LAMP

AWD warning lamp: ON

On

AWD warning lamp: OFF

Off

R POSITION SW

CVT shift selector: R

On

CVT shift selector: Except R

Off

ABS OPERATION SIG

ABS is operating

On

ABS is not operating

Off

VDC OPERATION SIG

VDC is operating

On

VDC is not operating

Off

TCS OPERATION SIG

TCS is operating

On

TCS is not operating

Off

PKB SW

Parking brake is operated

On

Parking brake is not operated

Off

STOP LAMP SW

Brake pedal is depressed

On

Brake pedal is released

Off

4WD MODE SW

AWD mode switch: 2WD

2WD

AWD mode switch: AWD-V or AWD

4WD-A

ACTUATOR RELAY

Engine stopped (Ignition switch: ON)

Off

Engine running

On

OPERATION MODE

2WD mode

2WD

AWD-V mode

4WD-V

AWD mode

4WD-A

INDICATOR

AWD mode indicator (AWD-V): OFF
AWD mode indicator (AWD): OFF

2WD

AWD mode indicator (AWD-V): ON
AWD mode indicator (AWD): OFF

4WD-V

AWD mode indicator (AWD-V): ON
AWD mode indicator (AWD): ON

4WD-A

DRIVE MODE

Except AWD mode

1

AWD mode

2

DLN-26

< ECU DIAGNOSIS INFORMATION >

[TRANSFER: TY21B]

AWD CONTROL MODULE

TORQU DISTR RR LH

The number of bars of torque distribution indicator (rear LH): 0

OFF

The number of bars of torque distribution indicator (rear LH): 1

1

The number of bars of torque distribution indicator (rear LH): 2

1-2

The number of bars of torque distribution indicator (rear LH): 3

1-3

The number of bars of torque distribution indicator (rear LH): 4

1-4

TORQU DISTR RR RH

The number of bars of torque distribution indicator (rear RH): 0

OFF

The number of bars of torque distribution indicator (rear RH): 1

1

The number of bars of torque distribution indicator (rear RH): 2

1-2

The number of bars of torque distribution indicator (rear RH): 3

1-3

The number of bars of torque distribution indicator (rear RH): 4

1-4

TORQU IND FRONT

The number of bars of torque distribution indicator (front): 0

OFF

The number of bars of torque distribution indicator (front): 1

1

The number of bars of torque distribution indicator (front): 2

1-2

The number of bars of torque distribution indicator (front): 3

1-3

The number of bars of torque distribution indicator (front): 4

1-4

TEMP SEN LEFT

Always

0 V

TEMP SEN RIGHT

Always

0 V

CONT MODUL VOLT

Always

11 – 13 V

SOLENOID VOLT

Always

11 – 13 V

TRGT SOL CRNT LH

Vehicle stopped

0.00 A

Vehicle starting
(Straight-ahead start on a dry road with accelerator angle 25%)
NOTE:
Confirm accelerator angle in monitor item “THRTL POS SEN”.

Approx. 1.00 A

SOLENOID CRNT LH

Vehicle stopped

0.00 A

Vehicle starting
(Straight-ahead start on a dry road with accelerator angle 25%)
NOTE:
Confirm accelerator angle in monitor item “THRTL POS SEN”.

Approx. 1.00 A

TRGT SOL CRNT RH

Vehicle stopped

0.00 A

Vehicle starting
(Straight-ahead start on a dry road with accelerator angle 25%)
NOTE:
Confirm accelerator angle in monitor item “THRTL POS SEN”.

Approx. 1.00 A

SOLENOID CRNT RH

Vehicle stopped

0.00 A

Vehicle starting
(Straight-ahead start on a dry road with accelerator angle 25%)
NOTE:
Confirm accelerator angle in monitor item “THRTL POS SEN”.

Approx. 1.00 A

COMPR VHCL SPEED

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

VHCL/S SEN-FR

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

Monitor item

Condition

Value/Status

AWD CONTROL MODULE

DLN-27

< ECU DIAGNOSIS INFORMATION >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

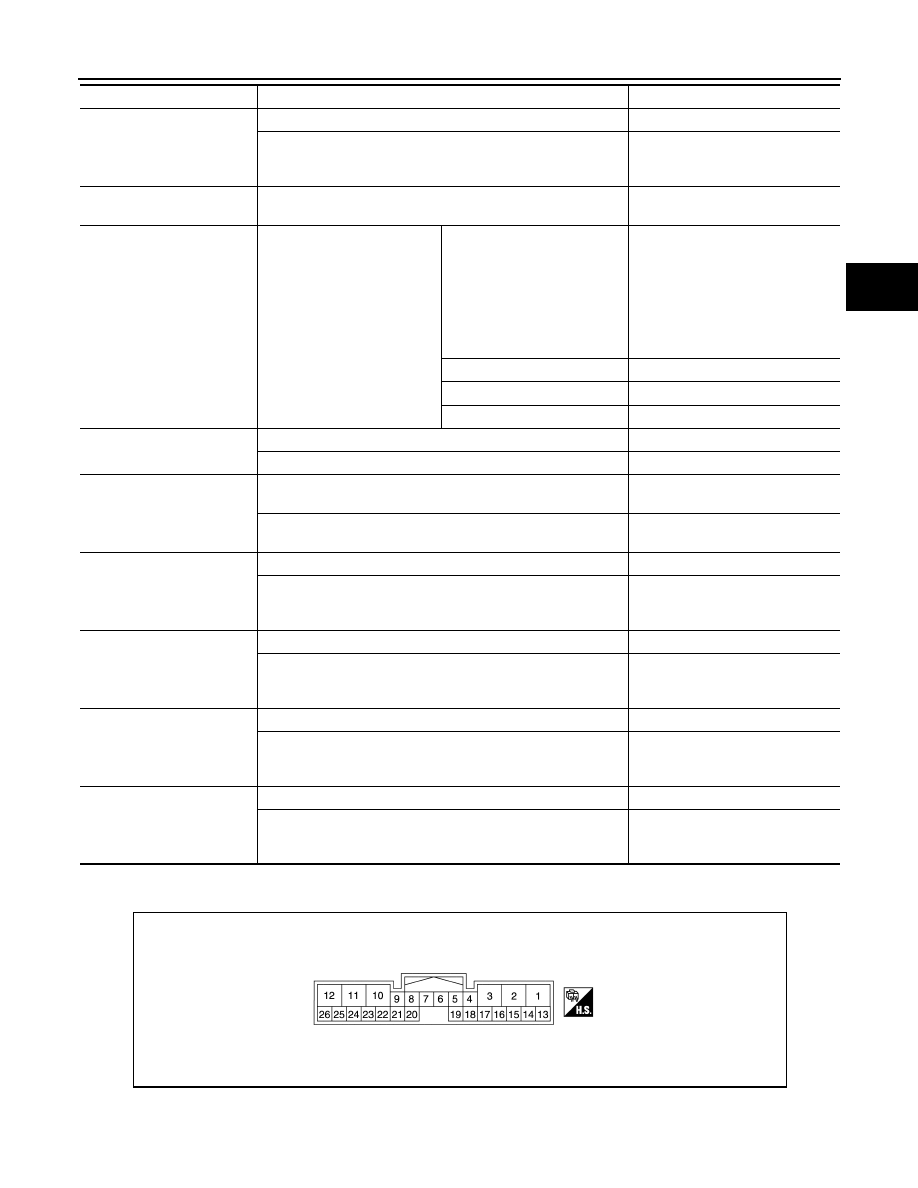

TERMINAL LAYOUT

PHYSICAL VALUES

VHCL/S SEN-RR

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

THRTL POS SEN

When depressing accelerator pedal
(Value rises gradually in response to accelerator pedal position)

0 - 100%

SLCT LVR POSI

Engine running

CVT shift selector: Manual
mode

1ST

2ND
3RD

4TH
5TH
6TH
7TH
8TH

CVT shift selector: R

REVERSE

CVT shift selector: N or P

N/P

CVT shift selector: D

D

TRGT DRIVE TORQU

Request from AWD control module to ECM.

0 - 507 Nm

No request from AWD control module to ECM.

508 Nm

RQST DRIVE TORQU

Request from ABS actuator and electric unit (control unit) to
AWD control module.

0 - 1274 Nm

No request from ABS actuator and electric unit (control unit) to
AWD control module.

1275 Nm

WHEEL SPD SEN FR

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

WHEEL SPD SEN FL

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

WHEEL SPD SEN RR

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

WHEEL SPD SEN RL

Vehicle stopped

0.00 km/h (0.00 mph)

Vehicle driving

CAUTION:

Check air pressure of tire under standard condition.

Approx. equal to the indication on

speedometer (inside of

±10%)

Monitor item

Condition

Value/Status

JSDIA2078ZZ

DLN-28

< ECU DIAGNOSIS INFORMATION >

[TRANSFER: TY21B]

AWD CONTROL MODULE

*: The values are changed by throttle opening and engine speed.

CAUTION:

When using circuit tester to measure voltage for inspection, be sure not to extend forcibly any con-

nector terminals.

Fail-safe

INFOID:0000000012199369

When a system malfunction occurs, the AWD warning lamp turns ON and the AWD control becomes 2WD

state.

Terminal No.

(Wire color)

Description

Condition

Value (Approx.)

+

-

Signal name

Input/

Output

1

(GR)

Ground

Battery power supply
(AWD control module)

Input

Always

11 - 13 V

3

(LG)

Ground Ignition power supply

Input

Ignition switch: ON

11 - 13 V

Ignition switch: OFF

0 V

4

(L)

—

CAN-H

Input/

Output

—

—

5

(P)

—

CAN-L

Input/

Output

—

—

9

(W)

Ground

AWD mode switch (Except
2WD)

Input

Ignition switch: ON

AWD mode switch: 2WD

4.5 - 5 V

AWD mode switch: AWD-V or
AWD

0 V

10

(B)

Ground Ground

—

Always

0 V

11

(B)

Ground Ground

—

Always

0 V

12

(Y)

Ground

Battery power supply
(AWD solenoid)

Input

Always

11 - 13 V

13

(G)

Ground AWD mode switch (2WD)

Input

Ignition switch: ON

AWD mode switch: 2WD

0 V

AWD mode switch: AWD-V or
AWD

4.5 - 5 V

21

(Y)

Ground AWD mode switch (AWD)

Input

Ignition switch: ON

AWD mode switch: 2WD or
AWD-V

4.5 - 5 V

AWD mode switch: AWD

0 V

23

(R)

Ground

AWD solenoid (left) power
supply

Output

Engine speed: At idle

0 V

Engine speed: 3,000 or more constant

2.5 V

*

24

(V)

Ground AWD solenoid (left) ground

Input

Always

1.5 V or less

25

(W)

Ground

AWD solenoid (right) pow-
er supply

Output

Engine speed: At idle

0 V

Engine speed: 3,000 or more constant

2.5 V

*

26

(Y)

Ground

AWD solenoid (right)
ground

Input

Always

1.5 V or less
