COMPONENT PARTS

DLN-13

< SYSTEM DESCRIPTION >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOTE:

The driving force distribution may not match actual one. This is not a system malfunction.

1.

Front right side driving torque

2.

Front left side driving torque

3.

Rear right side driving torque

4.

Rear left side driving torque

DLN-14

< SYSTEM DESCRIPTION >

[TRANSFER: TY21B]

STRUCTURE AND OPERATION

STRUCTURE AND OPERATION

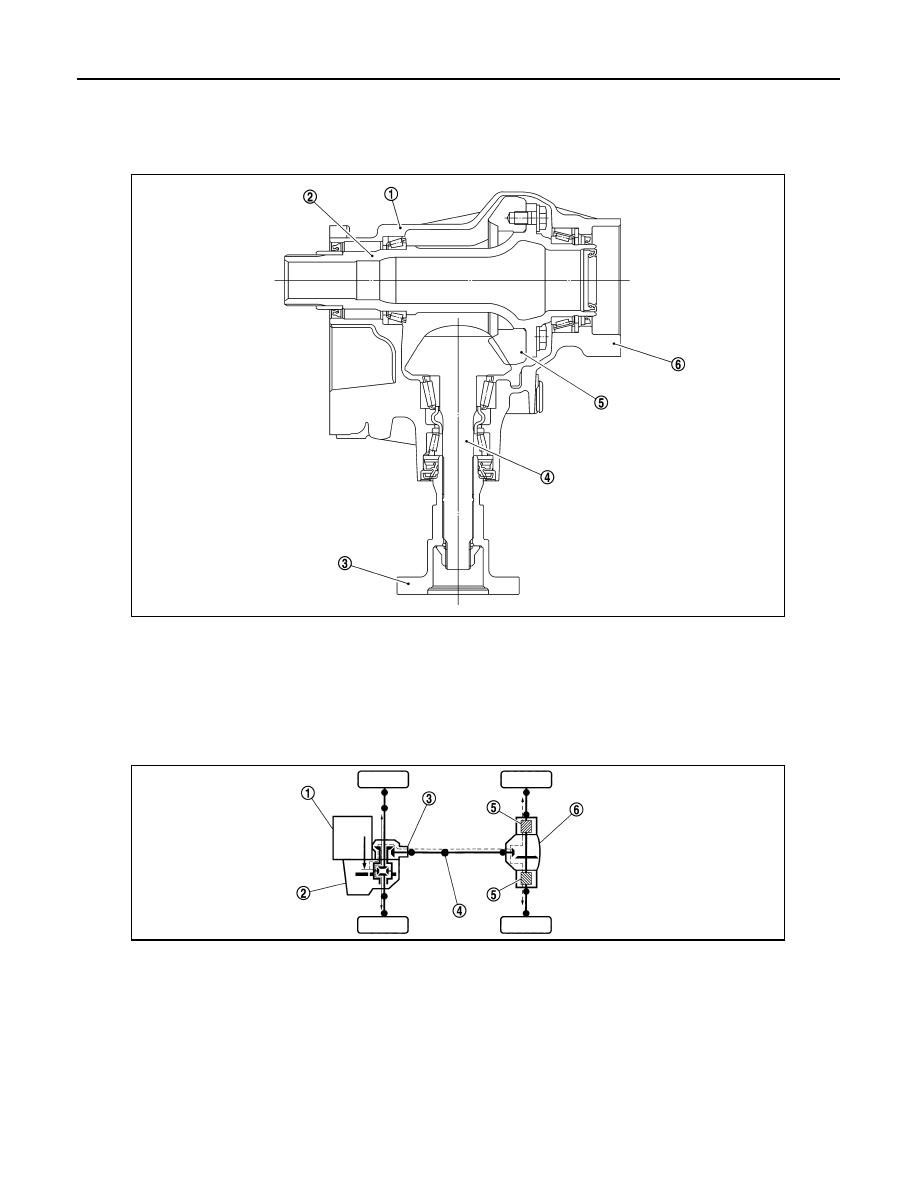

Sectional View

INFOID:0000000012199360

Operation Principle

INFOID:0000000012199361

POWER TRANSFER DIAGRAM

ELECTRIC CONTROLLED COUPLING

1.

Transfer cover

2.

Ring gear shaft

3.

Companion flange

4.

Drive pinion

5.

Ring gear

6.

Transfer case

JSDIA2068ZZ

1.

Engine

2.

Transaxle

3.

Transfer

4.

Propeller shaft

5.

Electric controlled coupling

6.

Rear final drive

JSDIA2069ZZ

STRUCTURE AND OPERATION

DLN-15

< SYSTEM DESCRIPTION >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

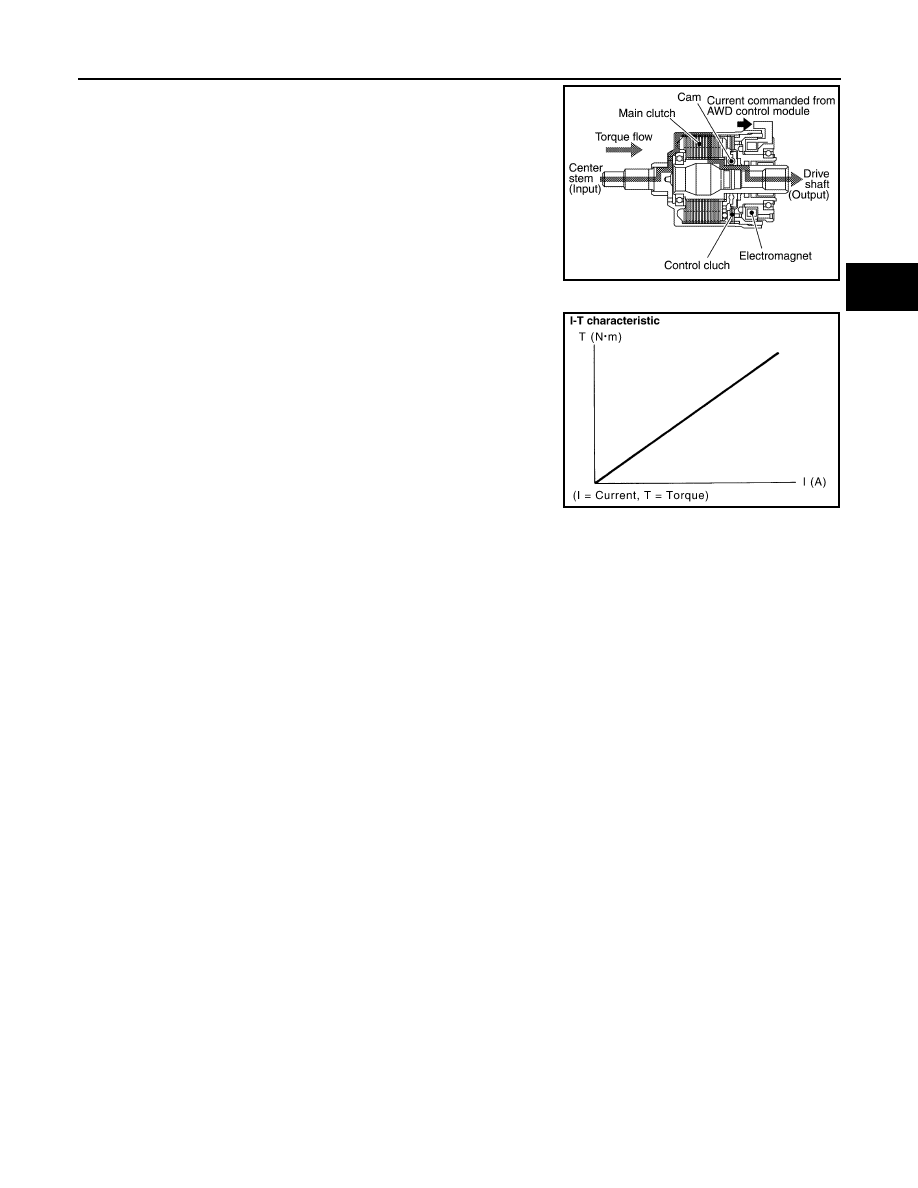

1. The AWD control module supplies command current to each

electric controlled coupling (AWD solenoid).

2. Each of control clutch is engaged by electromagnet and torque

is detected in control clutch.

3. The cam operates in response to control clutch torque and

applies pressure to main clutch.

4. Each of main clutch transmits torque to right and left rear wheels

according to pressing power.

NOTE:

Change each pressing power according to AWD mode status

and cornering conditions.

• Transmission torque to the right and left rear wheels is deter-

mined according to command current.

JSDIA2372GB

SDIA1844E

DLN-16

< SYSTEM DESCRIPTION >

[TRANSFER: TY21B]

SYSTEM

SYSTEM

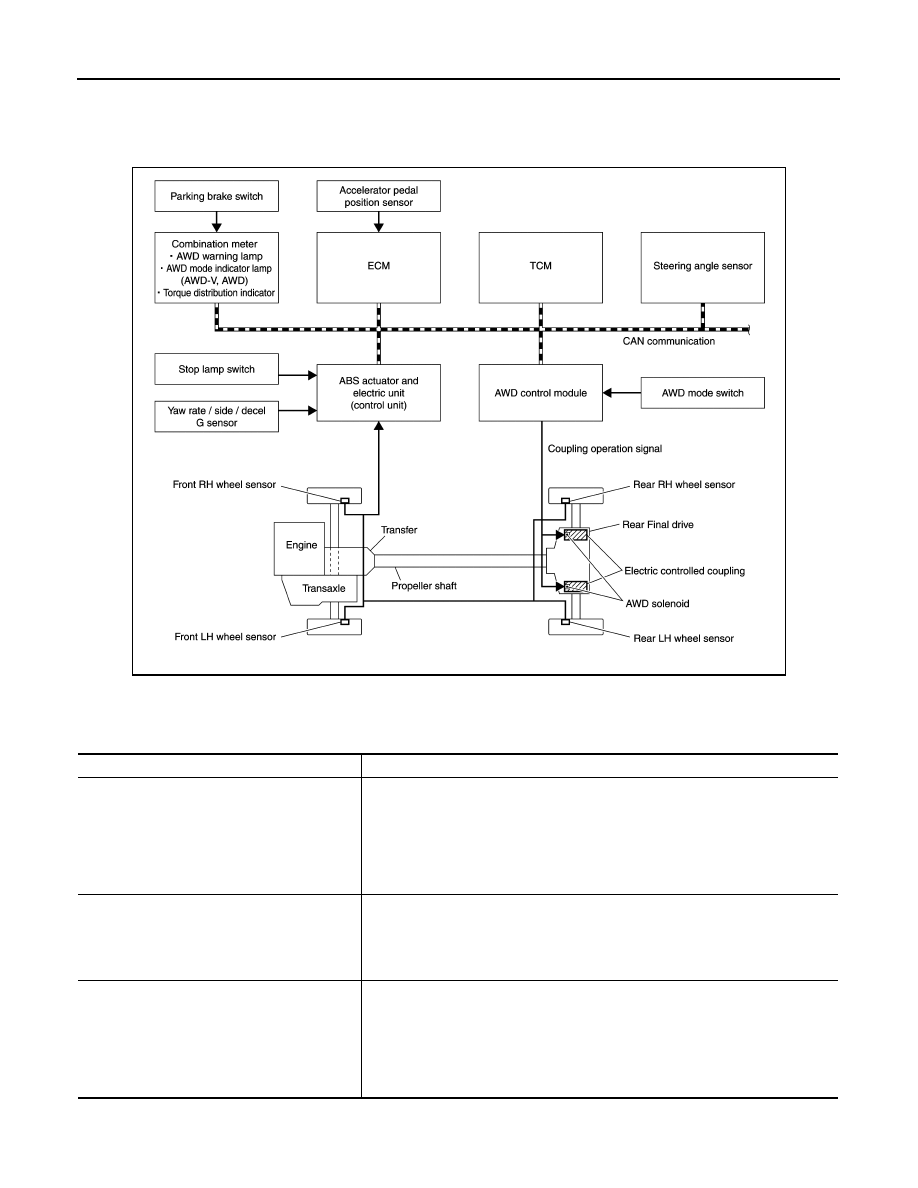

AWD SYSTEM
AWD SYSTEM : System Diagram

INFOID:0000000012199362

INPUT/OUTPUT SIGNAL

It transmits/receives each signal from the following AWD control module via CAN communication line.

JSDIA2373GB

Component parts

Signal item

ABS actuator and electric unit (control unit)·

Mainly transmits the following signals via CAN communication line to AWD control
module.
• Vehicle speed signal (ABS)
• Stop lamp switch signal (brake signal)
• Yaw rate signal
• Side G sensor signal
• Decel G sensor signal

ECM

Mainly transmits the following signals via CAN communication line to AWD control
module.
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal

TCM

Mainly transmits the following signals via CAN communication line to AWD control
module.
• Next gear position signal
• Current gear position signal
• Input shaft revolutional signal
• Output shaft revolutional signal
• CVT ratio signal
