OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000012196755

REMOVAL

Remove the driver side outside handle. Refer to

DLK-158, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000012196756

REMOVAL

Remove the passenger side outside handle. Refer to

DLK-158, "OUTSIDE HANDLE : Removal and Installa-

tion"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER
REAR BUMPER : Removal and Installation

INFOID:0000000012196757

REMOVAL

1. Remove the rear bumper fascia. Refer to

EXT-23, "Removal and Installation"

.

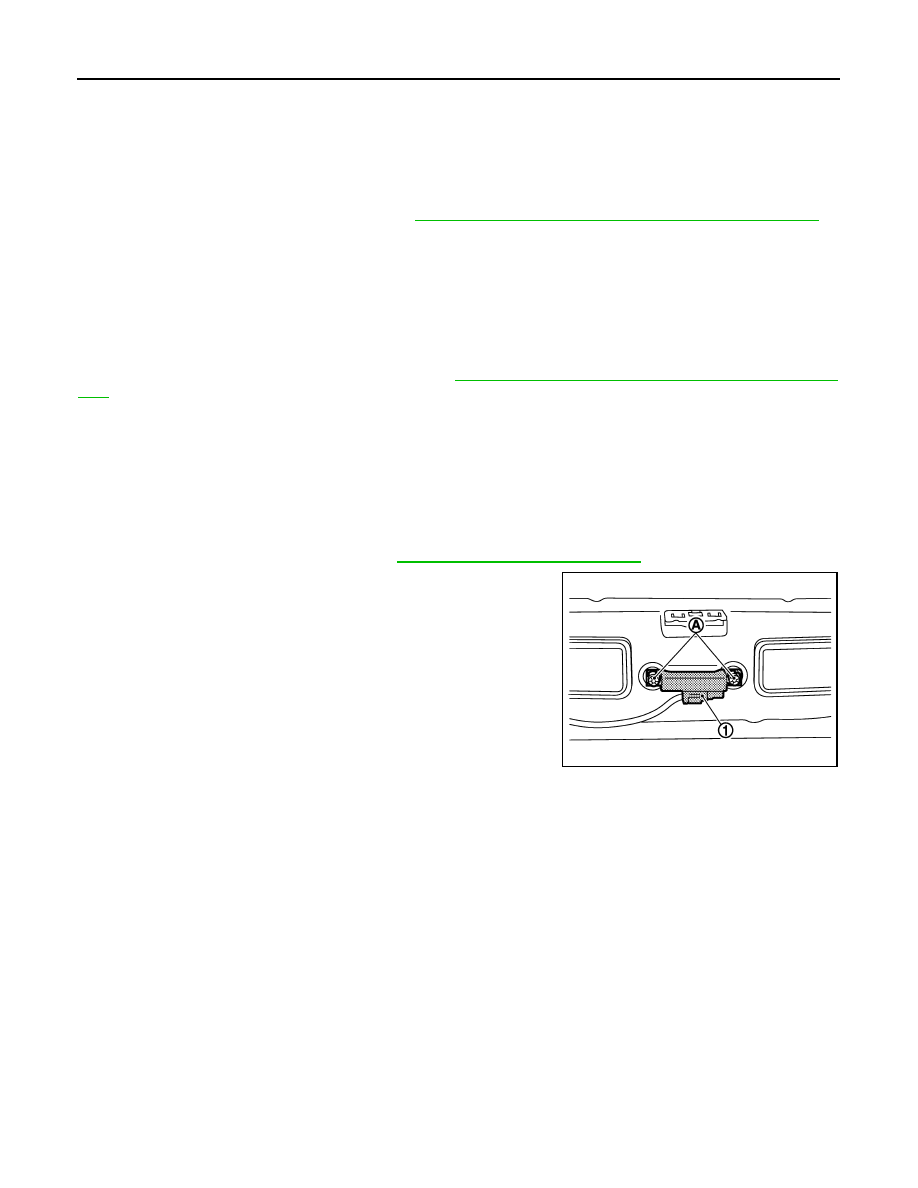

2. Remove the outside key antenna (rear bumper) (1) mounting

clip (A), then remove outside key antenna (rear bumper).

INSTALLATION

Install in the reverse order of removal.

JMKIA5580ZZ

INTELLIGENT KEY WARNING BUZZER

DLK-173

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000012196758

REMOVAL

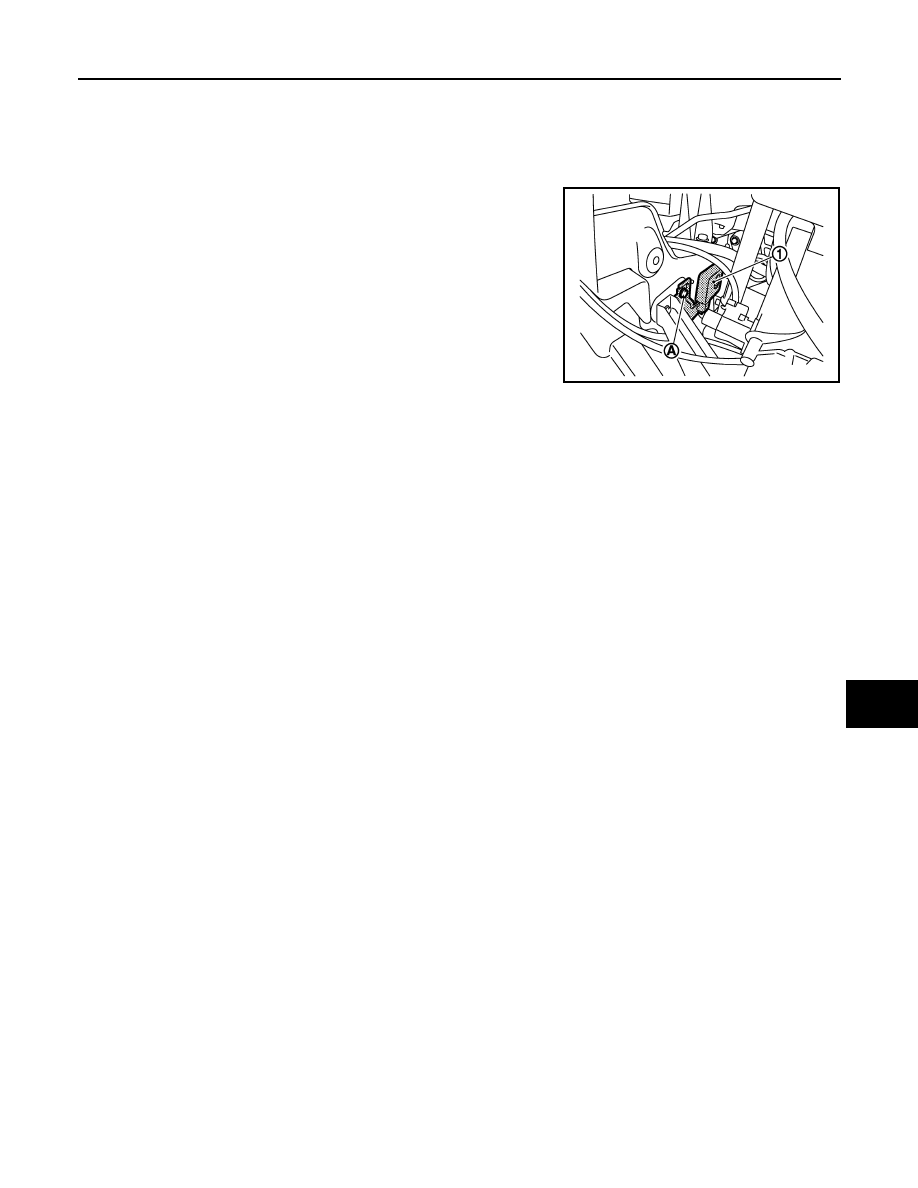

1. Remove the Intelligent Key warning buzzer (1) mounting bolt

(A), and then remove the Intelligent Key warning buzzer.

INSTALLATION

Install in the reverse order of removal.

JMKIA5571ZZ

DLK-174

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000012196759

REMOVAL

1. Remove the glove box assembly. Refer to

IP-13, "Removal and Installation"

.

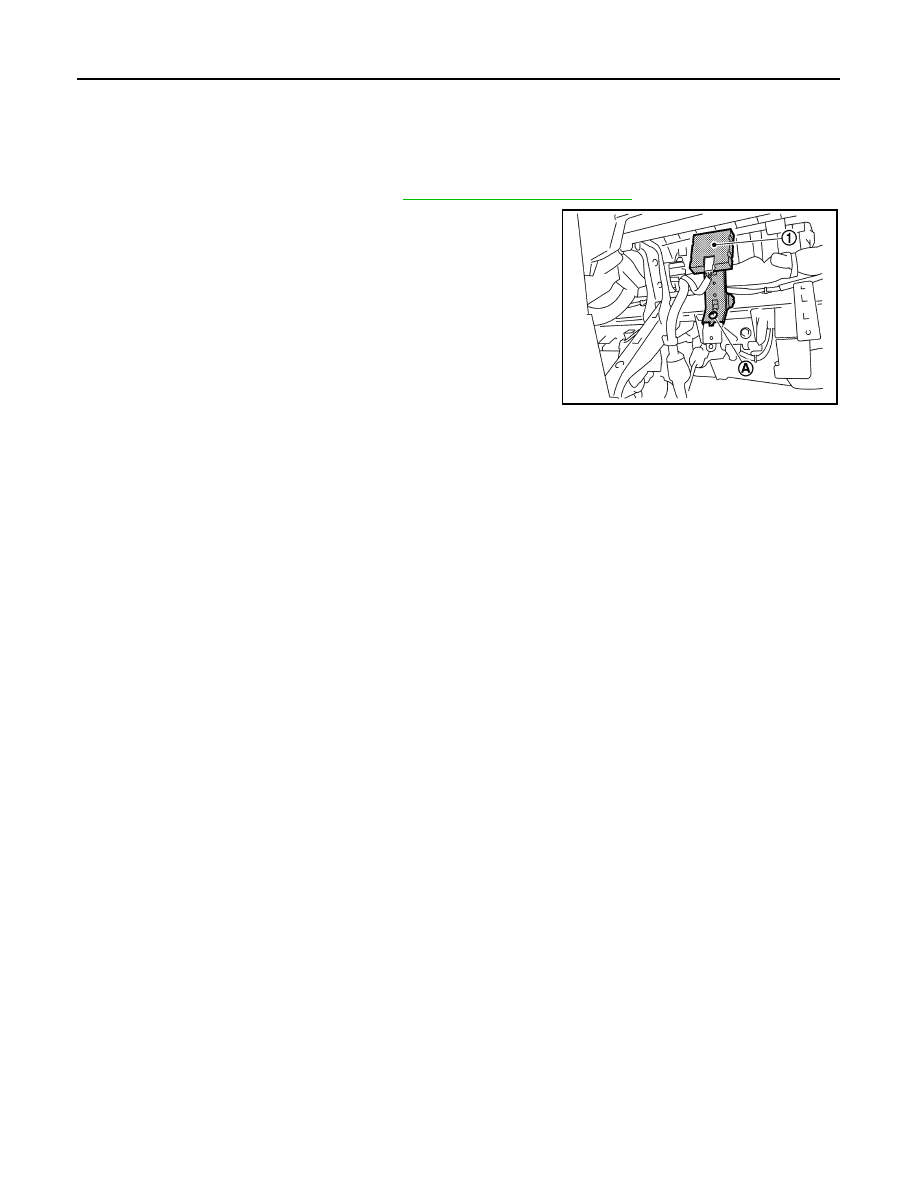

2. Remove the remote keyless entry receiver (1) mounting bolt (A),

and then remove remote keyless entry receiver.

INSTALLATION

Install in the reverse order of removal.

JMKIA6084ZZ

INTELLIGENT KEY BATTERY

DLK-175

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000012196760

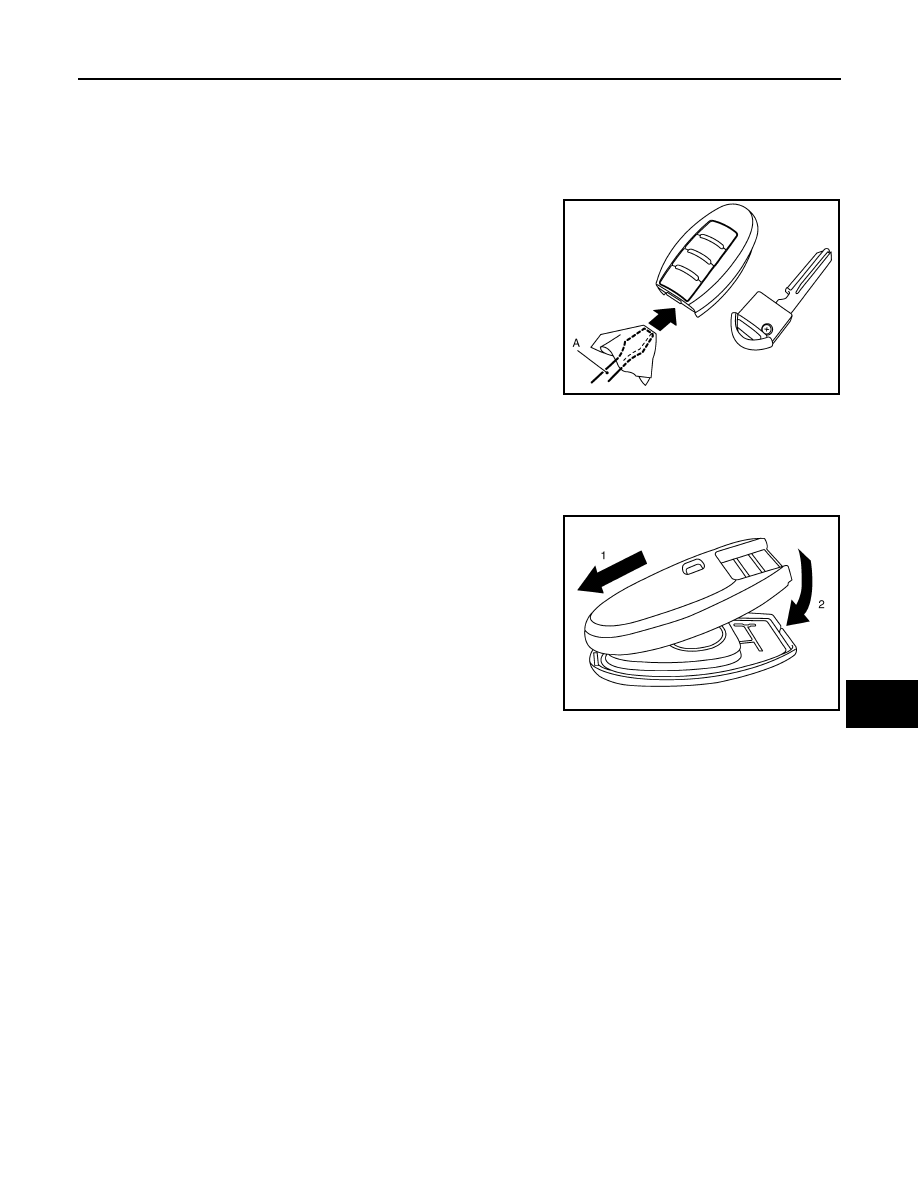

1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2. Insert a remover tool (A) wrapped with a cloth into the slit of the

corner and twist it to separate the upper part from the lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Replace the battery with new one.

4. Align the tips of the upper and lower parts, and then push them

together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2025)

PIIB6222E
