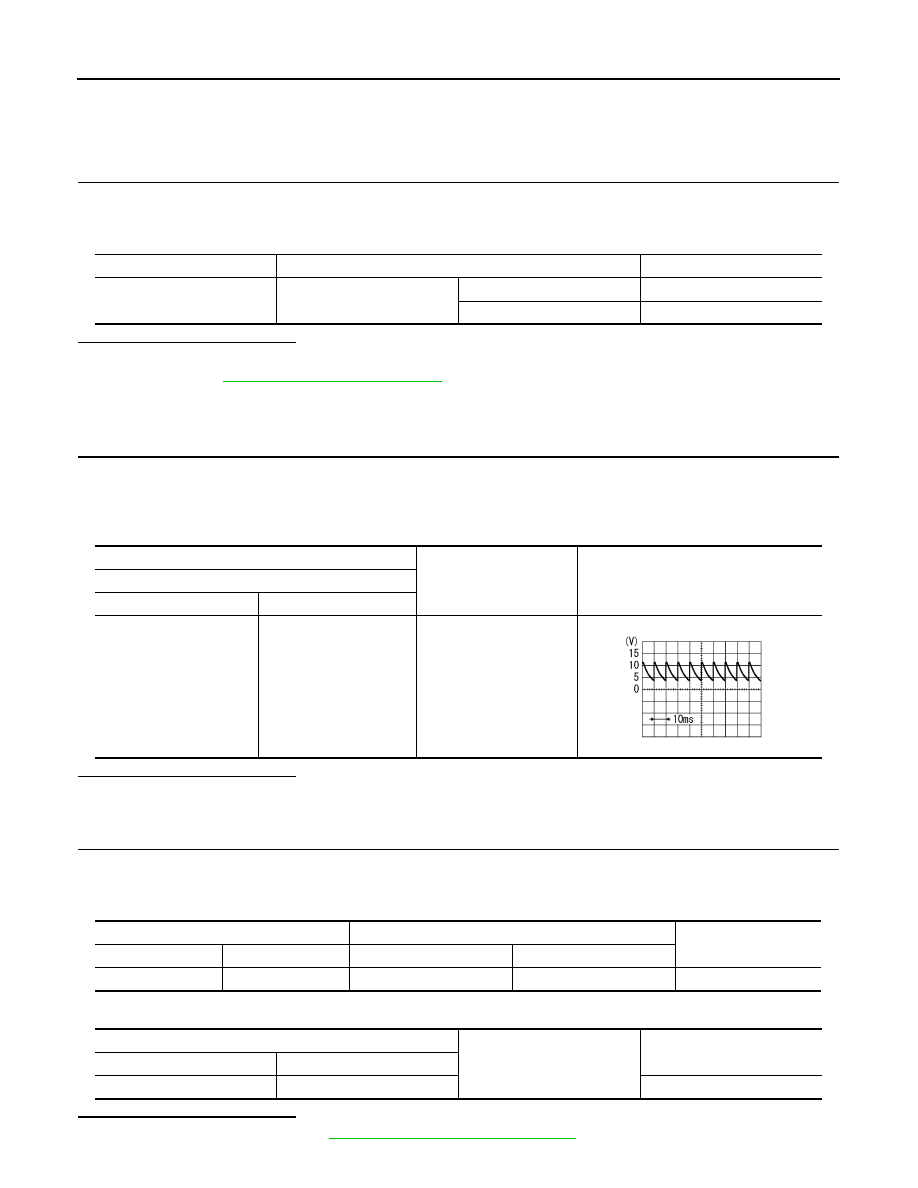

DLK-88

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

UNLOCK SENSOR

UNLOCK SENSOR

Component Function Check

INFOID:0000000012196656

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “UNLK SEN -DR” in “DATA MONITOR” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Unlock sensor is OK.

NO

>> Refer to

DLK-88, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196657

1.

CHECK BCM OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly (driver side) connector.

3. Check signal between front door lock assembly (driver side) harness connector and ground using oscillo-

scope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK UNLOCK SENSOR CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM harness connector and front door lock assembly (driver side) harness

connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

Monitor item

Condition

Status

UNLK SEN -DR

Driver side door

Lock

OFF

Unlock

ON

(+)

(–)

Signal

(Reference value)

Front door lock assembly (driver side)

Connector

Terminal

D38

3

Ground

PKIB4960J

BCM

Front door lock assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M68

31

D38

3

Existed

BCM

Ground

Continuity

Connector

Terminal

M68

31

Not existed

UNLOCK SENSOR

DLK-89

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NO

>> Repair or replace harness.

3.

CHECK UNLOCK SENSOR GROUND CIRCUIT

Check continuity between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK UNLOCK SENSOR

Refer to

DLK-89, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace front door lock assembly (driver side).

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012196658

1.

CHECK UNLOCK SENSOR

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly (driver side) connector.

3. Check continuity between front door lock assembly (driver side) terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace front lock assembly (driver side).

Front door lock assembly (driver side)

Ground

Continuity

Connector

Terminal

D38

4

Existed

Front door lock assembly (driver side)

Condition

Continuity

Terminal

3

4

Driver side door

Unlock

Existed

Lock

Not existed

DLK-90

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

SYMPTOM DIAGNOSIS

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK
SWITCH

ALL DOOR
ALL DOOR : Description

INFOID:0000000012196659

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

INFOID:0000000012196660

1.

CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.

Refer to

DLK-73, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-68, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000012196661

Driver side door does not lock/unlock using door lock and unlock switch.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000012196662

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-68, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

PASSENGER SIDE

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-91

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PASSENGER SIDE : Description

INFOID:0000000012196663

Passenger side door does not lock/unlock using door lock and unlock switch.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000012196664

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).

Refer to

DLK-69, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

REAR LH
REAR LH : Description

INFOID:0000000012196665

Rear LH side door does not lock/unlock using door lock and unlock switch.

REAR LH : Diagnosis Procedure

INFOID:0000000012196666

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.

Refer to

DLK-70, "REAR LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

REAR RH
REAR RH : Description

INFOID:0000000012196667

Rear RH side door does not lock/unlock using door lock and unlock switch.

REAR RH : Diagnosis Procedure

INFOID:0000000012196668

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH.

Refer to

DLK-71, "REAR RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-94, "Removal and Installation"

.
