REAR WINDOW DEFOGGER FEEDBACK SIGNAL
DEF-29
< DTC/CIRCUIT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
M
A
B
DEF
N
O
P
REAR WINDOW DEFOGGER FEEDBACK SIGNAL
Description
INFOID:0000000012196847
Turns the indicator lamp in the rear window defogger switch ON when operating the rear window defogger.
Component Function Check
INFOID:0000000012196848
1.
CHECK REAR WINDOW DEFOGGER FEEDBACK SIGNAL
Check that the indicator lamp of rear window defogger switch is illuminated when turning the rear window
defogger switch ON.
Is the inspection result normal?
OK
>> Rear window defogger feedback signal is OK.
NG
>> Refer to
.
Diagnosis Procedure

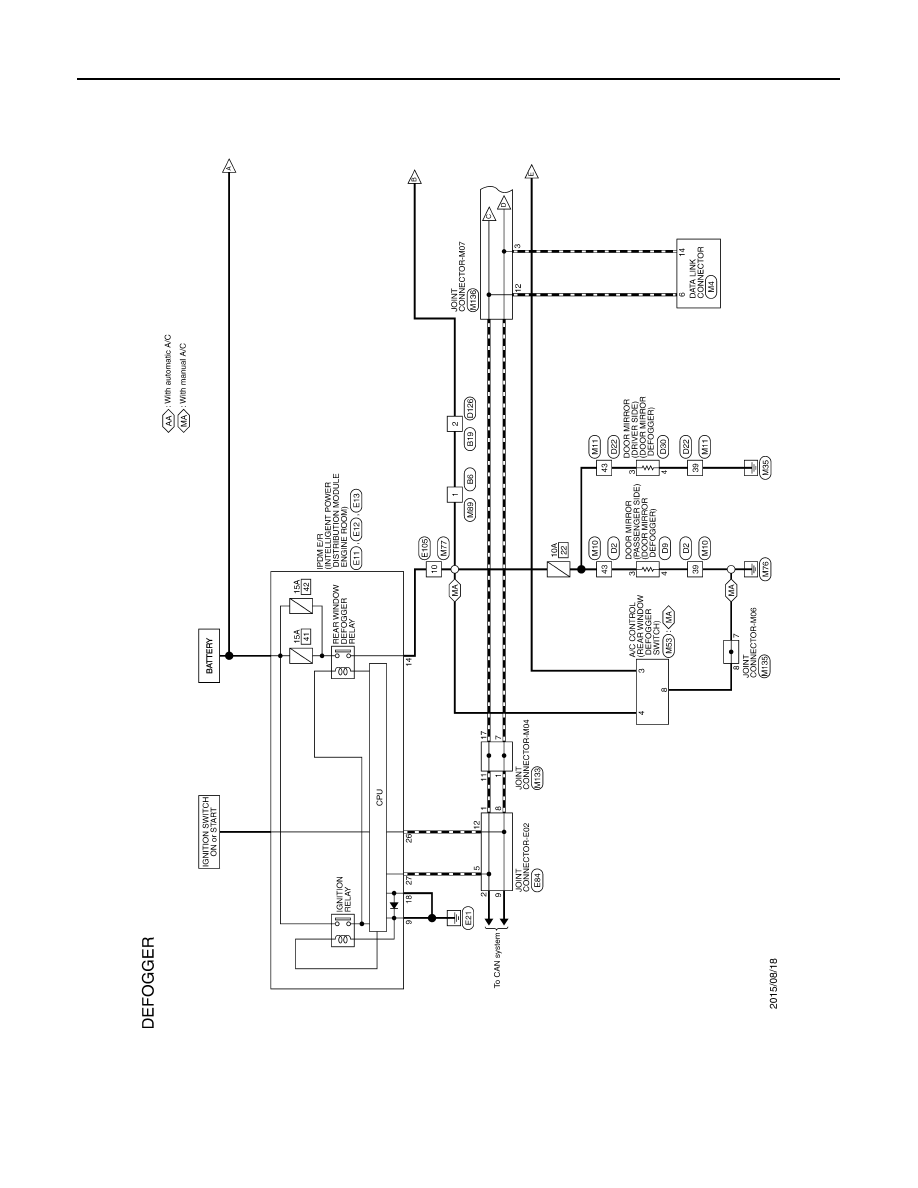

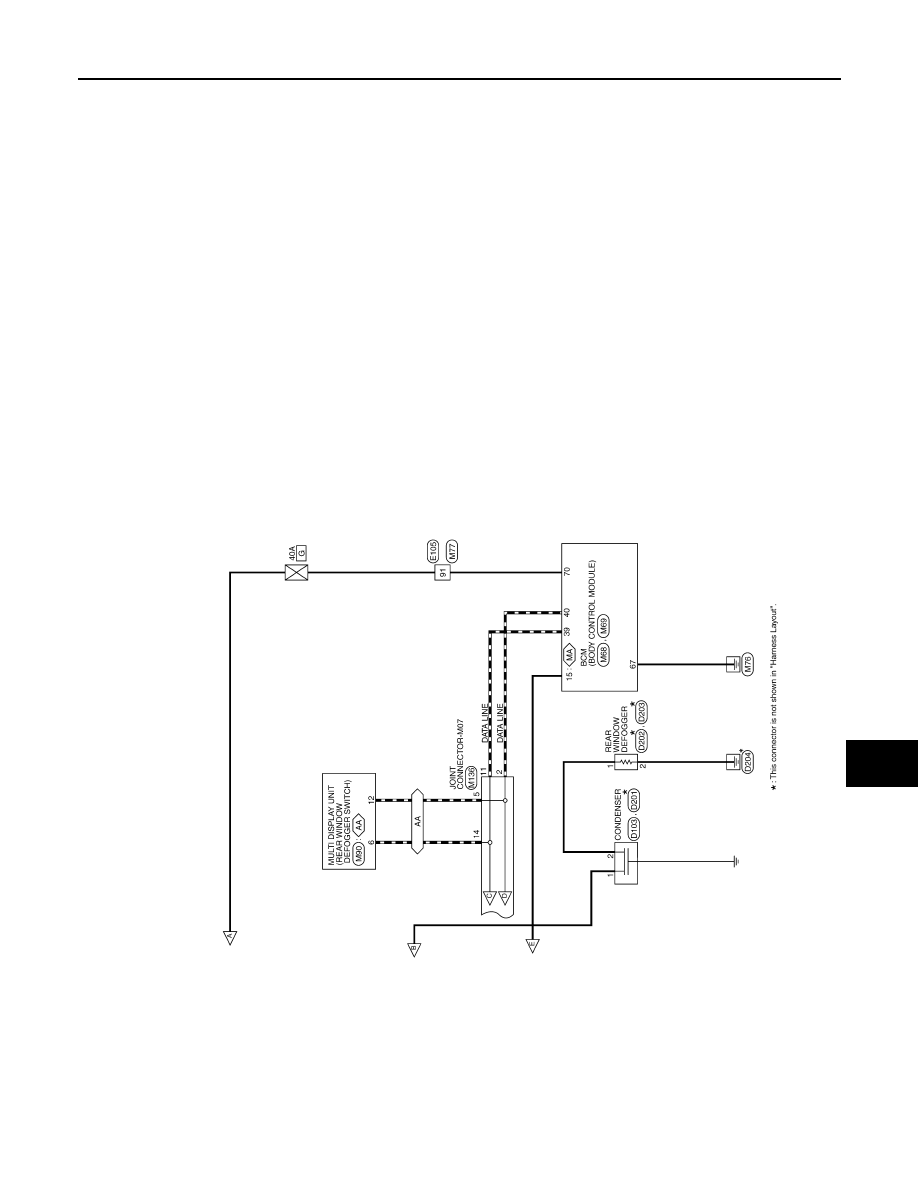

INFOID:0000000012196849
1.
CHECK REAR WINDOW DEFOGGER FEEDBACK SIGNAL
1. Turn ignition switch ON.
2. Check voltage between A/C control harness connector and ground.
Is the inspection result normal?
YES
>> Replace A/C control. Refer to
HAC-151, "Removal and Installation"
NO
>> Repair or replace harness.
A/C control
Ground
Condition
Voltage (V)
(Approx.)
Connector
Terminal
M53
4
Rear window defogger switch
ON
Battery voltage
OFF
0
