Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto

active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

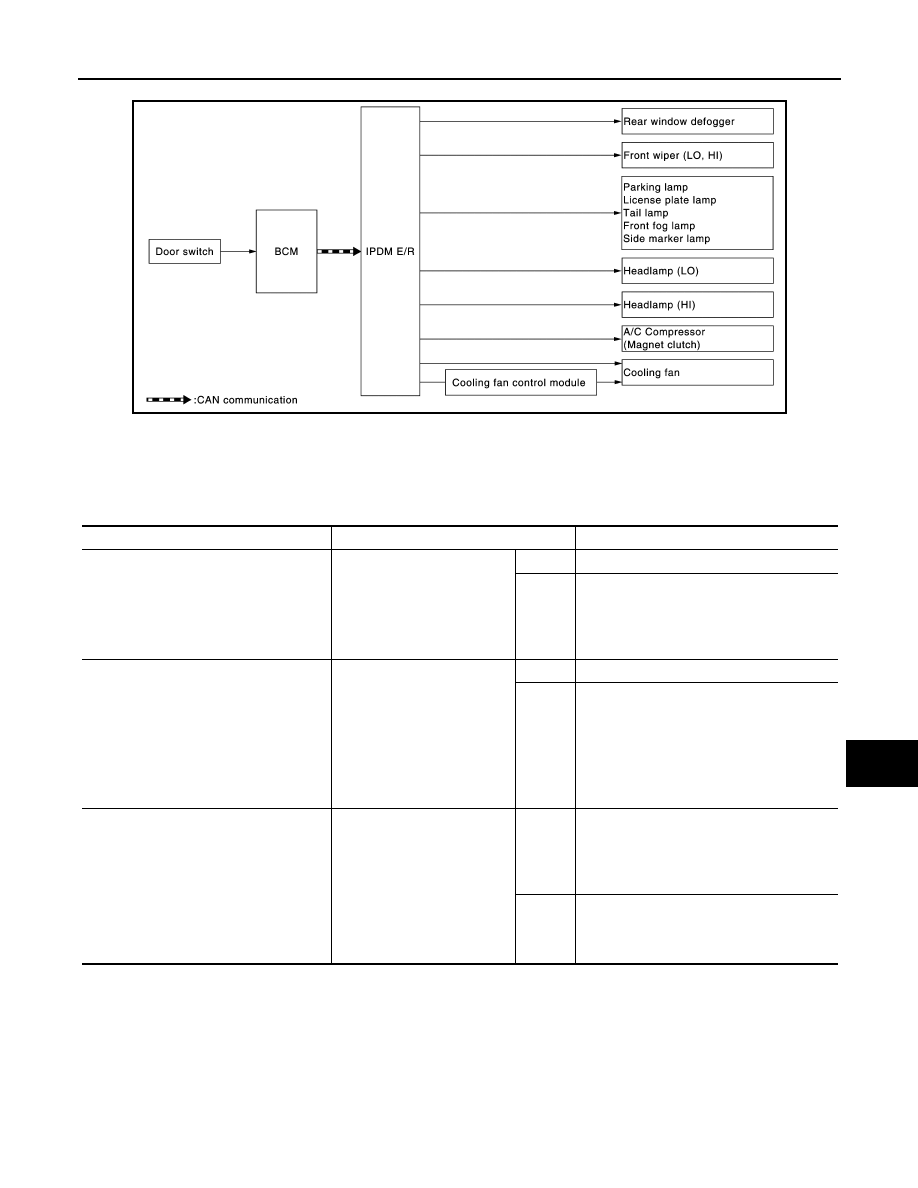

Diagnosis chart in auto active test mode

JMMIA0588GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger ground circuit
• Harness or connector between IPDM E/R

and rear window defogger

• IPDM E/R

Any of the following components do not
operate

• Parking lamp
• License plate lamp
• Tail  lamp
• Side marker lamp
• Front  fog  lamp
• Headlamp (HI, LO)
• Front wiper motor

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground circuit
• Harness or connector between IPDM E/R

and applicable system

• IPDM E/R

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• A/C amp. signal input circuit
• CAN communication signal between A/C

amp. and ECM

• CAN communication signal between ECM

and IPDM E/R

NO

• Magnet clutch
• Harness or connector between IPDM E/R

and magnet clutch

• IPDM E/R

DEF-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

CONSULT Function (IPDM E/R)

INFOID:0000000012964924

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

PCS-24, "DTC Index"

.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal between ECM

and IPDM E/R

NO

• Harness or connector between IPDM E/R

and cooling fan relay

• Harness or connector between IPDM E/R

and cooling fan control module.

• Harness or connector between cooling fan

control module and cooling fan motor

• Cooling fan motor
• Cooling fan relay
• Cooling fan control module
• IPDM E/R

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN

SIGNALS

Description

RAD FAN REQ
[%]

×

Displays the value of the cooling fan speed request signal received from ECM via CAN
communication.

AC COMP REQ
[Off/On]

×

Displays the status of the A/C compressor request signal received from ECM via CAN
communication.

TAIL&CLR REQ
[Off/On]

×

Displays the status of the position light request signal received from BCM via CAN
communication.

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN com-
munication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN com-
munication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via CAN
communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY1 -REQ
[Off/On]

Displays the status of the ignition switch ON signal received from BCM via CAN com-
munication.

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

DEF-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

ACTIVE TEST

Test item

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

PUSH SW
[Off/On]

Displays the status of the push-button ignition switch judged by IPDM E/R.

INTER/NP SW
[Off/On]

Displays the status of the ignition power supply (M/T models) or shift position (CVT
models) judged by IPDM E/R.

ST RLY CONT
[Off/On]

Displays the status of the starter relay status signal received from BCM via CAN com-
munication.

IHBT RLY -REQ
[Off/On]

Displays the status of the starter control relay signal received from BCM via CAN com-
munication.

ST/INHI RLY
[Off/ ST ON/INHI ON/UNKWN]

Displays the status of the starter relay and starter control relay judged by IPDM E/R.

DETENT SW
[Off/On]

Displays the status of the CVT shift selector (detention switch) judged by IPDM E/R.

S/L RLY -REQ
[Off/On]

NOTE:
This item is indicated, but not monitored.

S/L STATE
[LOCK/UNLK/UNKWN]

NOTE:
This item is indicated, but not monitored.

DTRL REQ
[Off/On]

Displays the status of the daytime running light request signal received from BCM via
CAN communication.
NOTE:
This item is monitored only for the except for NISMO models.

OIL P SW
[Open/Close]

NOTE:
This item is indicated, but not monitored.

HOOD SW
[Off/On]

NOTE:
This item is indicated, but not monitored.

HL WASHER REQ
[Off/On]

NOTE:
This item is indicated, but not monitored.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM via
CAN communication.

HORN CHIRP
[Off/On]

Displays the status of the horn reminder request signal received from BCM via CAN
communication.

Monitor Item

[Unit]

MAIN

SIGNALS

Description

Test item

Operation

Description

HORN

On

Operates horn relay for 20 ms.

REAR DEFOGGER

Off

OFF

On

Operates the rear window defogger relay.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

MOTOR FAN

1

OFF

2

Transmits 50% pulse duty signal (PWM signal) to the cooling fan control module.

3

Transmits 75% pulse duty signal (PWM signal) to the cooling fan control module.

4

Transmits 100% pulse duty signal (PWM signal) to the cooling fan control module.

HEAD LAMP WASHER

On

NOTE:
This item is indicated, but cannot be tested.

DEF-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 second
intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description
