MULTI-WAY CONTROL VALVE

CO-55

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Be sure to perform this operation when coolant temperature is cold.

2. Remove the engine cover. Refer to

EM-191, "Removal and Installation"

.

3. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

4. Remove the air duct inlet (upper), element case, and air cleaner case. Refer to

EM-192, "Removal and

Installation"

.

5. Disconnect the radiator hose (upper) from the water outlet adapter. Refer to

CO-46, "Exploded View"

.

6. Disconnect the reservoir tank hose from the water outlet adapter. Refer to

CO-46, "Exploded View"

.

7. Disconnect the water hose from the water outlet adapter. Refer to

EM-197, "Exploded View"

.

8. Disconnect the water outlet hose and the water outlet adapter.

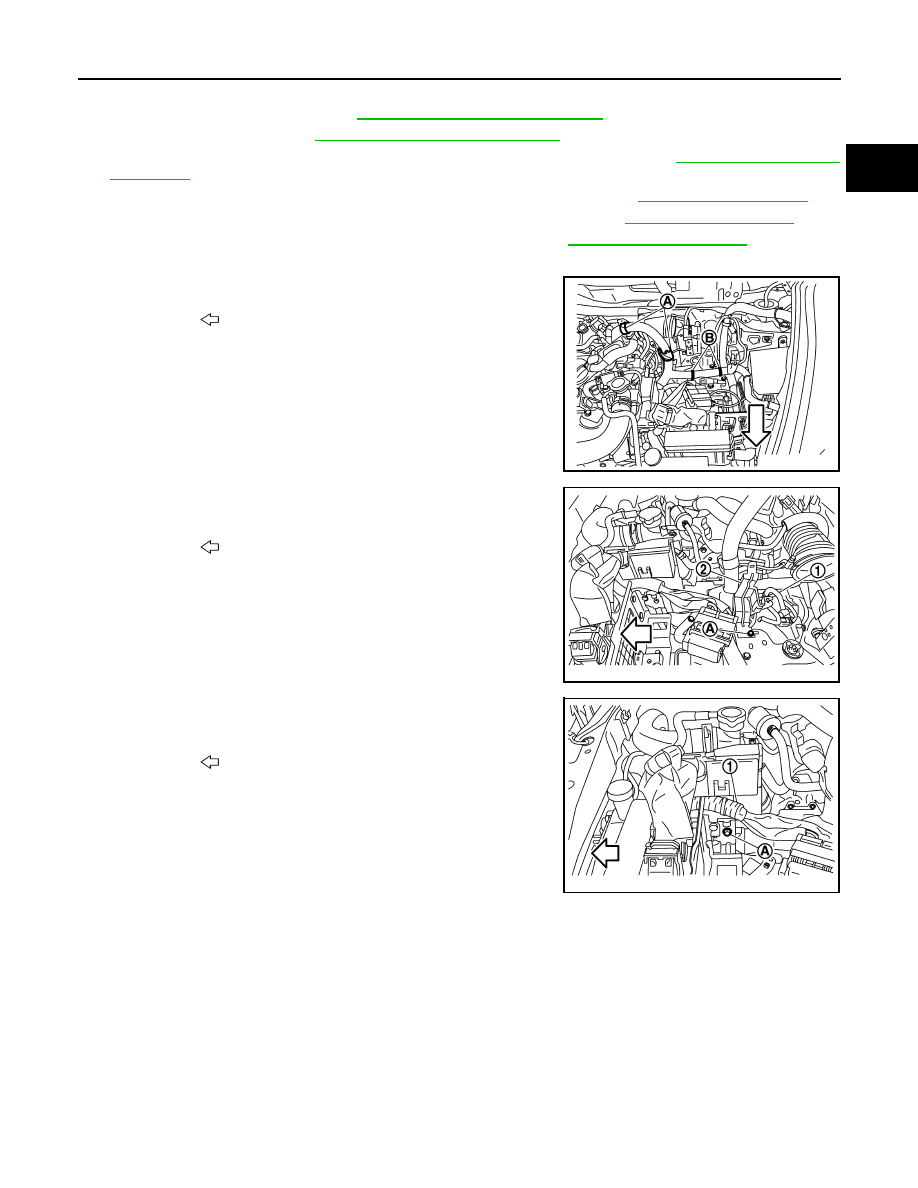

9. Remove the harness clamps (A) and harness clips (B).

10. Remove the breather hose (1) and bracket mounting bolt (A),

and then remove the bracket (2).

11. Remove the bracket mounting bolt (A) and move the engine har-

ness (1) to a location where it does not interfere with work.

12. Disconnect harness connector of coolant temperature sensor 1.
13. Disconnect the multi-way control valve harness connector.
14. Disconnect the water hose and heater hose.
15. Remove the multi-way control valve mounting bolt, and then

remove the multi-way control valve and gasket.

16. If necessary, remove engine coolant temperature sensor 1 from

the multi-way control valve.

CAUTION:

Handle it carefully and never subject it to impact.

INSTALLATION

Note the following, and install in the reverse order of removal.

Engine Coolant Temperature Sensor 1

CAUTION:

If engine coolant temperature sensor 1 is removed, never reuse it. Replace it with a new one.

Water Hose

Water outlet adapter side

: Vehicle front

JSBIA5711ZZ

: Vehicle front

JSBIA5712ZZ

: Vehicle front

JSBIA5713ZZ

CO-56

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

MULTI-WAY CONTROL VALVE

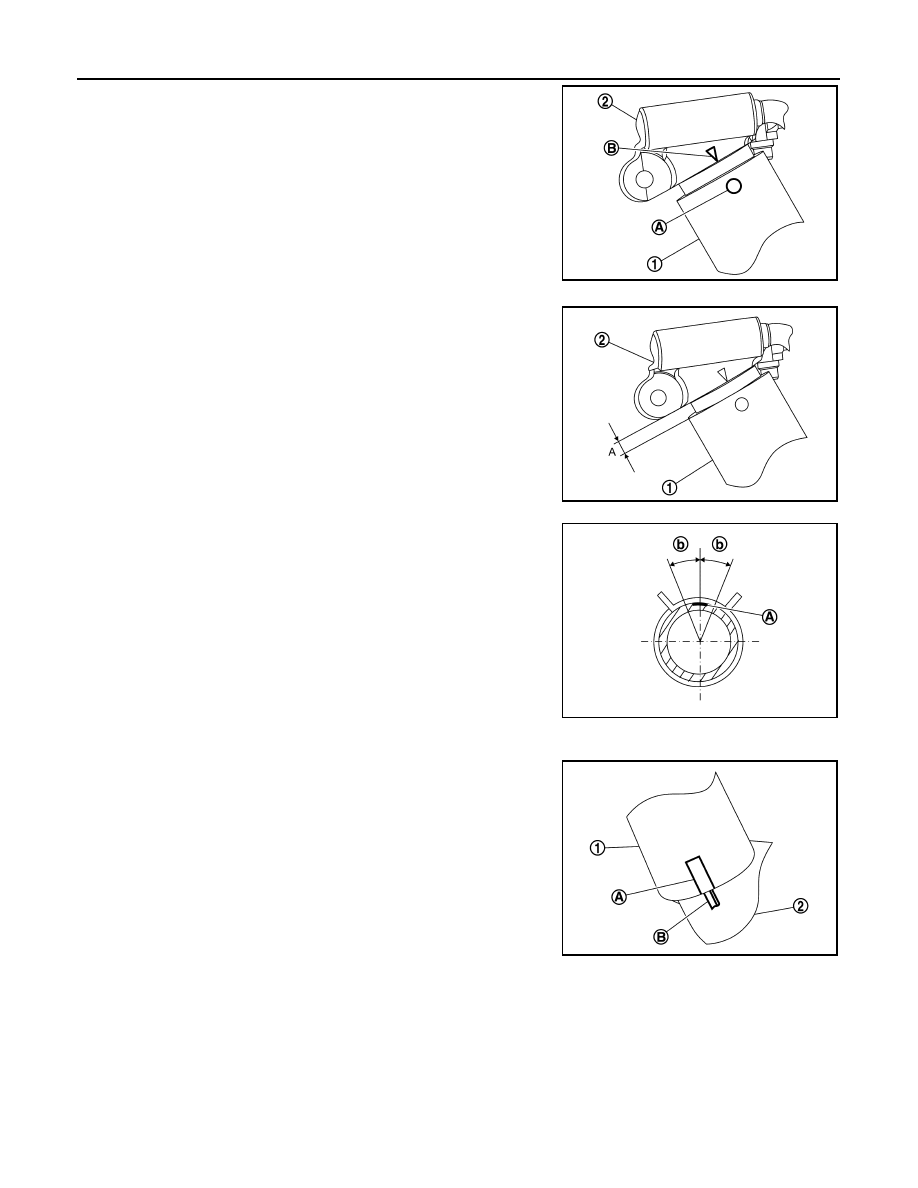

• When inserting the water outlet hose (1), align the water outlet

hose paint mark (A) with the mark (B) on the water outlet adapter

(2).

• Check that the distance (A) from the end of the water outlet hose

(1) to the water outlet adapter (2) is within the standard.

• The orientation of the hose clamp tabs must be within

± 15° (b) of

the water outlet hose paint mark (A).

Multi-way control valve side

• When inserting the water outlet hose (1), align the water outlet

hose paint mark (A) with the rib shape (B) on the multi-way control

valve (2).

JSBIA5714ZZ

Dimension (A)

: 5 mm

JSBIA5715ZZ

JSBIA5900ZZ

JSBIA5716ZZ

MULTI-WAY CONTROL VALVE

CO-57

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

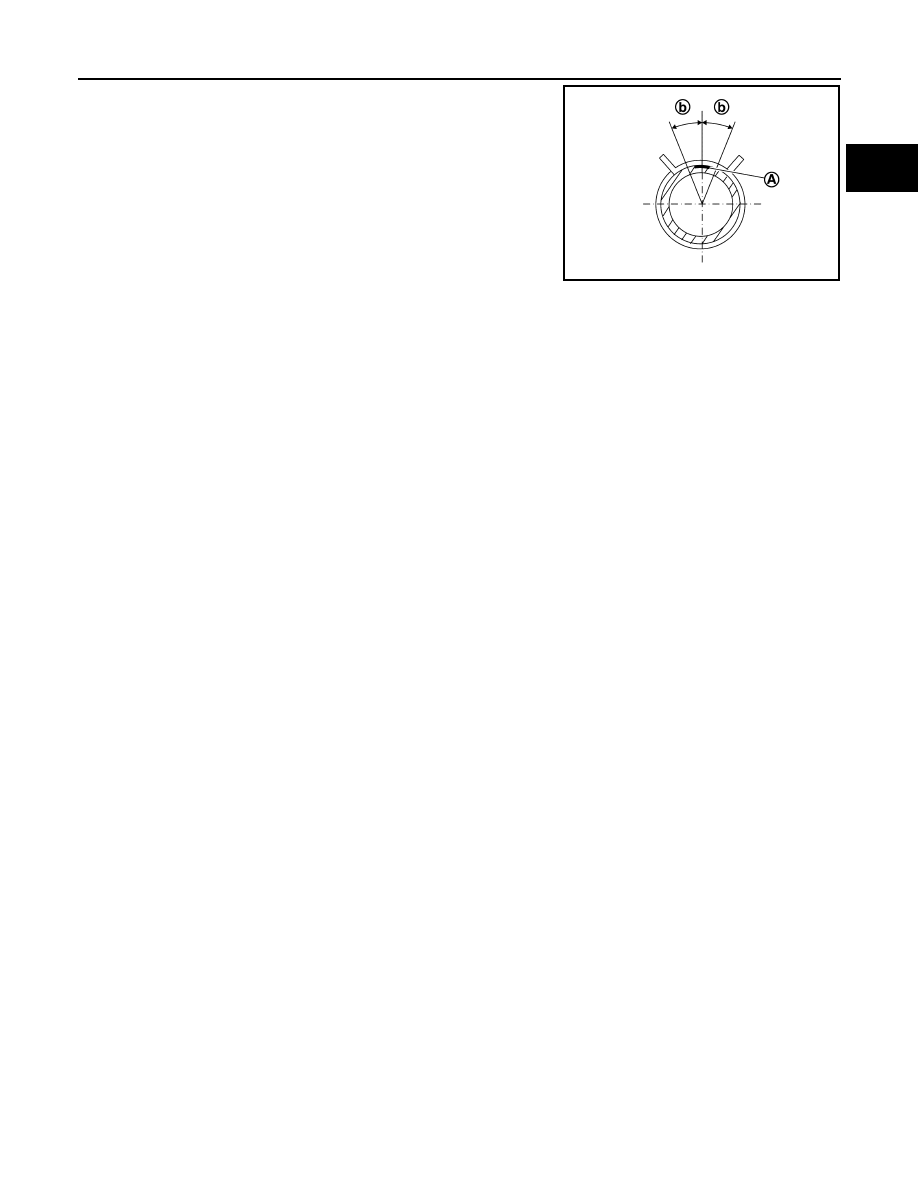

• The orientation of the hose clamp tabs must be within

± 15° (b) of

the water outlet hose paint mark (A).

Inspection

INFOID:0000000012197570

INSPECTION AFTER INSTALLATION

• Start the engine, and check the joints for coolant leakage.

JSBIA5900ZZ

CO-58

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000012197571

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

Radiator

INFOID:0000000012197572

Unit: kPa (kg/cm

2

, psi)

Engine coolant capacity (With reservoir tank at “MAX” level)

M/T models

8.5 (9, 7-1/2)

CVT models

8.7 (9-2/8, 7-5/8)

Reservoir tank engine coolant capacity (At “MAX” level)

0.6 (5/8, 1/2)

Cap relief pressure

Standard

80 - 100 (0.8 - 1.0, 11.6 - 14.5)

Limit

60 (0.6, 8.7)

Leakage testing pressure

100 (1.0, 14.5)
