CL-20

< UNIT REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

INSPECTION AFTER INSTALLATION

Clutch Cover

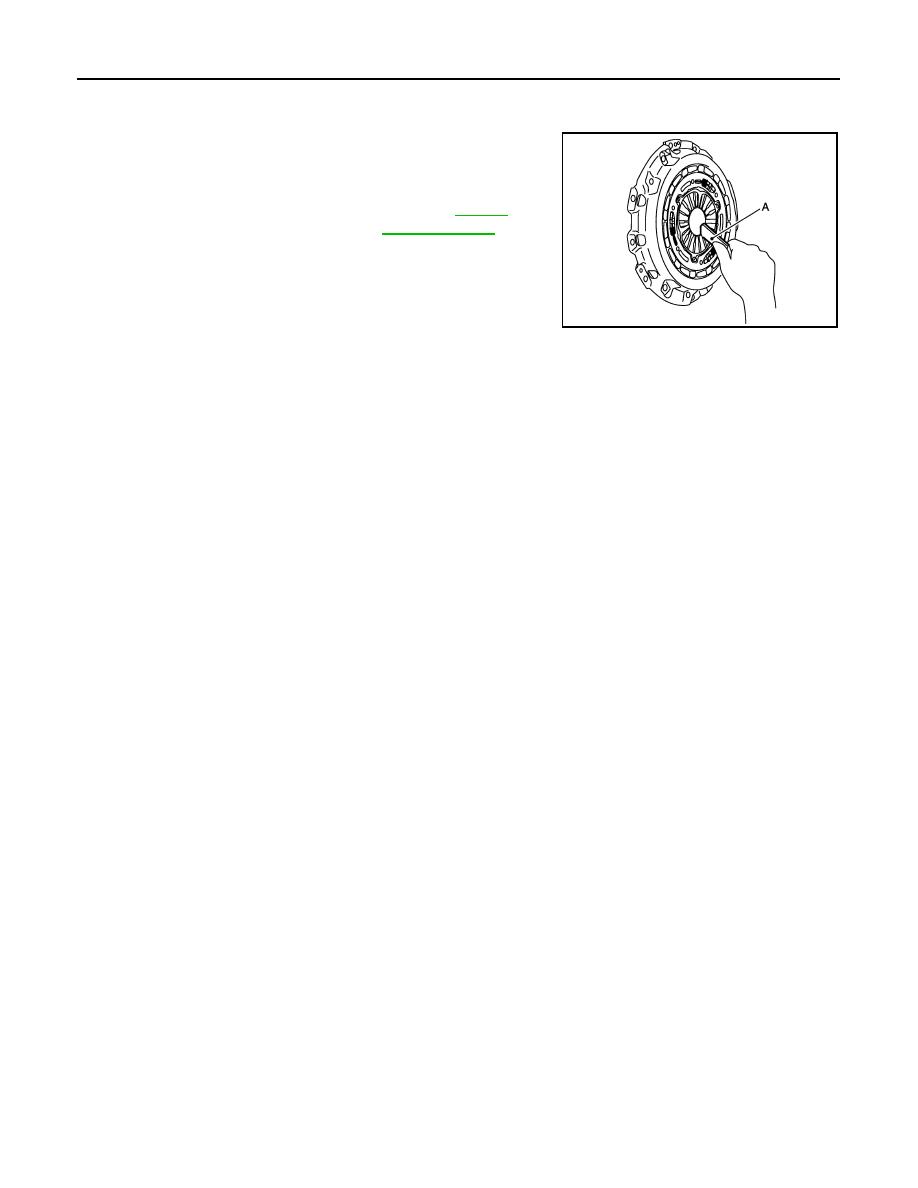

Check diaphragm spring lever claws for unevenness with the lever

still on the vehicle. If they exceed the tolerance, adjust lever height,

using the diaphragm adjusting wrench (A) [SST: ST20050240 ( - )].

Tolerance for diaphragm spring
lever unevenness

: Refer to

CL-21,

"Clutch Cover"

.

JPDIB0160ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

CL-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000012199564

Unit: mm (in)

Clutch Pedal

INFOID:0000000012199565

Unit: mm (in)

Clutch Disc

INFOID:0000000012199566

Unit: mm (in)

Clutch Cover

INFOID:0000000012199567

Unit: mm (in)

Engine type

MR16DDT

Transaxle type

RS6F94R

RS6F52H

Type of clutch control

Hydraulic

Clutch disc

Facing size (Outer dia.

× Inner dia. × Thickness)

230

× 155 × 3.2

(9.06

× 6.10 × 0.126)

Recommended clutch fluid

Refer to

MA-11, "Fluids and Lubricants"

.

Engine type

MR16DDT

Transaxle type

RS6F94R

RS6F52H

Clutch pedal height

169.7 – 179.7 (6.68 – 7.07)

Clutch pedal height at clutch disengagement

80 (3.15) or more

Clutch pedal play
[Looseness at clutch pedal pin]

2 – 8 (0.08 – 0.31)

[0 – 1.3 (0 – 0.051)]

Clearance between stopper rubber and clutch interlock switch
threaded end while clutch pedal is fully depressed.

0.74 – 1.96 (0.0291 – 0.0772)

Clearance between clutch pedal and clutch pedal position switch
threaded end while clutch pedal is fully released.

0.74 – 1.96 (0.0291 – 0.0772)

Engine type

MR16DDT

Transaxle type

RS6F94R

RS6F52H

Runout limit/diameter of the area to be measured

1.0 (0.039) / 220 (8.66) dia.

Maximum allowable spline backlash (at outer edge of disc)

0.9 (0.035)

Facing wear limit (depth to the rivet head)

0.35 (0.0138)

Engine type

MR16DDT

Transaxle type

RS6F94R

RS6F52H

Tolerance for diaphragm spring lever unevenness

0.7 (0.028) or less
