SYSTEM DESCRIPTION

COMPONENT PARTS

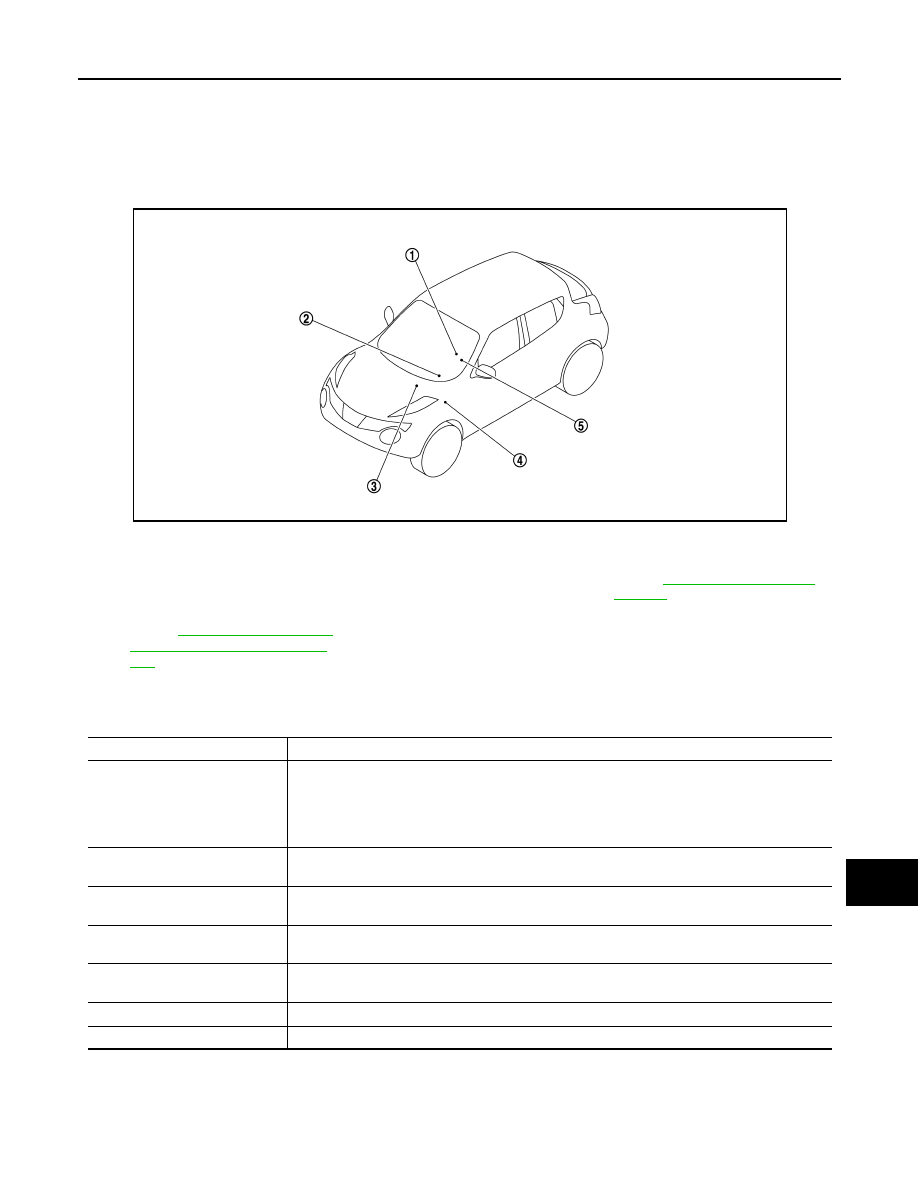

Component Parts Location

INFOID:0000000012201461

Component Description

INFOID:0000000012201462

1.

Parking brake switch

2.

Combination meter

3.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-9, "Component Parts

Location"

.

4.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

5.

Seat belt buckle switch (driver side)



JSNIA3559ZZ

Unit

Description

Combination meter

• Receives a buzzer output signal from the BCM with CAN communication line and sounds the

buzzer.

• Judges whether the parking brake is released from the vehicle speed signal received from the

ABS actuator and electric unit (control unit) with CAN communication line and the parking
brake switch signal from the parking brake switch, and sounds the buzzer if necessary.

BCM

Based on the signals received from various units and switches, transmits the buzzer output sig-
nal to the combination meter via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to combination meter via CAN communication.

Seat belt buckle switch (driver
side)

Transmits a seat belt buckle switch signal (driver side) to the combination meter.

Combination switch
(Lighting switch)

Transmits the combination switch signal to BCM.

Front door switch (driver side)

Transmits the driver side door switch signal to BCM.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

WCS-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Combination Meter

INFOID:0000000012201463

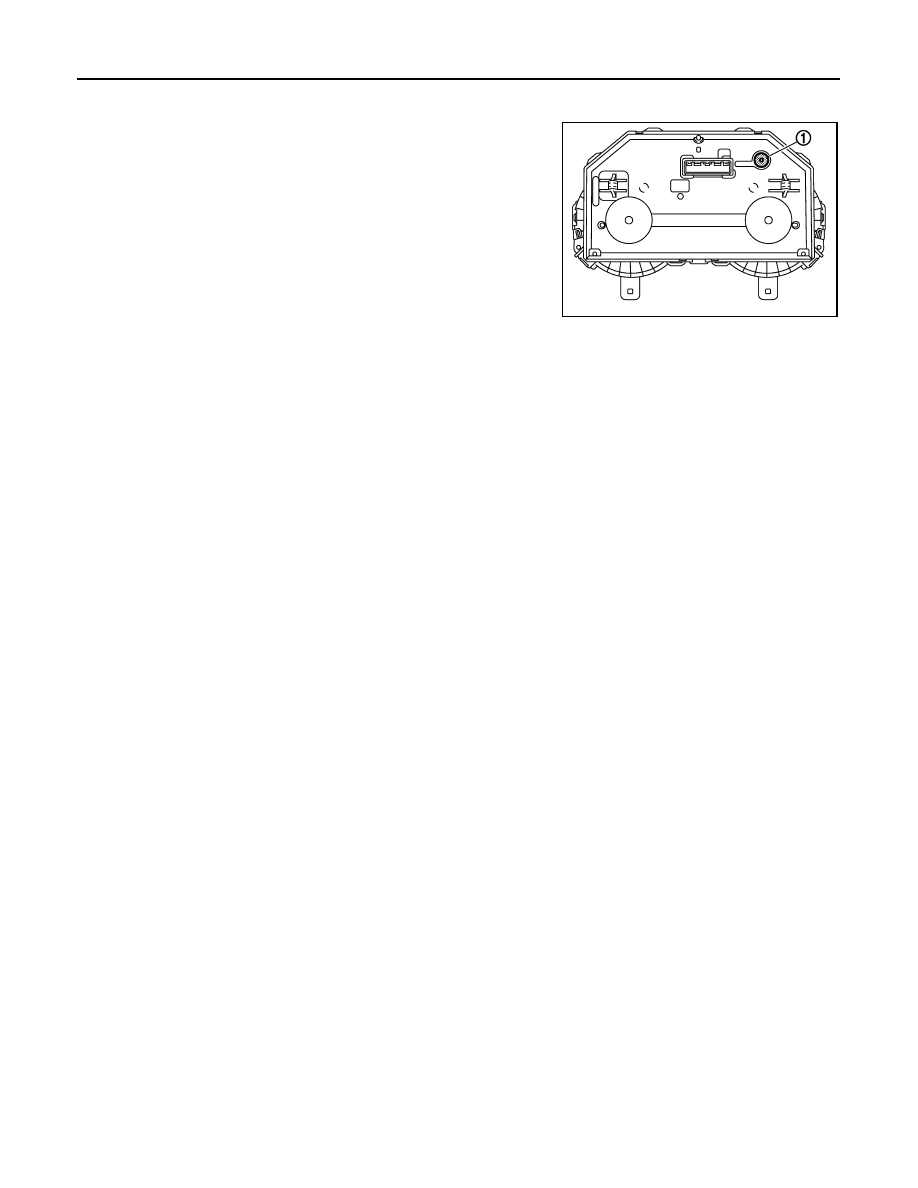

The buzzer (1) for the warning chime system is integrated in the

combination meter.

JSNIA3231ZZ

WCS

SYSTEM

WCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

WARNING CHIME SYSTEM

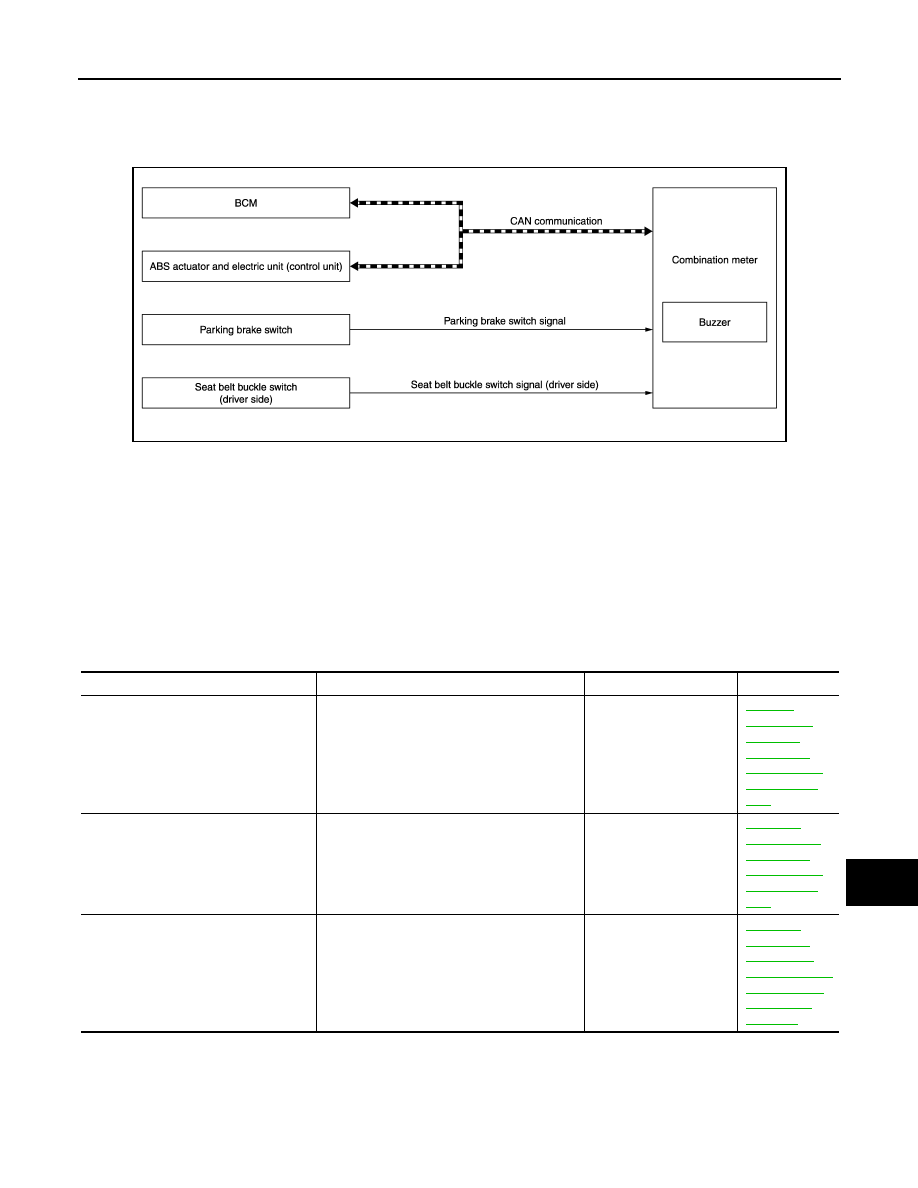

WARNING CHIME SYSTEM : System Diagram

INFOID:0000000012201464

WARNING CHIME SYSTEM : System Description

INFOID:0000000012201465

COMBINATION METER

The combination meter sounds the alarm buzzer installed in the combination meter when receiving the buzzer

output signal transmitted from each unit.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the combination meter via

CAN communication if it judges that the warning buzzer should be activated.

WARNING CHIME FUNCTION LIST

WARNING CHIME SYSTEM : Fail-Safe

INFOID:0000000012201466

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

JSNIA3116GB

Warning functions

Out line

Warning judgment unit

Refer to

Light reminder warning chime

The warning chime sounds when the ignition
switch is in OFF or ACC position with the com-
bination switch (lighting switch) in the 1st or
2nd position and the driver side door open.

BCM

WCS-9,
"LIGHT RE-
MINDER
WARNING
CHIME : Sys-
tem Descrip-
tion"

Seat belt warning chime

The warning chime sounds when the driver
seat belt is unfastened with the ignition switch
in ON position.

BCM

WCS-10,
"SEAT BELT
WARNING
CHIME : Sys-
tem Descrip-
tion"

Parking brake release warning chime

The warning chime sounds when the ignition
switch is in ON position with the parking brake
in operation and the vehicle speed 7 km/h (4.3
MPH) or more.

Combination meter

WCS-12,
"PARKING
BRAKE RE-
LEASE WARN-
ING CHIME :
System De-
scription"

WCS-8

< SYSTEM DESCRIPTION >

SYSTEM

LIGHT REMINDER WARNING CHIME

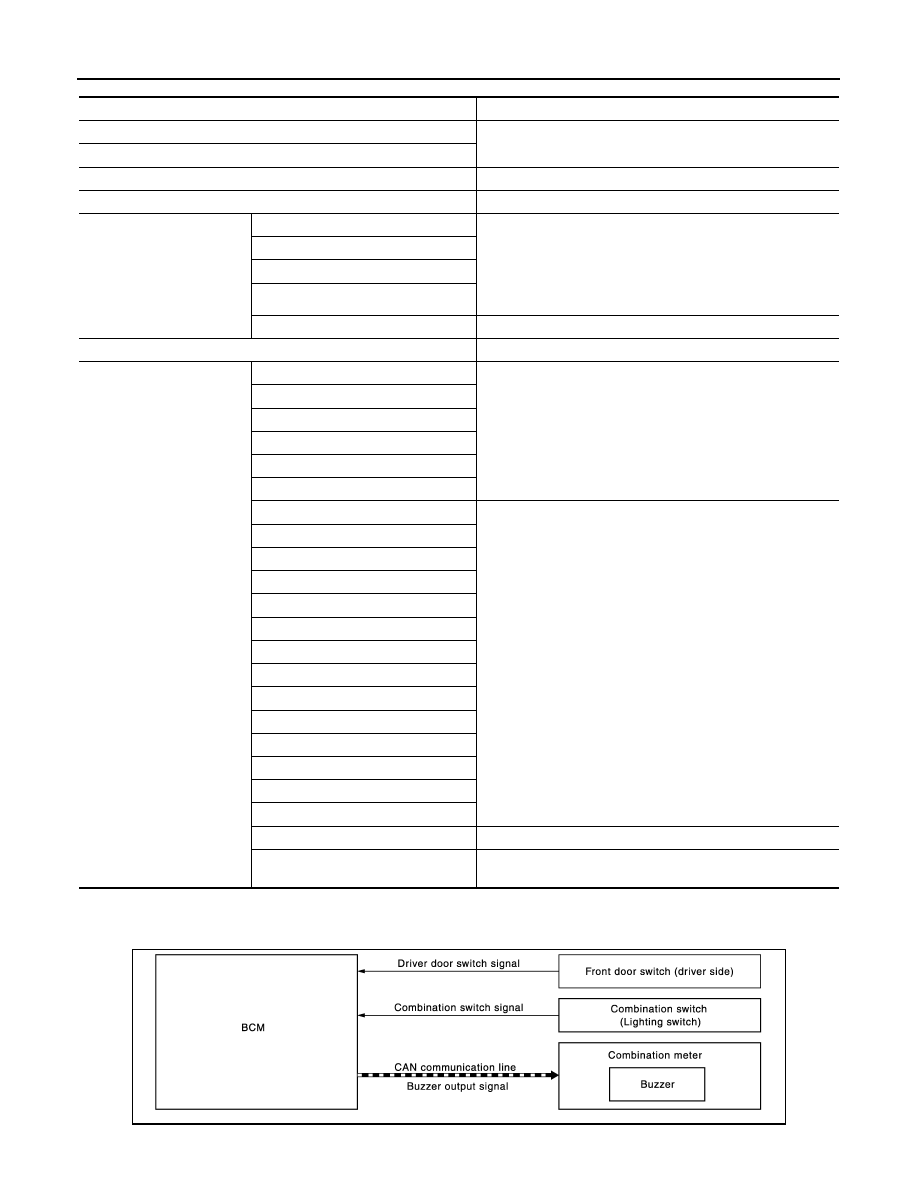

LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000012201467

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Illumination control

When suspending communication, changes to nighttime mode.

Shift position indicator

When suspending communication, not indicate.

Information display

Instantaneous fuel consumption

• When reception time of an abnormal signal is 2 seconds or

less, the last received datum is used for calculation to indi-
cate the result.

• When reception time of an abnormal signal is more than two

seconds, the last result calculated during normal condition is
indicated.

Average fuel consumption

Possible driving distance

Torque distribution indicator

Low tire pressure warning

The display turns OFF by suspending communication.

Buzzer

The buzzer turns OFF by suspending communication.

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

Malfunction indicator lamp

VDC warning lamp

EPS warning lamp

AWD warning lamp

Brake warning lamp

VDC OFF indicator lamp

The lamp turns OFF by suspending communication.

High beam indicator lamp

Turn signal indicator lamp

Door warning lamp

Tail lamp indicator lamp

Engine start operation indicator lamp

Shift P warning lamp

Front fog lamp indicator lamp

Oil pressure warning lamp

CRUISE indicator lamp

AWD mode indicator lamp (AWD)

AWD mode indicator lamp (AWD-V)

Key warning lamp

CVT indicator lamp

Low tire pressure warning lamp

After blinking for 1 minute, the lamp remains ON.

High coolant temperature indicator
lamp

When reception time of an abnormal signal is more than 60
seconds, the lamp turns OFF.

JSNIA2421GB
