REMOVAL AND INSTALLATION

STEERING WHEEL

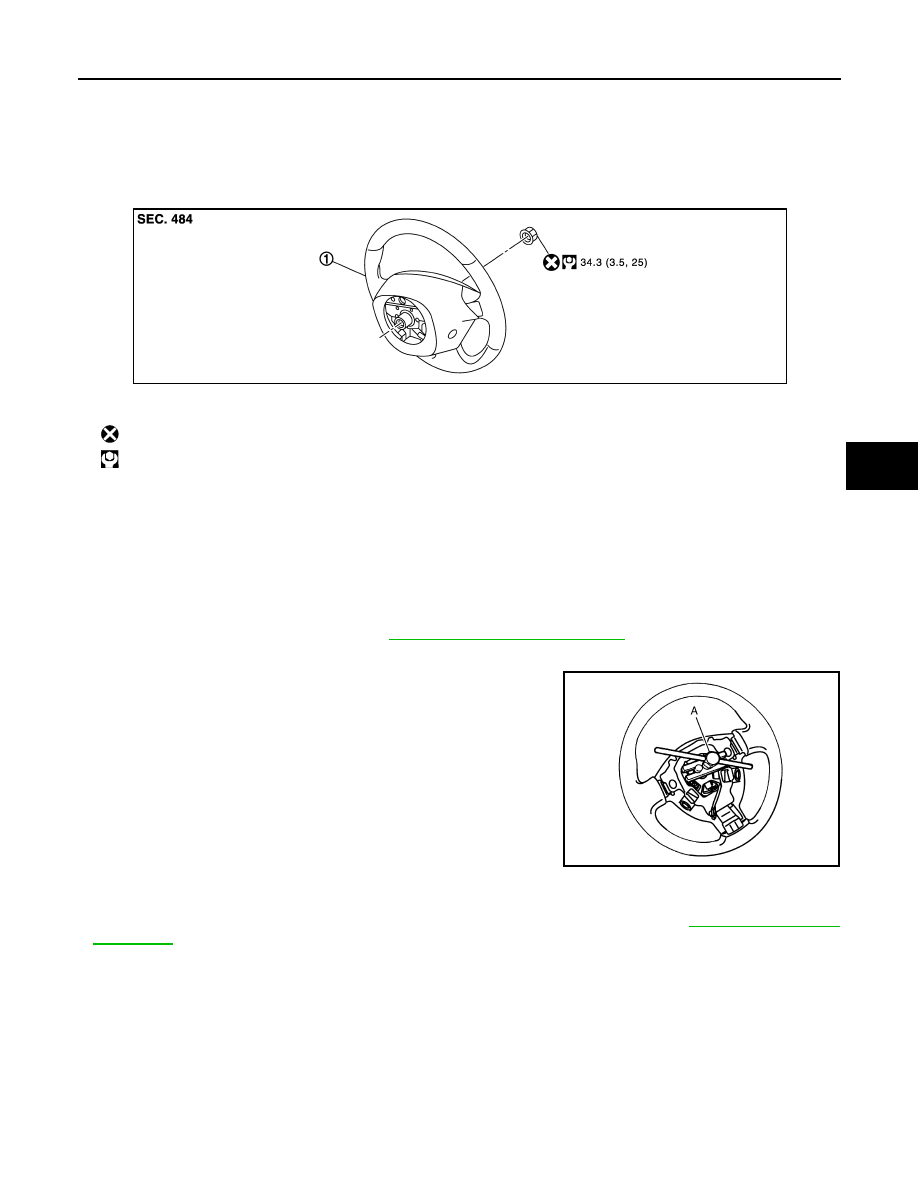

Exploded View

INFOID:0000000012200339

Removal and Installation

INFOID:0000000012200340

REMOVAL

NOTE:

When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. This

will omit neutral position alignment procedure during spiral cable installation.
1. Set vehicle to the straight-ahead position.
2. Remove driver air bag module. Refer to

SR-12, "Removal and Installation"

.

3. Remove steering wheel lock nut after steering is locked.
4. Remove steering wheel with the steering wheel puller (A) [SST:

ST27180001 (J-25726-A)].

NOTE:

Put paint marks on the steering wheel and the column shaft

head for supporting accurate positioning during the installation

procedure.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Check the spiral cable neutral position after replacing or rotating spiral cable. Refer to

SR-15, "Removal and

Installation"

.

CAUTION:

Never twist spiral cable excessively after it becomes tight. (Twisting may cause the cable to be torn

off.)

• Never reuse steering wheel lock nut.

1.

Steering wheel

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSGIA0704GB

SGIA1524J

ST-10

< REMOVAL AND INSTALLATION >

STEERING COLUMN

STEERING COLUMN

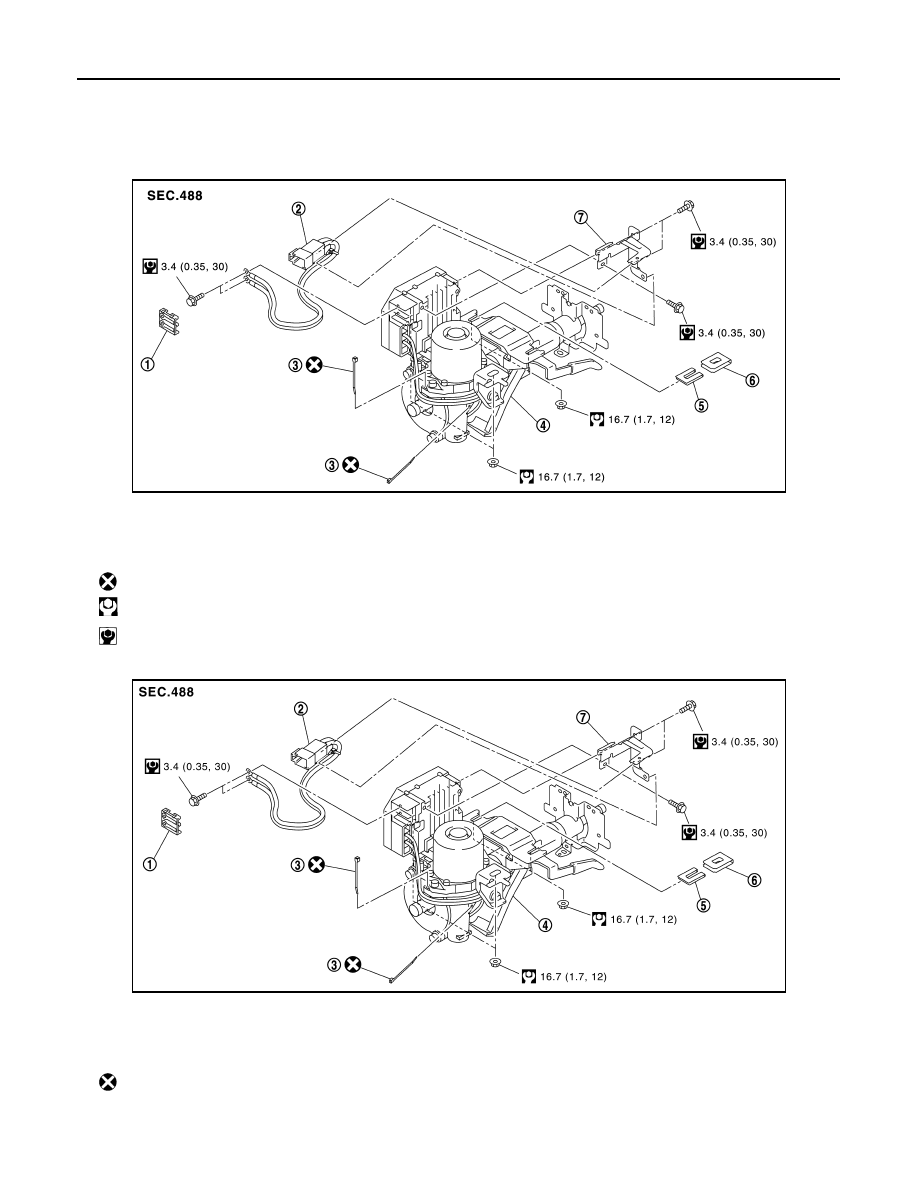

Exploded View

INFOID:0000000012200341

Except for NISMO RS (CVT Models) AND NISMO (CVT Models)

For NISMO RS (CVT Models) AND NISMO (CVT Models)

JPGIA0173GB

1.

Cover

2.

Sub-harness

3.

Band

4.

Steering column assembly

5.

Slide plate (inner)

6.

Slide plate (outer)

7.

Bracket

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSGIA1428GB

1.

Cover

2.

Sub-harness

3.

Band

4.

Steering column assembly

5.

Slide plate (inner)

6.

Slide plate (outer)

7.

Bracket

: Always replace after every disassembly.

STEERING COLUMN

ST-11

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Removal and Installation

INFOID:0000000012200342

REMOVAL

CAUTION:

• While removing the steering column assembly, never unlock the tilt lever.

• Never impact on the axis when removing steering column assembly.

• Be careful when removing steering column assembly from the vehicle because it is heavy.

• Keep steering column assembly away from magnetic sources.

• Never disassemble steering column assembly. It is not separable.

• While removing the steering column assembly, never move the steering gear.

• When removing the steering column assembly, be careful not to allow the intermediate shaft to turn.
1. Set vehicle to the straight-ahead position.
2. Place the tilt to the lowest level.
3. Remove instrument lower panel. Refer to

IP-13, "Removal and Installation"

.

4. Remove driver air bag module. Refer to

SR-12, "Removal and Installation"

.

5. Remove steering wheel. Refer to

ST-9, "Removal and Installation"

.

6. Remove steering column cover. Refer to

IP-13, "Removal and Installation"

.

7. Remove paddle shifter. Refer to

TM-322, "Removal and Installation"

 (with paddle shifter).

8. Remove spiral cable. Refer to

SR-15, "Removal and Installation"

.

9. Remove combination switch. Refer to

BCS-95, "Removal and Installation"

.

10. Disconnect each switch harness connectors installed to steering column assembly.
11. Remove intermediate shaft mounting bolt (steering column side), and separate intermediate shaft from

steering column assembly. Refer to

ST-14, "Removal and Installation"

.

CAUTION:

• Place a matching mark on both intermediate shaft and steering column assembly before remov-

ing intermediate shaft.

• When removing intermediate shaft, never insert a tool, such as a screwdriver, into the yoke

groove to pull out the intermediate shaft. In case of the violation of the above, replace intermedi-

ate shaft with a new one.

12. Disconnect EPS control unit connectors.
13. Remove steering column assembly.

CAUTION:

When removing the mounting, be careful not to drop the steering column assembly.

14. Remove slide plate (outer and inner) from steering column assembly.
15. Remove cover, sub-harness, band, and bracket from steering column assembly.

CAUTION:

Remove cover, sub-harness, band, and bracket only when necessary.

16. Perform inspection after removal. Refer to

ST-12, "Inspection"

.

INSTALLATION

CAUTION:

• Never impact on the axis when removing steering column assembly.

• When installing the steering column cover, check that the vehicle harness is not stuck in the cover.

Note the following, and install in the reverse order of removal.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

ST-12

< REMOVAL AND INSTALLATION >

STEERING COLUMN

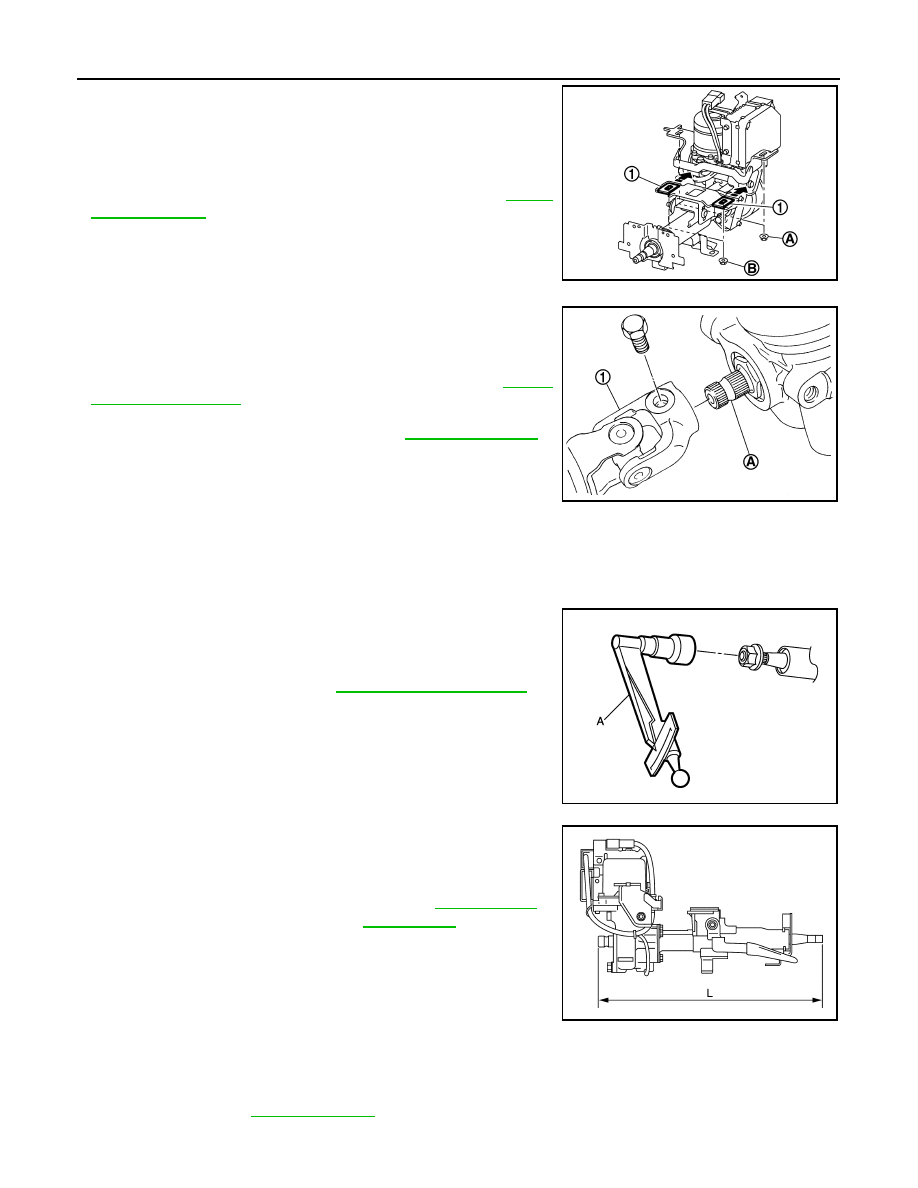

• After tightening mounting nut (A) of the steering column assembly,

press in slide plate (outer and inner) (1) to tighten mounting nut

(B).

CAUTION:

The slide plate must be securely pressed in before tightening

the nut of slide plate (outer, inner).

• For intermediate shaft mounting bolt direction, refer to

ST-14,

"Exploded View"

. (Do not insert it from the other side.)

CAUTION:

Never reuse intermediate shaft mounting bolt.

• When connecting intermediate shaft upper side (1) and column

shaft, make sure the bolt is securely seated in groove (A) of col-

umn shaft (A) before final tightening.

• After installing steering column assembly, perform self-diagnosis

with CONSULT to ensure correct operation. Refer to

STC-9,

"CONSULT Function"

.

• Never reuse band.

• Perform inspection after installation. Refer to

ST-12, "Inspection"

.

Inspection

INFOID:0000000012200343

INSPECTION AFTER REMOVAL

• Check each part of steering column assembly for damage or other malfunctions. Replace if there are any

abnormal conditions.

• Measure steering column assembly rotating torque using a preload

gauge (A) [SST: ST3127S000 (J-25765-A)]. Replace steering col-

umn assembly if the rotating torque is outside the standard.

• Measure the length “L” shown in the figure, if vehicle has been

involved in a minor collision. Replace steering column assembly

(with motor, reduction gear, sensor) if “L” is outside the standard.

INSPECTION AFTER INSTALLATION

• Check each part of steering column assembly for damage or other malfunctions. Replace if there are any

abnormal conditions.

• Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle. Refer to

ST-8, "Inspection"

.

JSGIA0837ZZ

SGIA1295E

Rotating torque : Refer to

ST-21, "Steering Column"

.

JPGIA0085ZZ

Steering column length (L)

: Refer to

ST-21, "Steer-

ing Column"

.

JPGIA0174ZZ
