Nissan Juke F15. Manual - part 1166





DIAGNOSIS AND REPAIR WORK FLOW

SRC-29

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000012199581

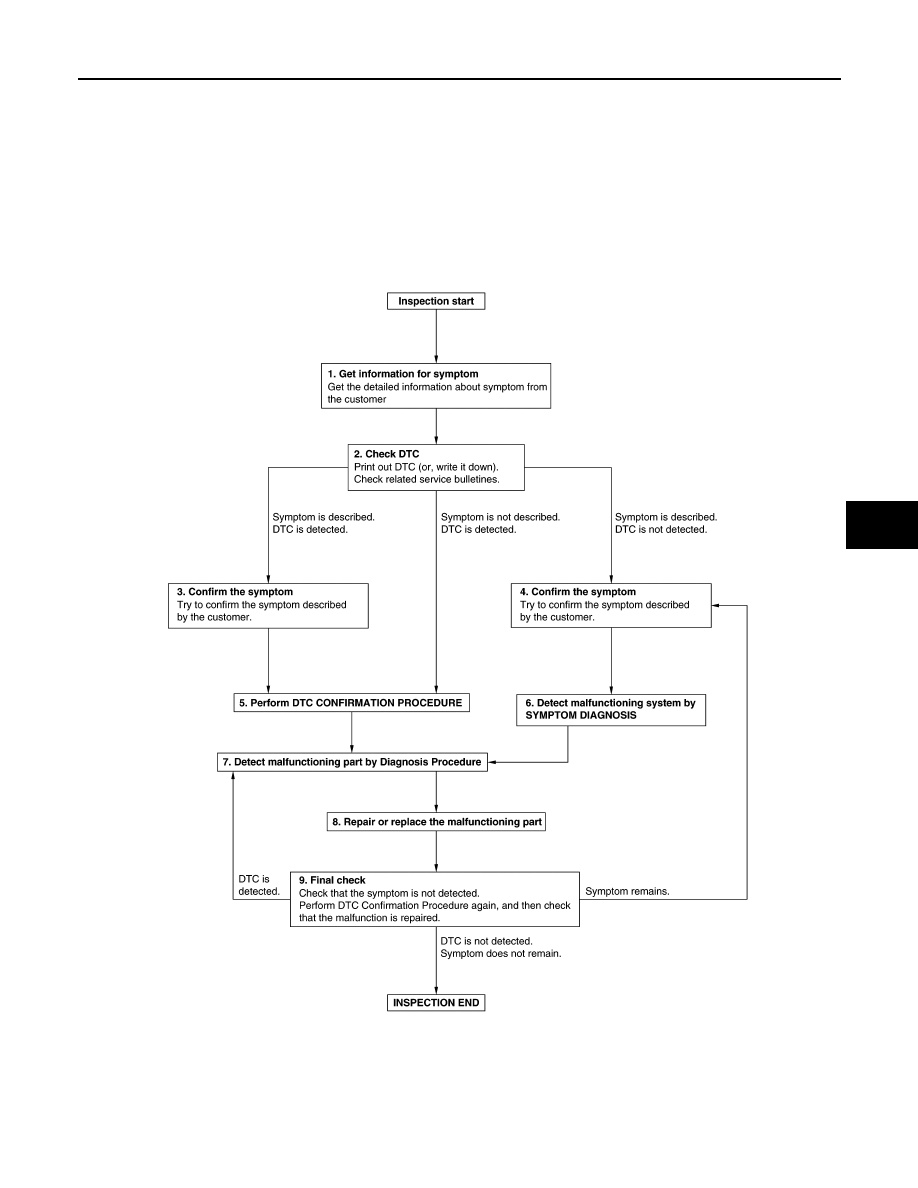

OVERALL SEQUENCE

DETAILED FLOW

JMHIA2620GB

SRC-30

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

1. Get detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurs).

2. Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected.

-

Record DTC (Print them out using CONSULT).

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected

again.
Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-45, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step

4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.
Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-45, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is detected, erase it.

DIAGNOSIS AND REPAIR WORK FLOW

SRC-31

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the

malfunction is repaired securely.

When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the

symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.

YES-2 >> Symptom remains: GO TO 4.

NO

>> Before returning the vehicle to the customer, always erase DTC.

SRC-32

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000012199582

When replacing or removing and installing passenger seat, always perform zero point reset so that Occupant

Detection System is activated normally.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000012199583

WORK PROCEDURE WHEN REPLACING CONTROL UNIT

1.

PERFORM ZERO POINT RESET

Perform zero point reset. Refer to

SRC-32, "ZERO POINT RESET : Special Repair Requirement"

.

>>  END

ZERO POINT RESET
ZERO POINT RESET : Description

INFOID:0000000012199584

Zero point reset is an initializing procedure for occupant detection sensor that must be performed when replac-

ing or removing and installing passenger seat.

If zero point reset is not performed, the initialization is incomplete and Occupant Detection System does not

operate normally.

NOTE:

• When replacing passenger seat with a NISSAN genuine part, air bag warning lamp blinks if zero point reset

is incomplete.

• When zero point reset is performed once after removal and installation of passenger seat, CONSULT dis-

plays “complete” and air bag warning does not blink.

• When reinstalling passenger seat after removal, the initial value for occupant detection sensor changes, and

Occupant Detection System does not operate normally.

• Always perform zero point reset after performing the work as per the following.

- Reinstallation of passenger seat

- Replacement of passenger seat with a seat that is zero point reset complete.

ZERO POINT RESET : Special Repair Requirement

INFOID:0000000012199585

1.

PERFORM ZERO POINT RESET

1. Perform zero point reset.

NOTE:

When performing zero point reset, be careful of the items described as per the following.

• Perform zero point reset after installing passenger seat to the vehicle

• Do not put any objects on passenger seat

• Do not apply excessive vibration to the vehicle

• Do not touch the vehicle

• Do not tilt the vehicle

2. Select start on “Zero point reset function” screen from, WORK SUPPORT of CONSULT “OCCUPANT

DETECTION”.

3. “Zero point reset” starts.

>> GO TO 2.

2.

CONFIRMATION OF SETTING

1. Proceed to “Zero point reset function” screen from work support of CONSULT “OCCUPANT DETEC-

TION”.

2. Check that “Complete” or “Incomplete” is displayed on “Zero point reset status”.

CAUTION:
