How to Erase Self-diagnostic Result

After completing the indicated repair, check the system condition in Diagnosis mode and perform “ERASE“ of

“Self Diagnostic Result“ using CONSULT.

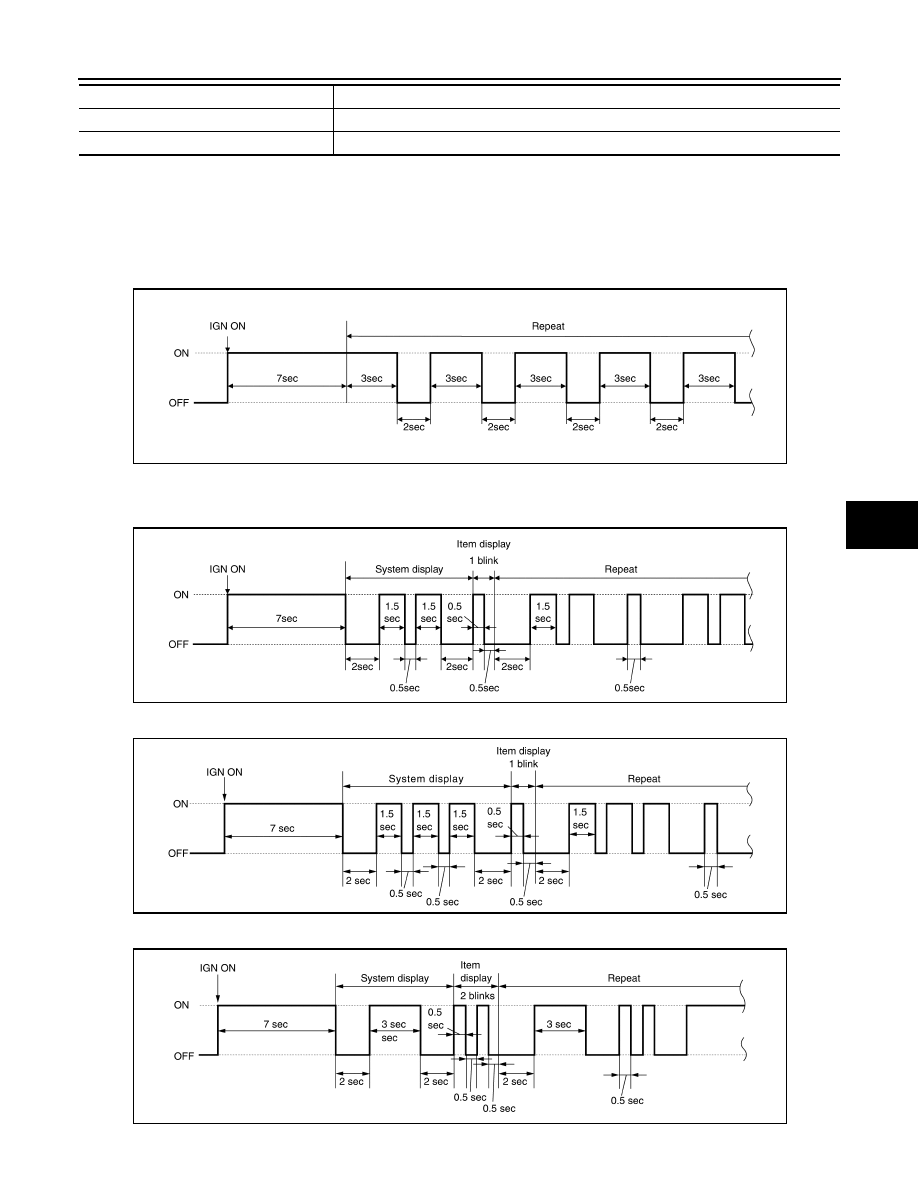

EXAMPLE OF AIR BAG WARNING LAMP OPERATION IN THE DIAGNOSIS MODE

System Normal

When the system is normal and “PAST“displayed in “Self Diagnostic Result“.

Single System Malfunction

• Front air bag system

When driver air bag module (Item display) is malfunctioning.

• Side air bag system

When side air bag module LH (Item display) is malfunctioning.

• Air bag control unit system

When air bag diagnosis sensor unit (Item display) is malfunctioning.

• Sensor system

6

Front door satellite sensor LH or RH

7

Front door satellite sensor  RH

Number of 0.5 second blinks

Malfunctioning items

JMHIA2358GB

JMHIA2359GB

JMHIA2361GB

JSHIA0053GB

SRC-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AIR BAG)

When crash zone sensor (Item display) is malfunctioning.

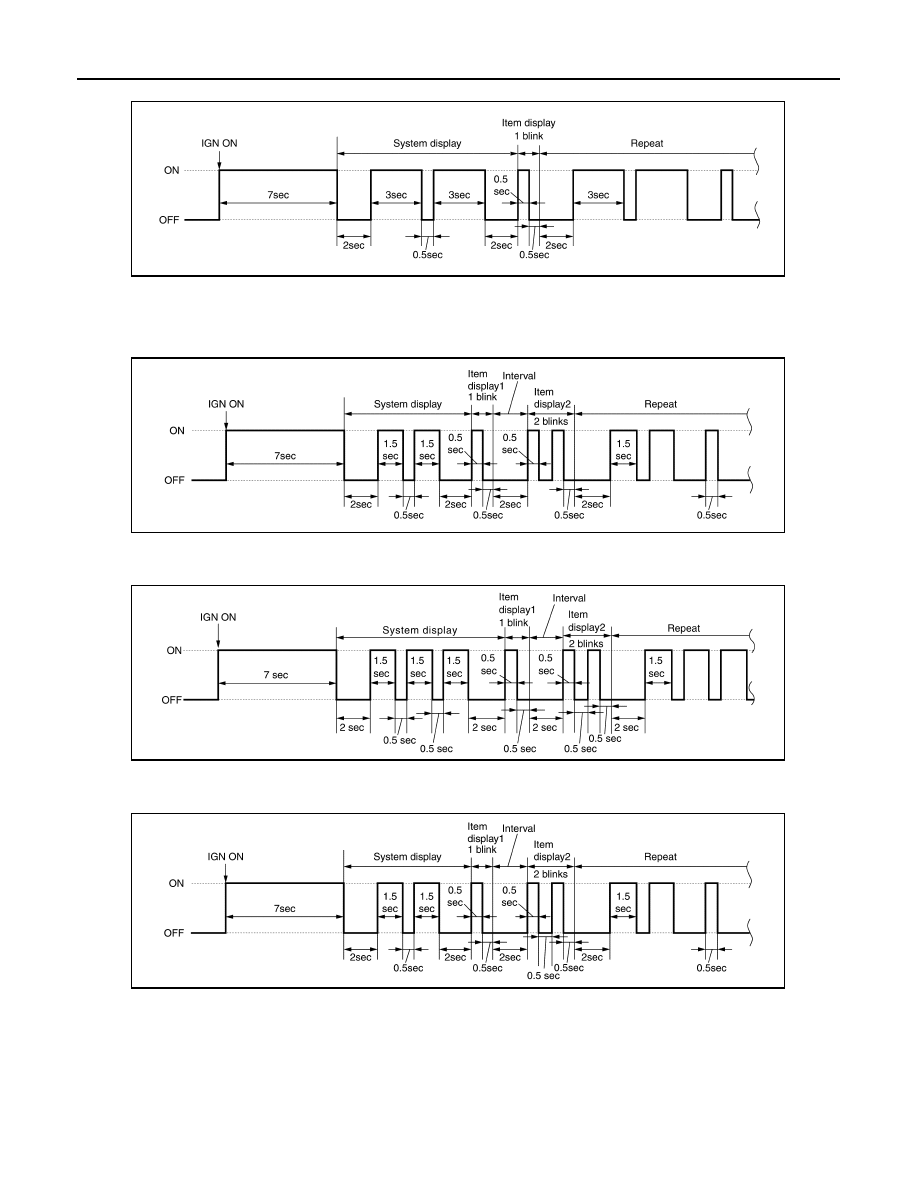

Multiple Systems Malfunction

• Front air bag system

When driver air bag module (Item display 1) and passenger air bag module (Item display 2) are malfunction-

ing.

• Side air bag system

When side air bag module LH (Item display 1) and side air bag module RH (Item display 2) are malfunction-

ing.

• Air bag control unit system

When air bag diagnosis sensor unit (Item display 1) and front passenger air bag indicator (Item display 2)

are malfunctioning.

• Sensor system

JMHIA2366GB

JMHIA2360GB

JSHIA0057GB

JSHIA0056GB

DIAGNOSIS SYSTEM (AIR BAG)

SRC-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

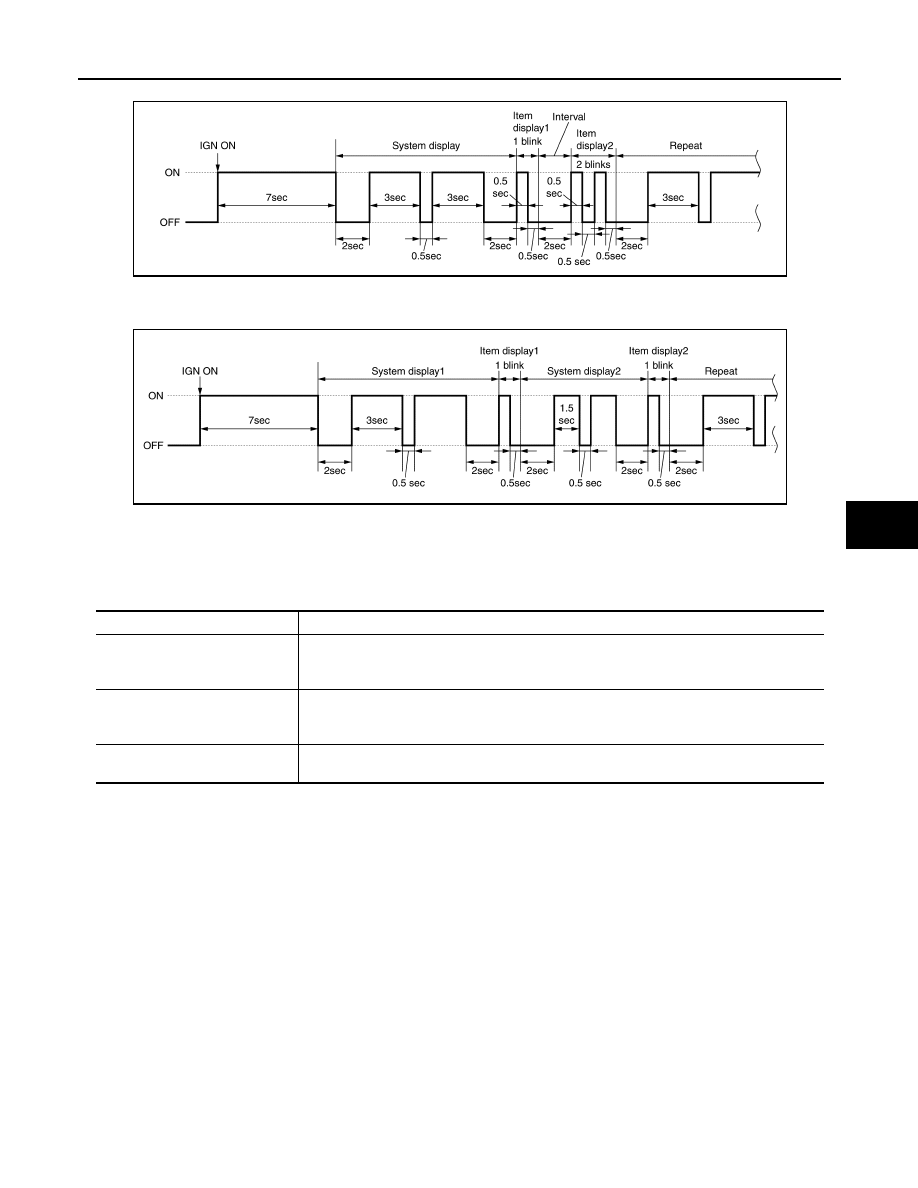

When crash zone sensor (Item display 1) and satellite sensor LH (Item display 2) are malfunctioning.

• Sensor system and front air bag system

When crash zone sensor system (Item display 1) and driver air bag module (Item display 2) are malfunction-

ing.

CONSULT Function

INFOID:0000000012199577

APPLICATION ITEM

CONSULT performs the following functions.

JSHIA0055GB

JSHIA0058GB

Diagnosis mode

Description

Ecu Identification

Air bag diagnosis sensor unit ECU discriminated number (identification number) or part num-
ber is displayed. Air bag diagnosis sensor unit has individual ECU discriminated number
(identification number) or part number based on model and equipment.

Self Diagnostic Result

• Self-diagnosis result is displayed.
• “No DTC” is displayed when repairis completed by part replacement or other operations.
• “SELF-DIAG RESULT [MEMORY]” is displayed until“Erase” performed.

TROUBLE DIAG RECORD

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation
can be displayed on CONSULT screen.

SRC-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (OCCUPANT DETECTION SYSTEM)

DIAGNOSIS SYSTEM (OCCUPANT DETECTION SYSTEM)

CONSULT Function

INFOID:0000000012199578

ZERO POINT RESET DESCRIPTION

This vehicle adopts occupant detection system with a weight detecting method. When replacing, or removing

and installing passenger seat, always perform “zero point rest” so that the vehicle recognizes zero point.

If zero point reset is incomplete, occupant detection seat sensor does not operate normally.

WORK SUPPORT

Monitor item

Description

Zero point reset function

Perform zero point reset. Refer to

SRC-32, "ZERO POINT RE-

SET : Special Repair Requirement"

.
