Nissan Juke F15. Manual - part 1042

PG-28

< WIRING DIAGRAM >

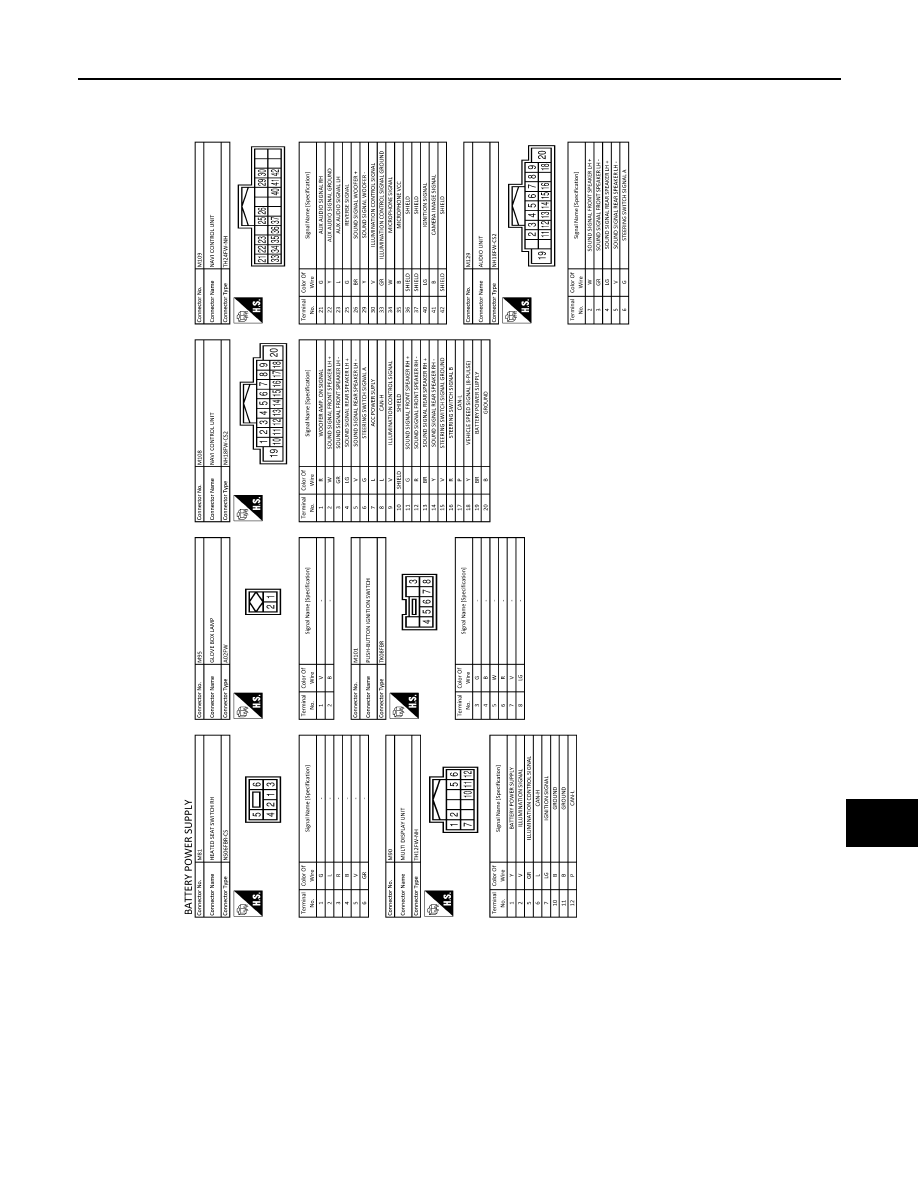

POWER SUPPLY ROUTING CIRCUIT

JRMWI5170GB

PG

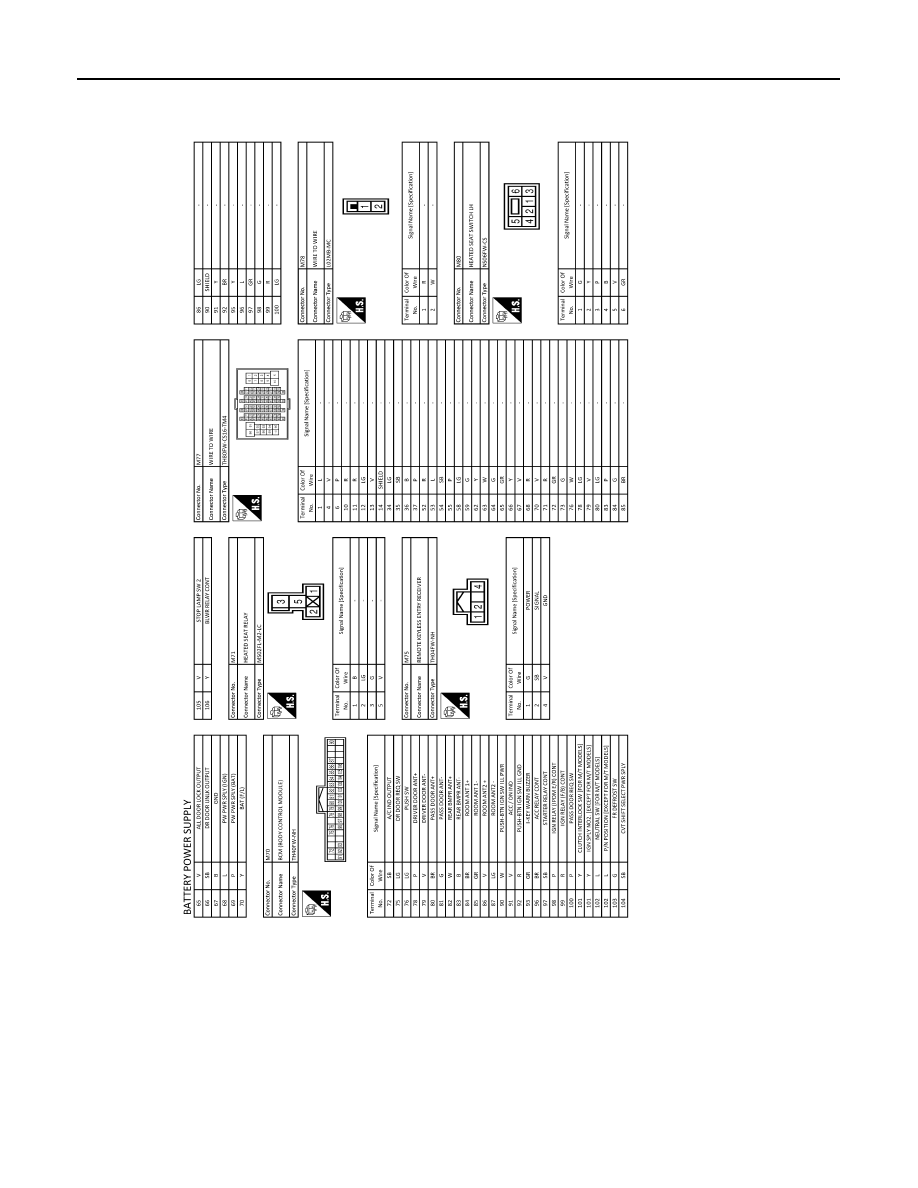

POWER SUPPLY ROUTING CIRCUIT

PG-29

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5171GB

PG-30

< WIRING DIAGRAM >

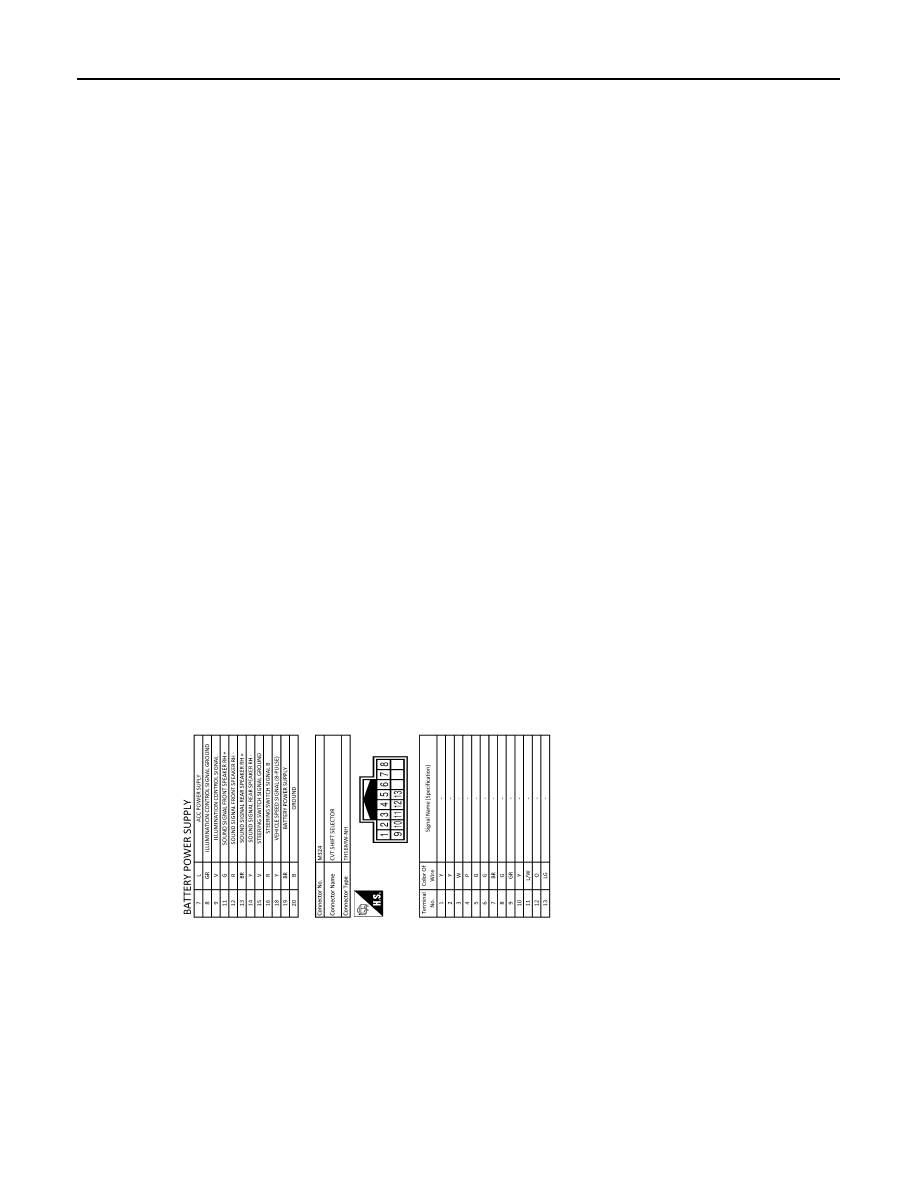

POWER SUPPLY ROUTING CIRCUIT

JRMWI5172GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

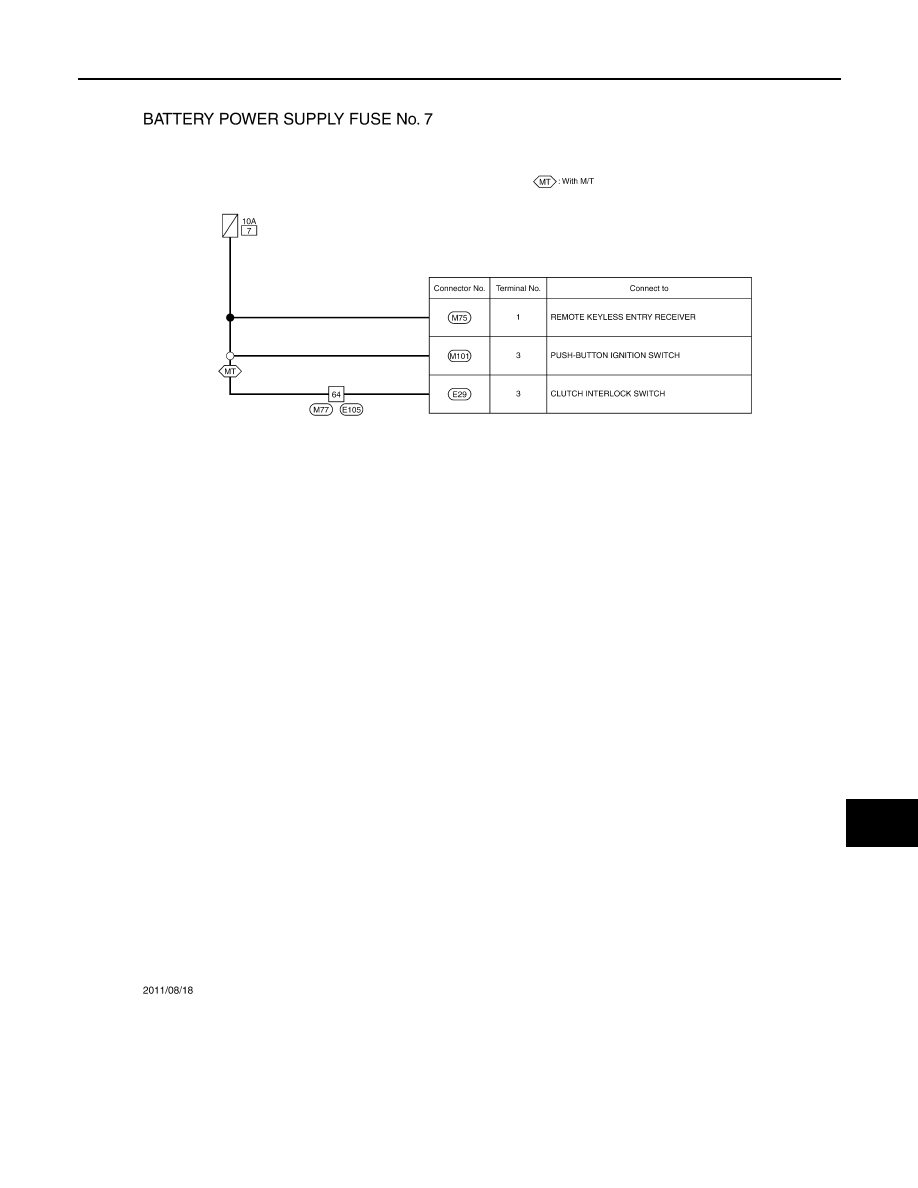

Wiring Diagram - BATTERY POWER SUPPLY FUSE No.7 -

INFOID:0000000012199776

JRMWC5522GB
