MWI-46

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

Work flow

INFOID:0000000012201320

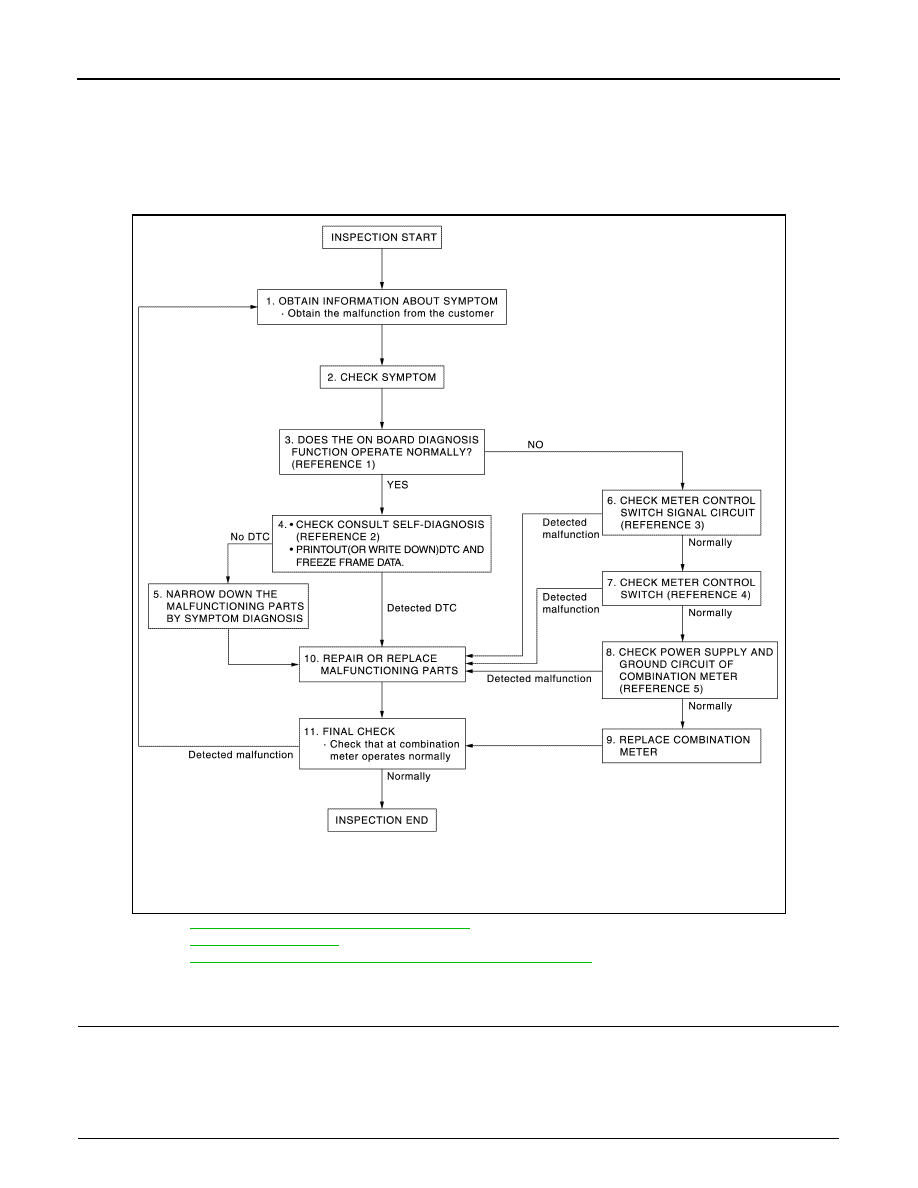

OVERALL SEQUENCE

• Reference 1···

MWI-21, "On Board Diagnosis Function"

.

• Reference 2···

MWI-33, "DTC Index"

.

• Reference 3···

MWI-53, "COMBINATION METER : Diagnosis Procedure"

.

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA4491GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

MWI-47

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Check the symptom based on the information obtained from the customer.

• Check that any other malfunctions are present.

>> GO TO 3.

3.

CHECK ON BOARD DIAGNOSIS OPERATION

Check that the on board diagnosis function operates. Refer to

MWI-21, "On Board Diagnosis Function"

.

Does the on board diagnosis function operate normally?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1. Connect CONSULT and perform self-diagnosis. Refer to

MWI-33, "DTC Index"

.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 5.

NO

>> GO TO 8.

5.

NARROW DOWN THE MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 8.

6.

CHECK COMBINATION METER POWER SUPPLY AND GROUND CIRCUITS

Check combination meter power supply and ground circuits. Refer to

MWI-53, "COMBINATION METER :

Diagnosis Procedure"

.

Is inspection result OK?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

REPLACE COMBINATION METER

Replace combination meter.

>> GO TO 9.

8.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the malfunctioning parts.

NOTE:

If DTC is displayed, erase DTC after repair or replace malfunctioning parts.

>> GO TO 9.

9.

FINAL CHECK

Check that the combination meter operates normally.
Do they operate normally?

YES

>> INSPECTION END

NO

>> GO TO 1.

MWI-48

< DTC/CIRCUIT DIAGNOSIS >

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000012201321

CAN (Controller Area Network) is a serial communication system for real time application. It is an on-vehicle

multiplex communication system with high data communication speed and excellent error detectability. Many

electronic control units are equipped onto vehicles, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with two communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with

less wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart. Refer to

LAN-30, "CAN COMMUNICATION SYSTEM : CAN Communica-

tion Signal Chart"

.

DTC Logic

INFOID:0000000012201322

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000012201323

1.

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result” of “METER/M&A”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-45, "Intermittent Incident"

.

DTC

Display contents of

CONSULT

Diagnostic item is detected when...

Probable malfunction location

U1000

CAN COMM CIRCUIT

When combination meter is not transmitting or
receiving CAN communication signal for 2
seconds or more.

CAN communication system

MWI

U1010 CONTROL UNIT (CAN)

MWI-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000012201324

Initial diagnosis of combination meter.

DTC Logic

INFOID:0000000012201325

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000012201326

1.

REPLACE COMBINATION METER

When DTC “U1010” is detected, replace combination meter.

>> INSPECTION END

DTC

Display contents of CON-

SULT

Diagnostic item is detected when...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

When detecting error during the initial diagno-
sis of the CAN controller of combination
meter.

Combination meter
