Nissan Juke F15. Manual - part 85





BCS

COMBINATION SWITCH

BCS-95

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH

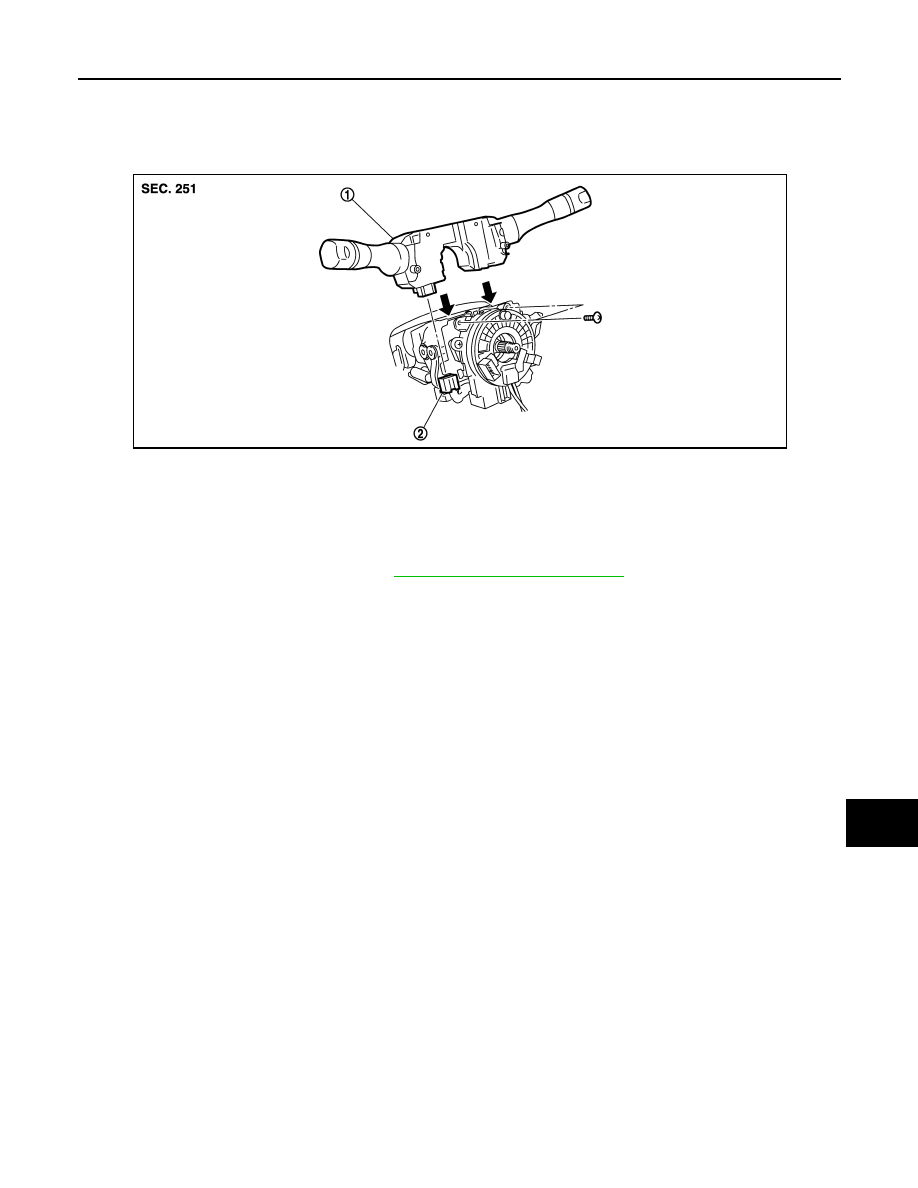

Exploded View

INFOID:0000000012200746

Removal and Installation

INFOID:0000000012200747

REMOVAL

1. Remove steering column cover. Refer to

IP-13, "Removal and Installation"

.

2. Remove screws.
3. Disconnect the connector.
4. Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JMMIA0383ZZ

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover

......

3

Precaution for Brake System  ....................................

3

Precautions for Removing Battery Terminal  .............

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Commercial Service Tool  ..........................................

5

BASIC INSPECTION  ....................................

6

FRONT DISC BRAKE .........................................

6

DISC ROTOR ...............................................................

6

DISC ROTOR : Inspection  ........................................

6

REAR DISC BRAKE ...........................................

7

DISC ROTOR ...............................................................

7

DISC ROTOR : Inspection  ........................................

7

SYMPTOM DIAGNOSIS  ...............................

8

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

8

NVH Troubleshooting Chart  ......................................

8

PERIODIC MAINTENANCE ..........................

9

BRAKE PEDAL  ...................................................

9

Inspection and Adjustment ........................................

9

BRAKE FLUID ....................................................

12

Inspection ................................................................

12

Draining ...................................................................

12

Refilling ...................................................................

12

Bleeding Brake System ...........................................

13

BRAKE MASTER CYLINDER  ..........................

14

Inspection ................................................................

14

BRAKE BOOSTER  ...........................................

15

Inspection ................................................................

15

FRONT DISC BRAKE .......................................

16

BRAKE PAD  ..............................................................

16

BRAKE PAD : Inspection and Adjustment ...............

16

DISC ROTOR  .............................................................

16

DISC ROTOR : Inspection and Adjustment .............

16

REAR DISC BRAKE .........................................

18

BRAKE PAD  ..............................................................

18

BRAKE PAD : Inspection and Adjustment ...............

18

DISC ROTOR  .............................................................

18

DISC ROTOR : Inspection and Adjustment .............

18

REMOVAL AND INSTALLATION ...............

20

BRAKE PEDAL .................................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

Inspection and Adjustment  ......................................

21

BRAKE PIPING .................................................

23

FRONT .......................................................................

23

FRONT : Exploded View  .........................................

23

FRONT : Hydraulic Piping  .......................................

24

FRONT : Removal and Installation ..........................

25

FRONT : Inspection .................................................

27

REAR .........................................................................

27

REAR : Exploded View ............................................

27

REAR : Hydraulic Piping ..........................................

31

REAR : Removal and Installation  ............................

32

REAR : Inspection  ...................................................

37

BRAKE MASTER CYLINDER  ..........................

38

BR-2

Exploded View ........................................................

38

Removal and Installation  ........................................

38

Disassembly and Assembly ....................................

40

Inspection ...............................................................

41

BRAKE BOOSTER ............................................

42

Exploded View ........................................................

42

Removal and installation  ........................................

42

Inspection and Adjustment  .....................................

43

VACUUM LINES  ................................................

45

Exploded View ........................................................

45

Removal and Installation  ........................................

46

Inspection ...............................................................

47

FRONT DISC BRAKE ........................................

48

BRAKE PAD  .............................................................

48

BRAKE PAD : Exploded View  ................................

48

BRAKE PAD : Removal and Installation .................

49

BRAKE PAD : Inspection ........................................

53

BRAKE CALIPER ASSEMBLY  ................................

53

BRAKE CALIPER ASSEMBLY : Exploded View ....

53

BRAKE CALIPER ASSEMBLY : Removal and In-
stallation ................................................................
.

55

BRAKE CALIPER ASSEMBLY : Disassembly and
Assembly ...............................................................
.

56

BRAKE CALIPER ASSEMBLY : Inspection ............

58

REAR DISC BRAKE ..........................................

59

BRAKE PAD ..............................................................

59

BRAKE PAD : Exploded View .................................

59

BRAKE PAD : Removal and Installation  .................

60

BRAKE PAD : Inspection  ........................................

62

BRAKE CALIPER ASSEMBLY  ................................

63

BRAKE CALIPER ASSEMBLY : Exploded View  ....

63

BRAKE CALIPER ASSEMBLY : Removal and In-
stallation ..................................................................

64

BRAKE CALIPER ASSEMBLY : Disassembly and
Assembly ................................................................

65

BRAKE CALIPER ASSEMBLY : Inspection ............

67

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

68

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

68

General Specifications  ............................................

68

Brake Pedal  ............................................................

68

Brake Booster  .........................................................

68

Front Disc Brake  .....................................................

68

Rear Disc Brake ......................................................

69

PRECAUTIONS

BR-3

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012200257

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012200258

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

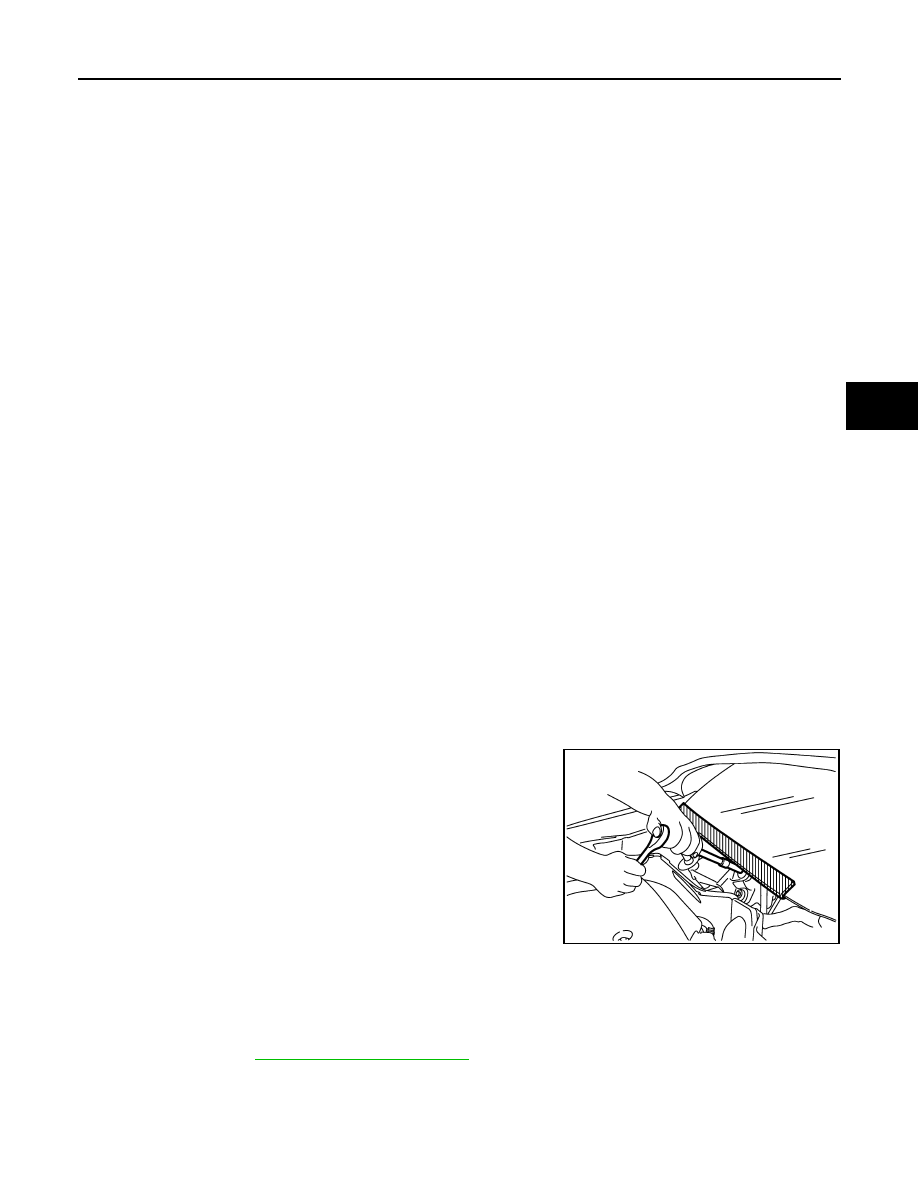

Precaution for Brake System

INFOID:0000000012200259

WARNING:

Since dust covering the front and rear brakes has an affect on human body, the dust must be removed

with a dust collector. Never splatter the dust with an air blow gun.

• Brake fluid use refer to

MA-11, "Fluids and Lubricants"

.

• Never reuse drained brake fluid.

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off

immediately and wash with water if it gets on a painted surface. For brake component parts, never wash

them with water.

PIIB3706J
