ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

BCS-79

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

Description

INFOID:0000000012200723

Perform the following operations when replacing BCM. (For details, refer to

BCS-79, "Work Procedure"

.)

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace-

ment.

NOTE:

If “Before Replace ECU” of “Read / Write Configuration” cannot be used, use the “Manual Configuration” after

replacing BCM.

AFTER REPLACEMENT

CAUTION:

When replacing BCM, always perform “Read / Write Configuration” or “Manual Configuration” with

CONSULT. Or not doing so, BCM control function does not operate normally.

• Complete the procedure of “Read / Write Configuration” in order.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• If you set incorrect “Read / Write Configuration” or “Manual Configuration”, incidents might occur.

NOTE:

When replacing BCM, perform the system initialization (NVIS) (if equipped).

Work Procedure

INFOID:0000000012200724

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU” of “Read / Write Configuration” to save or print current vehicle specification.

Refer to

BCS-80, "Description"

.

NOTE:

If “Before Replace ECU” of “Read / Write Configuration” cannot be used, use the “Manual Configuration” after

replacing BCM.

>> GO TO 2.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “After Replace ECU” of “Read / Write Configuration” or “Manual Configuration” to write vehicle speci-

fication. Refer to

BCS-80, "Work Procedure"

.

>> GO TO 4.

4.

INITIALIZE BCM (NVIS) (IF EQUIPPED)

Perform BCM initialization. (NVIS)

>> WORK END

BCS-80

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

CONFIGURATION (BCM)

CONFIGURATION (BCM)

Description

INFOID:0000000012200725

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.

Configuration has three functions as follows. (For details, refer to

BCS-80, "Work Procedure"

.)

NOTE:

Manual setting item: Items which need selection by vehicle specifications

Automatic setting item: Items which are written in automatically (Setting cannot be changed)

For some models and specifications, the automatic setting item may not be displayed.

CAUTION:

When replacing BCM, always perform “Re/programming, Configuration” with CONSULT. Or not doing

so, BCM control function does not operate normally.

• Complete the procedure of “Read / Write Configuration” in order.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Read / Write Configuration” except for new BCM.

• If you set incorrect “Read / Write Configuration”, incidents might occur.

Work Procedure

INFOID:0000000012200726

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “Re/programming, Configuration” of BCM.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “AFTER REPLACE ECU” OF “READ / WRITE CONFIGURATION”

CONSULT Configuration

Perform “After Replace ECU” of “Read / Write Configuration”.

>> WORK END

3.

PERFORM “MANUAL CONFIGURATION”

CONSULT Configuration

1. Select “Manual Configuration”.

2. Identify the correct model and configuration list. Refer to

BCS-81, "Configuration list"

.

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

NOTE:

If items are not displayed, touch “Next”. Refer to

BCS-81, "Configuration list"

 for written items and setting

value.

4. Touch “Next”.

5. Touch “OK”.

CAUTION:

Make sure to select “OK” even if the indicated configuration of brand new BCM is same as the

desirable configuration. If not, configuration which is set automatically by selecting vehicle model

cannot be memorized.

6. Check that the configuration has been successfully written and touch “End”.

Function

Description

Read / Write Configuration

Before Replace ECU

• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.

After Replace ECU

Writes the vehicle configuration with saved data.

Manual Configuration

Writes the vehicle configuration with manual selection.

BCS

CONFIGURATION (BCM)

BCS-81

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by BCM operates normally.

>> WORK END

Configuration list

INFOID:0000000012200727

CAUTION:

• Thoroughly read and understand the vehicle specification. ECU control may not operate normally if

the setting is not correct.

• The “setting value” of this vehicle is as follows: Never select any other value than the setting value

shown below. (If there is only 1 item in “setting value” that means that item is the only choice for this

certain vehicle.)

⇔: Items which confirm vehicle specifications

SETTING ITEM

NOTE

Items

Setting value

AUTO LIGHT

WITH

⇔ WITHOUT

• WITH: With auto light system
• WITHOUT: Without auto light system

DTRL

WITHOUT

⇔ MODE1 ⇔ MODE2

• WITHOUT: Without daytime running light system
• MODE1: With daytime running light system (For NISMO

models)

• MODE2: With daytime running light system (Except for NIS-

MO models)

TRANSMISSION

AT with ABS

⇔ MT with ABS

• AT with ABS: Except M/T models
• MT with ABS: M/T models

BCM AC CONTROL

MODE2

⇔ MODE4

• MODE2: Manual air conditioning system
• MODE4: Automatic air conditioning system

DONGLE

WITH

⇔ WITHOUT

• WITH: For Canada models
• WITHOUT: Except for Canada models

TIRE PRESSURE

230kPa

⇔ 240kPa ⇔ 250kPa

• 230kPa: 2WD M/T models
• 240kPa: AWD models
• 250kPa: 2WD except M/T models

BCS-82

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

SHIPPING MODE CANCEL OPERATION

SHIPPING MODE CANCEL OPERATION

Description

INFOID:0000000012200728

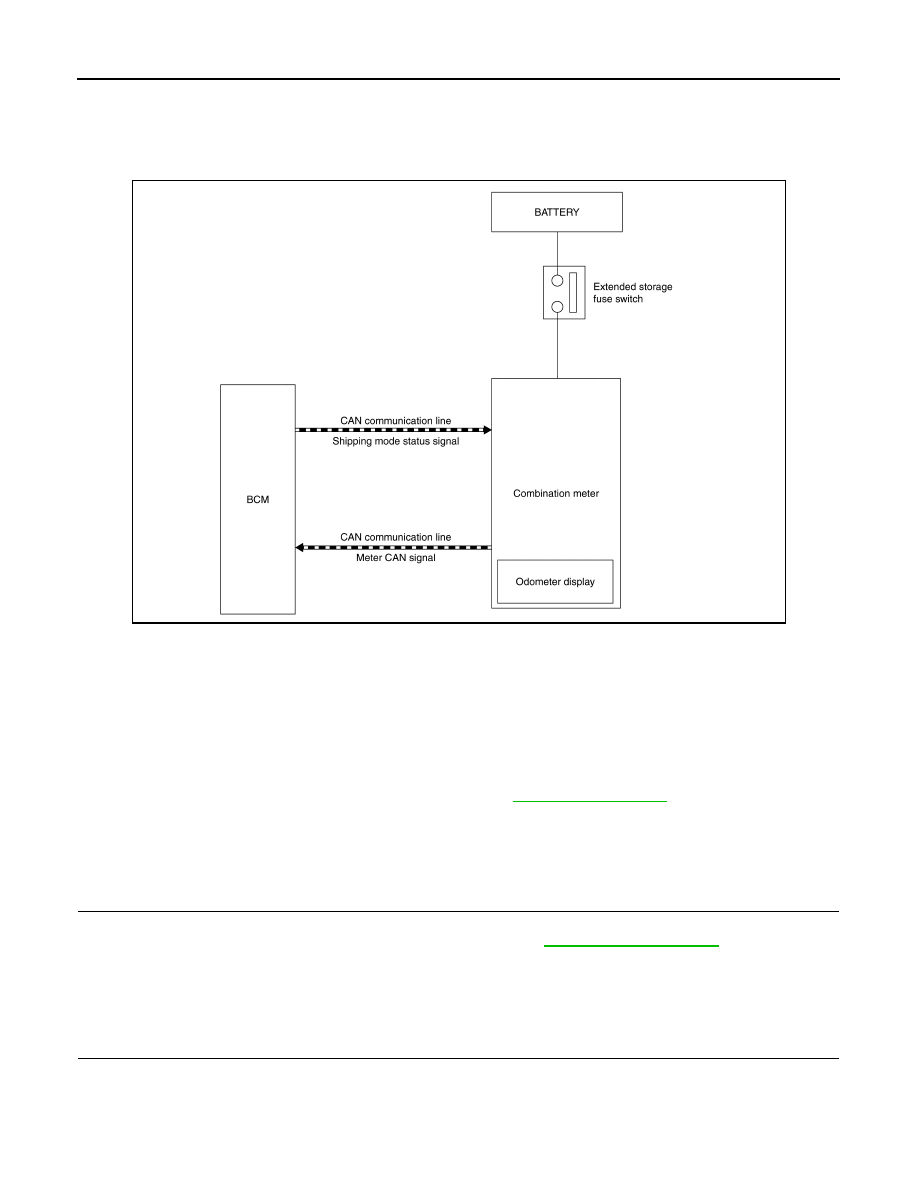

SYSTEM DIAGRAM

DESCRIPTION

• The combination meter transmits meter CAN signal*

1

 to BCM via CAN communication, when the extended

storage fuse switch is ON.

• BCM switches the status (shipping mode or normal mode) by itself according to the meter CAN signal*

1

 from

combination meter, and transmits shipping mode status signal to combination meter via CAN communica-

tion.

• The combination meter displays extended storage fuse warning message*

2

 on the odometer display, when

BCM is in shipping mode.

• BCM control functions are limited in shipping mode. Refer to

BCS-93, "Description"

.

*1: Odometer signal, wake up signal and each signal.

*2: When shipping mode function operates, “SHIP

→PHASE→On→PUSH→FUSE In” is displayed.

Work Procedure

INFOID:0000000012200729

1.

SHIPPING MODE CANCEL OPERATION

1. Turn ignition switch OFF.

2. Push in (switch on) the extended storage fuse switch. Refer to

PG-100, "How To Check"

.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 2 seconds.

>> GO TO 2.

2.

SHIPPING MODE CANCEL CHECK

1. Turn ignition switch ON.

2. Check that extended storage fuse warning message is not displayed on odometer display.

>> WORK END

JMMIA1311GB
