Nissan Juke F15. Manual - part 58

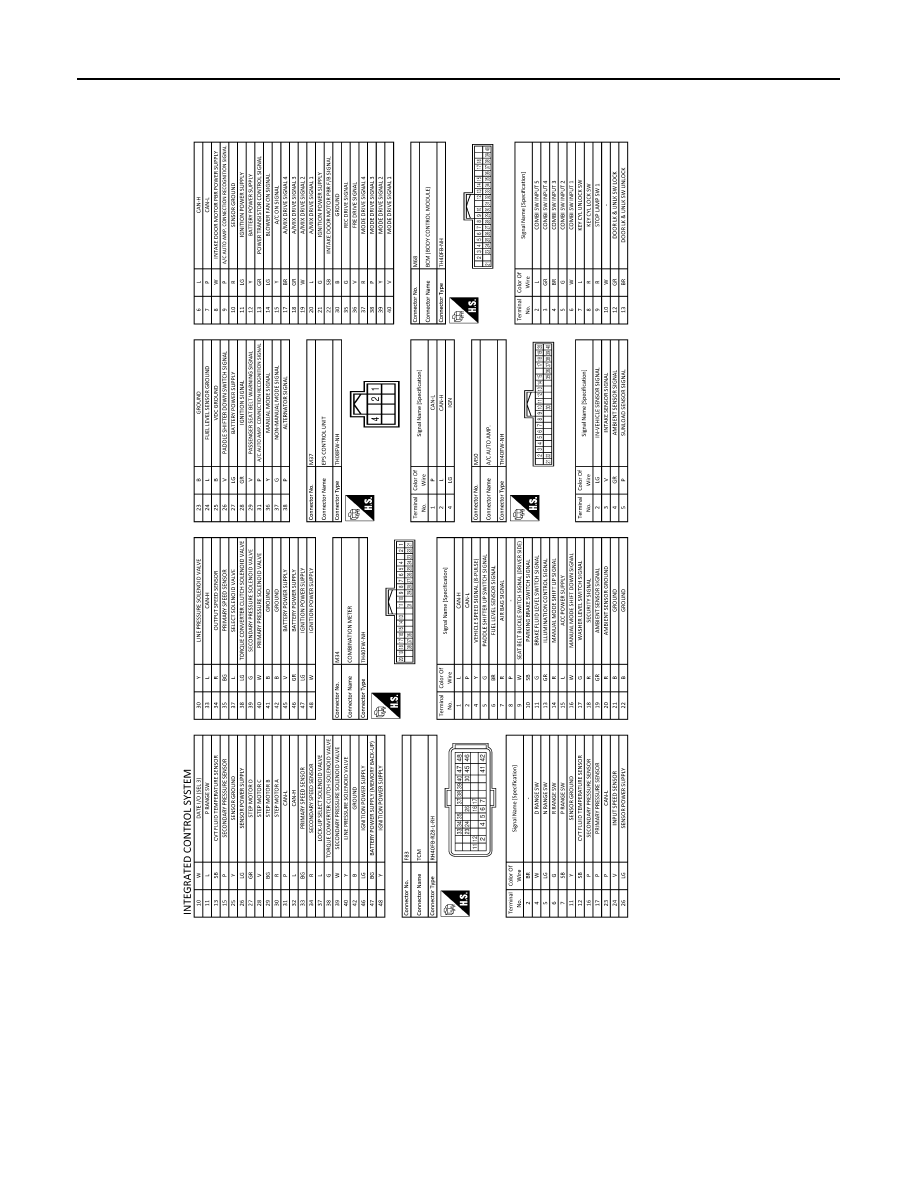

AV-218

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

INTEGRATED CONTROL SYSTEM

JRNWF0755GB

AV

INTEGRATED CONTROL SYSTEM

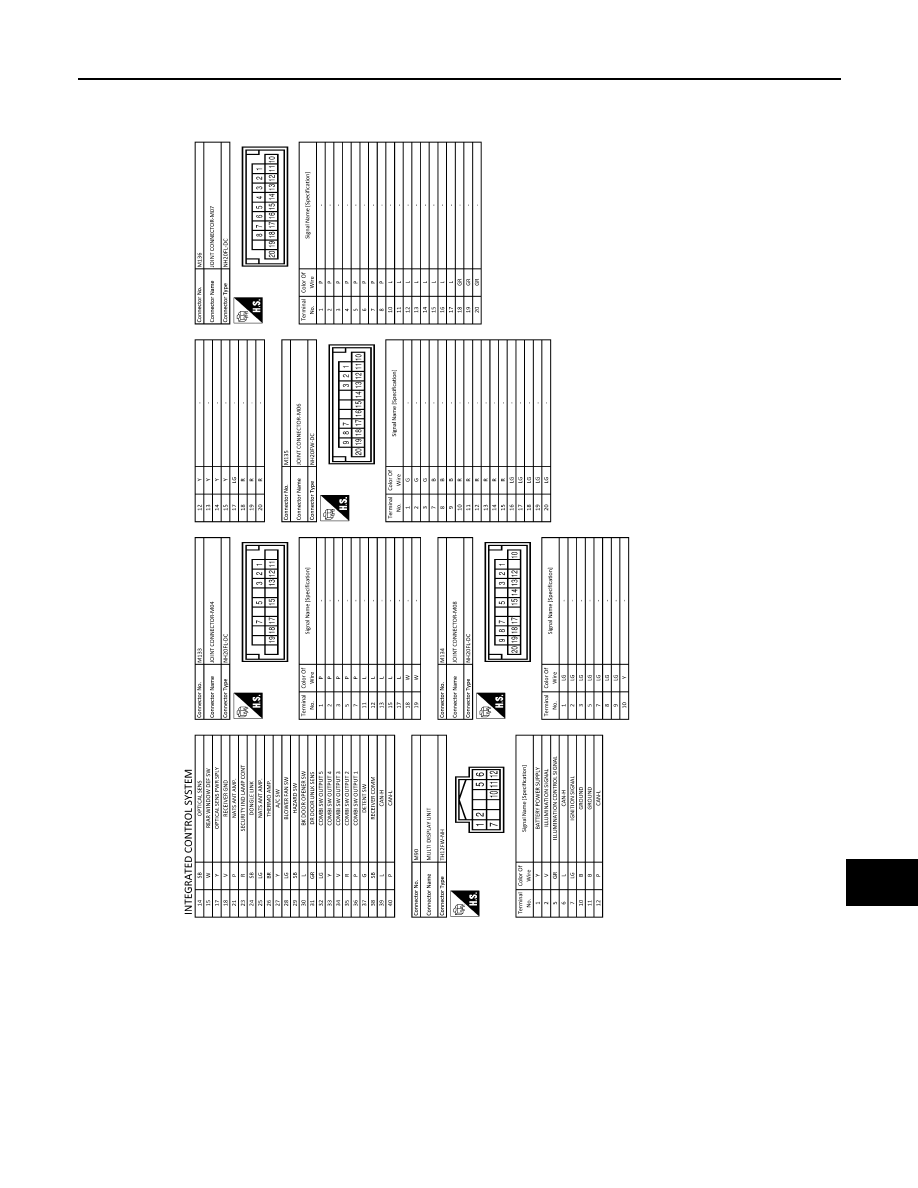

AV-219

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWF0756GB

AV-220

< BASIC INSPECTION >

[INTEGRATED CONTROL SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000012202622

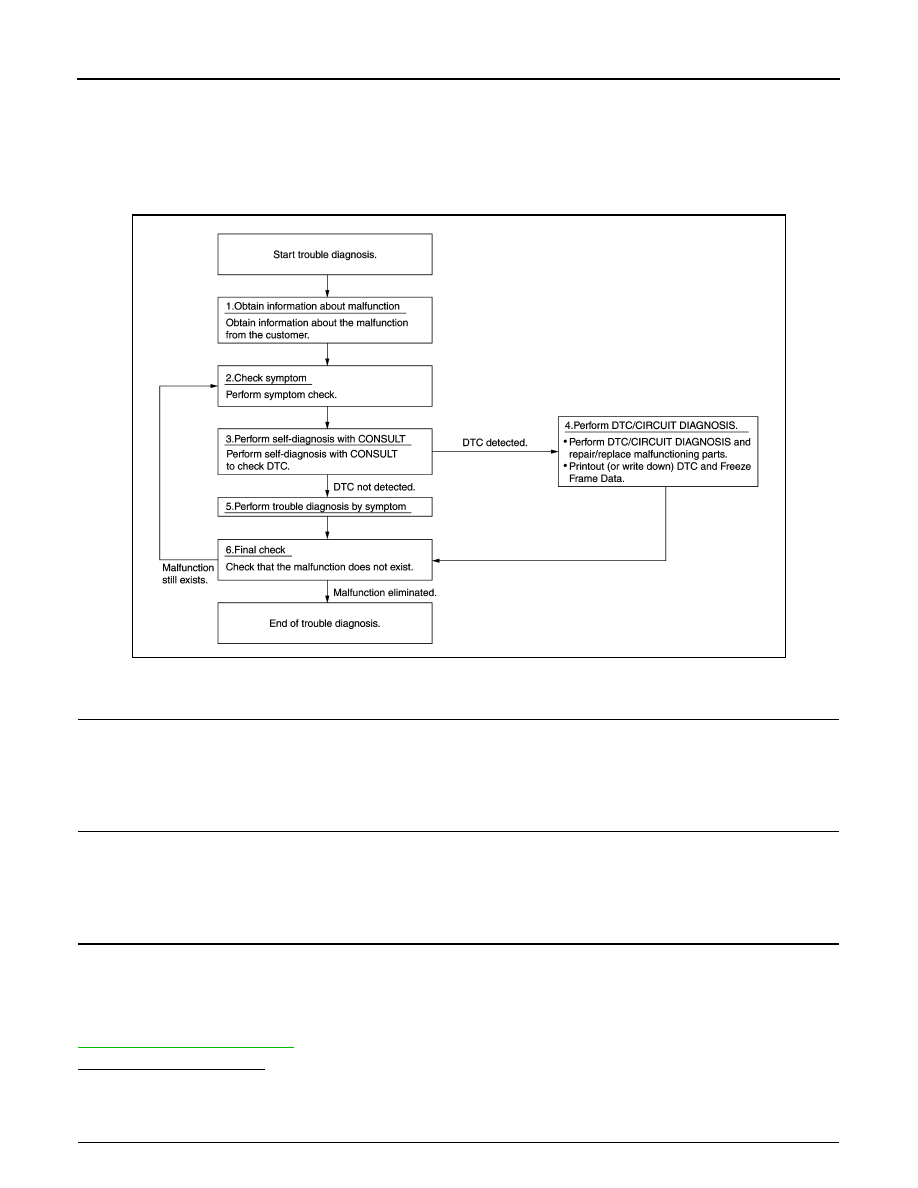

DESCRIPTION OF TROUBLE DIAGNOSIS FLOWCHART

DETAILS OF TROUBLE DIAGNOSIS FLOWCHART

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurs.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CONSULT SELF-DIAGNOSIS

1. Perform “MULTI DISPLAY” “self diagnosis” by connecting CONSULT.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

NOTE:

If “CAN COM CIRC [U1000]” is displayed, start the diagnosis from the CAN communication system. Refer to

AV-222, "Diagnosis Procedure"

.

Is any DTC No. displayed?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

DTC/SYSTEM DIAGNOSIS

JSNIA4500GB

AV

DIAGNOSIS AND REPAIR WORK FLOW

AV-221

< BASIC INSPECTION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Perform a DTC/system diagnosis and repair or replace any malfunctioning part.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

>> GO TO 6.

5.

PERFORM DIAGNOSIS BY SYMPTOM

Perform a diagnosis by symptom and repair or replace any malfunctioning part.

>> GO TO 6.

6.

FINAL CHECK

Check that the multi display unit functions normally.
Does it operate normally?

YES

>> End of trouble diagnosis

NO

>> GO TO 2.
