[INTEGRATED CONTROL SYSTEM]

SYSTEM

Voltmeter display characteristic

Boost Gauge

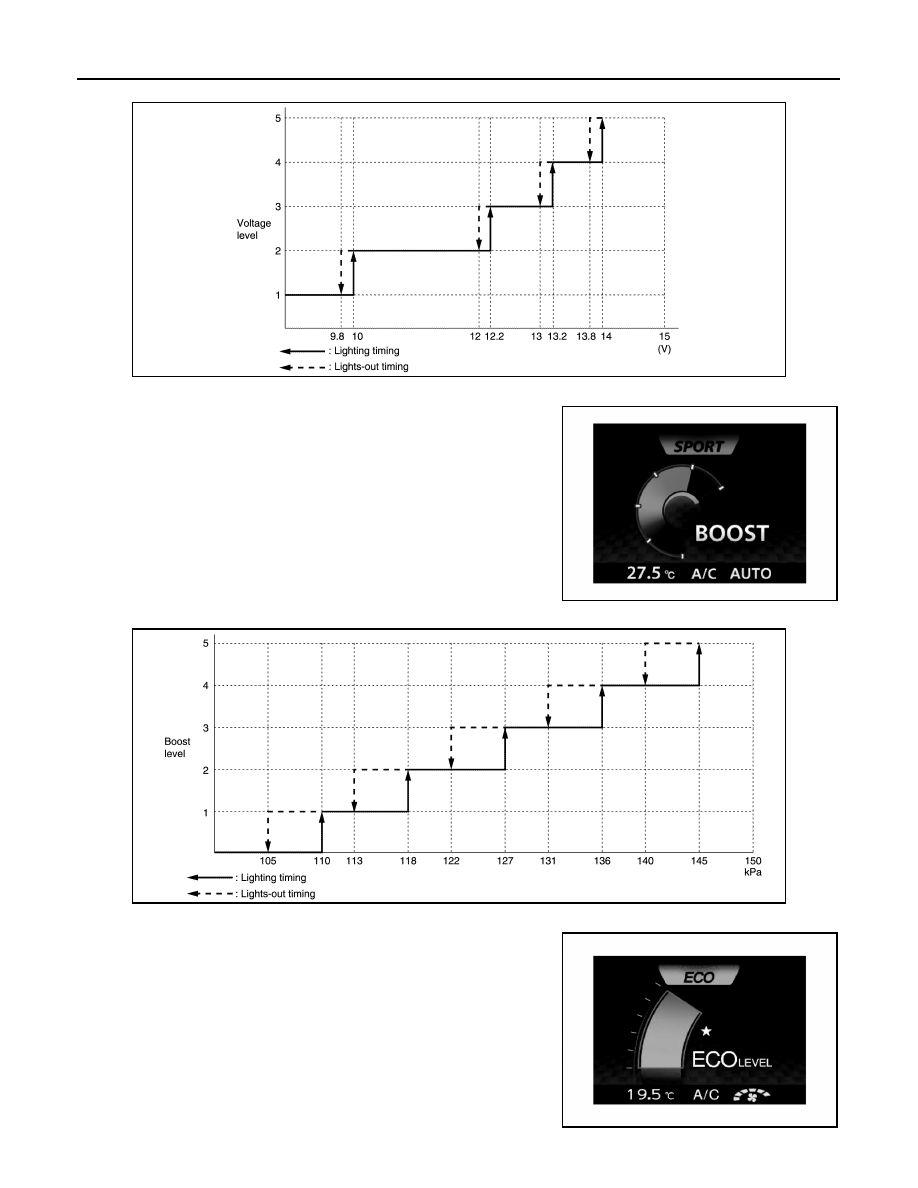

The boost gauge displays the boost level in 5 grades based on the

boost pressure signal received from ECM via CAN communication.

Boost gauge display characteristic

Instantaneous Fuel Consumption

The instantaneous fuel consumption gauge displays the instanta-

neous fuel consumption in 5 grades, which is calculated from the

fuel consumption monitor signal received from ECM via CAN com-

munication and the vehicle speed signal received from the combina-

tion meter via CAN communication.

JSNIA3467GB

AVA1257

JSNIA3469GB

AVA1305

AV

SYSTEM

AV-207

< SYSTEM DESCRIPTION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

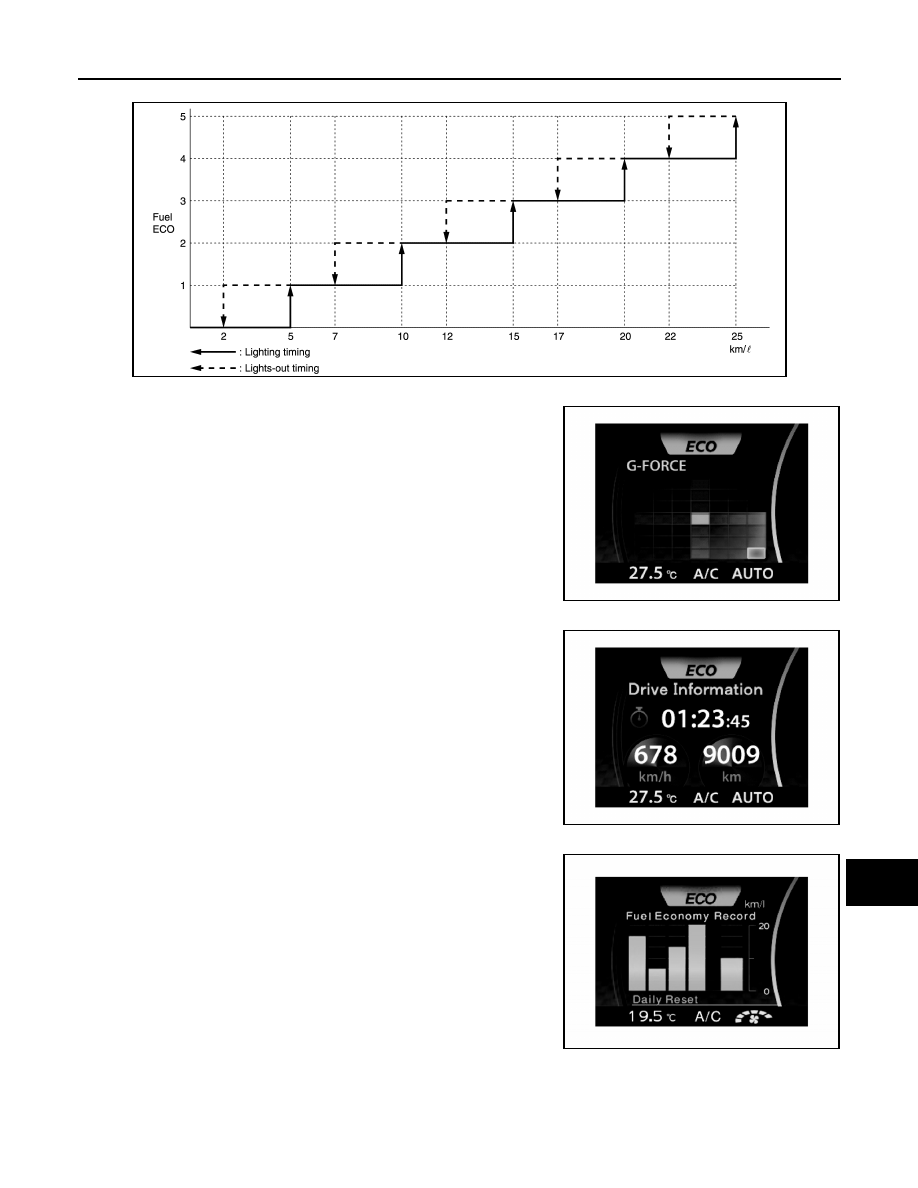

Fuel ECO display characteristic

G-Force

The G-FORCE gauge displays the decel G level and side G level in

3 grades respectively, which are calculated based on the decel G

sensor signal and side G sensor signal received from the ABS actu-

ator and electric unit (control unit) via CAN communication.

Drive Information

The travel time, average speed, and mileage are displayed as fol-

lows.

• Travel time: Displays the time calculated by the multi display unit.

• Average speed: Calculated from the odometer signal and vehicle

speed signal received from the combination meter via CAN com-

munication.

• Mileage: Calculated from the odometer signal and vehicle speed

signal received from the combination meter via CAN communica-

tion.

ECO Information

The fuel economy record is calculated from the fuel consumption

monitor signal received from ECM via CAN communication and the

vehicle speed signal received from the combination meter via CAN

communication.

Set Up

JSNIA3470GB

AVA1255

AVA1256

AVA1306

AV-208

< SYSTEM DESCRIPTION >

[INTEGRATED CONTROL SYSTEM]

SYSTEM

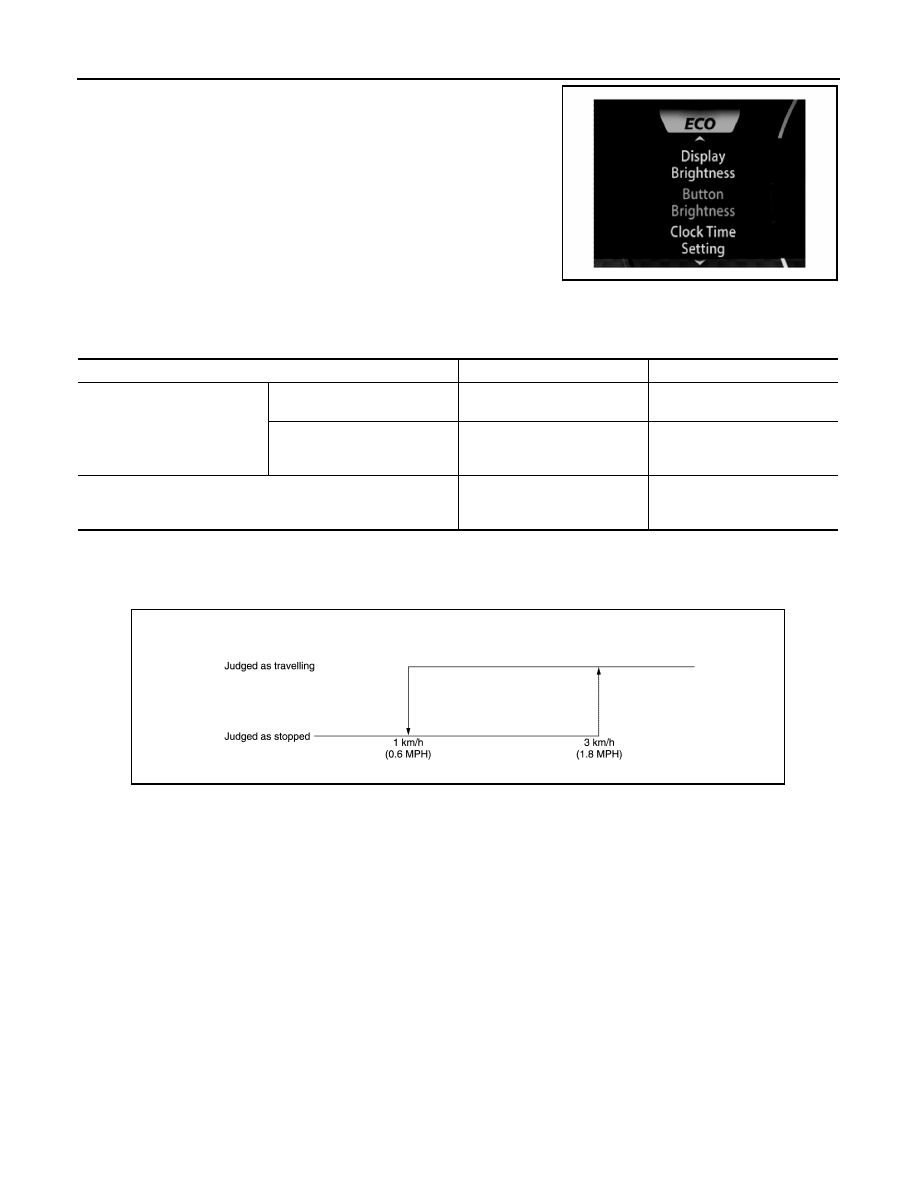

The following items can be set.

• Display Brightness

• Button Brightness

• Select Language

• Select Units

• Clock Time Setting

• CLIMATE  ECO

• Auto Interior Illumination

• Selective Door Unlock

• Auto Headlight Sensitivity

Display/operation restrictions

• To secure safety, some functions are not allowed for user operation during driving.

• The functions subject to the display/operation restriction are as follows.

Driving status judgment criterion

• The driving status is judged from the vehicle speed signal received from the combination meter via CAN

communication. The driving status is displayed on the multi display unit and operation restrictions are

applied as necessary.

AVA1263

Function

Condition

Control content

ECO information
 (Fuel Economy Record)

Daily Reset, Weekly Reset, Re-
set at Start, and Manual Reset

Driving

Cannot be operated
(Reset, page scroll)

Daily Reset, and Weekly Reset

When no time is set

Fuel consumption history is not
displayed
(Warning message appears)

SET UP

Driving

• Item selection and setting are

not available

• No  display

JSNIA3472GB

AV

HANDLING PRECAUTION

AV-209

< SYSTEM DESCRIPTION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDLING PRECAUTION

Integrated Control System

INFOID:0000000012202616

• The engine torque, engine power, boost, and instantaneous fuel consumption are provided for information

purposes only. They are not intended to prompt the driver to adjust driving style. The readings may be

slightly delayed relative to the actual vehicle behaviors. This is not a malfunction.

• The voltmeter reading cannot be used as an indicator for battery replacement because it indicates the input

voltage to the multi display unit, not the battery voltage.

• The SET UP screen are viewable and operable only while the vehicle is stopped.

• The ECO information screen is operable only while the vehicle is stopped.

• If no time setting is performed, the daily and weekly fuel consumption history data are not displayed.

• The readings may differ from the actual values depending on driving conditions.
