AV-30

< WIRING DIAGRAM >

[DISPLAY AUDIO]

DISPLAY AUDIO

JRNWF0735GB

AV

DISPLAY AUDIO

AV-31

< WIRING DIAGRAM >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWF0736GB

AV-32

< WIRING DIAGRAM >

[DISPLAY AUDIO]

DISPLAY AUDIO

JRNWF0737GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-33

< BASIC INSPECTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000012202460

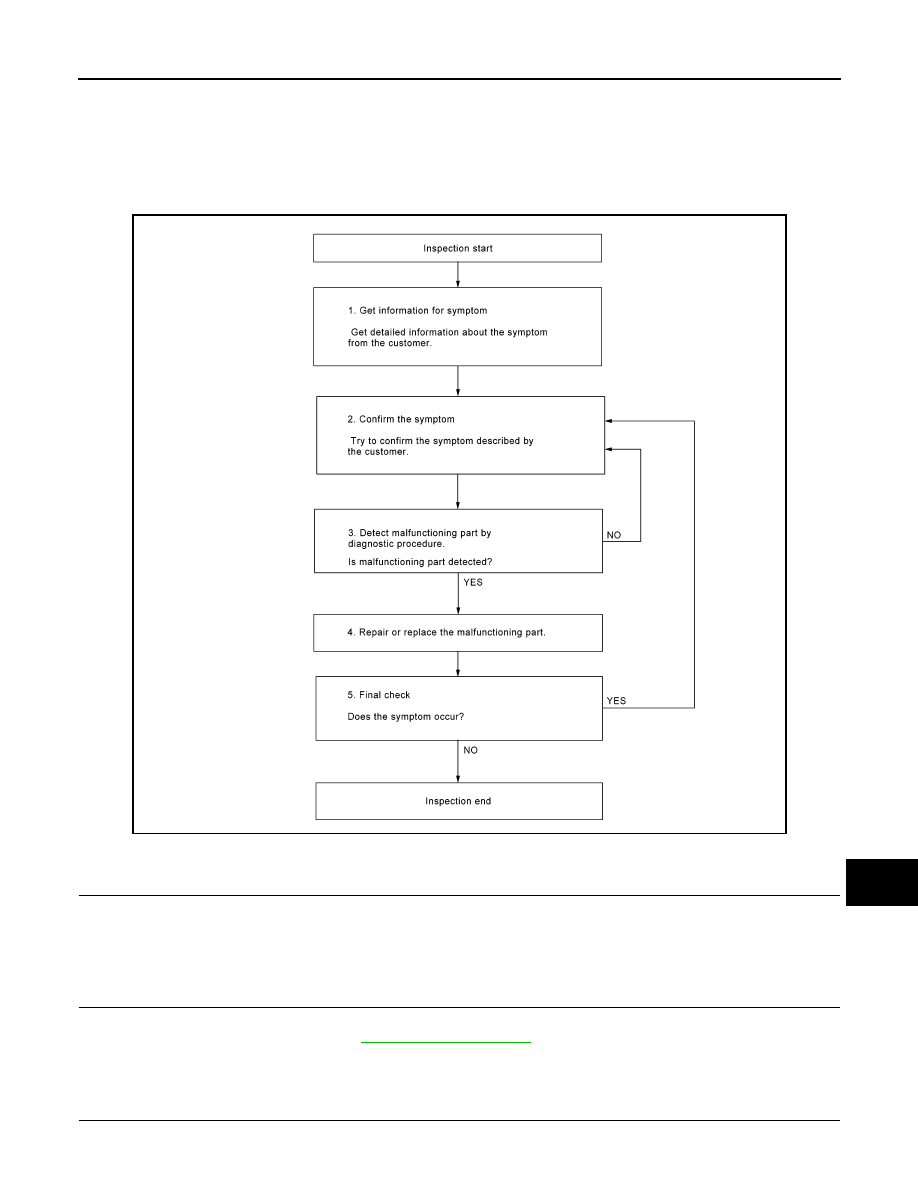

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected. Refer to

AV-46, "Symptom Table"

.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB
