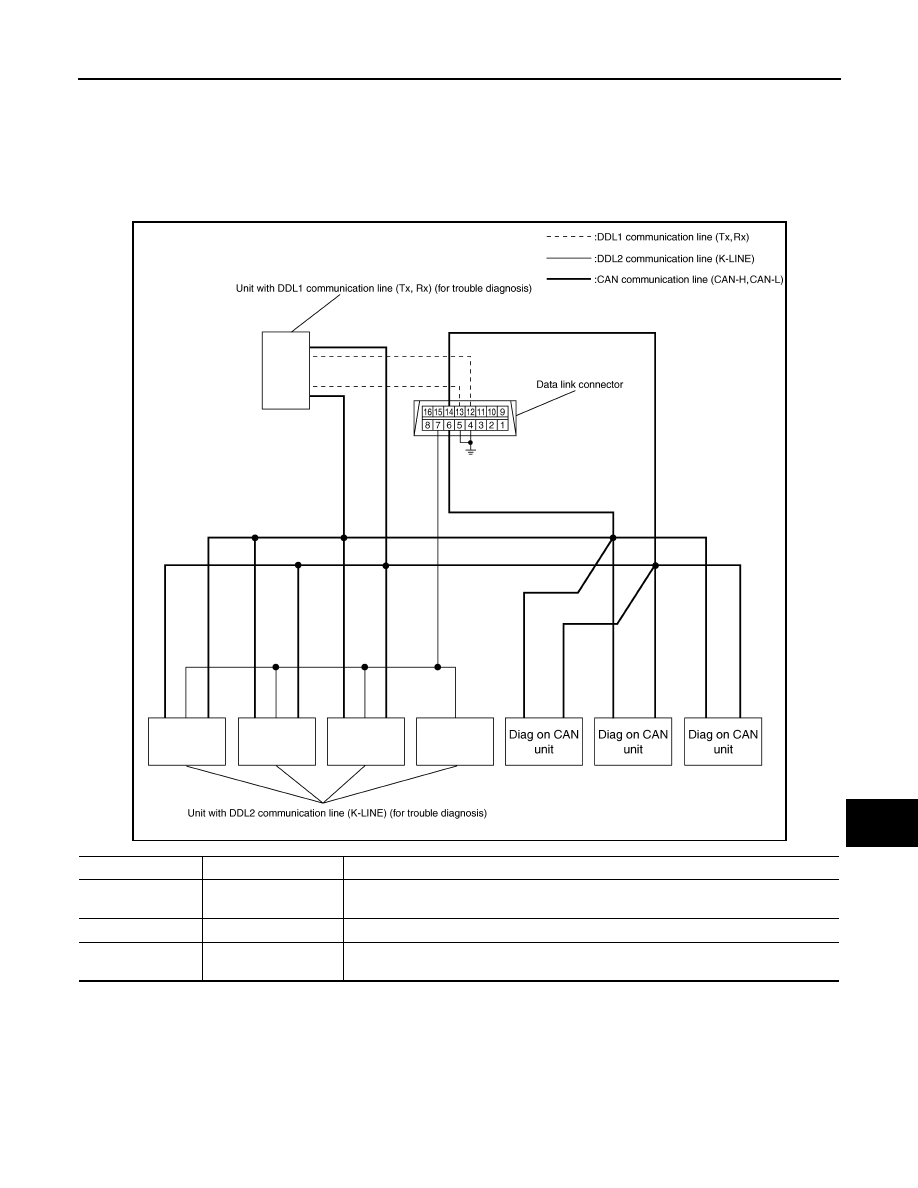

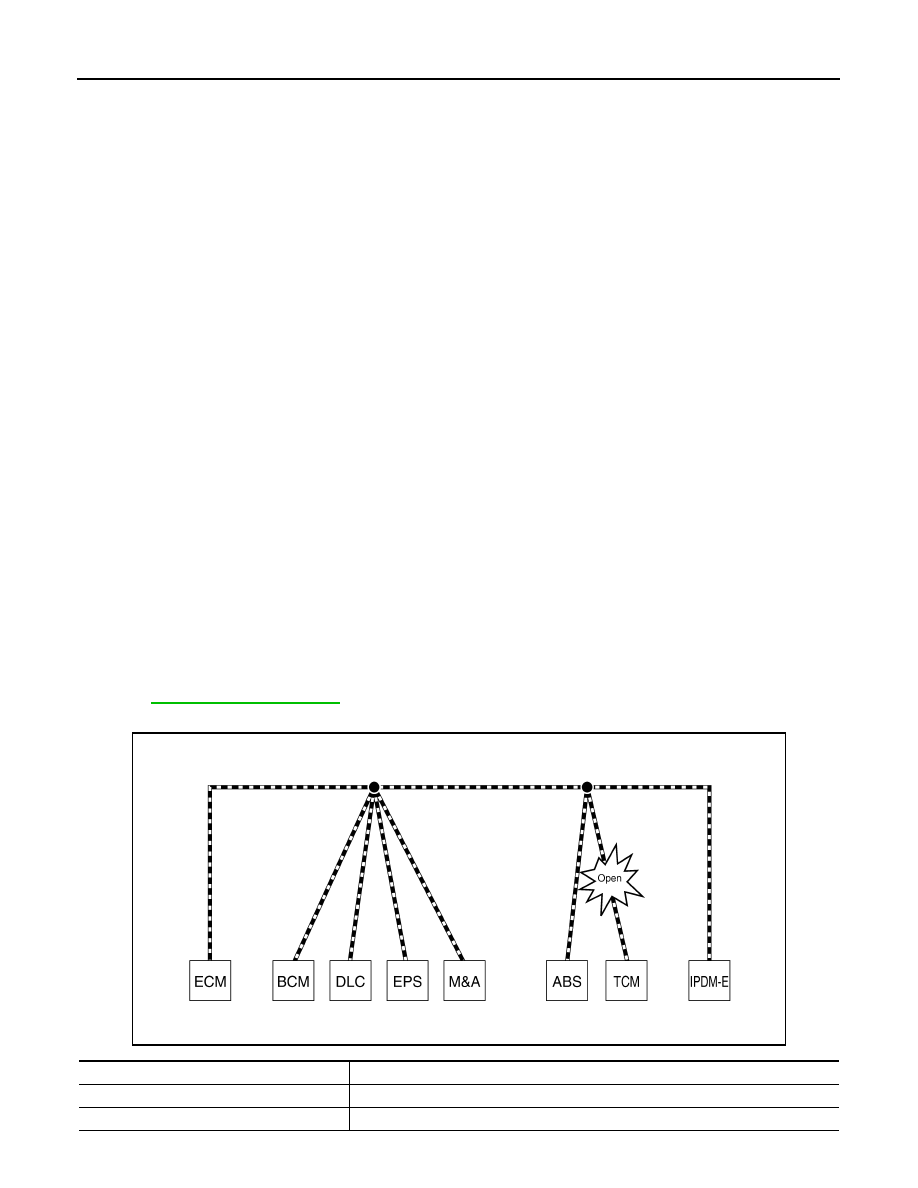

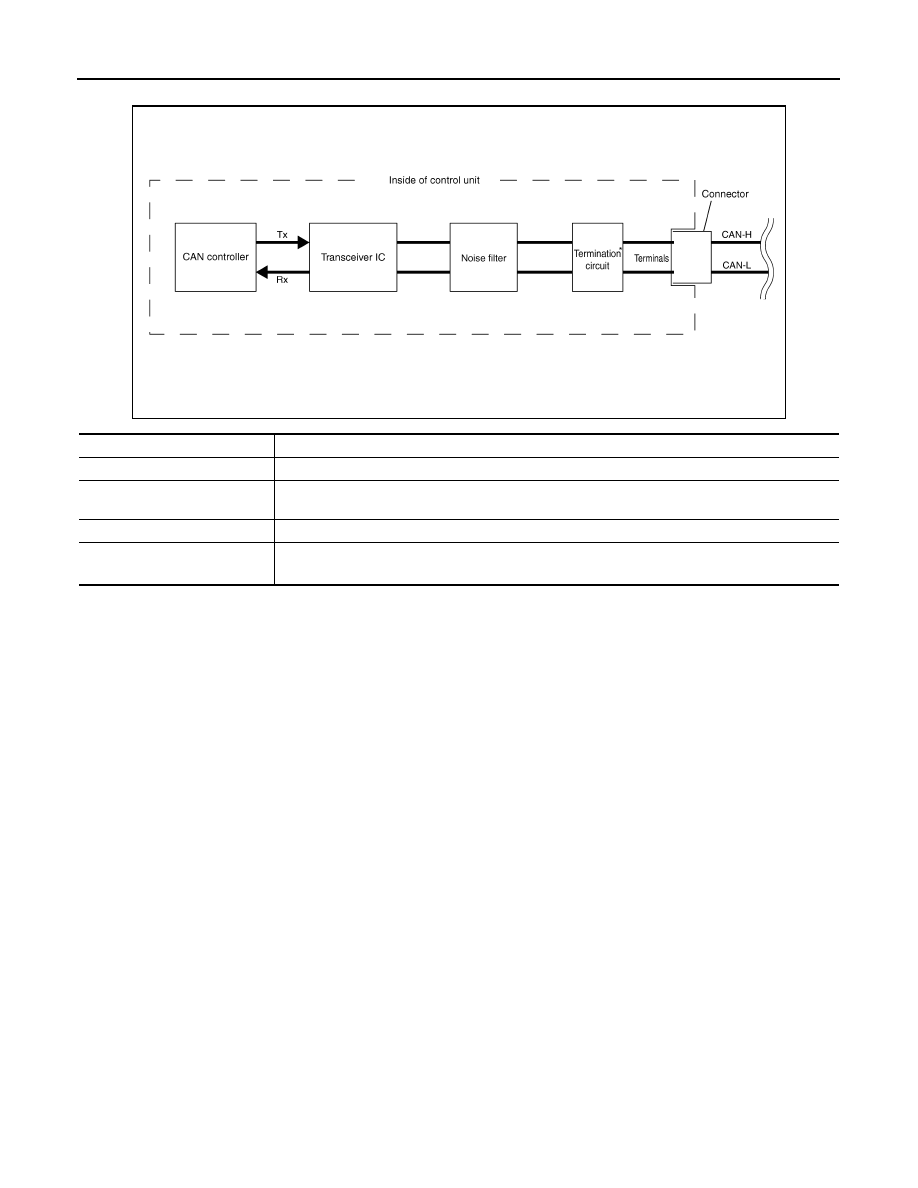

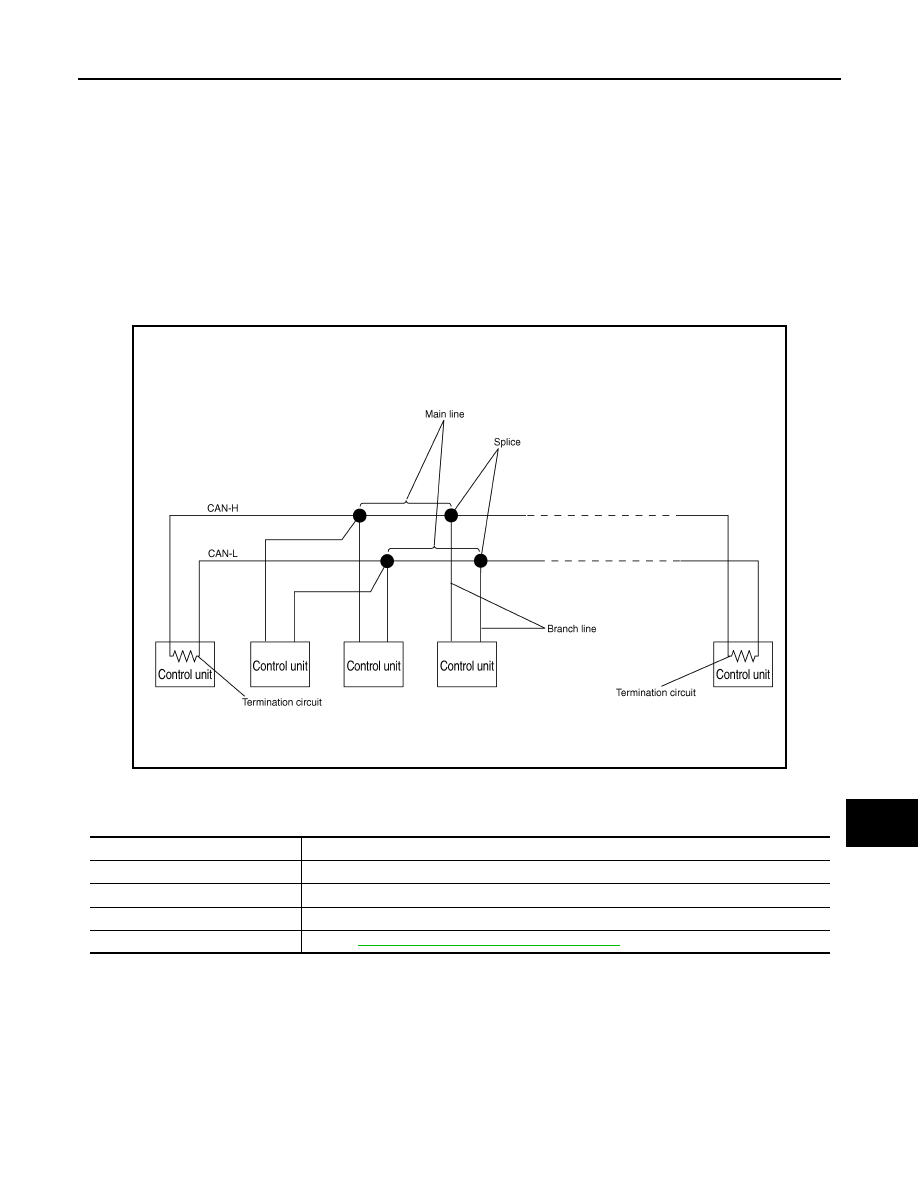

LAN CAN COMMUNICATION SYSTEM LAN-13 < FUNCTION DIAGNOSIS > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N FUNCTION DIAGNOSIS CAN COMMUNICATION SYSTEM System Description INFOID:0000000001162753 • CAN communication is a multiplex communication system. This enables the system to transmit and receive large quantities of data at high speed by connecting control units with two communication lines (CAN-H and • Control units on the CAN network transmit signals using the CAN communication control circuit. They receive only necessary signals from other control units to operate various functions. • CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity. System Diagram INFOID:0000000001162754 Each control unit passes an electric current to the termination circuits when transmitting CAN communication SKIB8887E Component Description Main line CAN communication line between splices Branch line CAN communication line between splice and a control unit Splice A point connecting a branch line with a main line Termination circuit LAN-14, "CAN Communication Control Circuit" . |
