INL-26

< ON-VEHICLE REPAIR >

INTERIOR ROOM LAMP

3.

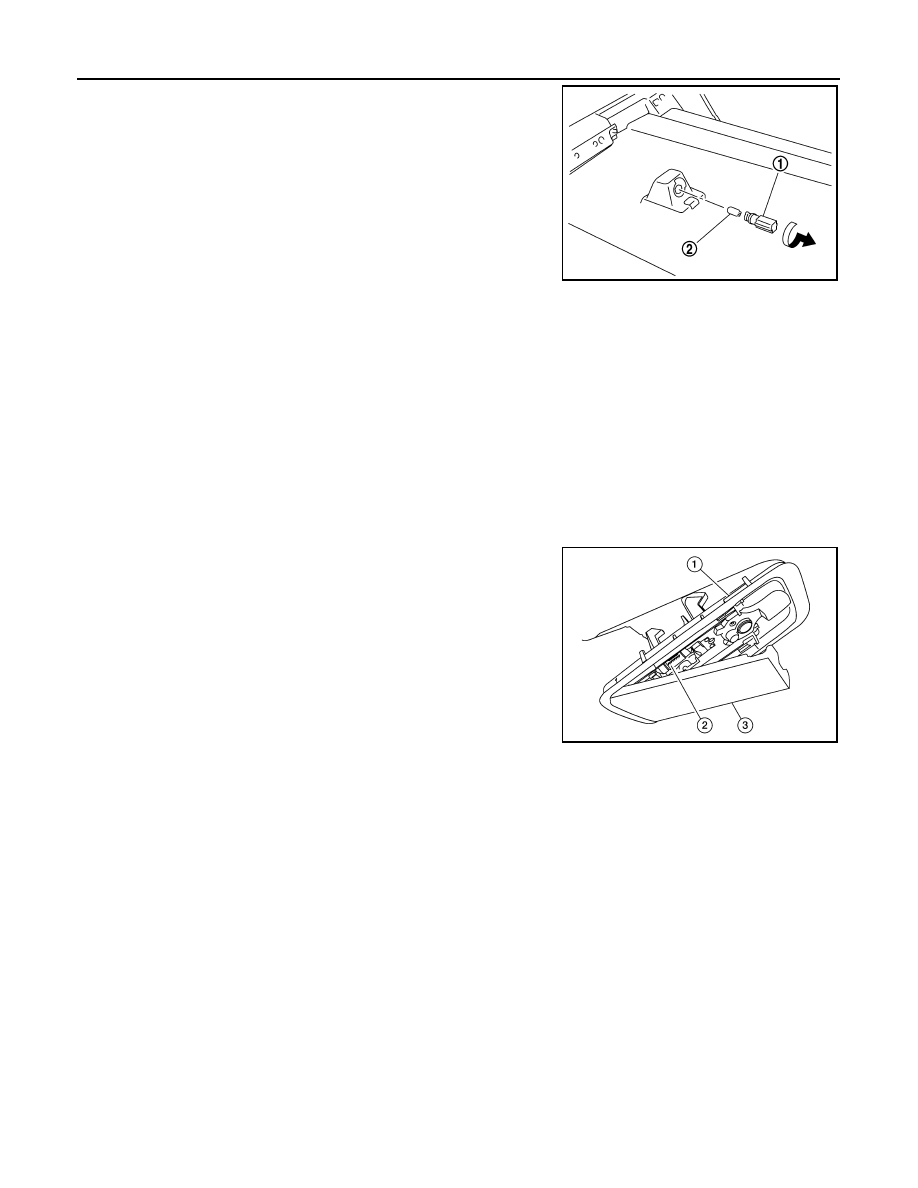

Rotate glove box lamp socket (1) counterclockwise to remove
from lower instrument glove box assembly.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery cable.

2.

Remove glove box lamp socket (1).

3.

Pull bulb (2) straight out from lamp socket to remove.

ROOM LAMP

Removal

1.

Disconnect the negative battery cable.

2.

Release the clips, then remove the room lamp (1) from the
headlining.

3.

Disconnect the connector and remove room lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery cable.

2.

Using a suitable tool, release the pawls and remove room lamp lens (3).

3.

Pull bulb (2) straight out to remove.

LUGGAGE COMPARTMENT LAMP (Hatchback)

Removal

1.

Disconnect the negative battery cable.

PKIC1053E

Glove box lamp bulb

: 12V - 1.4W

ALLIA0654ZZ

Room lamp bulb

: 12V - 8W

INTERIOR ROOM LAMP

INL-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

2.

Release the pawls, then remove the room lamp (2) from the lug-
gage side finisher LH.

3.

Disconnect the luggage compartment lamp connector.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery cable.

2.

Remove luggage compartment lamp from luggage side finisher LH.

3.

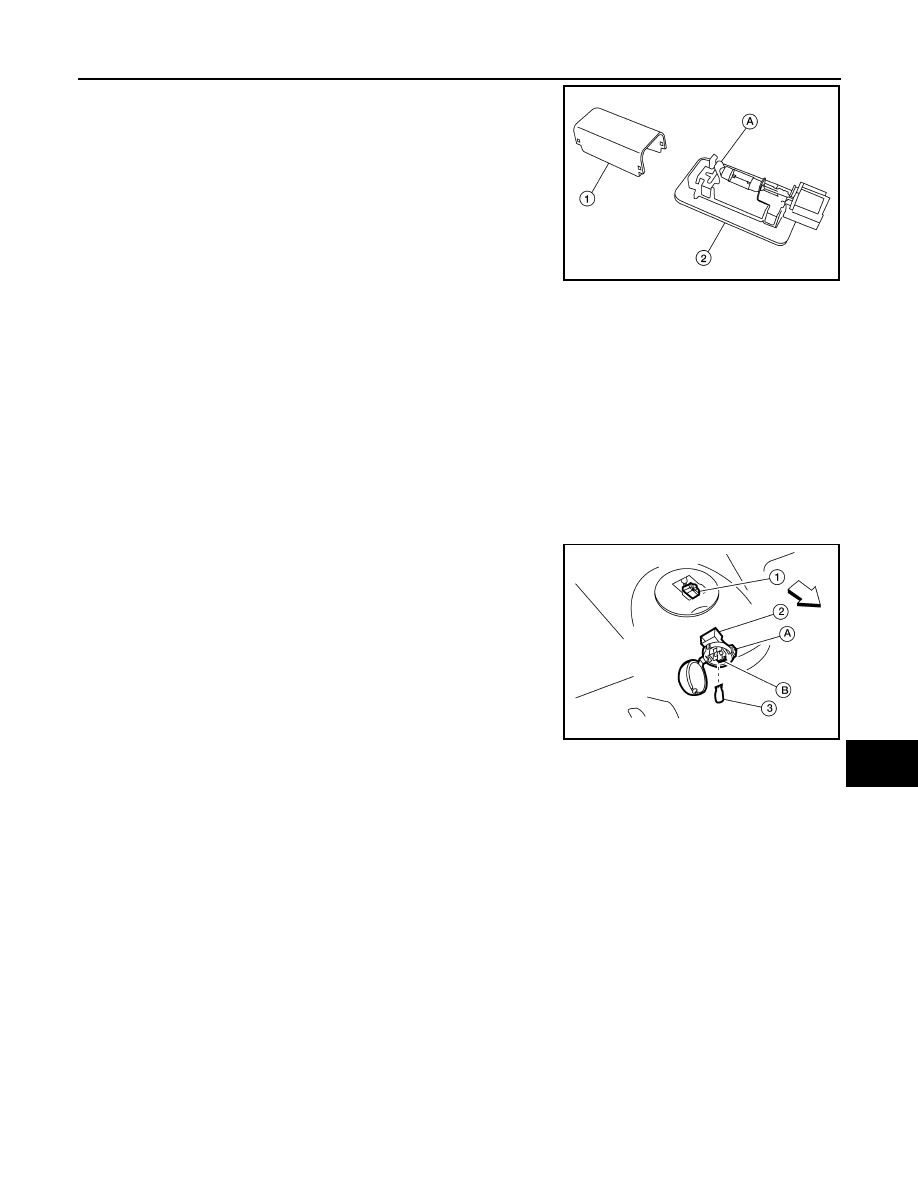

Remove the lamp bulb cover (1), then release tab (A) to remove bulb from lamp (2).

TRUNK ROOM LAMP (Sedan)

Removal

1.

Disconnect the negative battery cable.

2.

Release tab (A), then swing open the lens.

3.

Remove the bulb (3).

4.

Release the tab (B), then pull trunk room lamp (2) away from
body opening.

5.

Disconnect the connector (1) and remove trunk room lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1.

Disconnect the negative battery cable.

2.

Release tab (A), then swing open the lens.

3.

Pull trunk room lamp bulb (3) straight out to remove.

ALLIA0655ZZ

Luggage compartment bulb

: 12V - 5W

ALLIA0014ZZ

Trunk room lamp bulb

: 12V - 5W

INL-28

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000001726700

* Always check with the Parts Department for the latest parts information.

Item

Type

Wattage (W)

Bulb No.*

Map lamp

Cylinder

8

AL54

Vanity mirror lamp (if equipped)

Cylinder

2

-

Glove box lamp (if equipped)

Wedge

1.4

-

Room lamp

Cylinder

8

-

Luggage compartment lamp (Hatchback)

Cylinder

5

B5Y

Trunk room lamp (Sedan)

Wedge

5

158

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution .................................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

CLIP AND FASTENER ........................................

4

Description ................................................................

4

SQUEAK AND RATTLE TROUBLE DIAGNO-
SIS .......................................................................

7

Work Flow  .................................................................

7

Generic Squeak and Rattle Troubleshooting  ............

9

Diagnostic Worksheet  .............................................

11

ON-VEHICLE REPAIR .................................

13

DOOR FINISHER  ...............................................

13

Removal and Installation .........................................

13

TRUNK LID FINISHER ......................................

17

Removal and Installation  .........................................

17

BACK DOOR TRIM ...........................................

18

Removal and Installation  .........................................

18

BODY SIDE TRIM  .............................................

19

Component ..............................................................

19

Removal and Installation  .........................................

20

LUGGAGE FLOOR TRIM  .................................

24

Removal and Installation  .........................................

24

REAR PARCEL SHELF FINISHER  ..................

26

Removal and Installation  .........................................

26

FLOOR TRIM  ....................................................

27

Removal and Installation  .........................................

27

HEADLINING ....................................................

29

Component ..............................................................

29

Removal and Installation - Hatchback  .....................

31

Removal and Installation - Sedan ............................

33

TRUNK ROOM TRIM & TRUNK LID FINISH-
ER ......................................................................

35

Removal and Installation  .........................................

35
