PTC HEATER CONTROL SYSTEM

ALIIA0169GB

PTC HEATER CONTROL SYSTEM

HAC-293

< ECU DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PTC HEATER (1500 WATT)

ALIIA0170GB

HAC-294

< ECU DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

PTC HEATER CONTROL SYSTEM

PTC HEATER (1500 WATT) : Wiring Diagram - PTC Heater (1500 Watt) -

INFOID:0000000001683835

ALIWA0042GB

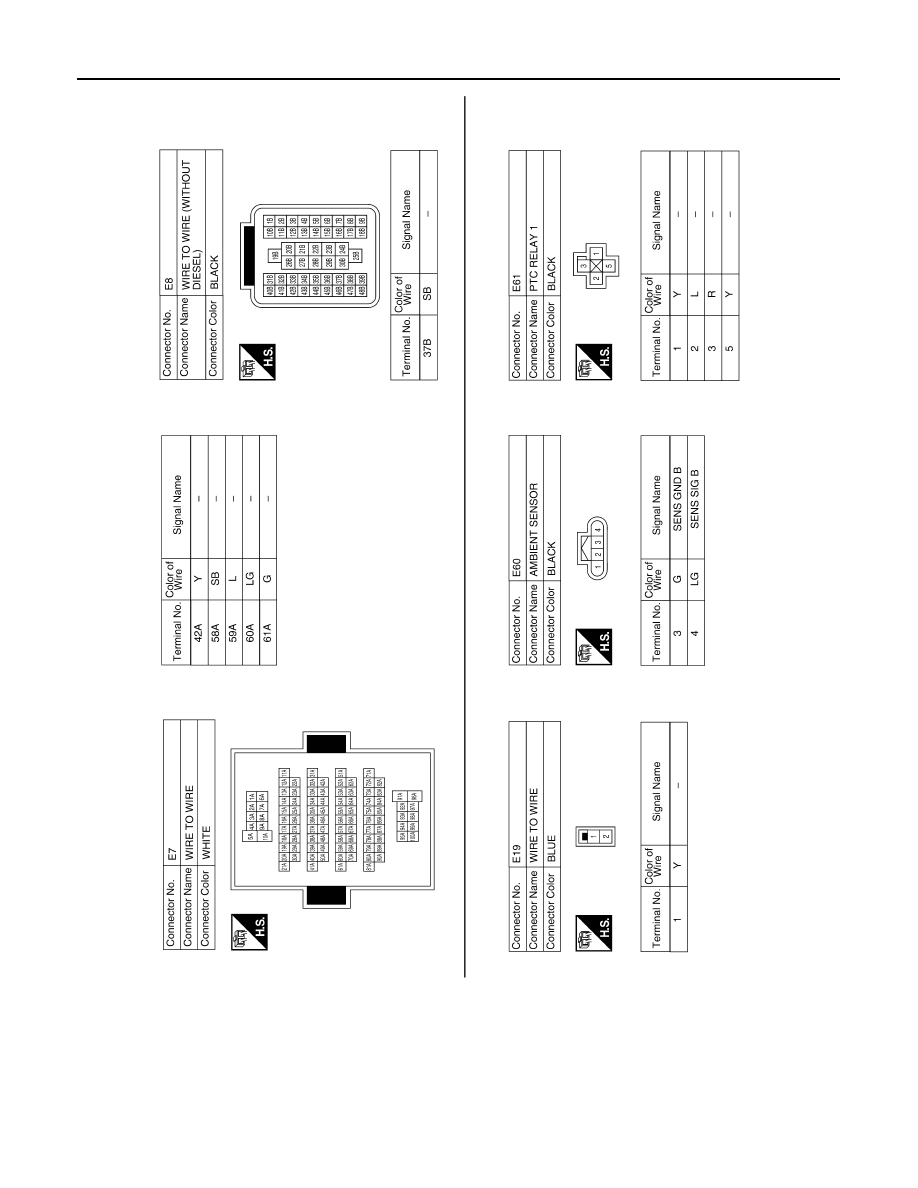

PTC HEATER CONTROL SYSTEM

HAC-295

< ECU DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ALIIA0141GB
