PTC HEATER CONTROL SYSTEM

Is the inspection result normal?

YES

>> 1.

Replace front air control. Refer to XX.

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis

STEP-2. Confirm that code No. 20 is displayed.

NO

>> Repair harness or connector.

22.

CHECK ENGINE RPM SIGNAL (MANUAL TRANSMISSION)

1.

Reconnect PTC control unit.

2.

Start the engine.

3.

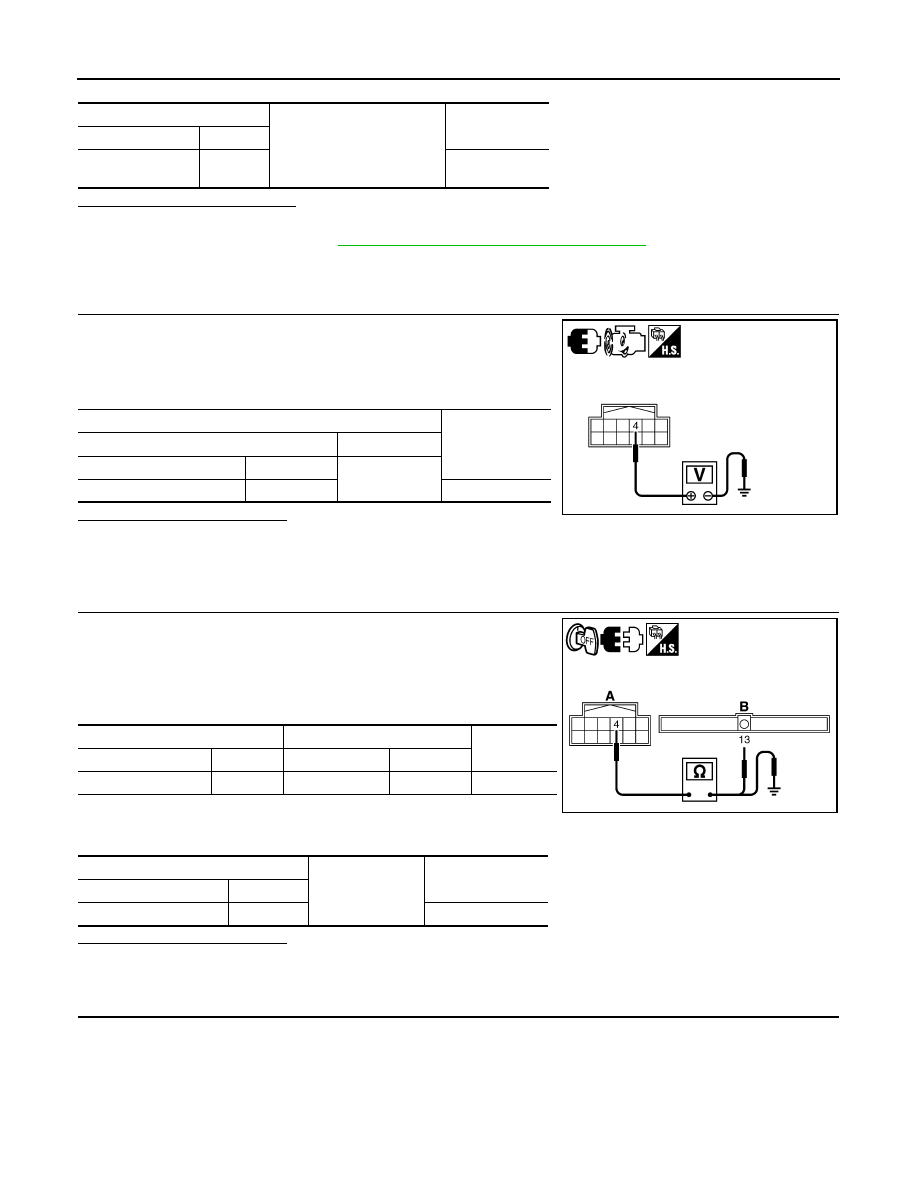

Check voltage between PTC control unit harness connector
M84 terminal 4 and ground.

Is the inspection result normal

YES

>> GO TO 24.

NO

>> GO TO 23.

23.

CHECK CONTINUITY OF ENGINE RPM CIRCUIT BETWEEN FRONT AIR CONTROL AND PTC CON-

TROL UNIT (MANUAL TRANSMISSION)

1.

Turn ignition switch OFF.

2.

Disconnect ECM and PTC control unit connector.

3.

Check continuity between PTC control unit harness connector
M84 (A) terminal 4 and ECM harness connector F10 (B) termi-
nal 13.

4.

Check continuity between PTC control unit harness connector
M84 (A) terminal 4 and ground.

Is the inspection result normal

YES

>> Replace ECM. Refer to XX.

NO

>> Repair harness or connector.

24.

CHECK BCM INPUT (FAN ON) SIGNAL

A

Ground

Continuity

Connector

Terminal

Ambient sensor:

E60

2

No

Terminals

Voltage

(Approx.)

(+)

(

−

)

Connector

Terminal

Ground

PTC control unit: M84

4

4.2V

SJIA0924E

A

B

Continuity

Connector

Terminal

Connector

Terminal

PTC control unit: M84

4

ECM: F10

13

Yes

A

Ground

Continuity

Connector

Terminal

PTC control unit: M84

4

No

SJIA0925E

PTC HEATER CONTROL SYSTEM

HAC-265

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

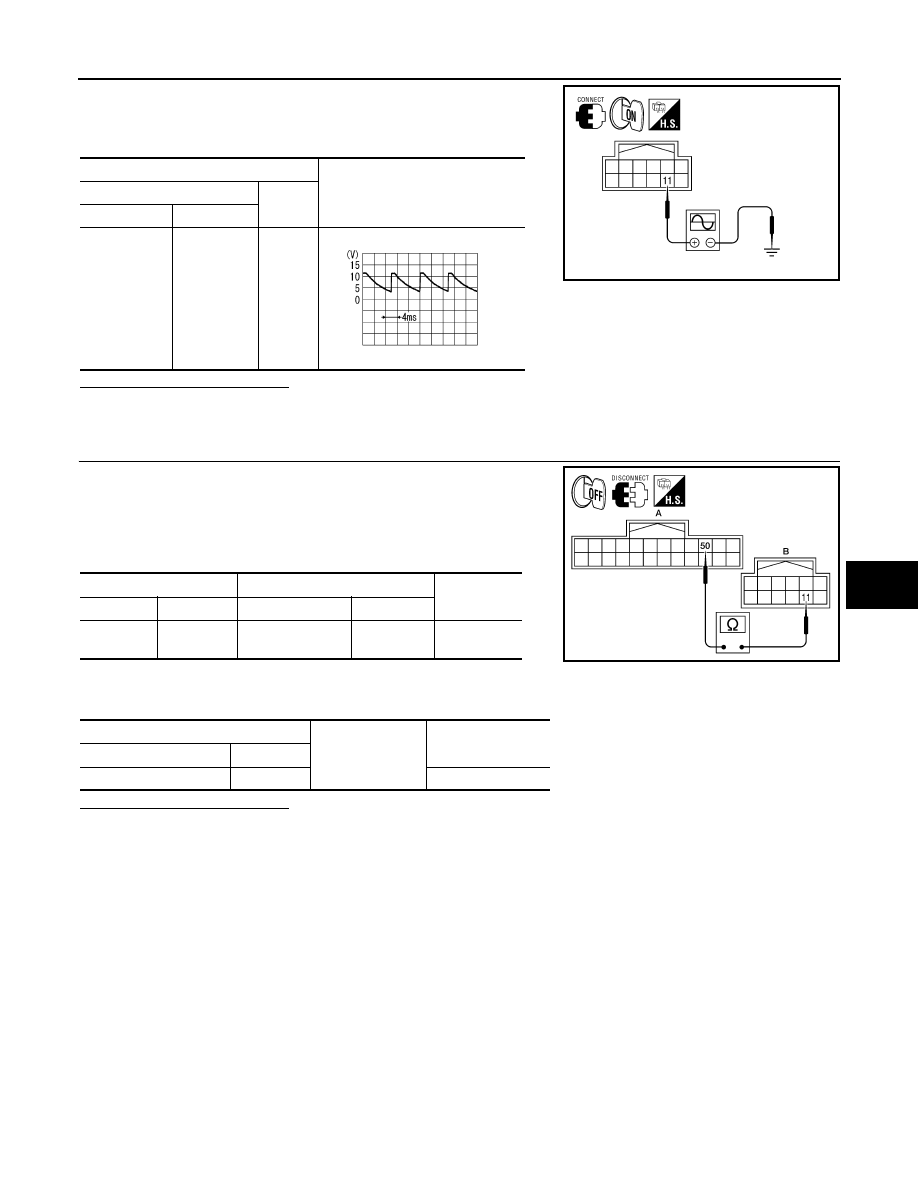

1.

Turn blower control dial to "1" position.

2.

Confirm fan on signal between PTC control unit harness con-
nector M84 terminal 11 and ground using oscilloscope.

Is the inspection result normal

YES

>> Replace PTC control unit.

NO

>> GO TO 25.

25.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND PTC CONTROL UNIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and PTC control unit connector.

3.

Check continuity between BCM harness connector M19 (A) ter-
minal 50 and PTC control unit harness connector M84 (B)   ter-
minal 11.

4.

Check continuity between PTC control unit harness connector
M84 (A) terminal 11 and ground.

Is the inspection result normal

YES

>> Replace BCM. Refer to XX.

NO

>> Repair harness or connector.

PTC HEATER (300 WATT) : PTC Heater (300 Watt) Component Inspection

INFOID:0000000001548108

COMPONENT INSPECTION

Ambient Sensor

Terminals

Voltage

(Approx.)

(+)

(-)

Connector

Terminal

PTC control

unit: M84

11

Ground

AWIIA0460ZZ

ZJIA0583J

A

B

Continuity

Connector

Terminal

Connector

Terminal

BCM: M19

50

PTC control unit:

M84

11

Yes

A

Ground

Continuity

Connector

Terminal

PTC control unit: M84

11

No

AWIIA0461ZZ

HAC-266

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

PTC HEATER CONTROL SYSTEM

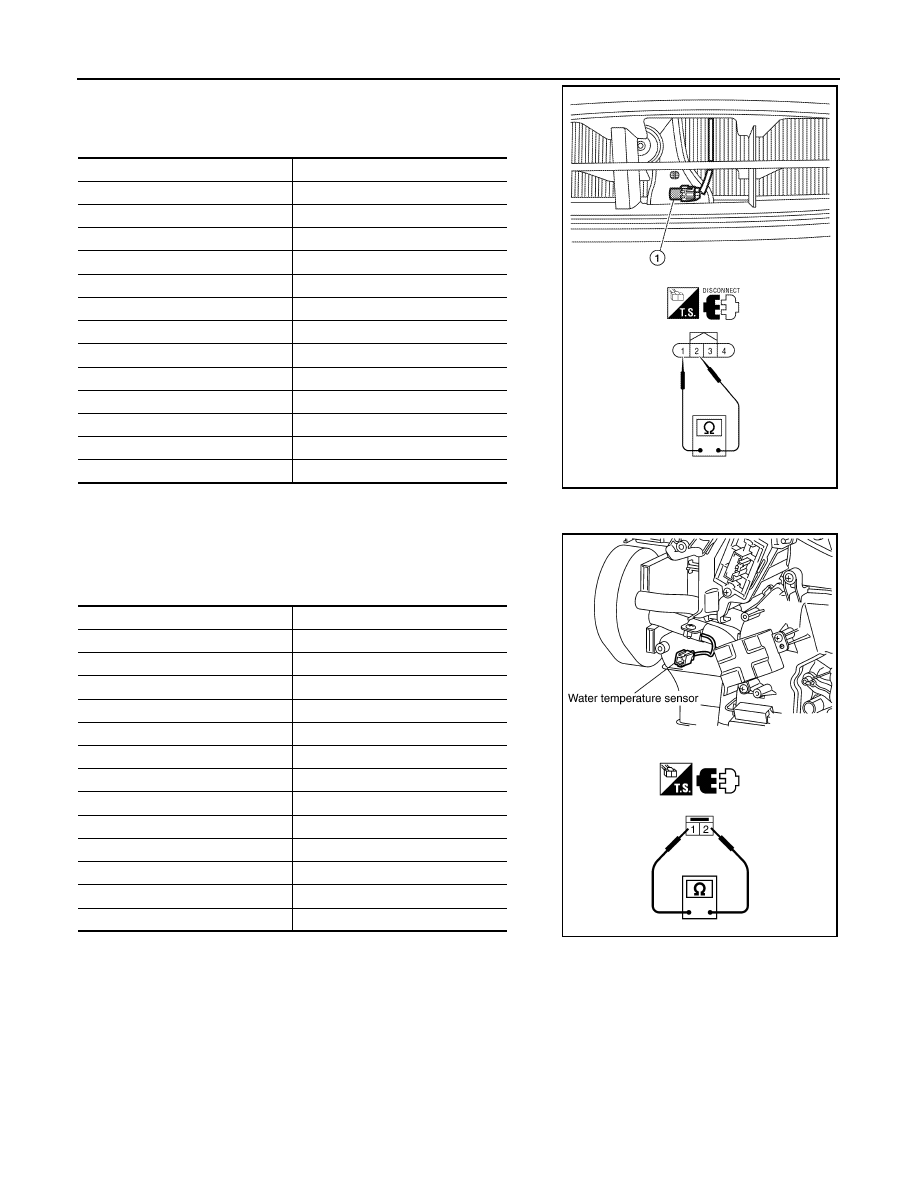

After disconnecting ambient sensor (1) connector E60, measure
resistance between terminals 1 and 2 at sensor side, using the table
below.

If NG, replace ambient sensor. Refer to XX.

Water Temperature Sensor

After disconnecting water temperature sensor connector M64, mea-
sure resistance between terminals 1 and 2 at sensor side, using the
table below.

If NG, replace water temperature sensor.

Full Hot Switch

Temperature

°

C (

°

F)

Resistance k

Ω

−

15 (5)

12.73

−

10 (14)

9.92

−

5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

AWIIA0603ZZ

Temperature

°

C (

°

F)

Resistance k

Ω

−

20 (

−

4)

31.62

−

10 (14)

17.47

0 (32)

10.09

10 (50)

6.05

20 (68)

3.76

30 (86)

2.41

40 (104)

1.59

50 (122)

1.08

60 (140)

0.75

70 (158)

0.53

80 (176)

0.38

90 (194)

0.28

100 (212)

0.21

SJIA0929E

PTC HEATER CONTROL SYSTEM

HAC-267

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

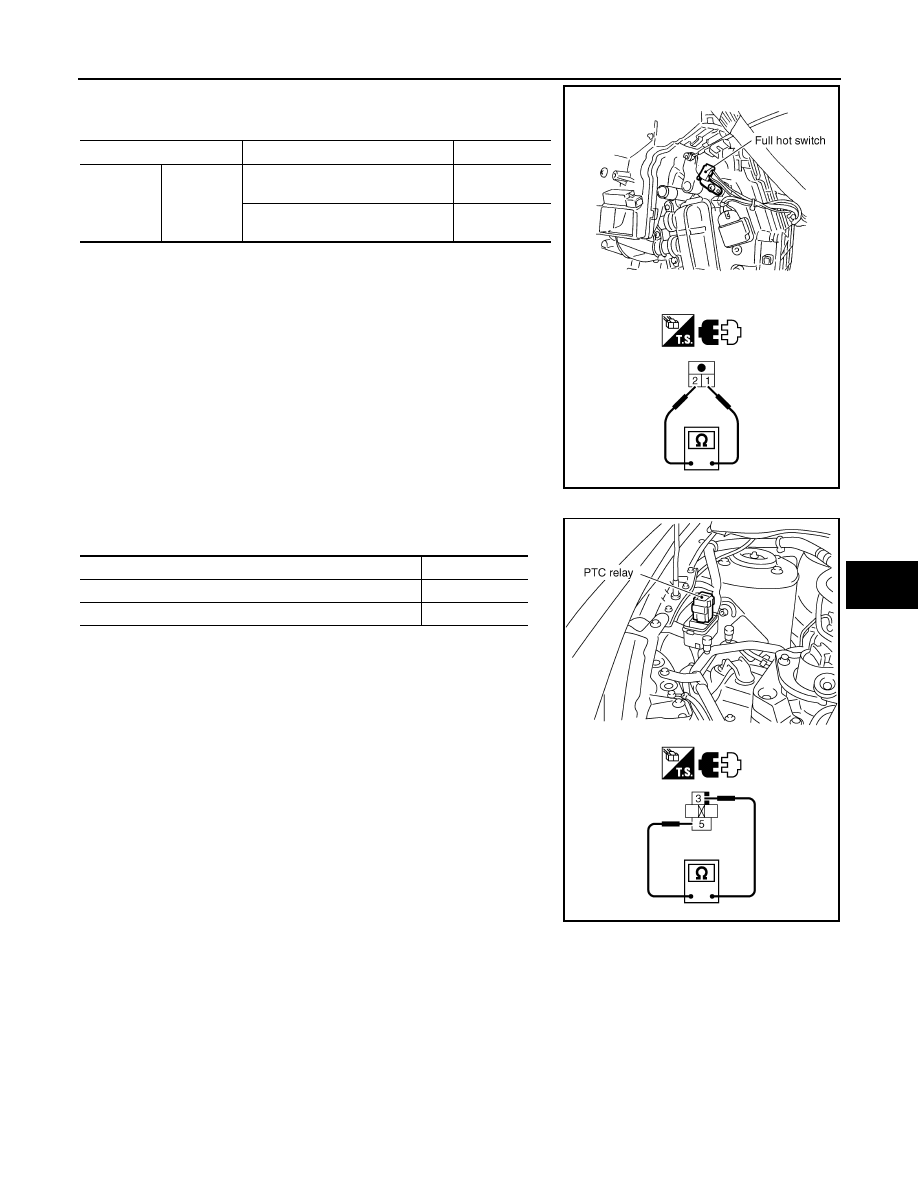

After disconnecting full hot switch connector M65, check continuity
between terminals 1 and 2 at switch side.

If NG, replace full hot switch.

PTC relay

Check continuity between terminal Nos. 3 and 5.

If NG, replace PTC relay.

PTC HEATER (1500 WATT)

PTC HEATER (1500 WATT) : System Description

INFOID:0000000001679705

SYSTEM DESCRIPTION

The PTC heater system is controlled by ambient temperature, water temperature, FAN ON signal. Hot air is
supplied to a discharge air outlet by PTC heater that generates heat electrically even when engine coolant
temperature is low.

Component Parts

PTC heater system components are:

• PTC control unit

Terminals

Condition

Continuity

1

2

Temperature control dial: Full hot
position

Yes

Temperature control dial: Except full
hot position

No

SJIA0930E

Condition

Continuity

12V direct current supply between terminal Nos. 1 and 2

Yes

No current supply

No

SJIA0931E
