[AUTO AIR CONDITIONER (W/NAVI)]

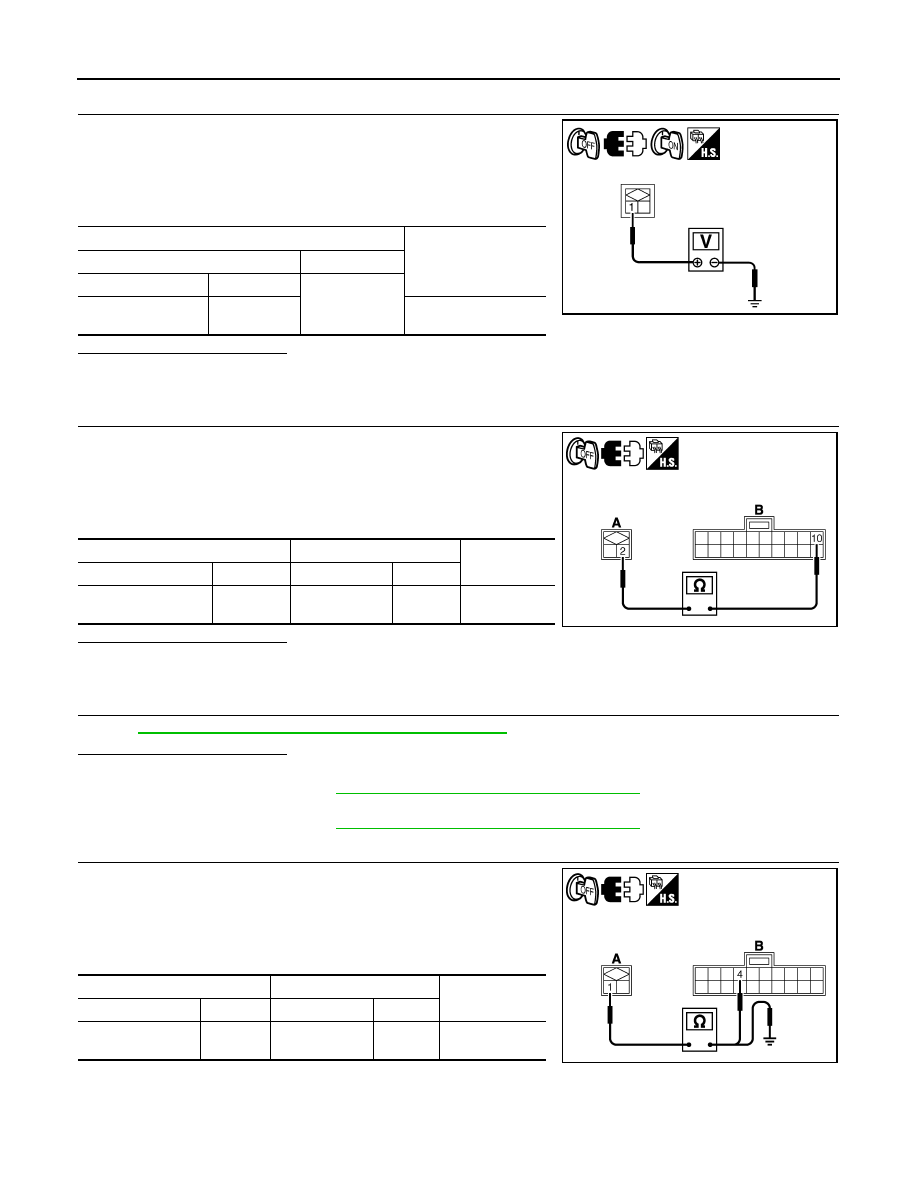

IN-VEHICLE SENSOR

1.

CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND

1.

Turn ignition switch OFF.

2.

Disconnect in-vehicle sensor connector.

3.

Turn ignition switch ON.

4.

Check voltage between in-vehicle sensor harness connector
and ground.

Is the inspection result normal

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 2 and front air control harness connector M85
(B) terminal 10.

Is the inspection result normal

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK IN-VEHICLE SENSOR

Refer to

HAC-249, "In-Vehicle Sensor Component Inspection"

Is the inspection result normal

YES

>> 1.

Replace front air control. Refer to XXXX

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> 1.

Replace in-vehicle sensor.

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between in-vehicle sensor harness connector
M41 (A) terminal 1 and front air control harness connector M85
(B) terminal 4.

4.

Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 1 and ground.

Terminals

Voltage

(Approx.)

(+)

(

−

)

Connector

Terminal

Ground

In-vehicle sensor:

M93

1

5V

SJIA0816E

A

B

Continuity

Connector

Terminal

Connector

Terminal

In-vehicle sensor:

M93

2

Front air con-

trol: M85

10

Yes

SJIA0896E

A

B

Continuity

Connector

Terminal

Connector

Terminal

In-vehicle sensor:

M93

1

Front air con-

trol: M85

4

Yes

SJIA0898E

IN-VEHICLE SENSOR

HAC-249

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal

YES

>> 1.

Replace front air control.

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> Repair harness or connector.

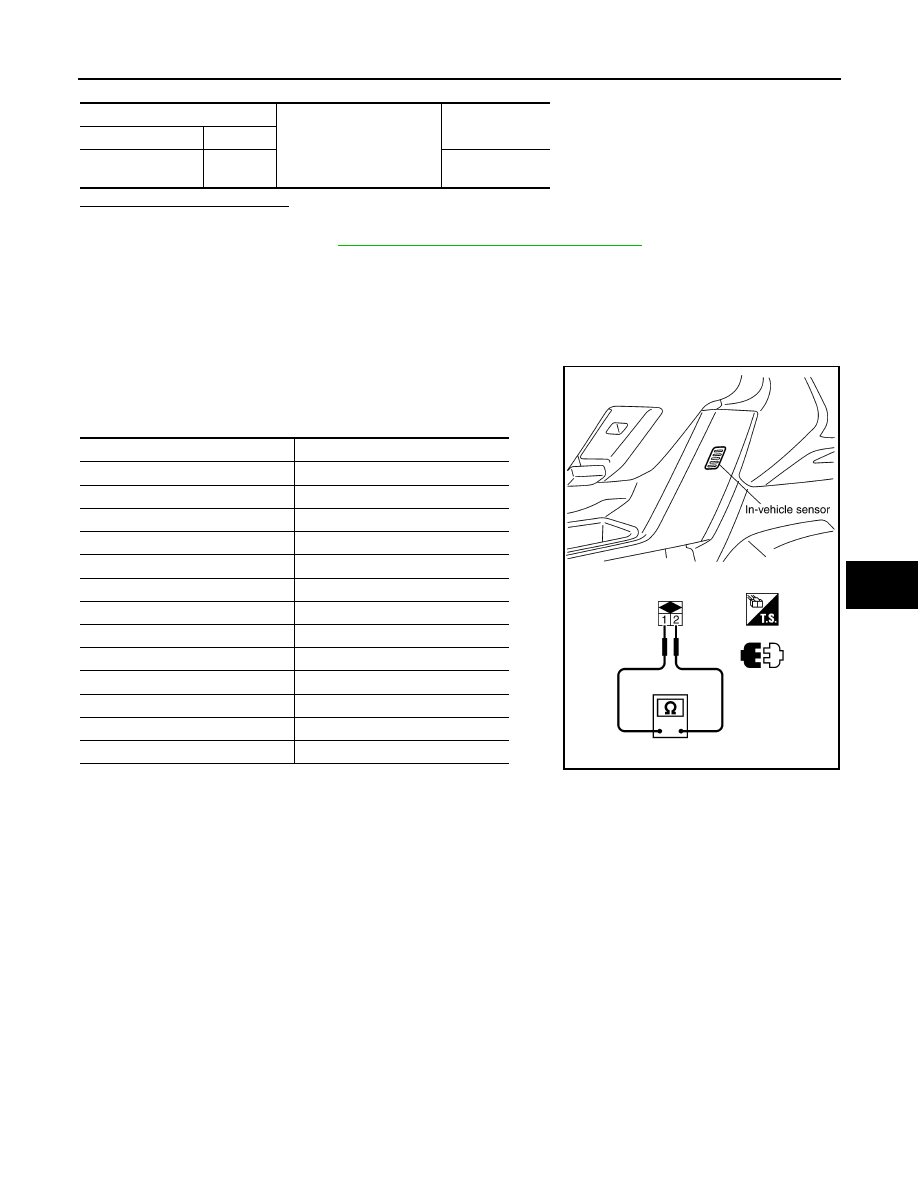

In-Vehicle Sensor Component Inspection

INFOID:0000000001547362

COMPONENT INSPECTION

In-vehicle Sensor

After disconnecting in-vehicle sensor connector M41, measure resis-
tance between terminals 1 and 2 at sensor side, using the table
below.

If NG, replace in-vehicle sensor. Refer to XXXX

A

Ground

Continuity

Connector

Terminal

In-vehicle sensor:

M93

1

No

Temperature

°

C (

°

F)

Resistance k

Ω

−

15 (5)

12.73

−

10 (14)

9.92

−

5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

SJIA0846E

HAC-250

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

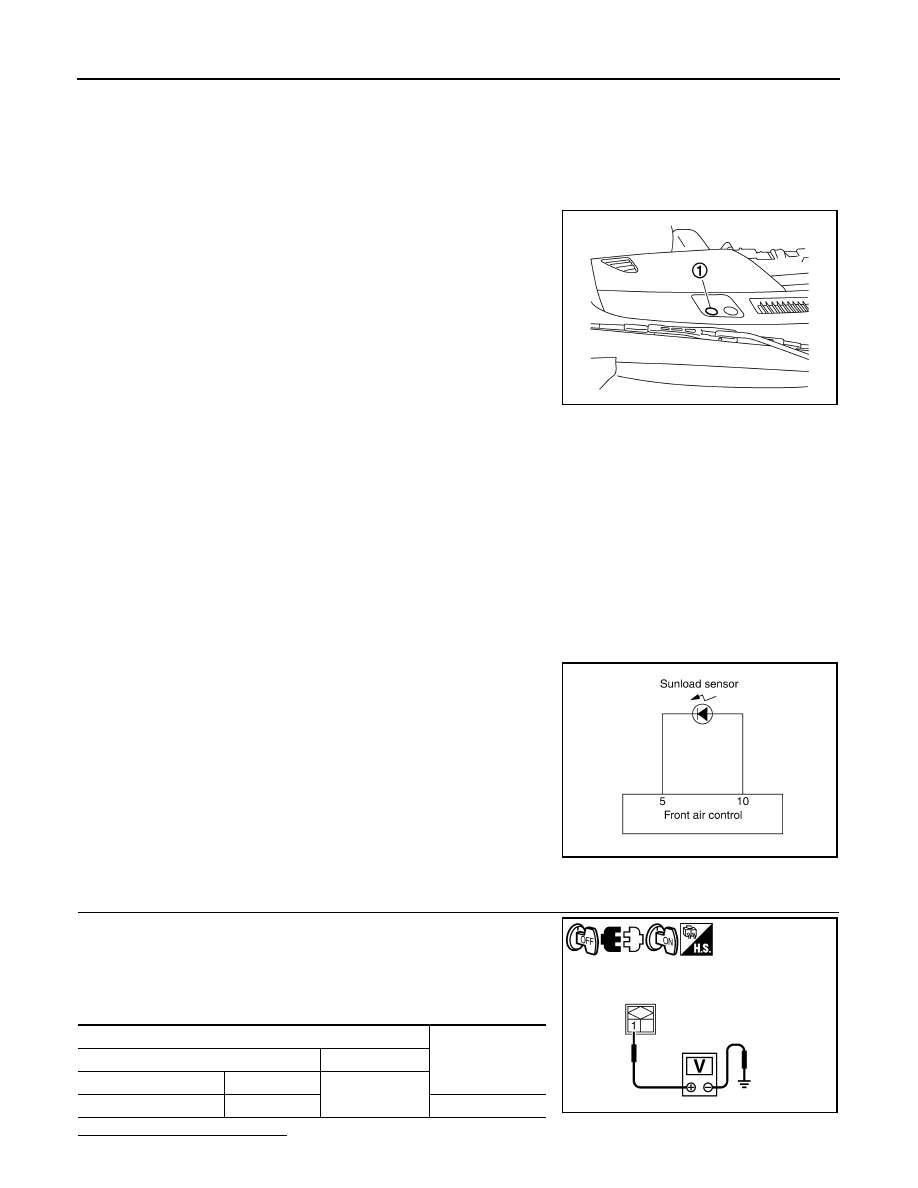

SUNLOAD SENSOR

SUNLOAD SENSOR

Component Description

INFOID:0000000001547363

COMPONENT DESCRIPTION

Sunload Sensor

The sunload sensor (1) is located on the instrument upper mask. It
detects sunload entering through windshield by means of a photo
diode. The sensor converts the sunload into a current value which is
then input into the front air control.

SUNLOAD INPUT PROCESS

The front air control also includes a processing circuit which averages the variations in detected sunload over
a period of time. This prevents drastic swings in the ATC system operation due to small or quick variations in
detected sunload.
For example, consider driving along a road bordered by an occasional group of large trees. The sunload
detected by the sunload sensor will vary whenever the trees obstruct the sunlight. The processing circuit aver-
ages the detected sunload over a period of time, so that the (insignificant) effect of the trees momentarily
obstructing the sunlight does not cause any change in the ATC system operation. On the other hand, shortly
after entering a long tunnel, the system will recognize the change in sunload, and the system will react accord-
ingly.

Sunload Sensor Diagnosis Procedure

INFOID:0000000001547364

DIAGNOSTIC PROCEDURE FOR SUNLOAD SENSOR

SYMPTOM: Sunload sensor circuit is open or shorted.
LEDs of intake switch (FRE, REC) does not illuminate as a result of
performing self-diagnosis STEP-2.

1.

CHECK VOLTAGE BETWEEN SUNLOAD SENSOR AND GROUND

1.

Turn ignition switch OFF.

2.

Disconnect sunload sensor connector.

3.

Turn ignition switch ON.

4.

Check voltage between sunload sensor harness connector M94
terminal 1 and ground.

Is the inspection result normal

SJIA0819E

AWIIA0347GB

Terminals

Voltage

(Approx.)

(+)

(

−

)

Connector

Terminal

Ground

Sunload sensor: M94

1

5V

SJIA0821E

SUNLOAD SENSOR

HAC-251

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

YES

>> GO TO 2.

NO

>> GO TO 4.

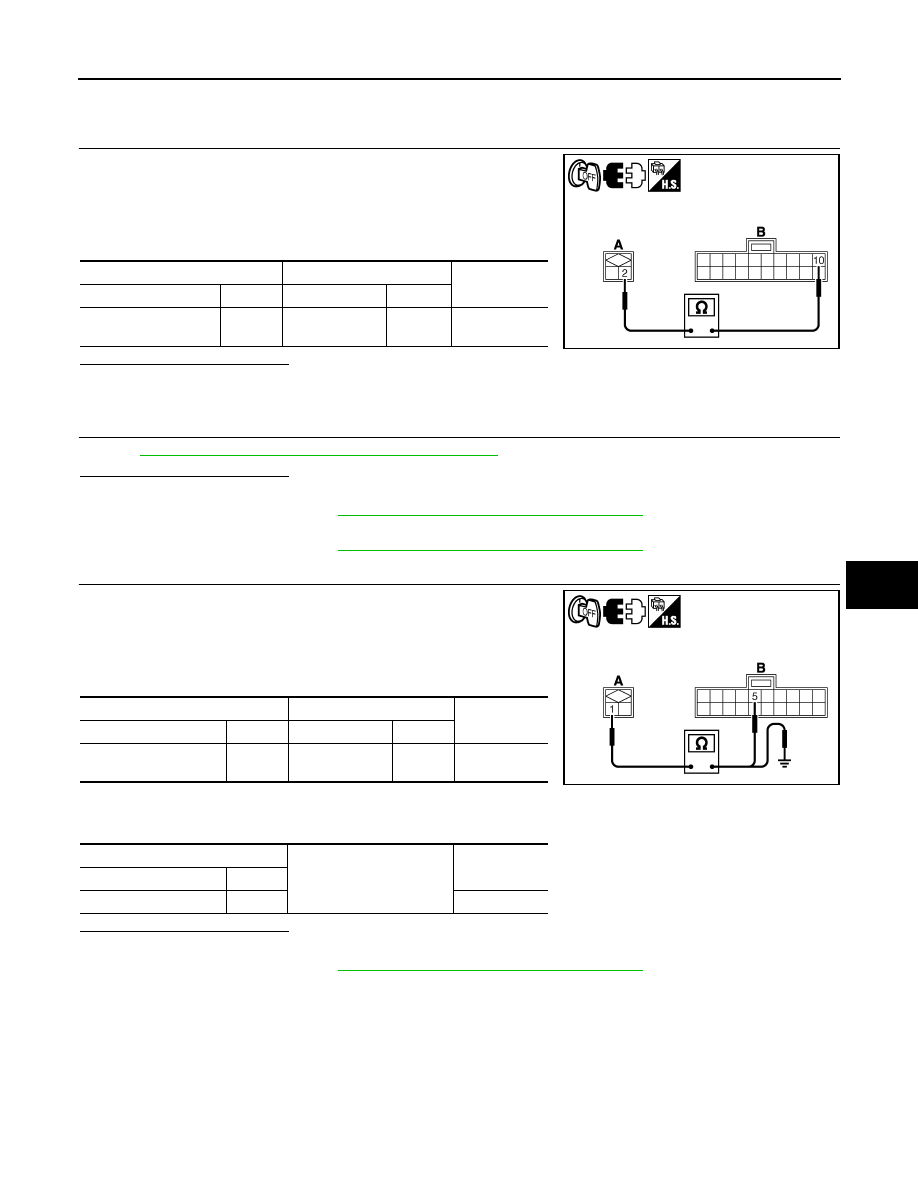

2.

CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between sunload sensor harness connector
M94 (A) terminal 2 and front air control harness connector M86
(B) terminal 10.

Is the inspection result normal

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK SUNLOAD SENSOR

Refer to

HAC-251, "Sunload Sensor Component Inspection"

.

Is the inspection result normal

YES

>> 1.

Replace front air control. Refer to XX.

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> 1.

Replace sunload sensor.

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between sunload sensor harness connector
M94 (B) terminal 1 and front air control harness connector M86
(B) terminal 5.

4.

Check continuity between sunload sensor harness connector
M94 (A) terminal 1 and ground.

Is the inspection result normal

YES

>> 1.

Replace front air control. Refer to XXXX

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> Repair harness or connector.

Sunload Sensor Component Inspection

INFOID:0000000001555023

COMPONENT INSPECTION

Sunload Sensor

A

B

Continuity

Connector

Terminal

Connector

Terminal

Sunload sensor: M94

2

Front air control:

M86

10

Yes

SJIA0900E

A

B

Continuity

Connector

Terminal

Connector

Terminal

Sunload sensor: M94

1

Front air control:

M86

5

Yes

A

Ground

Continuity

Connector

Terminal

Sunload sensor: M94

1

No

SJIA0901E
