BLOWER MOTOR CONTROL SYSTEM

YES

>> GO TO 6.

NO

>> Repair harness or connector.

6.

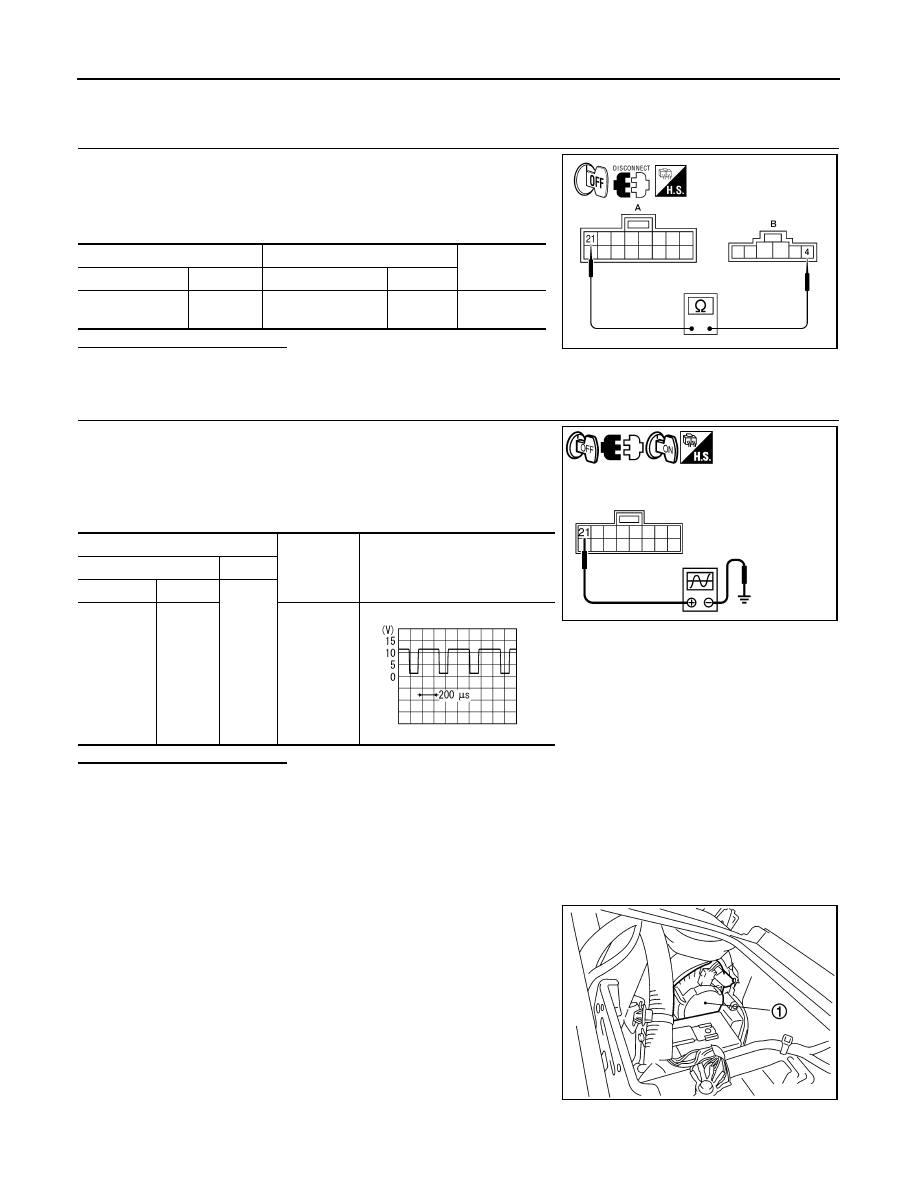

CHECK CIRCUIT CONTINUITY BETWEEN FRONT AIR CONTROL AND VARIABLE BLOWER CONTROL

1.

Disconnect front air control connector.

2.

Check continuity between front air control harness connector
M85 (A) terminal 21 and variable blower control harness con-
nector M90 (B) terminal 4.

Is the inspection result normal

YES

>> Replace variable blower control. Refer to XXXX

NO

>> Repair harness or connector.

7.

CHECK FOR FRONT AIR CONTROL OUTPUT 2

1.

Reconnect the front blower motor and the variable blower con-
trol.

2.

Turn ignition switch ON.

3.

Check output signal between front air control harness connector
M85 terminal 21 and ground.

Is the inspection result normal

YES

>> Replace front air control. Refer to XXXX.

NO

>> Replace variable blower control. Refer to XXXX.

Front Blower Motor Component Inspection

INFOID:0000000001547342

COMPONENT INSPECTION

Front Blower Motor

Confirm smooth rotation of the blower motor (1).
• Ensure that there are no foreign particles inside the A/C unit

assembly.

A

B

Continuity

Connector

Terminal

Connector

Terminal

Front air control:

M85

21

Variable blower

control: M90

4

Yes

AWIIA0560ZZ

Terminals

Condition

Voltage

(Approx.)

(+)

(

−

)

Connector

Terminal

Ground

Front air

control:

M85

21

Blower

speed: 1st

SJIA0887E

ZJIA0863J

SJIA0735E

BLOWER MOTOR CONTROL SYSTEM

HAC-237

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

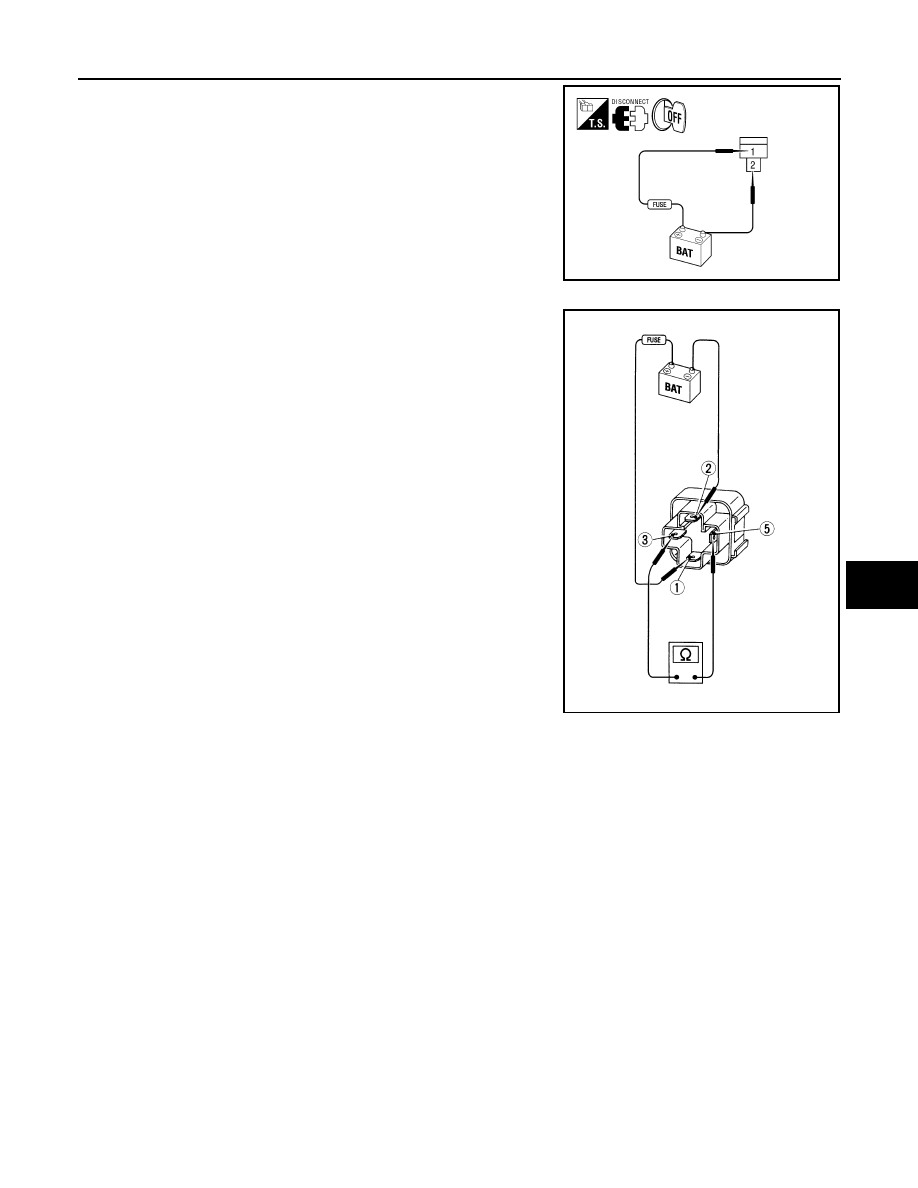

Apply 12 volts to terminal 1 and ground to terminal 2 and verify that
the motor operates freely and quietly.

Blower Relay

Check continuity between terminals by supplying 12 volts and
ground to coil side terminals of relay.

WJIA2240E

WJIA1401E

HAC-238

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

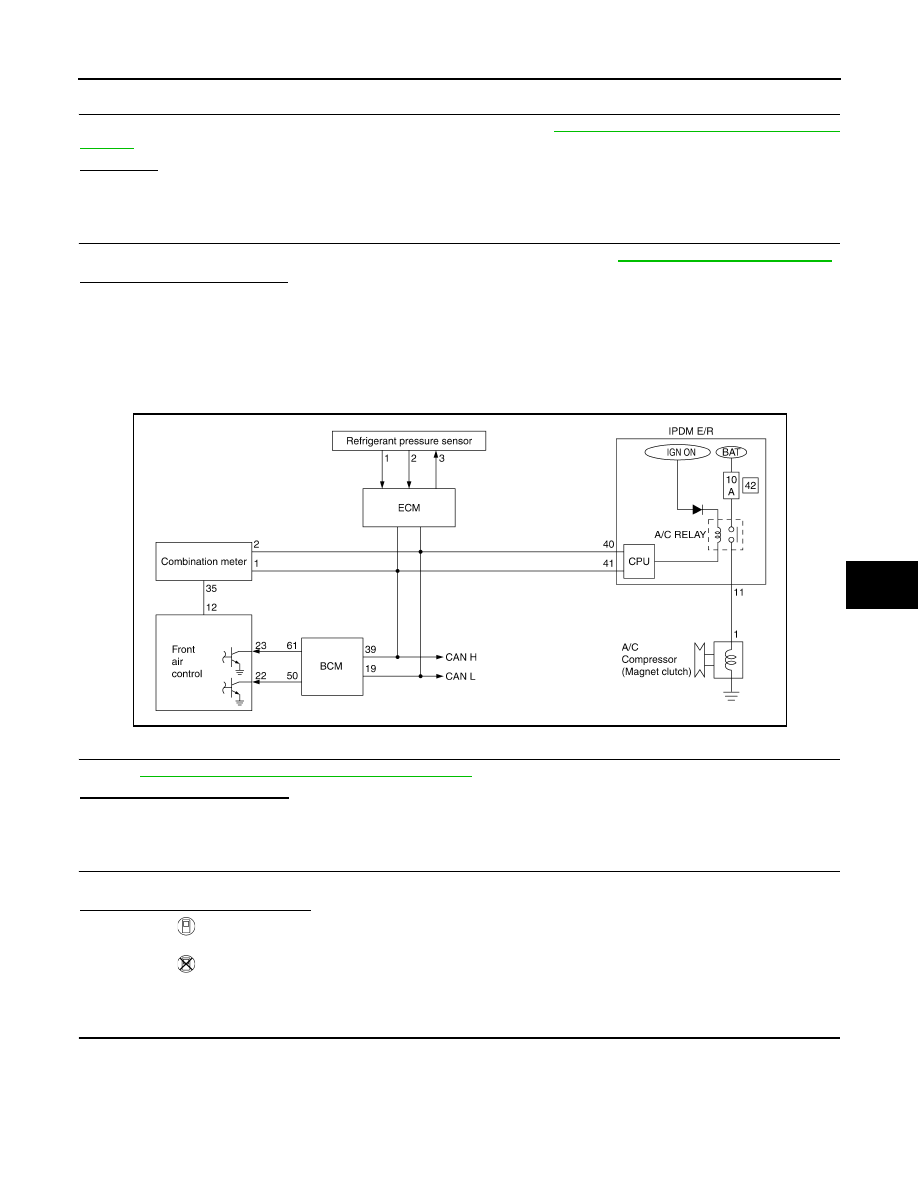

MAGNET CLUTCH

MAGNET CLUTCH

System Description

INFOID:0000000001547352

SYSTEM DESCRIPTION

Front air control controls compressor operation by intake air temperature and signal from ECM.

Low Temperature Protection Control

Front air control will turn compressor ON or OFF as determined by a signal detected by intake sensor.
When intake air temperatures are higher than 3.5

°

C (38

°

F), the com-

pressor turns ON. The compressor turns OFF when intake air tem-
peratures are lower than 2

°

C (36

°

F).

Magnet Clutch Component Function Check

INFOID:0000000001547353

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - MAGNET CLUTCH

1.

Turn ignition switch ON.

2.

Press the A/C switch.

3.

Turn mode control dial to vent mode (

). Confirm that the compressor clutch engages (sound or visual

inspection). (Discharge air and blower speed will depend on ambient, in-vehicle and set temperatures.)

Can the symptom be duplicated?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

PERFORM COMPLETE OPERATIONAL CHECK

Perform a complete operational check and check for any symptoms. Refer to

HAC-202, "Operational Check"

.

Can a symptom be duplicated?

YES

>> Refer to

HAC-201, "How to Perform Trouble Diagnosis For Quick And Accurate Repair"

.

NO

>> System OK.

3.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS.

Set in Self-diagnostic mode. Refer to

HAC-213, "Front Air Control Self-Diagnosis"

.

Are any self-diagnosis codes present?

YES

>> Repair as necessary.

NO

>> GO TO 5.

5.

 CHECK AMBIENT SENSOR CIRCUIT

Perform diagnostic procedure for the mode door motor. Refer to

HAC-244, "Ambient Sensor Diagnosis Proce-

dure"

.

YES or NO

YES

>> GO TO 6.

NO

>> Repair as necessary.

SJIA0802E

MAGNET CLUTCH

HAC-239

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

6.

 CHECK INTAKE SENSOR CIRCUIT

Perform diagnostic procedure for the intake sensor circuit. Refer to

HAC-253, "Intake Sensor Diagnosis Pro-

cedure"

.

YES or NO

YES

>> GO TO 7.

NO

>> Repair as necessary.

7.

 RECHECK FOR SYMPTOMS

Perform a complete operational check and check for any symptoms. Refer to

HAC-202, "Operational Check"

.

Does another symptom exist?

YES

>> Repair as necessary.

NO

>> Replace front air control. Refer to XXXX.

Magnet Clutch Diagnosis Procedure

INFOID:0000000001547354

DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

1.

CHECK INTAKE SENSOR CIRCUIT

Refer to

HAC-253, "Intake Sensor Diagnosis Procedure"

.

Is the inspection result normal

YES

>> GO TO 2.

NO

>> Malfunctioning intake sensor: Refer to XX.

2.

PERFORM AUTO ACTIVE TEST

Refer to XX.

Does the magnet clutch operate?

YES

>> •

WITH CONSULT-III

GO TO 6.

•

WITHOUT CONSULT-III

GO TO 7.

NO

>> GO TO 3.

3.

CHECK POWER SUPPLY FOR MAGNET CLUTCH

AWIIA0342GB
