HAC-216

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

SELF-DIAGNOSIS FUNCTION

Go to Magnet Clutch Circuit. Refer to

HAC-239, "Magnet Clutch Diagnosis Procedure"

.

9.

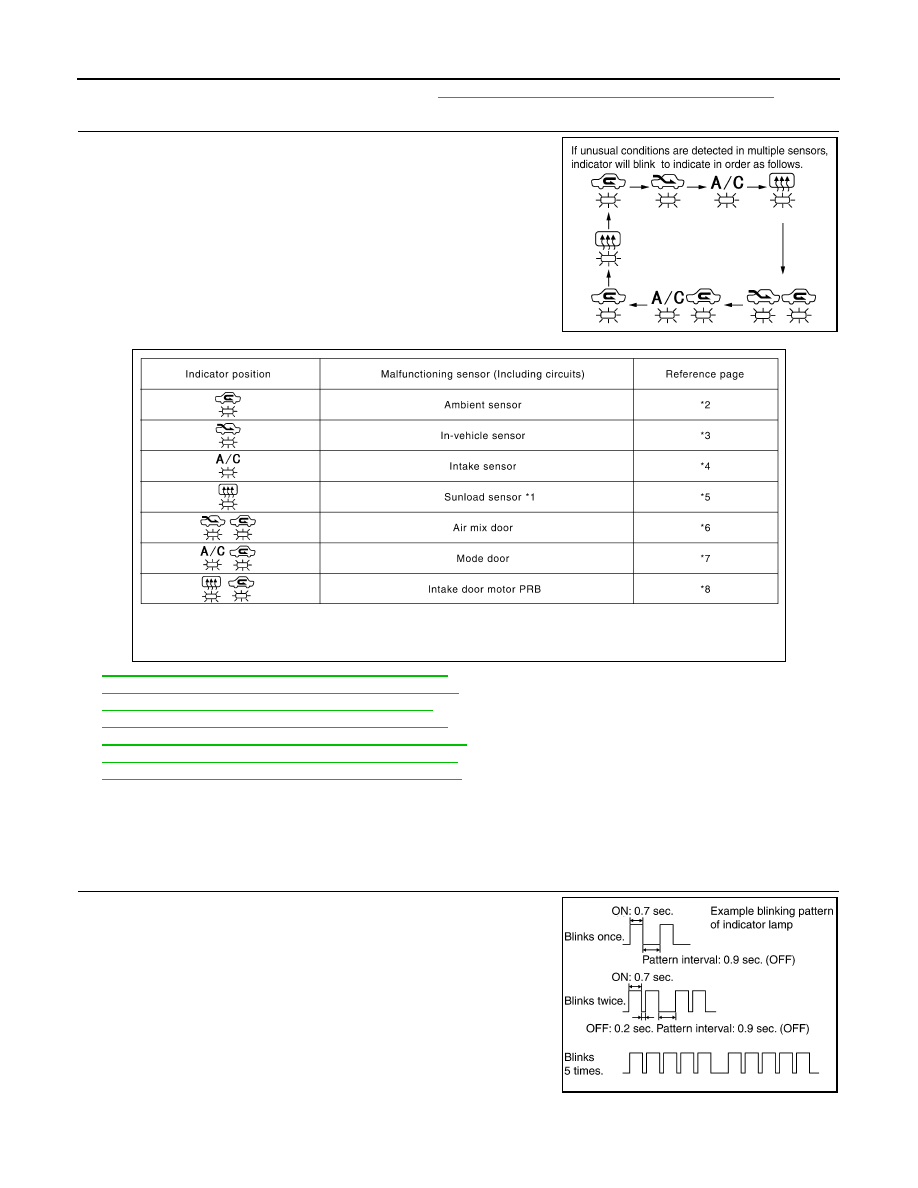

CHECK MALFUNCTION SENSOR

Refer to the following chart.
*1: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60W) at sunload
sensor, otherwise LED of rear window defogger switch will illuminate
despite that sunload sensor is functioning properly.

*2:

HAC-244, "Ambient Sensor Diagnosis Procedure"

.

*3:

HAC-247, "In-Vehicle Sensor Diagnosis Procedure"

.

*4:

HAC-253, "Intake Sensor Diagnosis Procedure"

.

*5:

HAC-250, "Sunload Sensor Diagnosis Procedure"

.

*6:

HAC-226, "Air Mix Door Motor Diagnosis Procedure"

.

*7:

HAC-222, "Mode Door Motor Diagnosis Procedure"

.

*8:

HAC-230, "Intake Door Motor Diagnosis Procedure"

.

In case of a break in the ambient sensor, front air control regards ambient temperature as extreme cold
(approximately –42

°

C or less) and then start warming.

>> INSPECTION END

10.

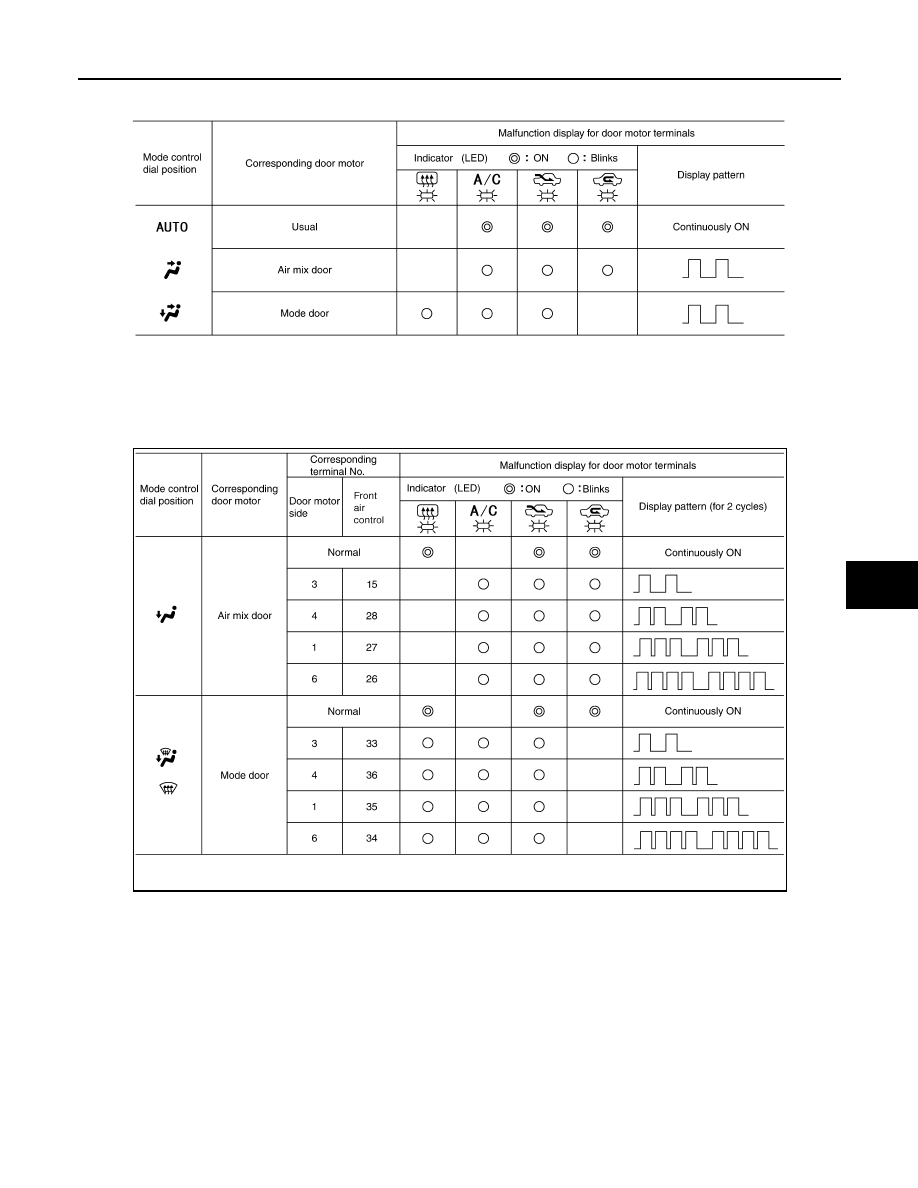

CHECK MALFUNCTION DOOR MOTOR POSITION SWITCH

Usual: LED for A/C switch and intake switch turn ON.
Unusual: LED for malfunctioning door motor blinks. If unusual condi-
tions are detected in multiple door motor-positions, appropriate
switch LED blink twice respectively.

AWIIA0330ZZ

AWIIA0331GB

SJIA0862E

SELF-DIAGNOSIS FUNCTION

HAC-217

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Door motor corresponding to the DTC

DTC for an inoperative harness
If a corresponding door motor blinks, set mode control dial to appropriate position to check each door motor.

NOTE:
• If all four terminals of each door motor show an open circuit, there is probably a disconnected connector or

an open circuit in door motor drive power supply harness.

• If a short circuit occurs in harness between terminals for each door motor drive signal, although it cannot be

detected by self-diagnosis, door motor will vibrate when it operates.

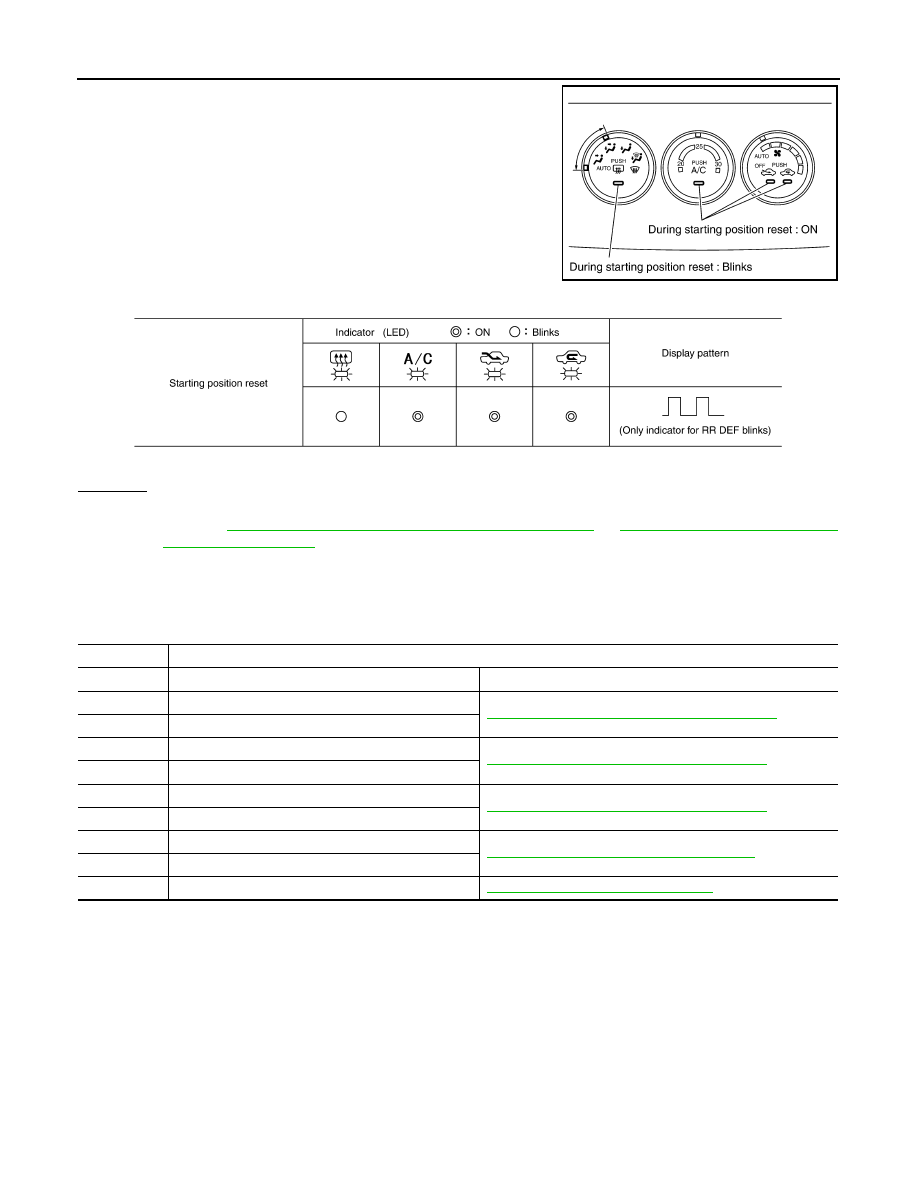

Door Motor Starting Position Reset

SJIA0863E

AWIIA0332GB

HAC-218

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

SELF-DIAGNOSIS FUNCTION

• Pressing the rear window defogger switch during STEP-3 will send

a reset signal to air mix door and mode door motor to reset them to
the starting position.
During reset: The rear window defogger switch LED will blink,
(approx. 10 seconds) Intake switch and A/C switch LEDs will blink.
(For approx. 6 seconds)

OK or NG

OK

>> INSPECTION END

NG

>> Refer to

HAC-222, "Mode Door Motor Diagnosis Procedure"

 or

HAC-226, "Air Mix Door Motor

Diagnosis Procedure"

.

Front Air Control Self-Diagnosis Code Chart

INFOID:0000000001547323

SELF-DIAGNOSTIC CODE CHART

SJIA0865E

SJIA0866E

Code No.

Reference page

03

Battery voltage out of range

XXXX

30

In-vehicle sensor circuit out of range (low)

HAC-247, "In-Vehicle Sensor Diagnosis Procedure"

31

In-vehicle sensor circuit out of range (high)

40

Ambient sensor circuit short

HAC-244, "Ambient Sensor Diagnosis Procedure"

41

Ambient sensor circuit open

50

Optical sensor (Driver) circuit open or short

HAC-250, "Sunload Sensor Diagnosis Procedure"

52

Optical sensor (Passenger) circuit open or short

56

Intake sensor circuit short

HAC-253, "Intake Sensor Diagnosis Procedure"

57

Intake sensor circuit open

80

CAN bus fault

LAN-22, "Trouble Diagnosis Flow Chart"

MODE DOOR MOTOR

HAC-219

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

COMPONENT DIAGNOSIS

MODE DOOR MOTOR

System Description

INFOID:0000000001547326

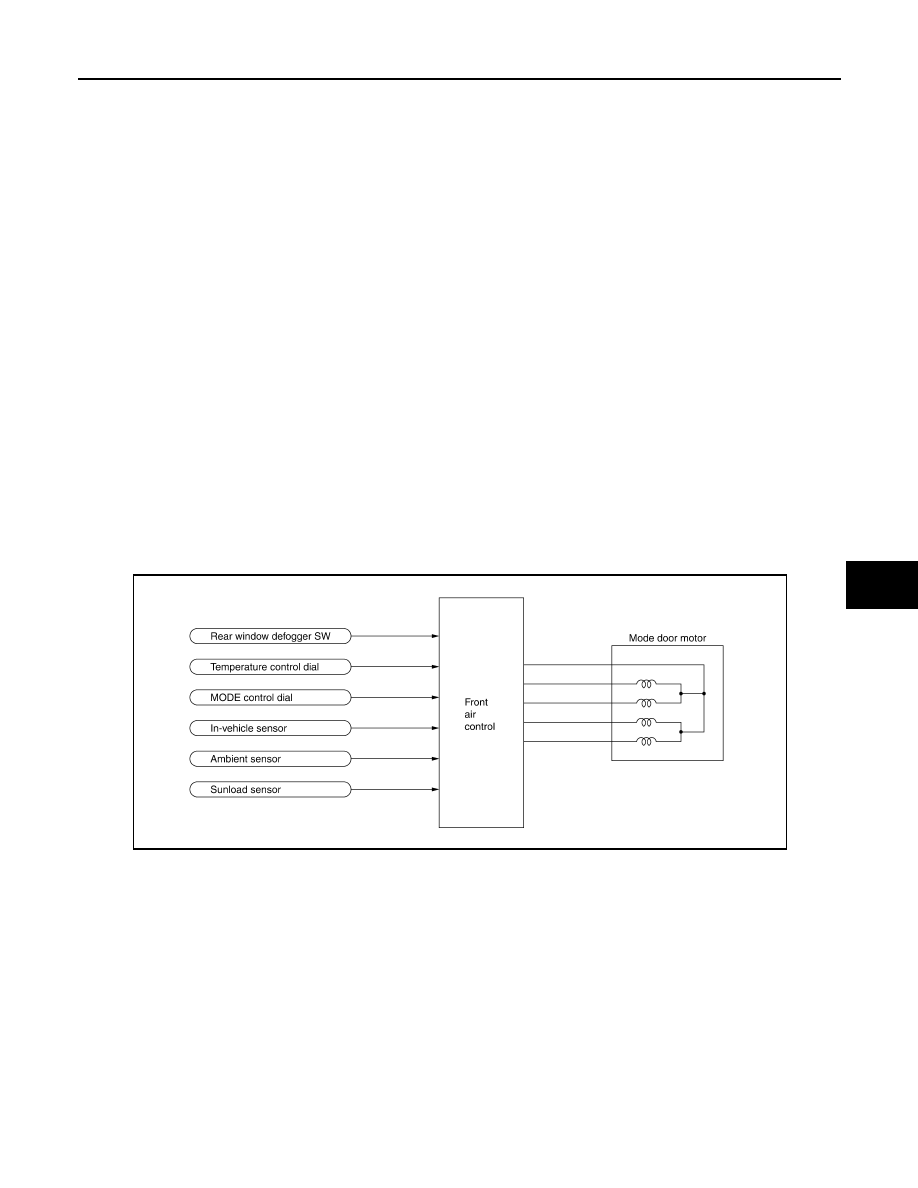

SYSTEM DESCRIPTION

Component Parts

Mode door control system components are:

• Front air control
• Mode door motor
• In-vehicle sensor
• Ambient sensor
• Sunload sensor

System Operation

The front air control receives data from each of the sensors. When a drive signal is input from front air control
to door motor, a step motor built into the door motor rotates according to the drive signal, and then stops at the
position of target door.
Mode door changes to manual select mode by turning mode control dial of the controller. That allows mode
door to be fixed.
Pressing AUTO switch allows automatic control by front air control, and mode door is fixed in the FOOT posi-
tion by pressing OFF switch.
During automatic operation of mode door, mode door position (VENT, B/L, FOOT) is selected according to the
temperature of blow-off wind calculated by front air control based on the target opening angle of air mix door
and the amount of solar radiation. And only when ambient temperature is extremely low with the mode door in
the FOOT position, D/F is selected and prevents windshield fogging.
