HAC-204

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

FUNCTION INFORMATION

FUNCTION DIAGNOSIS

FUNCTION INFORMATION

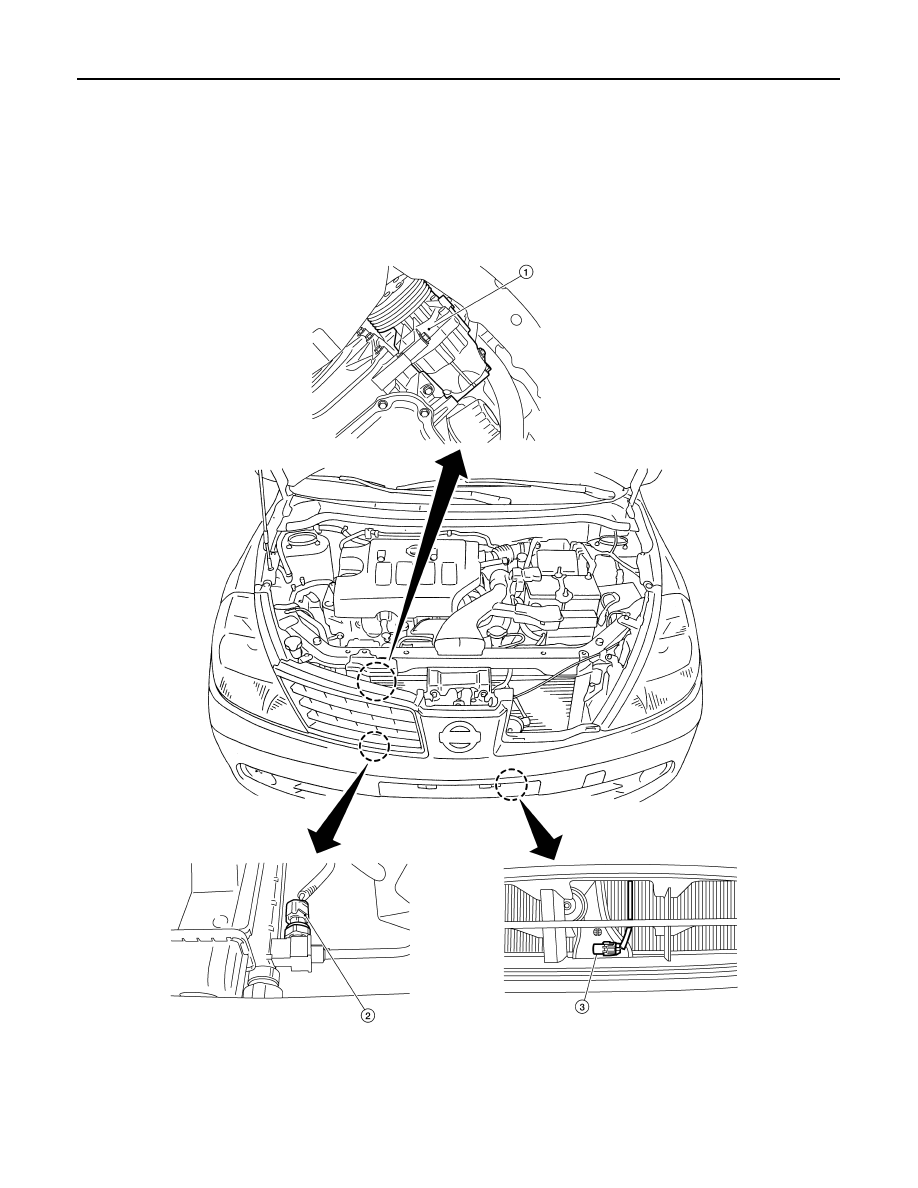

Component Part Location

INFOID:0000000001548103

ENGINE COMPARTMENT

PASSENGER COMPARTMENT

1.

A/C Compressor F3

2.

Refrigerant pressure sensor E17

3.

Ambient sensor E60

AWIIA0602ZZ

FUNCTION INFORMATION

HAC-205

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

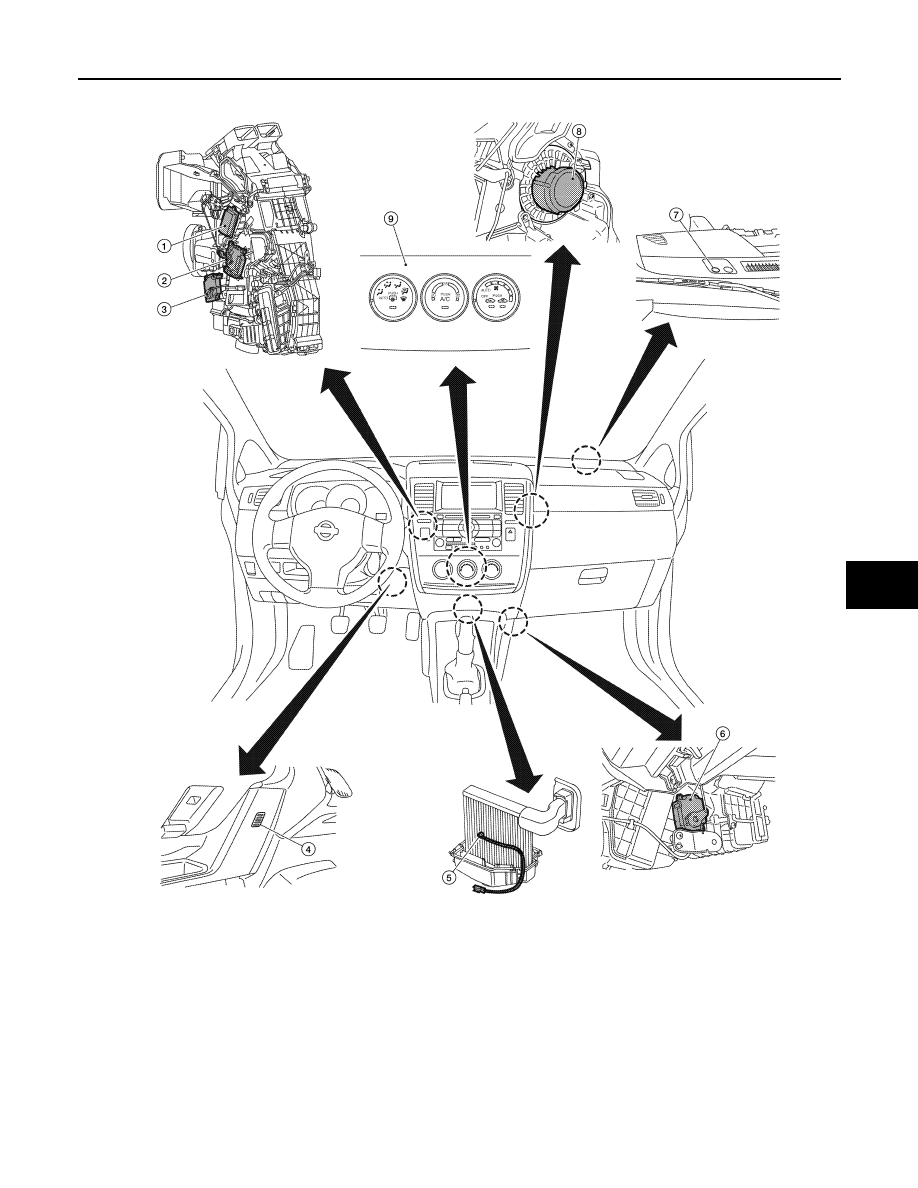

1.

Variable blower control M90, M91

2.

Intake door motor M89

3.

Air mix door motor M88

4.

In-vehicle sensor M93

5.

Intake sensor M92

6.

Mode door motor M87

7.

Sunload sensor M94

8.

Front blower motor M62

9.

Front air control M85, M86

AWIIA0321ZZ

HAC-206

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

REFRIGERATION SYSTEM

REFRIGERATION SYSTEM

Refrigerant Cycle

INFOID:0000000001547310

Refer to

HA-16, "Refrigerant Cycle"

.

Refrigerant System Protection

INFOID:0000000001547311

Refer to

HA-16, "Refrigerant System Protection"

.

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-207

< FUNCTION DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AUTOMATIC AIR CONDITIONER SYSTEM

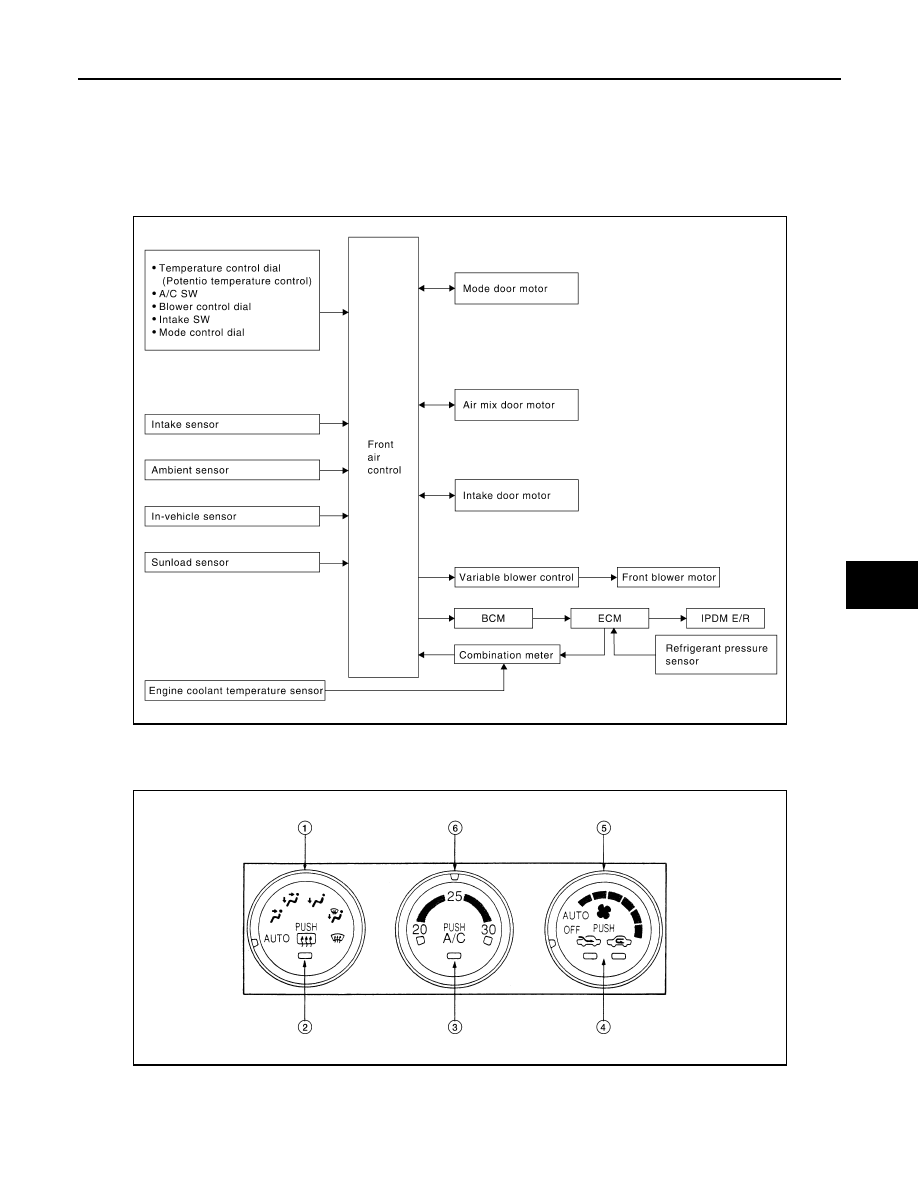

Control System Diagram

INFOID:0000000001547312

CONTROL SYSTEM

The control system consists of input sensors, switches, the front air control (microcomputer) and outputs.
The relationships of these components is shown in the diagram below:

Control System Description

INFOID:0000000001547313

AWIIA0322GB

1.

Mode control dial

2.

Rear window defogger switch

3.

A/C switch

4.

Intake switch

5.

Blower control dial

6.

Temperature control dial

AWIIA0323ZZ
