Nissan Tiida C11. Manual - part 848

HAC-56

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

Wiring Diagram - Air Conditioner Control -

INFOID:0000000001203073

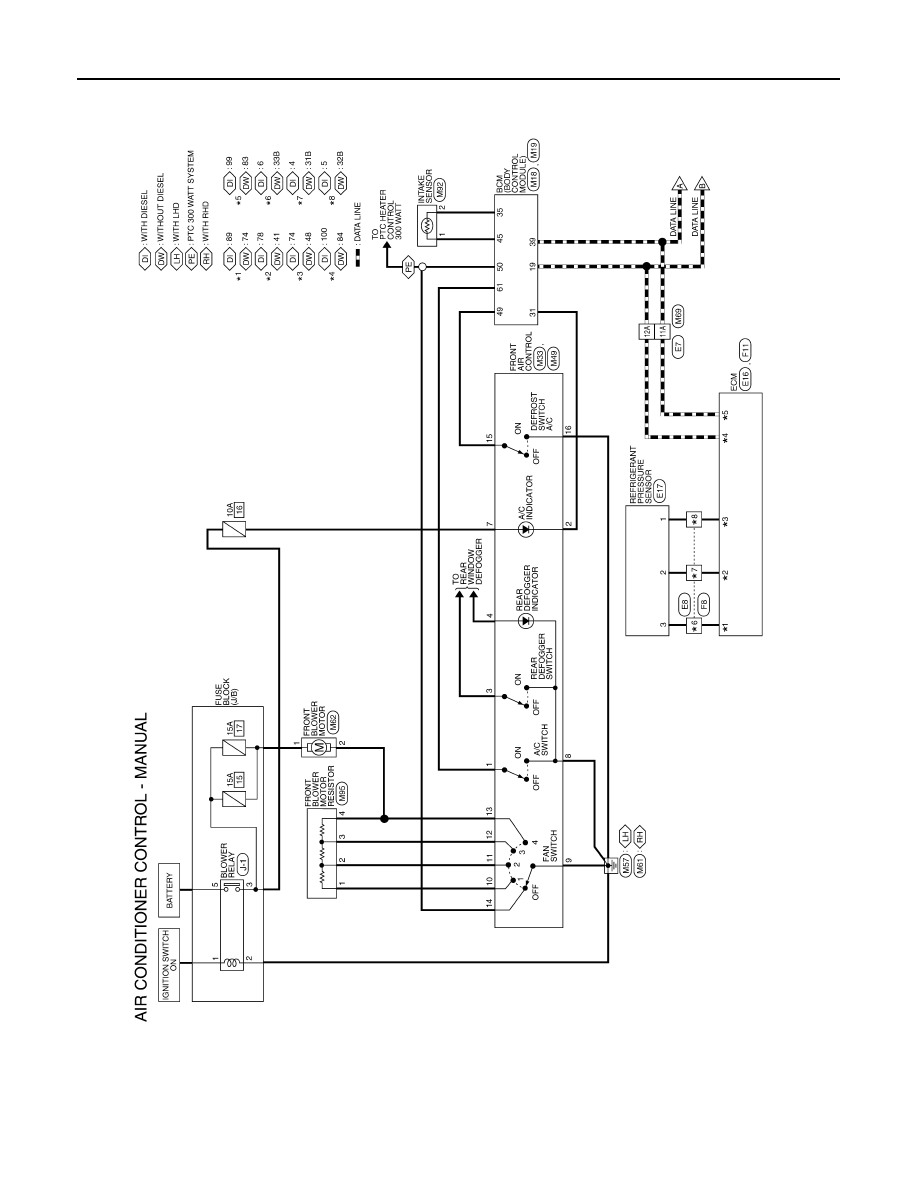

ALIWA0034GB

AIR CONDITIONER CONTROL

HAC-57

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

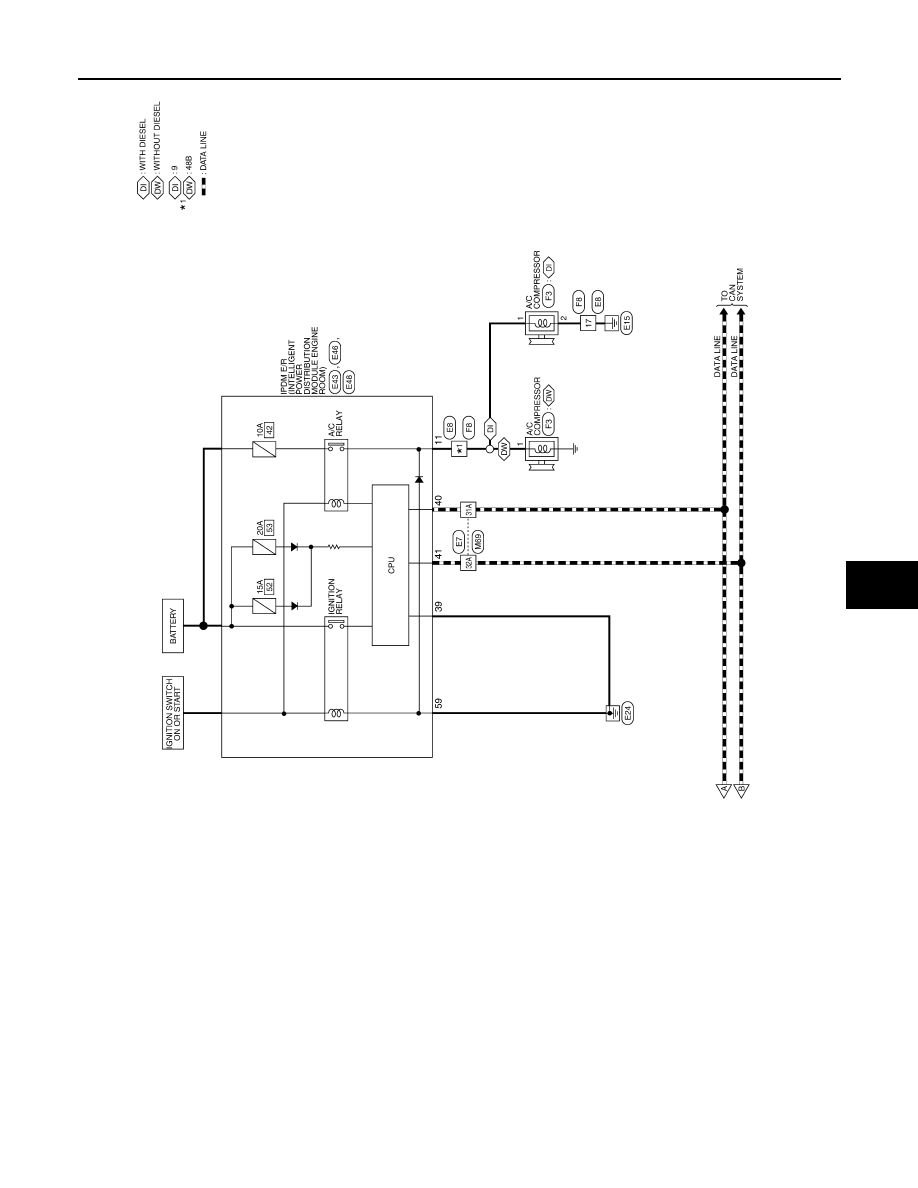

ALIWA0035GB

HAC-58

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

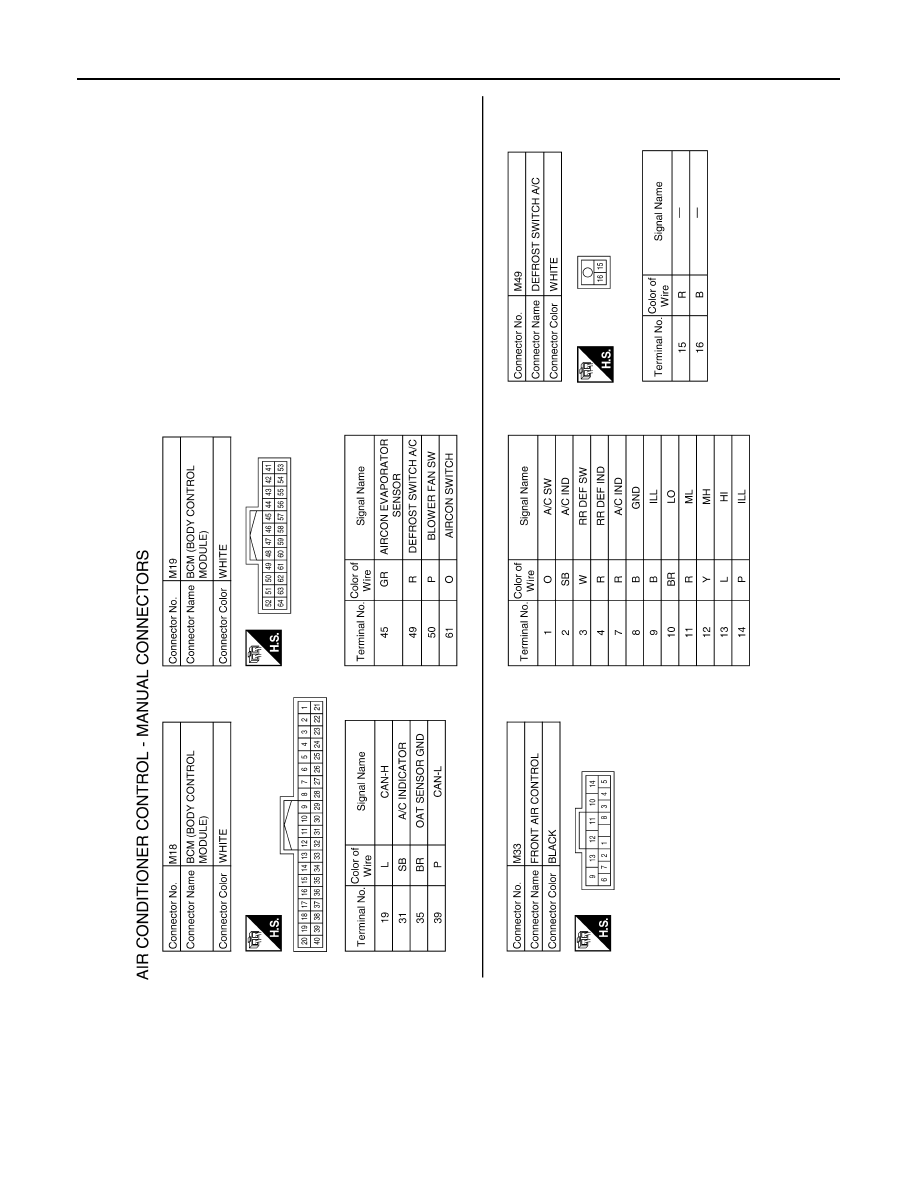

ALIIA0140GB

AIR CONDITIONER CONTROL

HAC-59

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

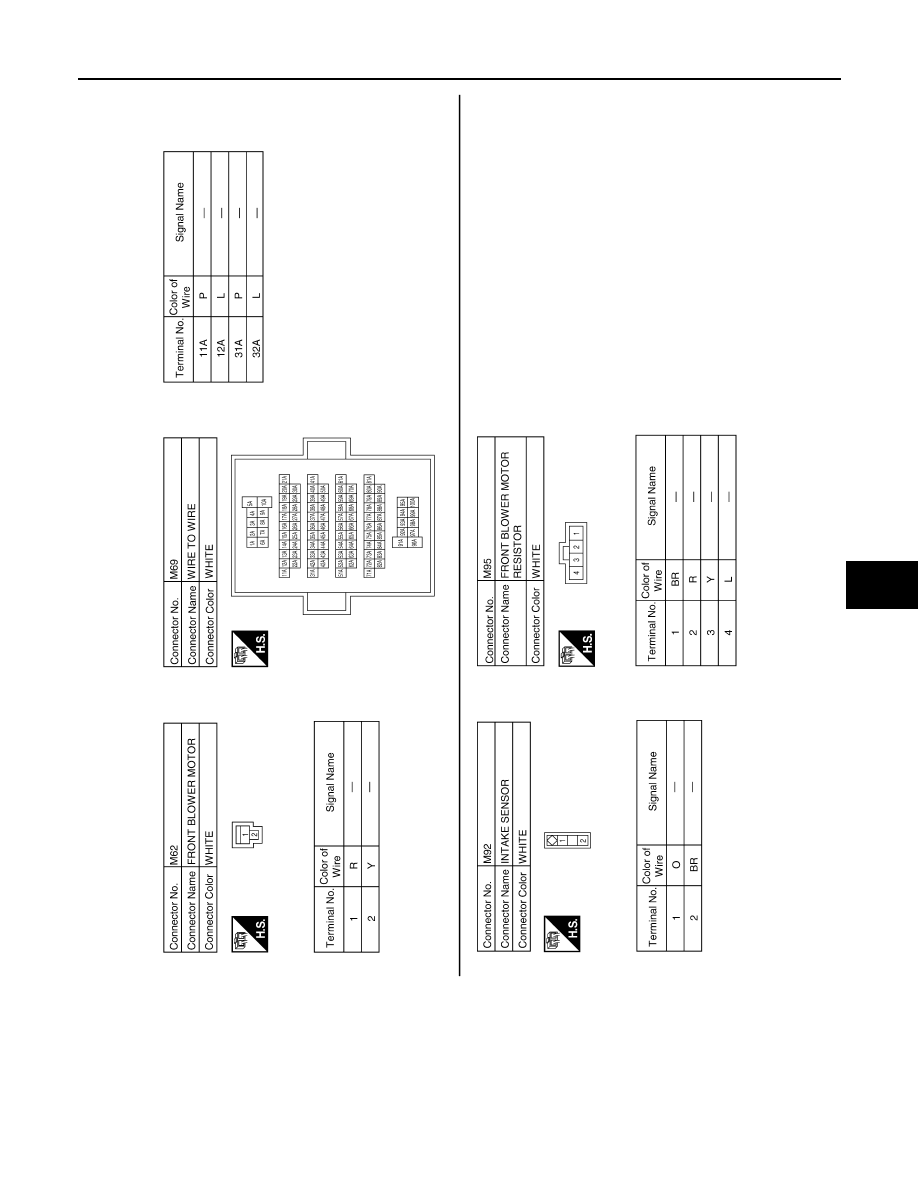

ALIIA0145GB
