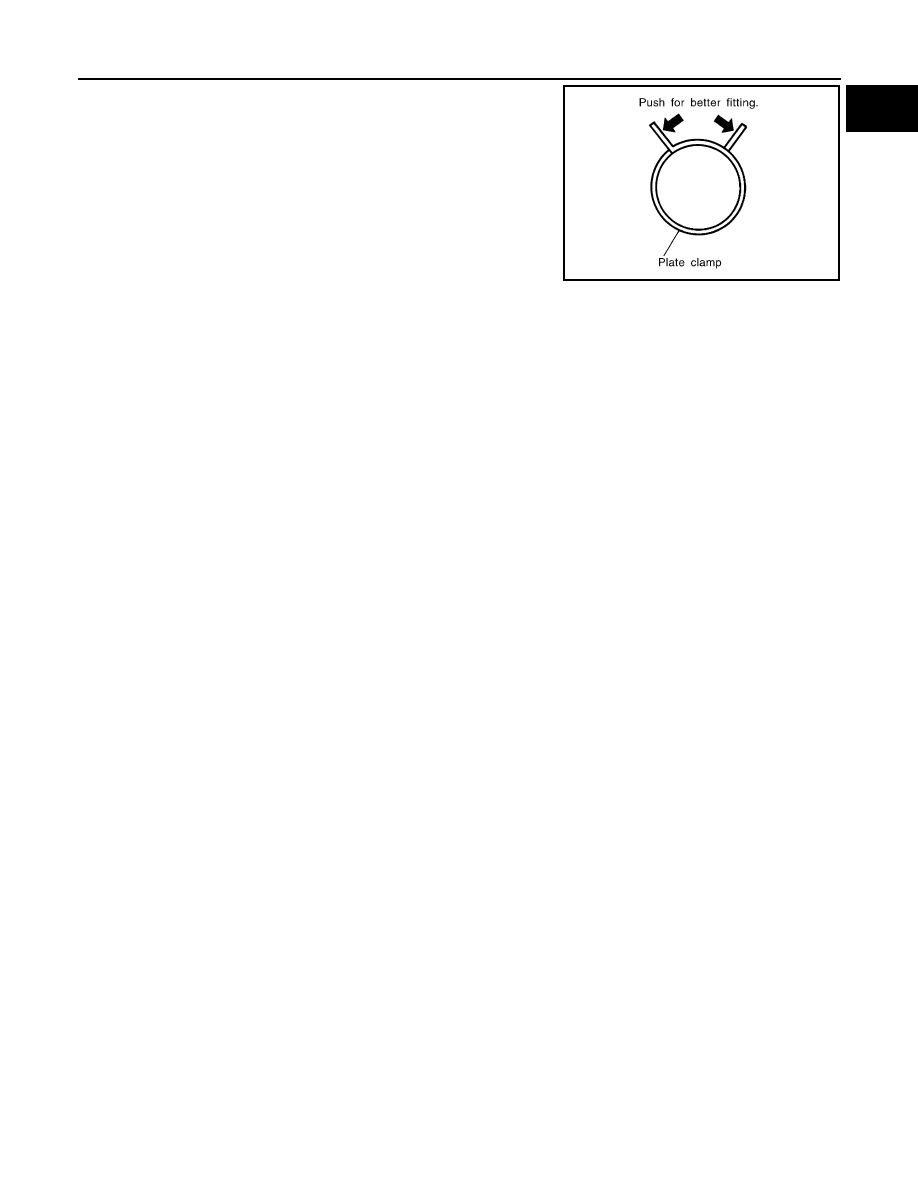

• After installing plate clamps, apply force to them in the direction of

the arrow, tightening rubber hose equally all around.

Precaution for Engine Oils

INFOID:0000000001606123

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact
with used oil.
If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

• Avoid prolonged and repeated contact with oils, particularly used engine oils.
• Wear protective clothing, including impervious gloves where practicable.
• Do not put oily rags in pockets.
• Avoid contaminating clothes, particularly underpants, with oil.
• Heavily soiled clothing and oil-impregnated footwear should not be worn. Overalls must be cleaned regu-

larly.

• First aid treatment should be obtained immediately for open cuts and wounds.
• Use barrier creams, applying them before each work period, to help the removal of oil from the skin.
• Wash with soap and water to ensure all oil is removed (skin cleansers and nail brushes will help). Prepara-

tions containing lanolin replace the natural skin oils which have been removed.

• Do not use gasoline, kerosene, diesel fuel, gas oil, thinners or solvents for cleaning skin.
• If skin disorders develop, obtain medical advice without delay.
• Where practical, degrease components prior to handling.
• Where there is a risk of eye contact, eye protection should be worn, for example, chemical goggles or face

shields; in addition an eye wash facility should be provided.

Precaution for Air Conditioning

INFOID:0000000001606124

Use an approved refrigerant recovery unit any time the air conditioning system must be discharged. Refer to
HA section "HFC-134a (R-134a) Service Procedure", "REFRIGETANT LINES" for specific instructions.

SMA022D

GI-48

< PRECAUTION >

LIFTING POINT

LIFTING POINT

Special Service Tool

INFOID:0000000001606131

CAUTION:

• Every time the vehicle is lifted up,  maintain the complete vehicle curb condition.
• Since the vehicle's center of gravity changes when removing main parts on the front side (engine,

transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or  equivalent.

• Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,

suspension, etc.), support a jack up point on the front side garage jack with a mission jack or equiv-
alent.

• Be careful not to smash or do not do anything that would affect piping parts.

Garage Jack and Safety Stand and 2-Pole Lift

INFOID:0000000001606132

WARNING:

• Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes, tubes,

etc. under the vehicle.

• Never get under the vehicle while it is supported only by the jack. Always use safety stands when

you have to get under the vehicle.

• Place wheel chocks at both front and back of the wheels on the ground.
• When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of

the vehicle are well balanced.

• When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and

sill spoiler.

Tool number

Tool name

Description

LM4086-0200
Board on attachment

LM4519-0000
Safety stand attachment

S-NT001

S-NT002

LIFTING POINT

GI-49

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

CAUTION:

There is canister just behind Garage jack point rear. Jack up be carefully.

Board-On Lift

INFOID:0000000001606133

CAUTION:

Make sure vehicle is empty when lifting.

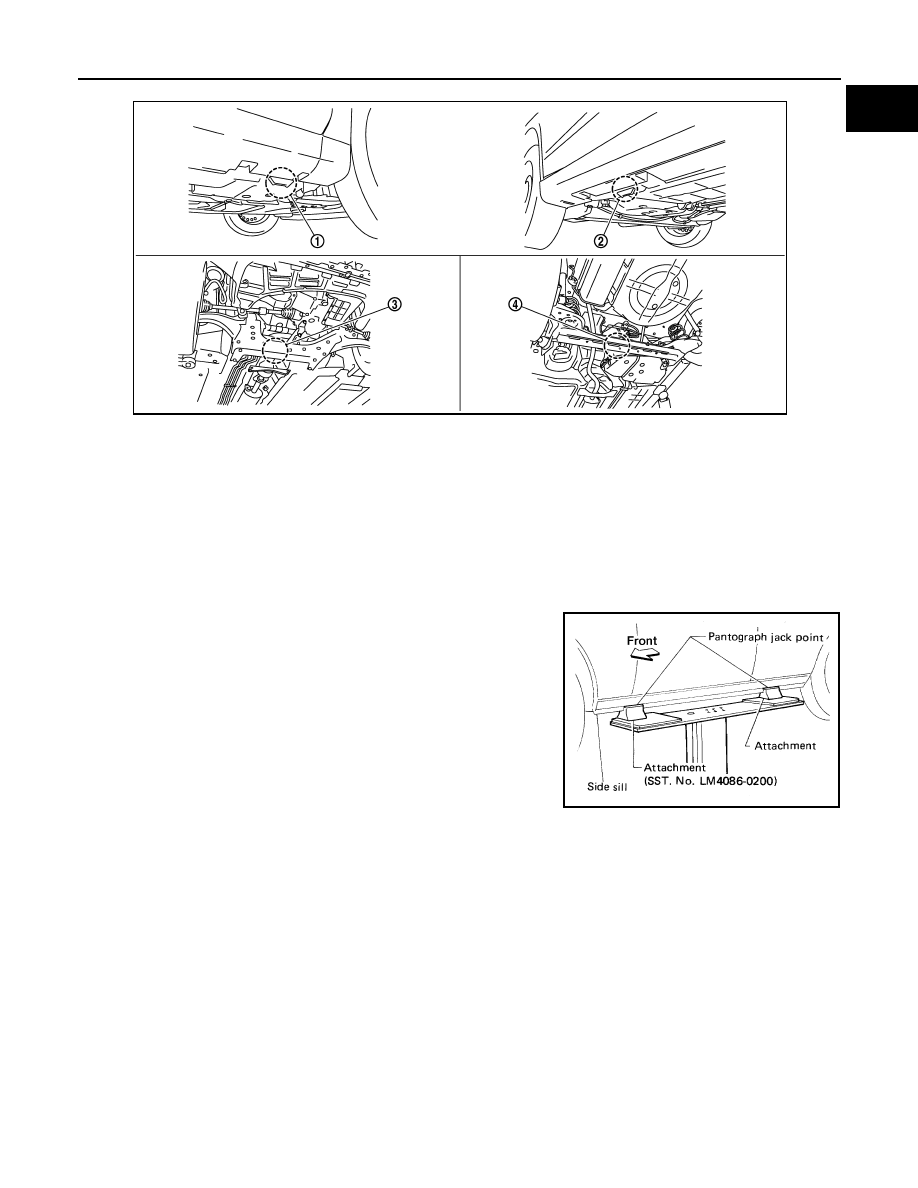

• The board-on lift attachment (LM4086-0200) set at front end of

vehicle should be set on the front of the sill under the front
door opening.

• Position attachments at front and rear ends of board-on lift.

1.

Safety stand point and lift up point (front) 2.

Safety stand point and lift up point
(rear)

3.

Garage jack point (front)

4.

Garage jack point (rear)

PIIB2498E

AGI016

GI-50

< PRECAUTION >

TOW TRUCK TOWING

TOW TRUCK TOWING

Tow Truck Towing

INFOID:0000000001606140

CAUTION:

• All applicable local laws regarding the towing operation must be obeyed.
• It is necessary to use proper towing equipment to avoid possible damage to the vehicle during tow-

ing operation. Towing is in accordance with Towing Procedure Manual at dealer.

• Always attach safety chains before towing.
• When towing, make sure that the transmission, steering system and power train are in good order. If

any unit is damaged, dollies must be used.

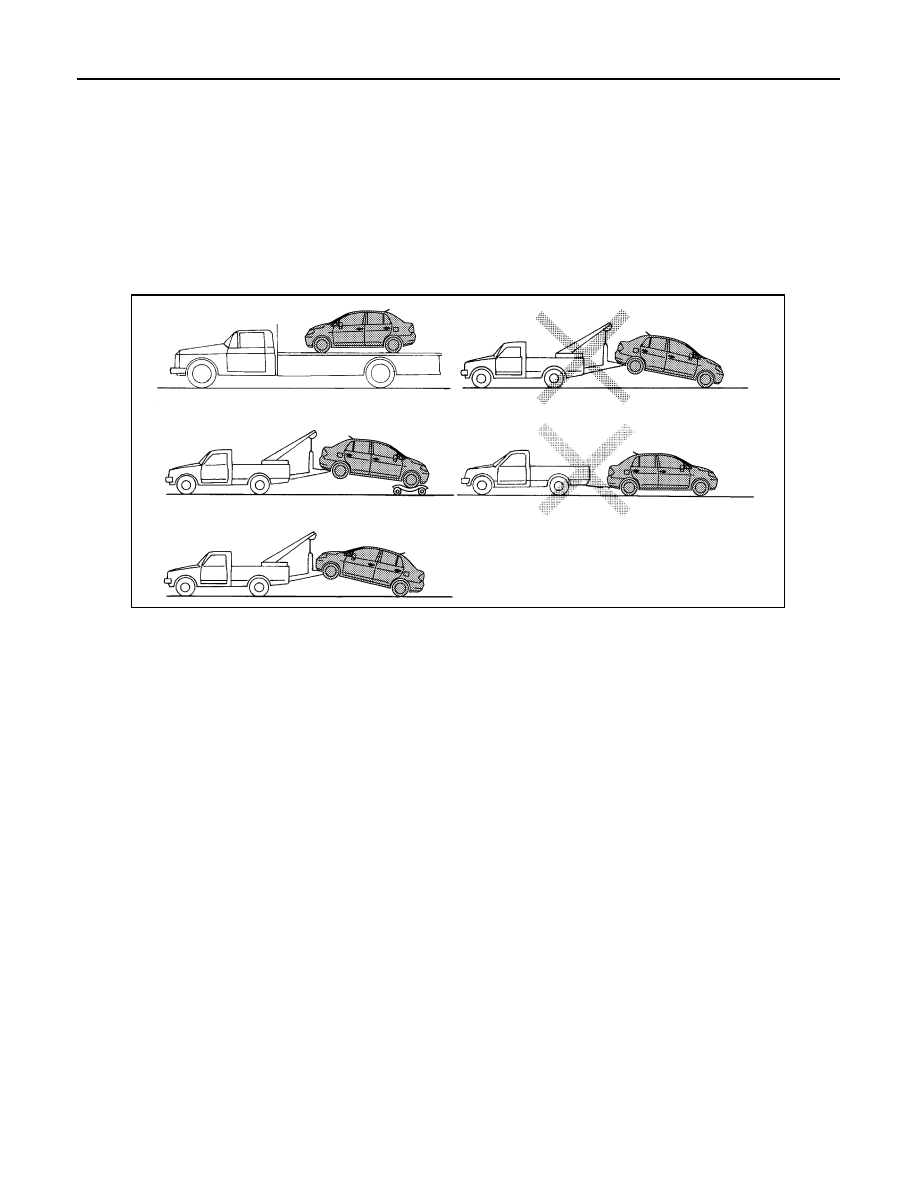

NISSAN recommends that the vehicle be towed with the driving (front) wheels off the ground as illustrated.

TOWING AN AUTOMATIC TRANSAXLE MODEL WITH FOUR WHEELS ON GROUND

CAUTION:

Never tow an automatic transaxle model with four wheels on the ground as this may cause serious
and expensive damage to the transaxle.

Vehicle Recovery (Freeing a Stuck Vehicle)

INFOID:0000000001606141

• Tow chains or cables must be attached only to the main structural members of the vehicle.
• Pulling devices should be routed so they do not touch any part of the suspension, steering, brake or cooling

systems.

• Always pull the cable straight out from the front or rear of the vehicle. Never pull on the vehicle at an angle.
• Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or recovery.

WARNING:

• Do not spin the tires at high speed. This could cause them to explode and result in serious injury.

Parts of the vehicle could also overheat and be damaged.

• Install removable recovery hook securely using wheel nut wrench.

PIIB6801E
