EXL-78

< SYMPTOM DIAGNOSIS >

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000001523293

The parking, license plate and tail lamps do not turn ON in with any lighting switch setting.

Diagnosis Procedure

INFOID:0000000001523294

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

XX-XX, "*****"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "TAIL & CLR REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the lighting switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

XX-XX, "*****"

.

3.

PARK LAMP CIRCUIT INSPECTION

Check the parking lamp circuit. Refer to

EXL-46, "WITH DAYTIME LIGHT SYSTEM : Description"

.

Is the tail lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

TAIL & CLR
REQ

Lighting switch

1ST

ON

OFF

OFF

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

EXL-79

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000001523295

The front fog lamps do not turn ON in any setting.

Diagnosis Procedure

INFOID:0000000001523296

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

XX-XX, "*****"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "FR FOG REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

XX-XX, "*****"

.

3.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-41, "Description"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(Lighting switch 2ND)

ON

ON

OFF

OFF

EXL-80

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001530389

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

HEADLAMP

EXL-81

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ON-VEHICLE MAINTENANCE

HEADLAMP

Aiming Adjustment

INFOID:0000000001529251

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following.

1.

Keep all tires inflated to correct pressures.

2.

Place vehicle on level surface.

3.

Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

LOW BEAM AND HIGH BEAM

1.

Turn headlamp low beam ON.

2.

Use adjusting screw to perform aiming adjustment.

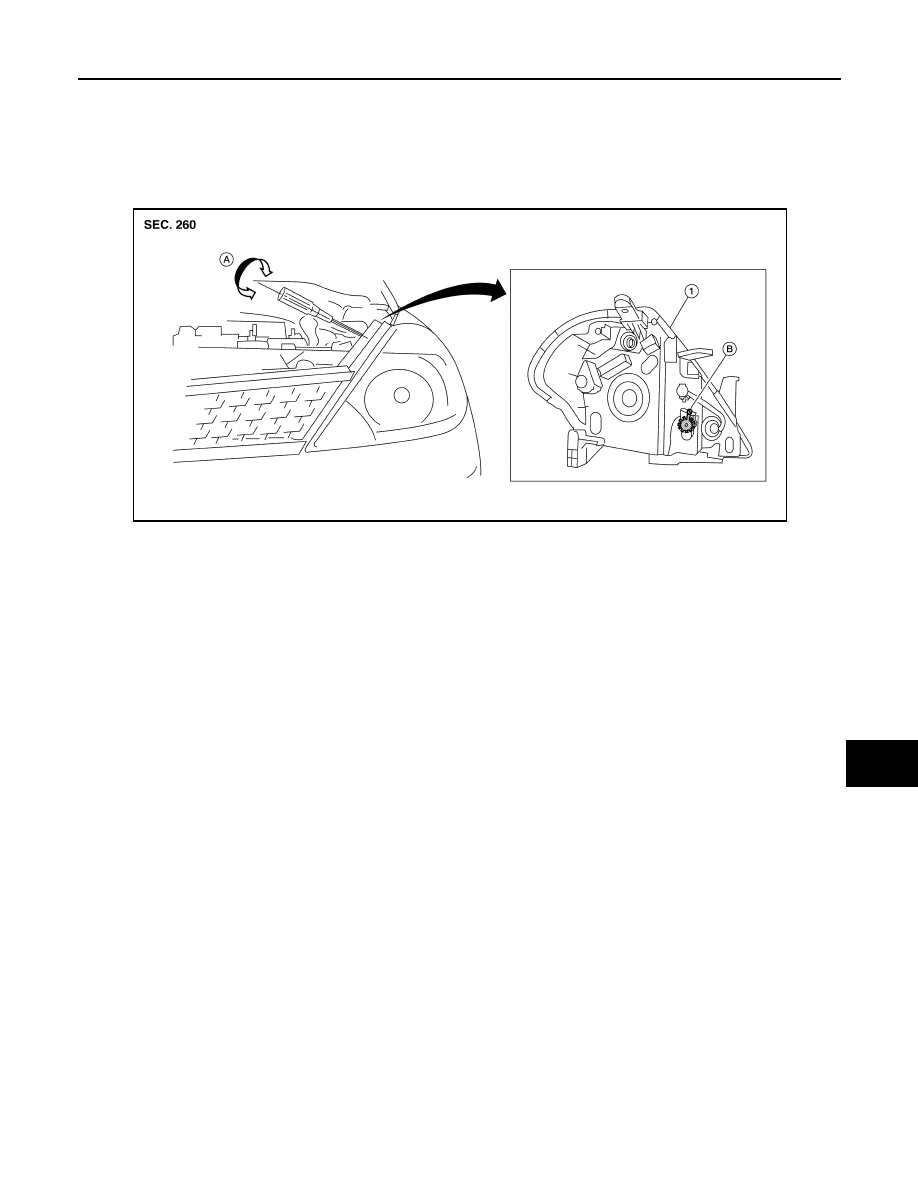

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)

1.

Headlamp

A.

Inner and outer adjustment

B.

Adjusting screw

WKIA5417E
