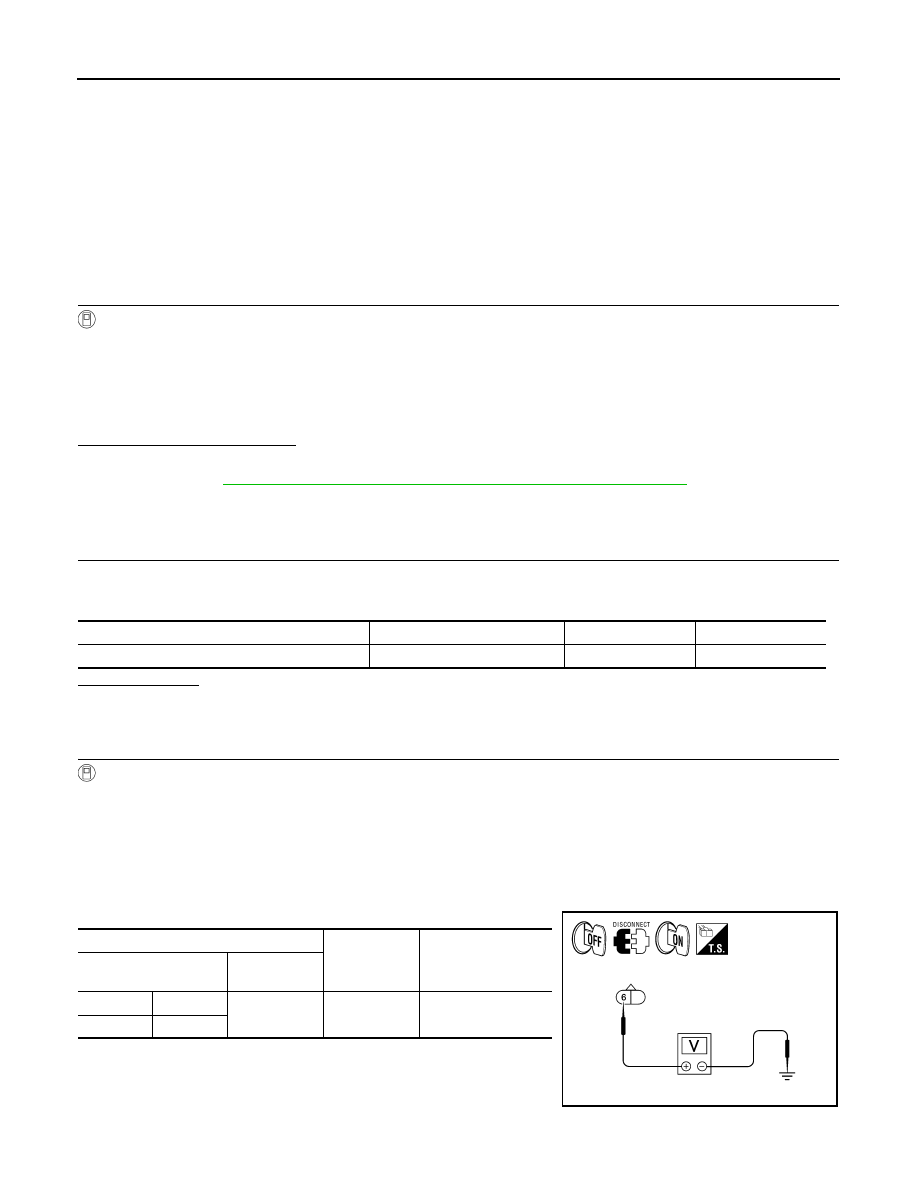

EXL-46

< COMPONENT DIAGNOSIS >

PARKING LAMP CIRCUIT

PARKING LAMP CIRCUIT

WITH DAYTIME LIGHT SYSTEM

WITH DAYTIME LIGHT SYSTEM : Description

INFOID:0000000001523268

The IPDM E/R (Intelligent Power Distribution Module Engine Room) controls the daytime light relay based on
inputs from the BCM via the CAN communication lines. When the daytime light relay is energized power flows
to the front and rear combination lamps and the license plate lamps.

WITH DAYTIME LIGHT SYSTEM : Component Function Check

INFOID:0000000001523269

1.

CHECK PARKING LAMP OPERATION

CONSULT-III

1.

Select "TAIL LAMP" of IPDM E/R active test item.

2.

With test items operating, check that the parking lamps are turned ON.

Is the parking lamp turned ON?

YES

>> Parking lamp circuit is normal.

NO

>> Refer to

EXL-46, "WITH DAYTIME LIGHT SYSTEM : Diagnosis Procedure"

.

WITH DAYTIME LIGHT SYSTEM : Diagnosis Procedure

INFOID:0000000001523270

1.

CHECK PARKING LAMP FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuse is not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK DAYTIME LIGHT RELAY OUTPUT (VOLTAGE)

CONSULT-III

1.

Turn the ignition switch OFF.

2.

Disconnect the front or rear combination lamp connectors.

3.

Turn the ignition switch ON.

4.

Select "TAIL LAMP" of IPDM E/R active test item.

5.

With TAIL LAMP ON, check the voltage between the front and rear combination lamps connectors and
license plate lamp connector and ground.

ON

: Parking lamp ON

OFF

: Parking lamp OFF

Unit

Location

Fuse No.

Capacity

Daytime light relay (parking lamps)

Fuse and fusible link box

26

10A

(+)

(

−

)

Voltage

Front combination lamp
connector

Terminal

LH

E53

6

Ground

Battery voltage

RH

E54

WKIA5502E

PARKING LAMP CIRCUIT

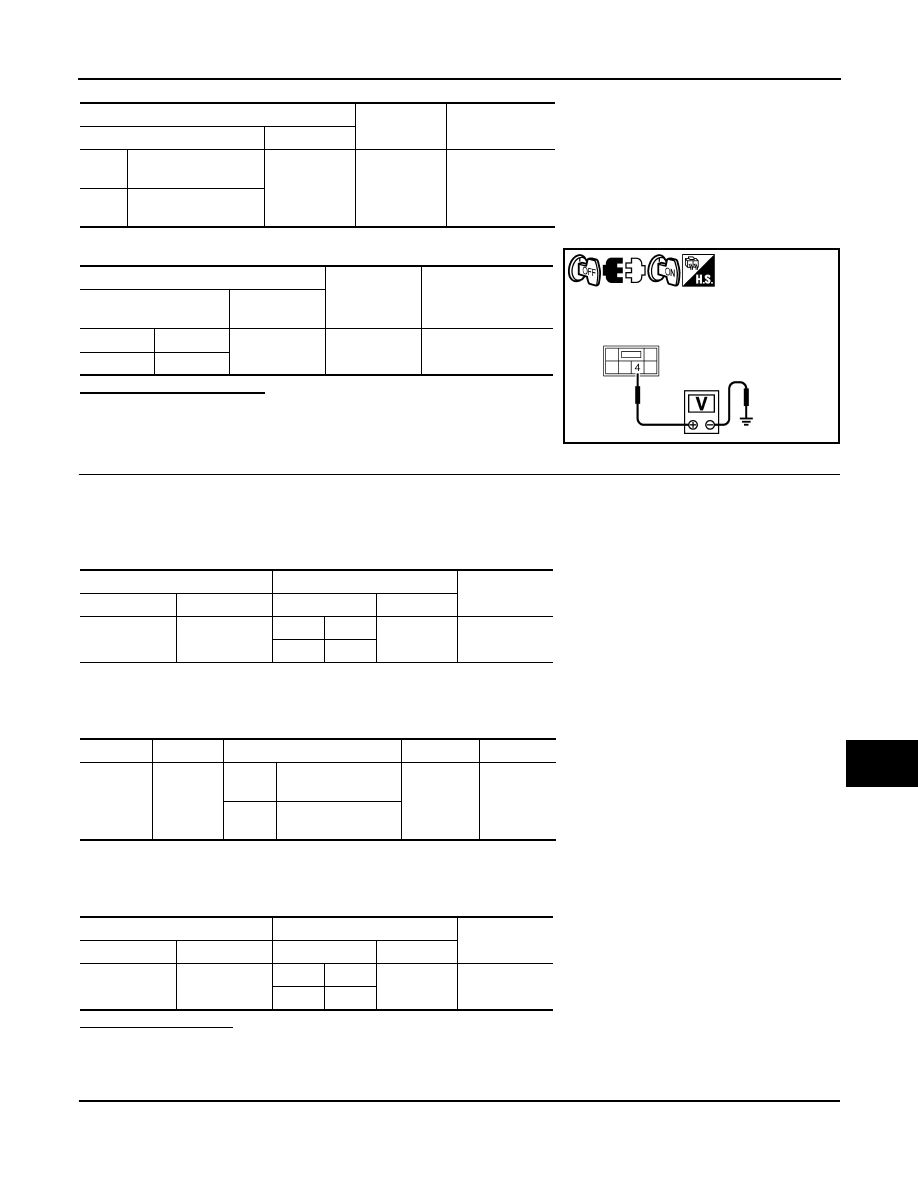

EXL-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK PARKING LAMP CIRCUIT (OPEN)

1.

Turn the ignition switch OFF.

2.

Disconnect daytime light relay connector E67.

3.

Check continuity between the daytime light relay harness connector E67 (A) and the front combination
lamp harness connector (B).

4.

Check continuity between the daytime light relay harness connector E67 (A) and the license plate lamp
harness connector (B)(hatchback) or (C)(sedan).

5.

Check continuity between the daytime light relay harness connector E67 (A) and the rear combination
lamp harness connector (B).

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the daytime light relay, harness or connectors.

4.

CHECK PARKING LAMP GROUND CIRCUIT

1.

Turn ignition switch OFF.

(+)

(

−

)

Voltage

License plate lamp connector

Terminal

LH

A: B87 (hatchback)
B: B62 (sedan)

1

Ground

Battery voltage

RH

A: B88 (hatchback)
B: B63 (sedan)

(+)

(

−

)

Voltage

Rear combination lamp
connector

Terminal

LH

B80

4

Ground

Battery voltage

RH

B59

PKIC1118E

A

B

Continuity

Connector

Terminal

Connector

Terminal

E67

3

LH

E53

6

Yes

RH

B54

Connector

Terminal

Connector

Terminal

Continuity

A: E67

3

LH

B: B87 (hatchback)
C: B62 (sedan)

1

Yes

RH

B: B88 (hatchback)
C: B63 (sedan)

A

B

Continuity

Connector

Terminal

Connector

Terminal

E67

3

LH

B80

4

Yes

RH

B59

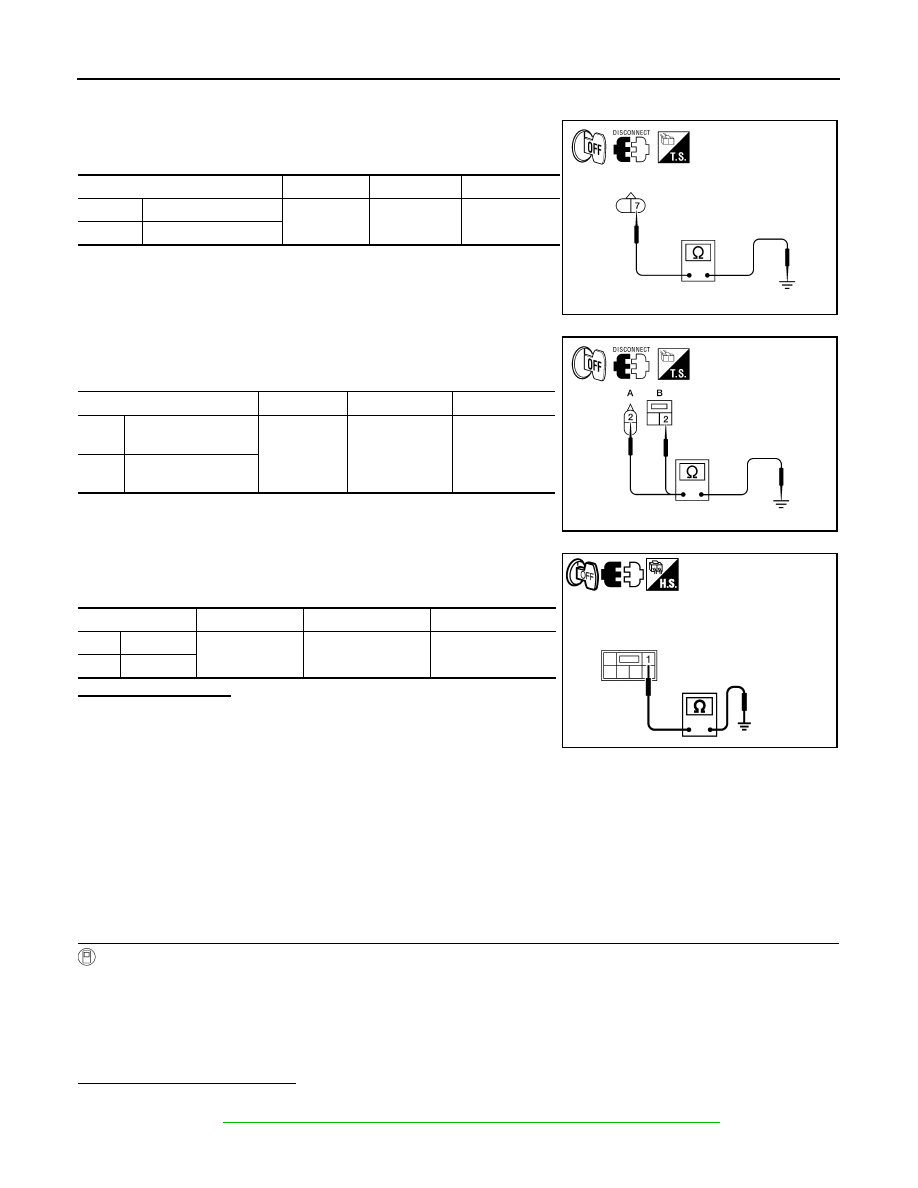

EXL-48

< COMPONENT DIAGNOSIS >

PARKING LAMP CIRCUIT

2.

Disconnect the front combination lamp connectors, rear combination lamp connectors or license plate
lamp connectors.

3.

Check continuity between the front combination lamp harness
connector terminal and ground.

4.

Check continuity between the license plate lamp harness con-
nector terminal and ground.

5.

Check continuity between the rear combination lamp harness
connector terminal and ground.

Does continuity exist?

YES

>> Inspect the parking lamp bulb.

NO

>> Repair the harness.

WITHOUT DAYTIME LIGHT SYSTEM

WITHOUT DAYTIME LIGHT SYSTEM : Description

INFOID:0000000001527574

The IPDM E/R (Intelligent Power Distribution Module Engine Room) controls the tail lamp relay based on
inputs from the BCM via the CAN communication lines. When the tail lamp relay is energized, power flows
through fuse 37, located in the IPDM E/R. Power then flows to the front and rear combination lamps.

WITHOUT DAYTIME LIGHT SYSTEM : Component Function Check

INFOID:0000000001527575

1.

CHECK PARKING LAMP OPERATION

CONSULT-III

1.

Select "TAIL LAMP" of IPDM E/R active test item.

2.

With test items operating, check that the parking lamp is turned ON.

Is the parking lamp turned ON?

YES

>> Parking lamp circuit is normal.

NO

>> Refer to

EXL-49, "WITHOUT DAYTIME LIGHT SYSTEM : Diagnosis Procedure"

.

Front combination lamp connector

Terminal

—

Continuity

LH

E53

7

Ground

Yes

RH

E54

WKIA5509E

License plate lamp connector

Terminal

—

Continuity

LH

A: B87 (hatchback)
B: B62 (sedan)

2

Ground

Yes

RH

A: B88 (hatchback)
B: B63 (sedan)

WKIA6035E

Connector

Terminal

—

Continuity

LH

B80

1

Ground

Yes

RH

B59

PKIC1029E

ON

: Parking lamp ON

OFF

: Parking lamp OFF

PARKING LAMP CIRCUIT

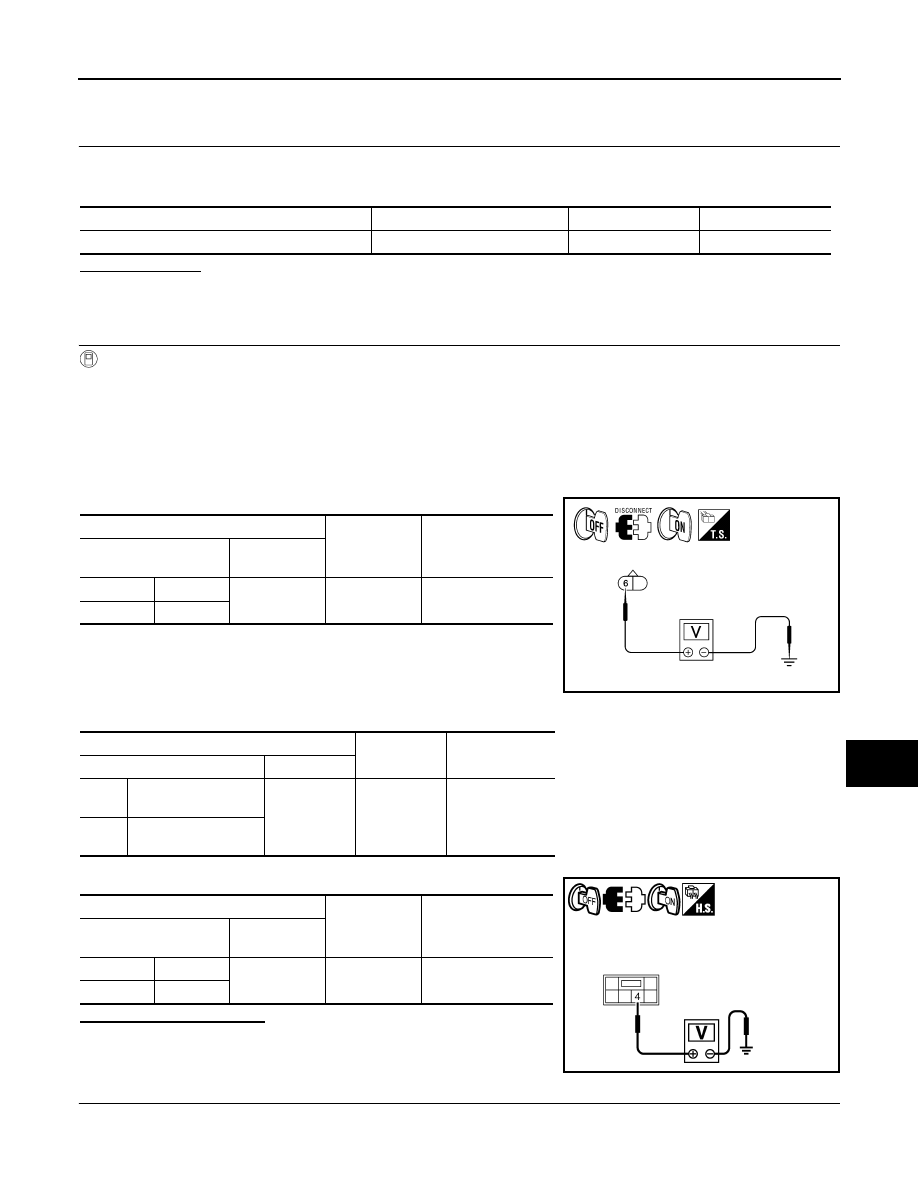

EXL-49

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

WITHOUT DAYTIME LIGHT SYSTEM : Diagnosis Procedure

INFOID:0000000001527577

1.

CHECK PARKING LAMP FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuse is not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK TAIL LIGHT RELAY OUTPUT (VOLTAGE)

CONSULT-III

1.

Turn the ignition switch OFF.

2.

Disconnect the front or rear combination lamp connectors.

3.

Turn the ignition switch ON.

4.

Select "TAIL LAMP" of IPDM E/R active test item.

5.

With TAIL LAMP ON, check the voltage between the front and rear combination lamps connectors and
license plate lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK PARKING LAMP CIRCUIT (OPEN)

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

Unit

Location

Fuse No.

Capacity

Parking lamps

IPDM E/R

37

10A

(+)

(

−

)

Voltage

Front combination lamp
connector

Terminal

LH

E53

6

Ground

Battery voltage

RH

E54

WKIA5502E

(+)

(

−

)

Voltage

License plate lamp connector

Terminal

LH

A: B87 (hatchback)
B: B62 (sedan)

1

Ground

Battery voltage

RH

A: B88 (hatchback)
B: B63 (sedan)

(+)

(

−

)

Voltage

Front combination lamp
connector

Terminal

LH

B80

4

Ground

Battery voltage

RH

B59

PKIC1118E
