CYLINDER BLOCK

Cylinder Bore Inner Diameter

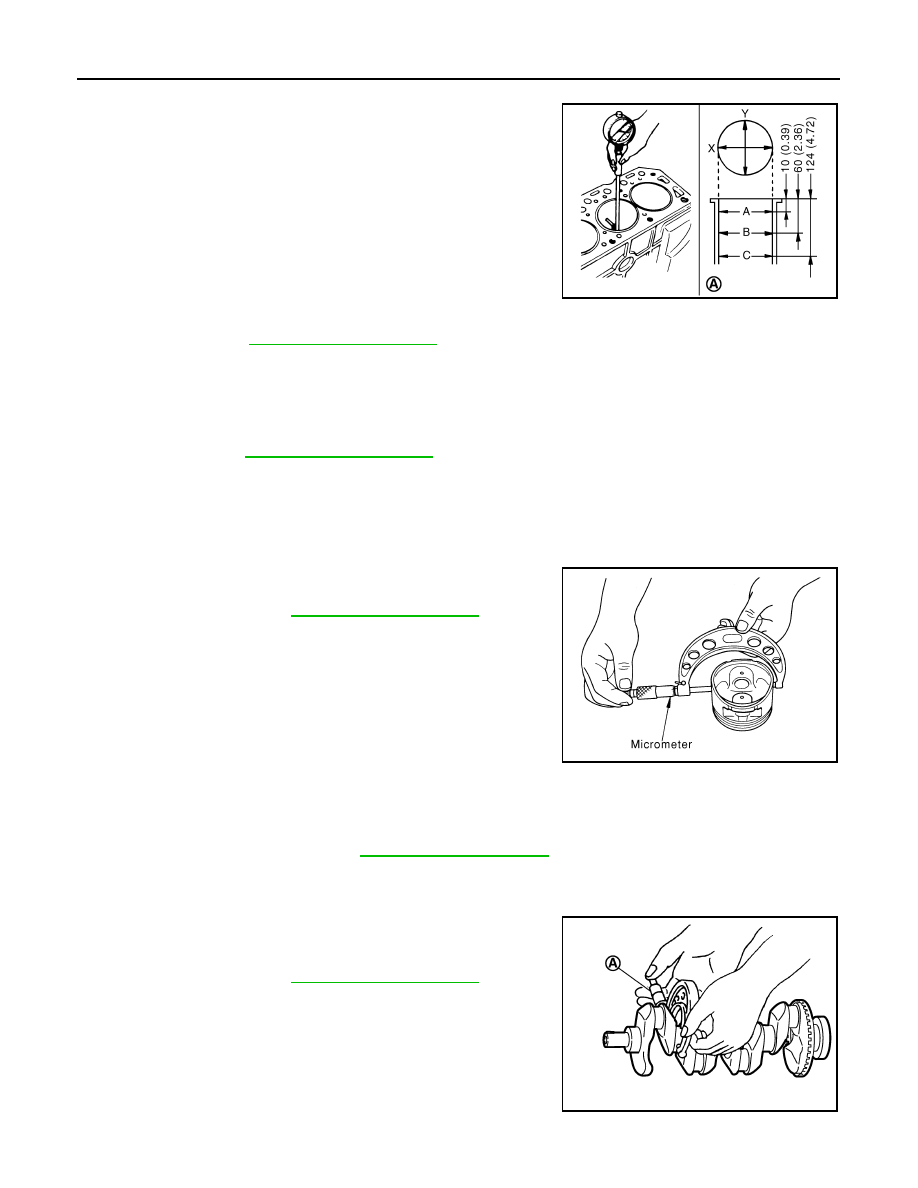

• Using a bore gauge, measure the cylinder bore for wear, out-of-

round and taper at six different points on each cylinder. (“X” and
“Y” directions at “A”, “B” and “C”) (“Y” is in longitudinal direction of
the engine)

NOTE:
When determining cylinder bore grade, measure cylinder bore at
“B” position.

• If the measured value exceeds the limit, or if there are scratches and/or seizure on the cylinder inner wall,

replace cylinder block.
NOTE:
There is no service setting for oversized piston.

Piston Skirt Diameter

Measure the outer diameter of piston skirt with a micrometer.

Piston to Cylinder Bore Clearance

Calculate by piston skirt diameter and cylinder bore inner diameter (direction “X”, position “B”).
(Clearance) = (Cylinder bore inner diameter) – (Piston skirt diameter)

• If it exceeds the limit, replace piston and piston pin assembly and/or cylinder block.

CRANKSHAFT MAIN JOURNAL DIAMETER

• Measure the outer diameter of crankshaft main journals with a

micrometer (A).

• If out of the standard, measure the main bearing oil clearance.

Then use undersize bearing.

A

: Unit: mm (in)

Standard:

Cylinder bore inner diameter

: Refer to

EM-127, "Cylinder Block"

.

Limit:

Out-of-round (Difference between“X”and“Y”)

Taper (Difference between“A”and“B”

: Refer to

EM-127, "Cylinder Block"

.

PBIC3767E

Standard

: Refer to

EM-127, "Cylinder Block"

.

PBIC0125E

Standard and Limit

: Refer to

EM-127, "Cylinder Block"

.

Standard

: Refer to

EM-127, "Cylinder Block"

.

PBIC3457J

CYLINDER BLOCK

EM-113

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CRANKSHAFT PIN JOURNAL DIAMETER

• Measure the outer diameter of crankshaft pin journal with a micrometer.

• If out of the standard, measure the connecting rod bearing oil clearance. Then use undersize bearing.

OUT-OF-ROUND AND TAPER OF CRANKSHAFT

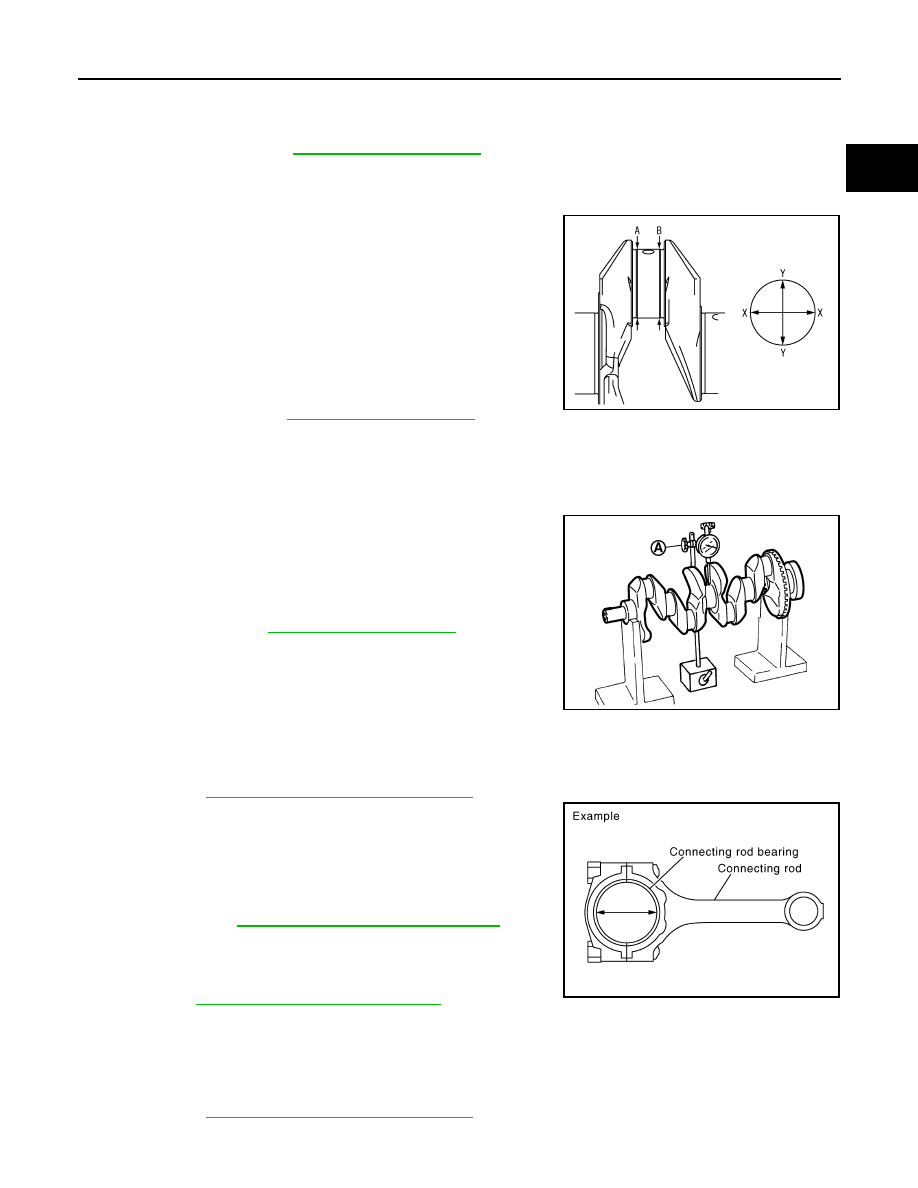

• Measure the dimensions at four different points as shown in the

figure on each main journal and pin journal with a micrometer.

• Out-of-round is indicated by the difference in dimensions between

“X” and “Y” at “A” and “B”.

• Taper is indicated by the difference in dimension between “A” and

“B” at “X” and “Y”.

• If the measured value exceeds the limit, correct or replace crankshaft.
• If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then select

main bearing and/or connecting rod bearing.

CRANKSHAFT RUNOUT

• Place a V-block on a precise flat table to support the journals on

the both end of crankshaft.

• Place a dial indicator (A) straight up on the No. 3 journal.
• While rotating crankshaft, read the movement of the pointer on the

dial indicator. (Total indicator reading)

• If it exceeds the limit, replace crankshaft.

CONNECTING ROD BEARING OIL CLEARANCE

Method by Calculation

• Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the specified

torque. Refer to

EM-101, "Disassembly and Assembly"

.

• Measure the inner diameter of connecting rod bearing with an

inside micrometer.
(Bearing oil clearance) = (Connecting rod bearing inner diameter)
– (Crankshaft pin journal diameter)

• If the clearance exceeds the limit, select proper connecting rod

bearing according to connecting rod big end diameter and crank-
shaft pin journal diameter to obtain the specified bearing oil clear-
ance. Refer to

EM-117, "Connecting Rod Bearing"

.

Method of Using Plastigage

• Remove engine oil and dust on crankshaft pin and the surfaces of each bearing completely.
• Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil

holes.

• Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the specified

torque. Refer to

EM-101, "Disassembly and Assembly"

.

CAUTION:

Standard

: Refer to

EM-127, "Cylinder Block"

.

Limit:

Out-of-round (Difference between“X”and“Y”)

Taper (Difference between“A”and“B”)

: Refer to

EM-127, "Cylinder Block"

.

PBIC3459J

Limit

: Refer to

EM-127, "Cylinder Block"

.

PBIC3458J

Standard and Limit

: Refer to

EM-130, "Connecting Rod Bearing"

.

PBIC1642E

EM-114

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

CYLINDER BLOCK

Never rotate crankshaft.

• Remove connecting rod cap and bearing, and using the scale on

the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

MAIN BEARING OIL CLEARANCE

Method by Calculation

• Install main bearings to cylinder block and main bearing cap, and tighten main bearing cap bolts to the spec-

ified torque. Refer to

EM-101, "Disassembly and Assembly"

.

• Measure the inner diameter of main bearing with a bore gauge.
(Bearing oil clearance) = (Main bearing inner diameter) – (Crank-
shaft main journal diameter)

• If the clearance exceeds the limit, select proper main bearing

according to main bearing inner diameter and crankshaft main
journal diameter to obtain the specified bearing oil clearance.
Refer to

EM-119, "Main Bearing"

.

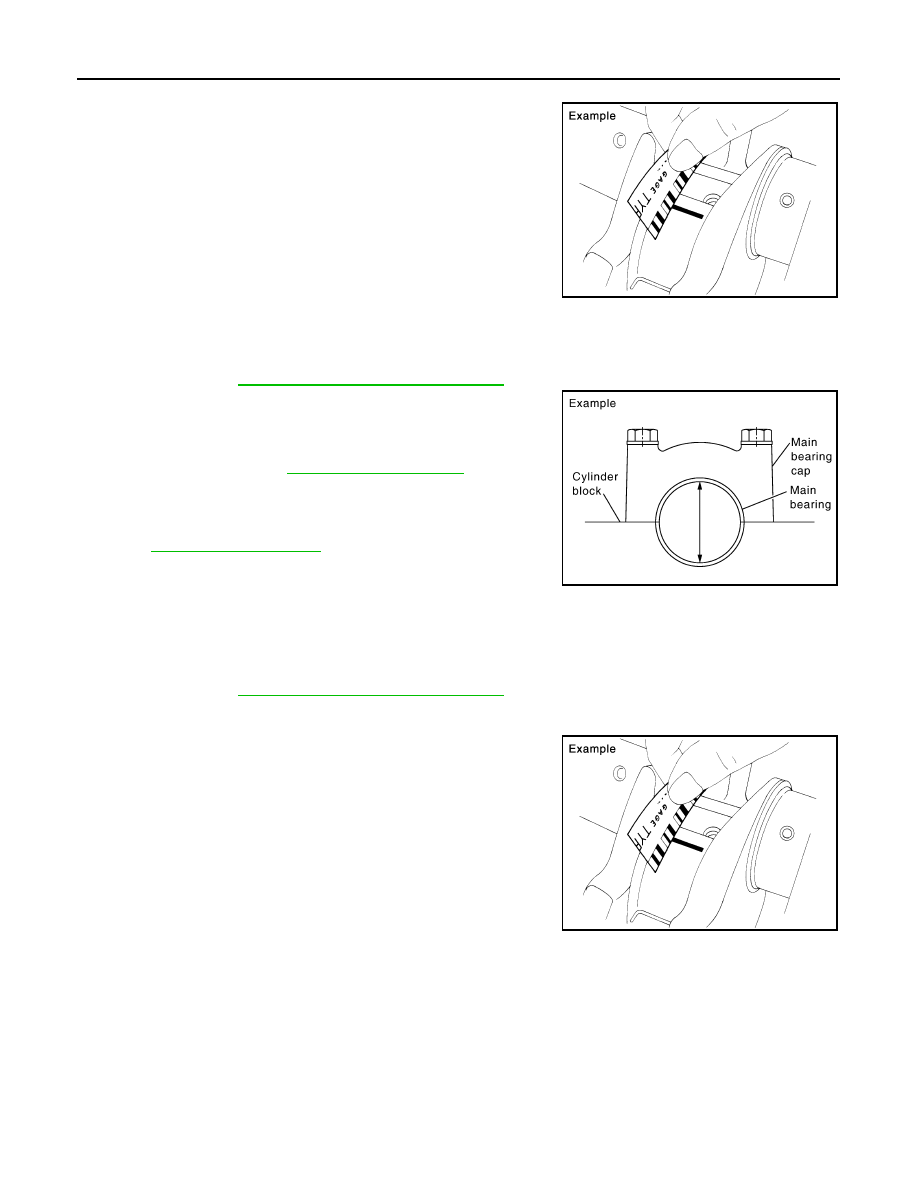

Method of Using Plastigage

• Remove engine oil and dust on crankshaft main journal and the surfaces of each bearing completely.
• Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil

holes.

• Install main bearings to cylinder block and main bearing cap, and tighten main bearing cap bolts to the spec-

ified torque. Refer to

EM-101, "Disassembly and Assembly"

.

CAUTION:

Never rotate crankshaft.

• Remove main bearing cap and bearings, and using the scale on

the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

MAIN BEARING CRUSH HEIGHT

PBIC1149E

Standard

: Refer to

EM-131, "Main Bearing"

.

PBIC1644E

PBIC1149E

CYLINDER BLOCK

EM-115

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

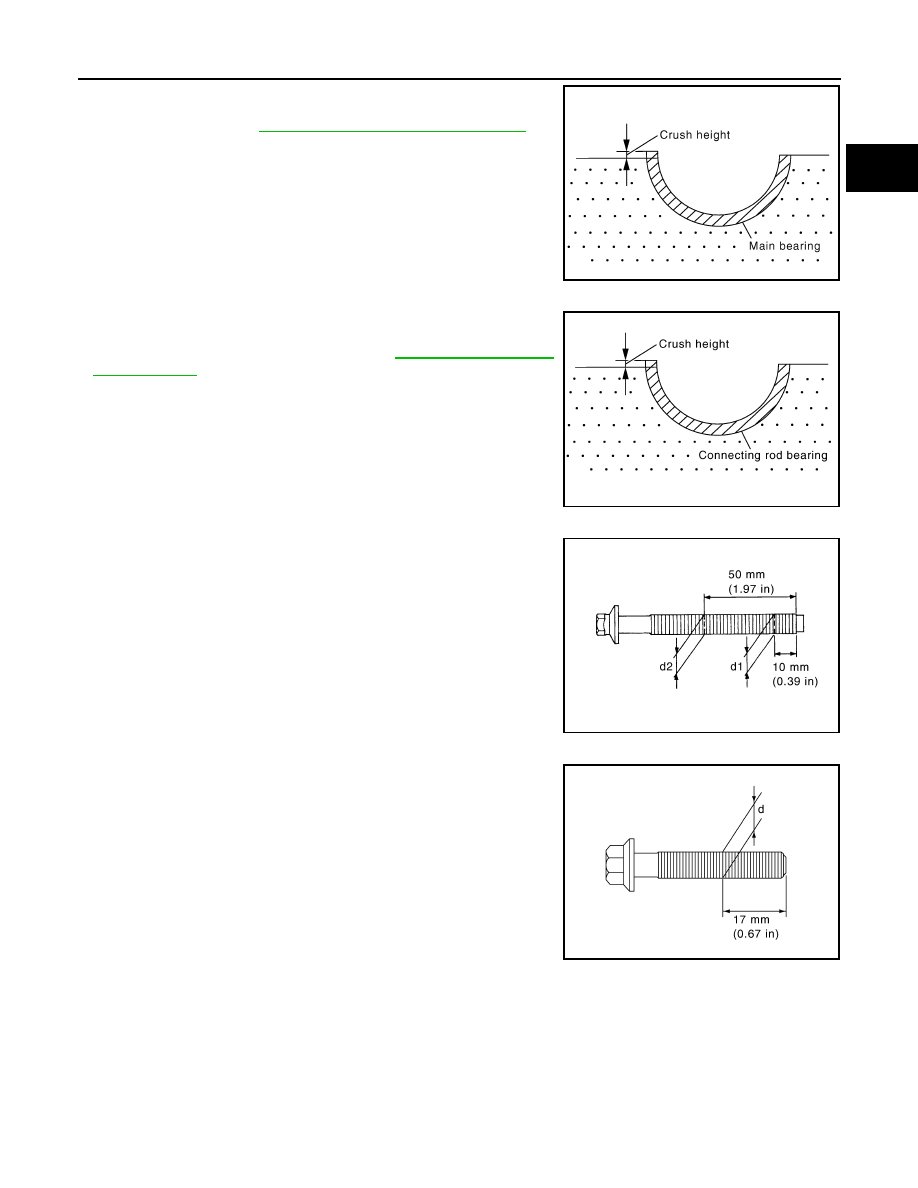

• When main bearing cap is removed after being tightened to the

specified torque with main bearings installed, the tip end of bearing
must protrude. Refer to

EM-101, "Disassembly and Assembly"

.

• If the standard is not met, replace main bearings.

CONNECTING ROD BEARING CRUSH HEIGHT

• When connecting rod bearing cap is removed after being tightened

to the specified torque with connecting rod bearings installed, the
tip end of bearing must protrude. Refer to

EM-101, "Disassembly

and Assembly"

.

• If the standard is not met, replace connecting rod bearings.

MAIN BEARING CAP BOLT OUTER DIAMETER

• Measure the outer diameters (“d

1

”, “d

2”

) at two positions as shown

in the figure.

• If reduction appears in a position other than “d

2 ”

, regard it as “d

2”

.

• If it exceeds the limit (a large difference in dimensions), replace

main bearing cap bolt with a new one.

CONNECTING ROD CAP BOLT OUTER DIAMETER

• Measure the outer diameter “d” at position as shown in the figure.
• If reduction appears in a position other than “d”, regard it as “d”.

• When “d” falls below the limit (when it becomes thinner), replace

connecting rod cap bolt with a new one.

FLYWHEEL DEFLECTION

Standard: There must be crush height.

SEM502G

Standard: There must be crush height.

PBIC1646E

Limit (“d

1

”–“d

2

”): 0.2 mm (0.008 in)

PBIC3768E

Limit: 7.75 mm (0.3051 in)

PBIC3769E
