EC-1178

< COMPONENT DIAGNOSIS >

[K9K]

P0606 ECM

P0606 ECM

Description

INFOID:0000000001162646

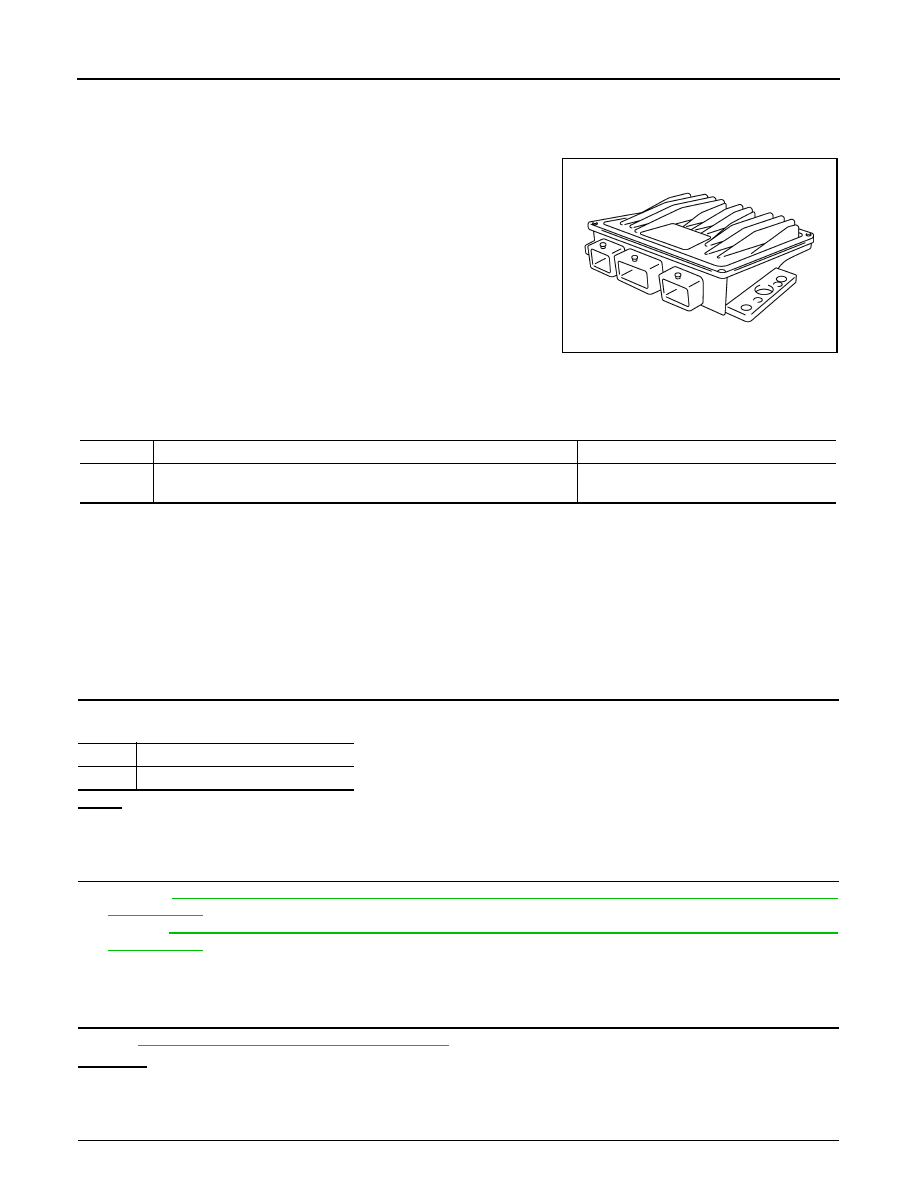

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

DTC Logic

INFOID:0000000001162647

DTC DETECTION LOGIC

NOTE:
• If DTC P0606 is displayed with other DTC, first perform the trouble diagnosis for other DTC.
• Conditions for applying the diagnostic procedure to the stored DTCs:

 The DTC is declared present after an attempted start, or with the engine running.

• If the DTC is present:
- Malfunction indicator (Red) lights up.
- Malfunction indicator (Yellow) lights up.

Diagnosis Procedure

INFOID:0000000001162648

1.

CHECK DTC

Make sure that which malfunction (DTC second line indication) is displayed.

A or B

A

>> GO  TO  2.

B

>> GO  TO  3.

2.

REPLACE ECM

1.

Perform

EC-1054, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

2.

Perform

EC-1055, "EGR VOLUME CONTROL VALVE CLOSED POSITION LEARNING : Special Repair

Requirement"

.

>> INSPECTION END

3.

CHECK CAN COMMUNICATION LINE

Refer to

LAN-33, "CAN Communication Signal Chart"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

MBIB1517E

DTC No.

Trouble diagnosis name

Possible cause

P0606

ECM
• 1.DEF to 20.DEF: Internal electric malfunction

• ECM

A

Except  9.DEFF

B

9.DEF

P0606 ECM

EC-1179

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Refer to

BRC-25, "CONSULT-III Function (ABS)"

 (without ESP) or

BRC-105, "CONSULT-III Function (ABS)"

(with ESP).
OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace.

5.

REPLACE ECM

1.

Perform

EC-1054, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

2.

Perform

EC-1055, "EGR VOLUME CONTROL VALVE CLOSED POSITION LEARNING : Special Repair

Requirement"

.

>> INSPECTION END

EC-1180

< COMPONENT DIAGNOSIS >

[K9K]

P0641 SENSOR POWER SUPPLY

P0641 SENSOR POWER SUPPLY

DTC Logic

INFOID:0000000001162649

DTC DETECTION LOGIC

NOTE:
• If DTC P0641 is displayed with DTC P0100, P0101, P0110, P0190, P0225, P0409, P0530, P2120, first

perform trouble diagnosis for DTC P0641.

- Conditions for applying the diagnostic procedure to the stored DTCs:

 The DTC is declared present after the ignition has been switched on.

- If the DTC is present:
- Malfunction indicator (Red) lights up.

Diagnosis Procedure

INFOID:0000000001162650

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E15. Refer to Ground Inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR 2 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between APP sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK SENSOR POWER SUPPLY CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

DTC No.

Trouble diagnosis name

Possible cause

P0641

SENSOR POWER SUPPLY CIRCUIT
• 1.DEF: Signal outside lower level
• 2.DEF: Signal outside upper level

• Harness or connectors

(The APP sensor 2 power supply circuit is shorted.)
(Fuel rail pressure sensor circuit is shorted.)
(EGR volume control valve control position sensor circuit
is shorted.)
(Mass air flow sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is shorted.)

• Accelerator pedal position sensor

(APP sensor 2)

• Fuel rail pressure sensor
• EGR volume control valve control position sensor
• Mass air flow sensor
• Refrigerant pressure sensor

APP sensor

Ground

Voltage

Connector

Terminal

E12 (LHD models)

M204 (RHD models)

5

Ground

Approx. 5V

P0641 SENSOR POWER SUPPLY

EC-1181

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair short to ground or short to power in harness or connectors.

4.

CHECK SENSOR GROUND CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK COMPONENTS

Check the following.
• Refrigerant pressure sensor (Refer to

EC-1166, "Diagnosis Procedure"

.)

• EGR volume control valve (EGR volume control valve control position sensor) (Refer to

EC-1158, "Diagno-

sis Procedure"

.)

• Fuel rail pressure sensor (Refer to

EC-1139, "Component Inspection"

.)

• Mass air flow sensor (Refer to

EC-1125, "Component Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace malfunctioning component.

6.

CHECK APP SENSOR

Refer to

EC-1146, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace APP sensor.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

ECM

Sensor

Connector

Terminal

Name

Connector

Terminal

E16

118

APP sensor

E12 (LHD models)

M204 (RHD models)

5

F11

89

Refrigerant pressure sensor

E17

3

85

EGR volume control valve (EGR volume control valve con-
trol position sensor)

F52

1

F10

20

Fuel rail pressure sensor

F51

3

28

Mass air flow sensor

F31

5

ECM

Sensor

Connector

Terminal

Name

Connector

Terminal

E16

120

APP sensor

E12 (LHD models)

M204 (RHD models)

1

F11

74

Refrigerant pressure sensor

E17

1

82

EGR volume control valve (EGR volume control valve control
position sensor)

F52

3

F10

15

Fuel rail pressure sensor

F51

2

30

Mass air flow sensor

F31

2
