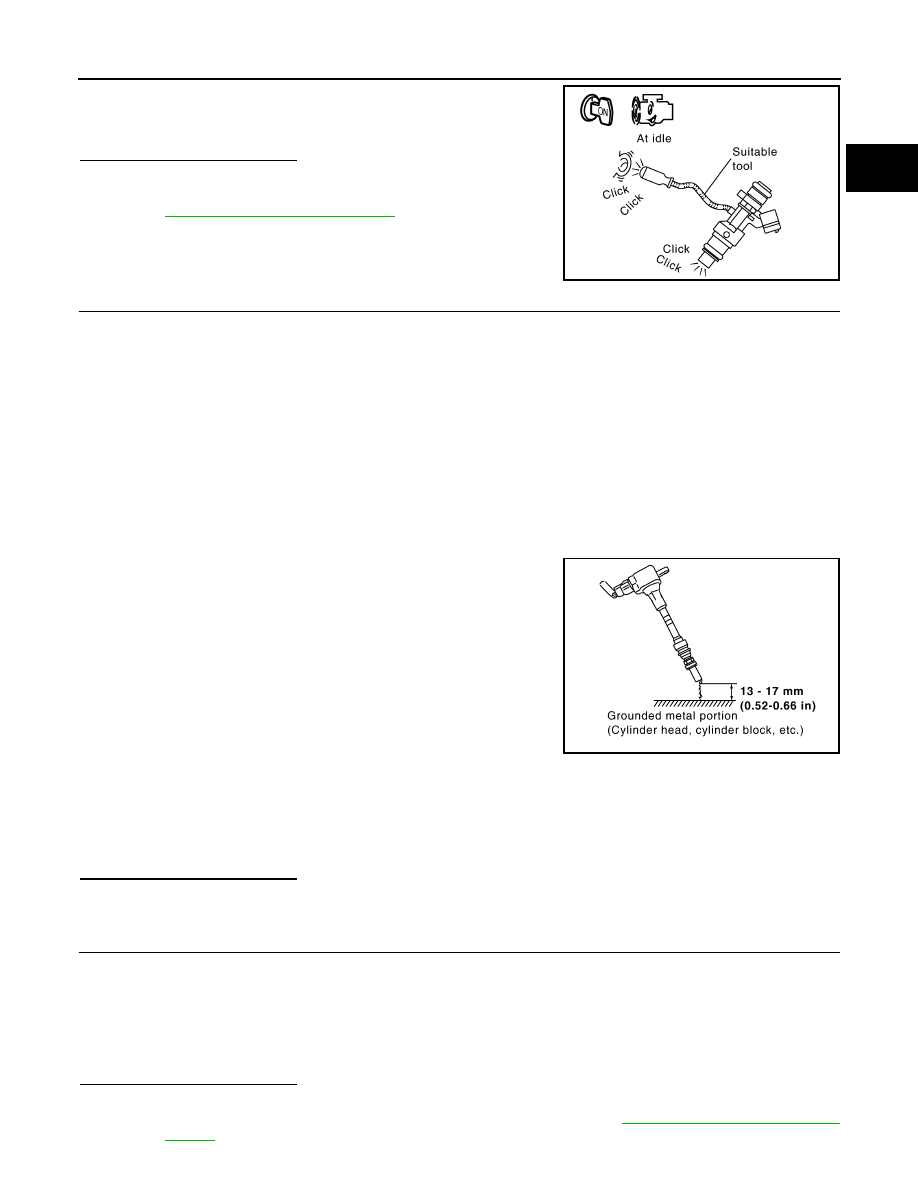

EC-854 < COMPONENT DIAGNOSIS > [MR18DE] P0222, P0223 TP SENSOR Component Inspection INFOID:0000000001161821 1. CHECK THROTTLE POSITION SENSOR 1. Turn ignition switch OFF. 2. Reconnect all harness connectors disconnected. 3. EC-694, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement" . 4. Turn ignition switch ON. 5. Set shift lever to 1st position. 6. Check the voltage between ECM harness connector terminals as follows. Is the inspection result normal? YES >> INSPECTION END NO >> GO TO 2. 2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR 1. Replace electric throttle control actuator. 2. Go to EC-854, "Special Repair Requirement" . >> INSPECTION END Special Repair Requirement INFOID:0000000001161822 1. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING EC-694, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement" >> GO TO 2. 2. PERFORM IDLE AIR VOLUME LEARNING EC-694, "IDLE AIR VOLUME LEARNING : Special Repair Requirement" >> END (+) (–) Condition Voltage Connector Terminal Connector Terminal F11 33 (TP sensor 1 signal) F11 36 Accelerator pedal Fully released More than 0.36V Fully depressed Less than 4.75V 34 (TP sensor 2 signal) Fully released Less than 4.75V Fully depressed More than 0.36V |
