EC-762

< FUNCTION DIAGNOSIS >

[MR18DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

(CONSULT-III also displays the malfunctioning component or system.)

No Tools

The number of blinks of the MI in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 1148, 1706, etc.
These DTCs are controlled by NISSAN.
• 1st trip DTC No. is the same as DTC No.
• Output of a DTC indicates a malfunction. However, GST or the Diagnostic Test Mode II do not indi-

cate whether the malfunction is still occurring or has occurred in the past and has returned to nor-
mal. CONSULT-III can identify malfunction status as shown below. Therefore, using CONSULT-III (if
available) is recommended.

DTC or 1st trip DTC of a malfunction is displayed in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-III.
Time data indicates how many times the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].

How to Erase DTC and 1st Trip DTC

With CONSULT-III

The emission related diagnostic information in the ECM can be erased by selecting “All Erase” in the “Descrip-
tion” of “FINAL CHECK” mode with CONSULT-III.

With GST

The emission related diagnostic information in the ECM can be erased by selecting Service $04 with GST.
1.

If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.

Select Service $04 with GST (Generic Scan Tool).

No Tools

If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
Wait at least 10 seconds and then turn it ON (engine stopped) again.

Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal.

• If the battery is disconnected, the emission-related diagnostic information will be lost within 24

hours.

• The following data are cleared when the ECM memory is erased.
- Diagnostic trouble codes
- 1st trip diagnostic trouble codes
- Freeze frame data
- 1st trip freeze frame data
- System readiness test (SRT) codes
- Test values
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.

SYSTEM READINESS TEST (SRT) CODE

System Readiness Test (SRT) code is specified in Service $01 of ISO 15031-5.
As part of an enhanced emissions test for Inspection & Maintenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspection due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system. Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indicates “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indicates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-763

< FUNCTION DIAGNOSIS >

[MR18DE]

If MI is ON during the state emissions inspection, the vehicle is also returned to the customer untested even
though the SRT indicates “CMPLT” for all test items. Therefore, it is important to check SRT (“CMPLT”) and
DTC (No DTCs) before the inspection.

SRT Item

The table below shows required self-diagnostic items to set the SRT to “CMPLT”.

*: If completion of several SRTs is required, perform driving patterns (DTC CONFIRMATION PROCEDURE), one by one based on the
priority for models with CONSULT-III.

SRT Set Timing

SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. The set timing is different between OK and NG results and
is shown in the table below.

OK: Self-diagnosis is carried out and the result is OK.

NG: Self-diagnosis is carried out and the result is NG.

—: Self-diagnosis is not carried out.

When all SRT related self-diagnoses showed OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”.

→

Case 1 above

When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective self-diagnoses have at least one OK result.

→

Case 2 above

SRT item

(CONSULT-III indication)

Performance

Priority*

Required self-diagnostic items to set the SRT to “CMPLT”

Corresponding

DTC No.

CATALYST

Three way catalyst function

P0420

HO2S

Heated oxygen sensor 1

P1133

Heated oxygen sensor 1

P1143

Heated oxygen sensor 1

P1144

Heated oxygen sensor 2

P0139

Heated oxygen sensor 2

P1146

Heated oxygen sensor 2

P1147

HO2S HTR

Heated oxygen sensor 1 heater

P0135

Heated oxygen sensor 2 heater

P0141

Self-diagnosis result

Example

Diagnosis

Ignition cycle

←

→

OFF

←

→

OFF

←

→

OFF

←

→

All OK

Case 1

P0400

OK (1)

— (1)

OK (2)

— (2)

P0402

OK (1)

— (1)

OK (2)

P1402

OK (1)

OK (2)

— (2)

SRT of EGR

“CMPLT”

Case 2

P0400

OK (1)

— (1)

P0402

— (0)

OK (1)

— (1)

P1402

OK (1)

OK (2)

— (2)

SRT of EGR

“INCMP”

“CMPLT”

NG exists

Case 3

P0400

—

P0402

—

P1402

—

(Consecutive

NG)

(1st trip)

DTC

1st trip DTC

—

1st trip DTC

DTC

(= MI ON)

SRT of EGR

“INCMP”

“CMPLT”

EC-764

< FUNCTION DIAGNOSIS >

[MR18DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”.

→

Case 3 above

The table above shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-diagnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-diagnosis to be executed twice (Case 3) for the following
reasons:
• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
• When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis

memory must be erased from ECM after repair.

• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.

NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.

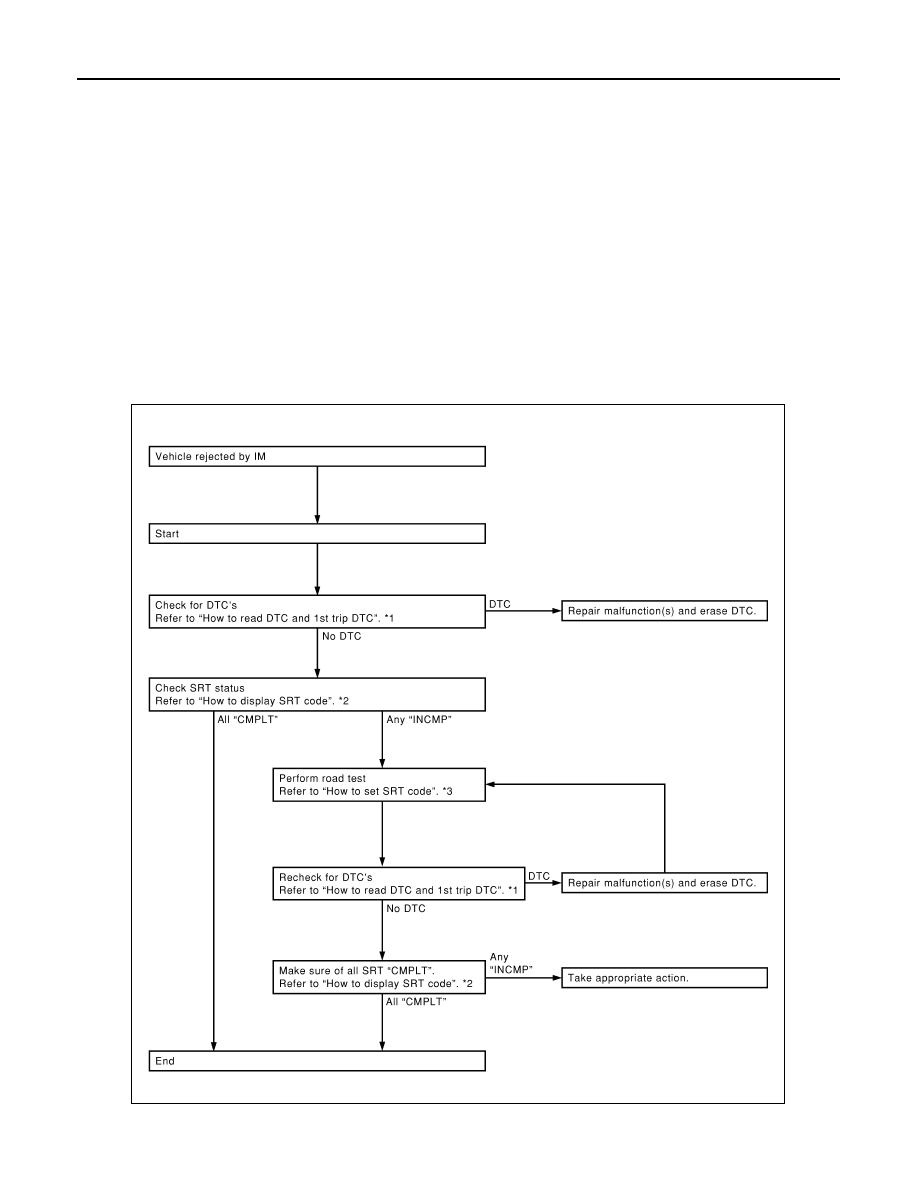

SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence on the next page.

“How to Read DTC and 1st Trip DTC” *2

“How to Display SRT code”

“How to Set SRT Code”

SEF573XB

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-765

< FUNCTION DIAGNOSIS >

[MR18DE]

How to Display SRT Code

WITH CONSULT-III

Selecting “SRT STATUS” in “DTC CONFIRMATION” mode with CONSULT-III.
For items whose SRT codes are set, a “CMPLT” is displayed on the CONSULT-III screen; for items whose
SRT codes are not set, “INCMP” is displayed.

WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

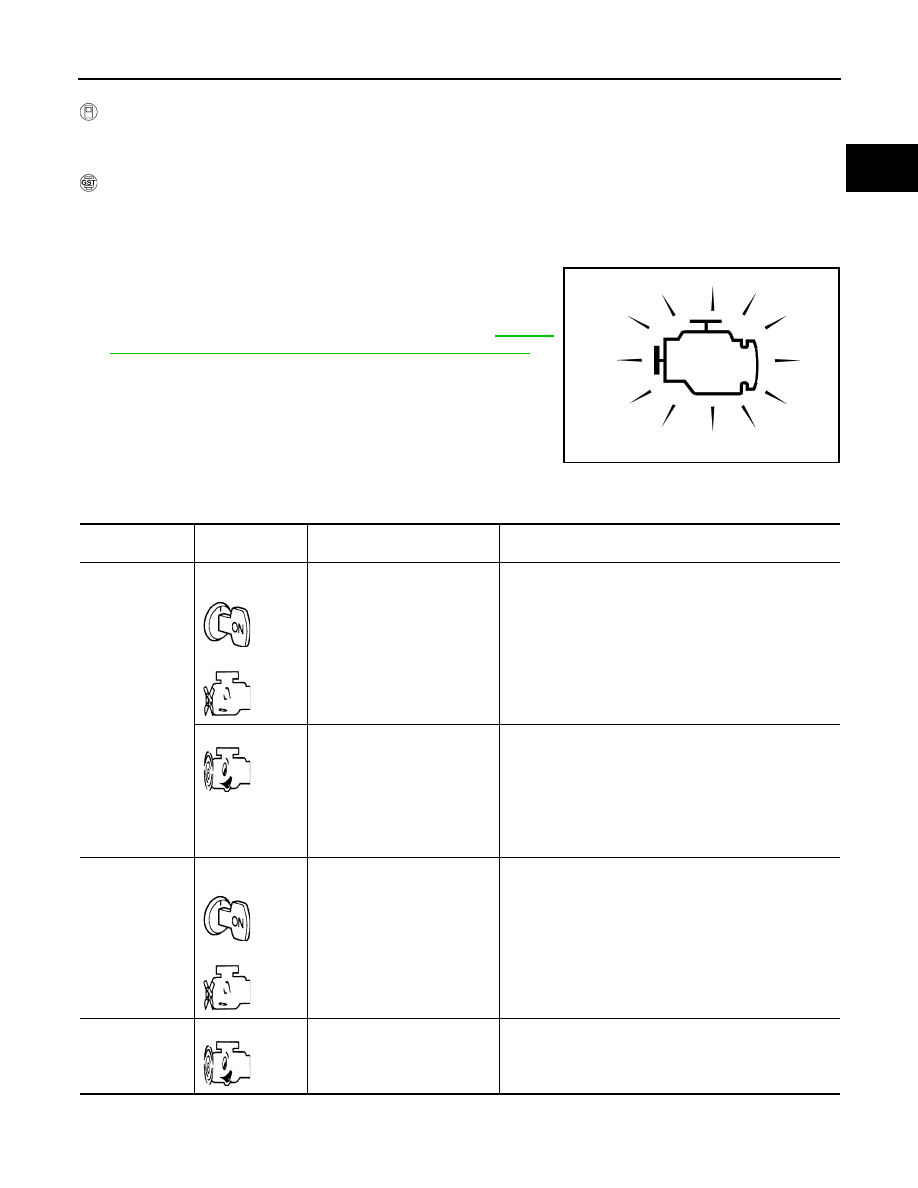

MALFUNCTION INDICATOR (MI)

Description

The MI is located on the instrument panel.
1.

The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, check MI circuit. Refer to

MWI-15,

"WARNING LAMPS/INDICATOR LAMPS : System Diagram"

When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.

On Board Diagnostic System Function

The on board diagnostic system has the following four functions.

Diagnostic Test Mode I — Bulb Check

SAT652J

Diagnostic Test
Mode

KEY and ENG.
Status

Function

Explanation of Function

Mode I

Ignition switch in
ON position

Engine stopped

BULB CHECK

This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.

Engine running

MALFUNCTION
WARNING

This is a usual driving condition. When a malfunction is de-
tected twice in two consecutive driving cycles (two trip de-
tection logic), the MI will light up to inform the driver that a
malfunction has been detected.
The following malfunctions will light up or blink the MI in the
1st trip.
• Misfire (Possible three way catalyst damage)
• One trip detection diagnoses

Mode II

Ignition switch in
ON position

Engine stopped

SELF-DIAGNOSTIC
RESULTS

This function allows DTCs and 1st trip DTCs to be read.

Engine running

HEATED OXYGEN SENSOR 1
MONITOR

This function allows the fuel mixture condition (lean or rich),
monitored by heated oxygen sensor 1, to be read.
