Nissan Tiida C11. Manual - part 511

EC-694

< BASIC INSPECTION >

[MR18DE]

INSPECTION AND ADJUSTMENT

THROTTLE VALVE CLOSED POSITION LEARNING

THROTTLE VALVE CLOSED POSITION LEARNING : Description

INFOID:0000000001161713

Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time harness connec-
tor of electric throttle control actuator or ECM is disconnected.

THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement

INFOID:0000000001161714

1.

START

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.

>> END

IDLE AIR VOLUME LEARNING

IDLE AIR VOLUME LEARNING : Description

INFOID:0000000001161715

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed
within the specific range. It must be performed under any of the following conditions:
• Each time electric throttle control actuator or ECM is replaced.
• Idle speed or ignition timing is out of specification.

IDLE AIR VOLUME LEARNING : Special Repair Requirement

INFOID:0000000001161716

1.

PRECONDITIONING

Make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
• Battery voltage: More than 12.9V (At idle)
• Engine coolant temperature: 70 - 100

°

C (158 - 212

°

F)

• PNP switch: ON
• Electric load switch: OFF

(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light only
small lamps.

• Steering wheel: Neutral (Straight-ahead position)
• Vehicle speed: Stopped
• Transmission: Warmed-up
• Drive vehicle for 10 minutes.
Do you have CONSULT-III?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

IDLE AIR VOLUME LEARNING

With CONSULT-III

1.

Perform Accelerator Pedal Released Position Learning. Refer to

EC-693, "ACCELERATOR PEDAL

RELEASED POSITION LEARNING : Special Repair Requirement"

.

2.

Perform Throttle Valve Closed Position Learning. Refer to

EC-694, "THROTTLE VALVE CLOSED POSI-

TION LEARNING : Special Repair Requirement"

.

3.

Start engine and warm it up to normal operating temperature.

4.

Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

5.

Touch “START” and wait 20 seconds.

Is “CMPLT” displayed on CONSULT-III screen?

YES

>> GO TO 4.

NO

>> GO TO 5.

INSPECTION AND ADJUSTMENT

EC-695

< BASIC INSPECTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

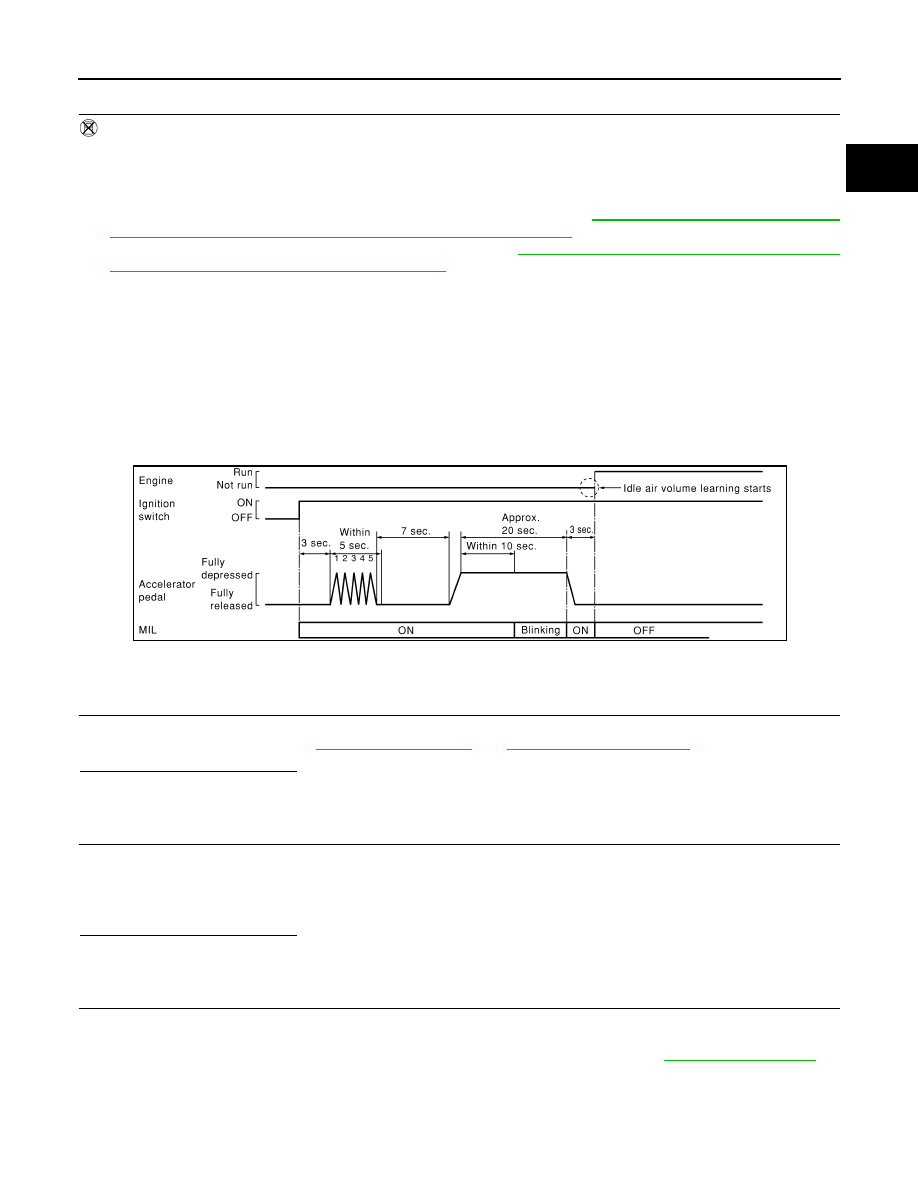

3.

IDLE AIR VOLUME LEARNING

Without CONSULT-III

NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1.

Perform Accelerator Pedal Released Position Learning. Refer to

EC-693, "ACCELERATOR PEDAL

RELEASED POSITION LEARNING : Special Repair Requirement"

.

2.

Perform Throttle Valve Closed Position Learning. Refer to

EC-694, "THROTTLE VALVE CLOSED POSI-

TION LEARNING : Special Repair Requirement"

.

3.

Start engine and warm it up to normal operating temperature.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

6.

Repeat the following procedure quickly five times within 5 seconds.

-

Fully depress the accelerator pedal.

-

Fully release the accelerator pedal.

7.

Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MI stops
blinking and turned ON.

8.

Fully release the accelerator pedal within 3 seconds after the MI turned ON.

9.

Start engine and let it idle.

10. Wait 20 seconds.

>> GO TO 4

4.

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-
cations. For specification, refer to

EC-1038, "Idle Speed"

 and

EC-1038, "Ignition Timing"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning part.

6.

DETECT MALFUNCTIONING PART

Engine component parts and their installation condition are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to

EC-781, "Description"

.

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and
perform Idle Air Volume Learning all over again:
• Engine stalls.
• Erroneous idle.

SEC897C

EC-696

< BASIC INSPECTION >

[MR18DE]

INSPECTION AND ADJUSTMENT

>> INSPECTION END

MIXTURE RATIO SELF-LEARNING VALUE CLEAR

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Description

INFOID:0000000001161717

This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Special Repair Requirement

INFOID:0000000001161718

1.

START

With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3.

Clear mixture ratio self-learning value by touching “CLEAR”.

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness connector.

6.

Select Service $03 with GST. Make sure DTC P0102 is detected.

7.

Select Service $04 with GST to erase the DTC P0102.

>> END

ENGINE CONTROL SYSTEM

EC-697

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

FUNCTION DIAGNOSIS

ENGINE CONTROL SYSTEM

System Diagram

INFOID:0000000001161719

JMBIA0836GB
