EC-678

< PRECAUTION >

[HR16DE (WITHOUT EURO-OBD)]

PRECAUTIONS

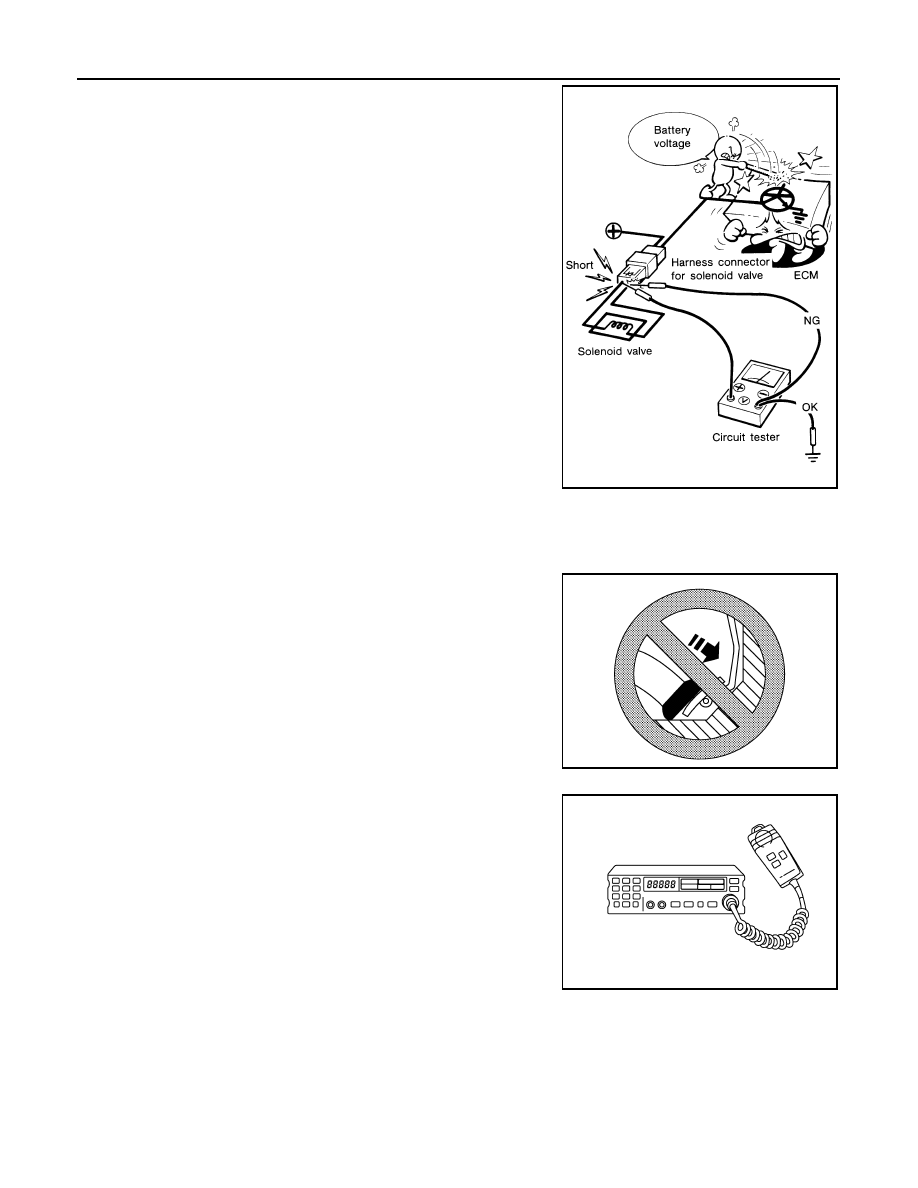

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

• Do not use ECM ground terminals when measuring input/out-

put voltage. Doing so may result in damage to the ECM’s tran-
sistor. Use a ground other than ECM terminals, such as the
ground.

• Do not operate fuel pump when there is no fuel in lines.
• Tighten fuel hose clamps to the specified torque.

• Do not depress accelerator pedal when starting.
• Immediately after starting, do not rev up engine unnecessar-

ily.

• Do not rev up engine just prior to shutdown.

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic
control systems depending on installation location.

- Keep the antenna as far as possible from the electronic con-

trol units.

- Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

- Adjust the antenna and feeder line so that the standing-wave

ratio can be kept smaller.

- Be sure to ground the radio to vehicle body.

SEF348N

SEF709Y

SEF708Y

PREPARATION

EC-679

< PREPARATION >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PREPARATION

PREPARATION

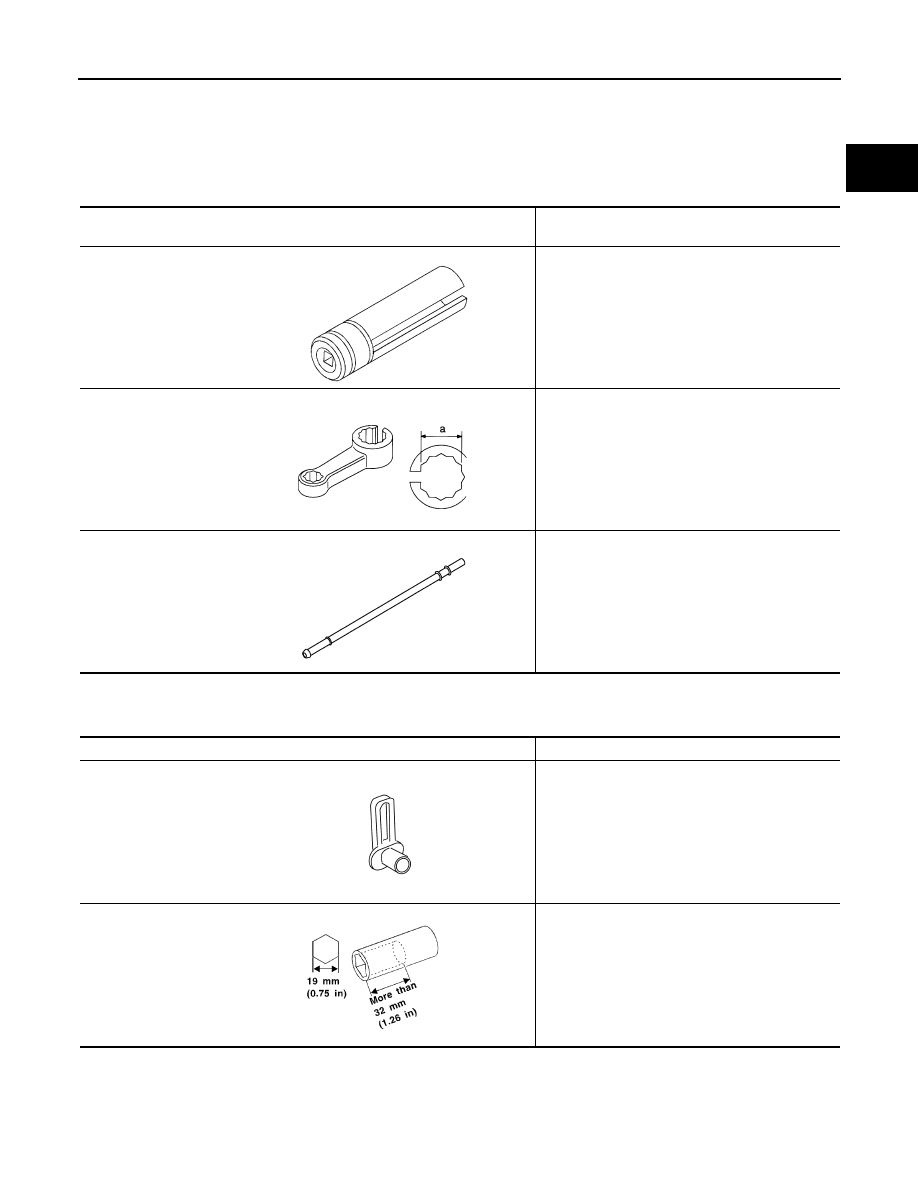

Special Service Tools

INFOID:0000000001705203

Commercial Service Tools

INFOID:0000000001705204

Tool number
Tool name

Description

KV10117100
Heated oxygen sensor
wrench

Loosening or tighening heated oxygen sensor with
22 mm (0.87 in) hexagon unit

KV10114400
Heated oxygen sensor
wrench

Loosening or tighening heated oxygen sensor 2
a: 22 mm (0.87 in)

KV10118400
Fuel tube adapter

Measuring fuel pressure

S-NT379

S-NT636

PBIB3043E

Tool name

Description

Quick connector re-
lease

Removing fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG: Par
No. 16441 6N210)

Socket wrench

Removing and installing engine coolant tempera-
ture sensor

PBIC0198E

S-NT705

EC-680

< PREPARATION >

[HR16DE (WITHOUT EURO-OBD)]

PREPARATION

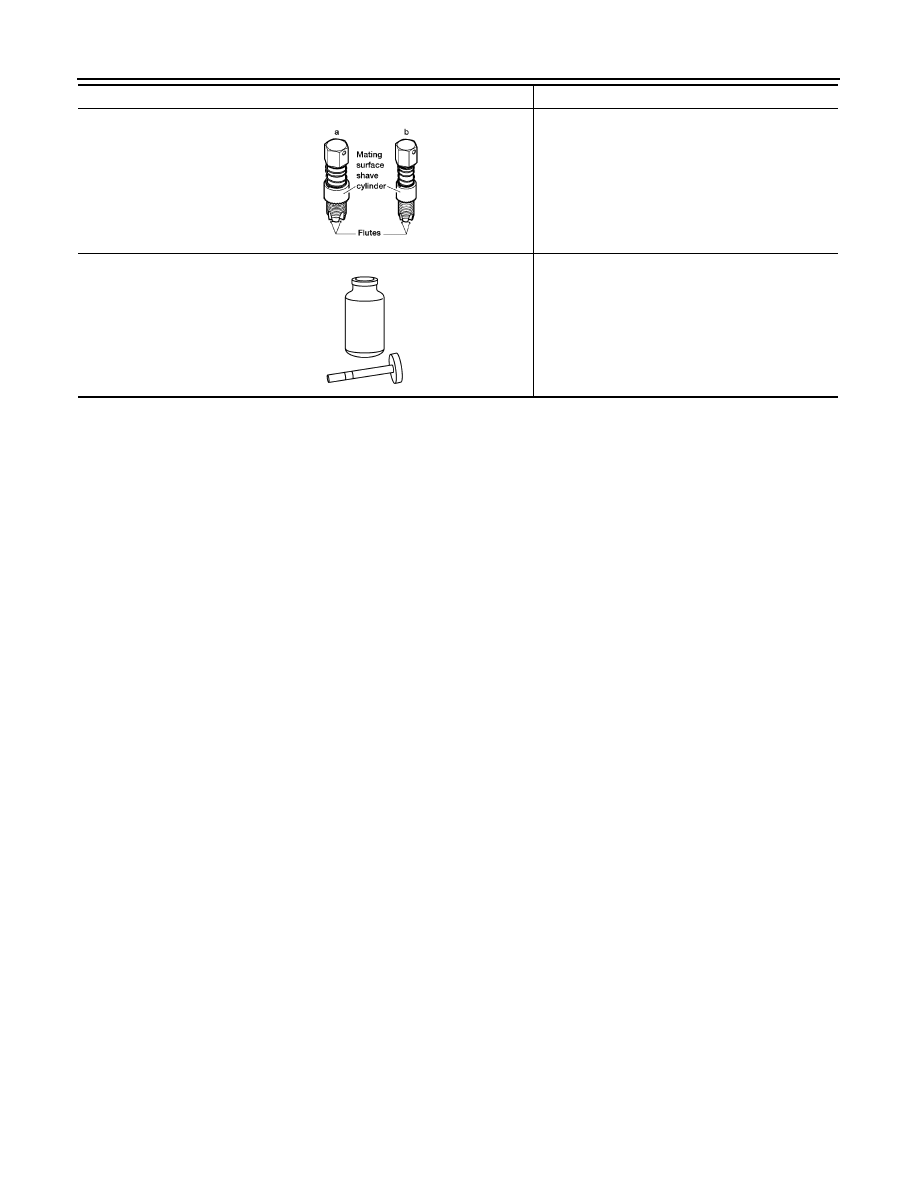

Oxygen sensor thread
cleaner

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant

i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name

Description

AEM488

S-NT779

FUEL PRESSURE

EC-681

< ON-VEHICLE MAINTENANCE >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ON-VEHICLE MAINTENANCE

FUEL PRESSURE

Inspection

INFOID:0000000001705205

FUEL PRESSURE RELEASE

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode with CONSULT-III.

3.

Start engine.

4.

After engine stalls, crank it two or three times to release all fuel pressure.

5.

Turn ignition switch OFF.

 With CONSULT-III

1.

Remove fuel pump fuse located in IPDM E/R.

2.

Start engine.

3.

After engine stalls, crank it two or three times to release all fuel pressure.

4.

Turn ignition switch OFF.

5.

Reinstall fuel pump fuse after servicing fuel system.

FUEL PRESSURE CHECK

CAUTION:

• Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
• The fuel hose connection method used when taking fuel pressure check must not be used for other

purposes.

• Be careful not to scratch or put debris around connection area when servicing, so that the quick

connector maintains sealability with O-rings inside.

• Do not perform fuel pressure check with electrical systems operating (i.e. lights, rear defogger, A/C,

etc.) Fuel pressure gauge may indicate false readings due to varying engine load and changes in
manifold vacuum.

NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-
sure cannot be completely released because C11 models do not have fuel return system.

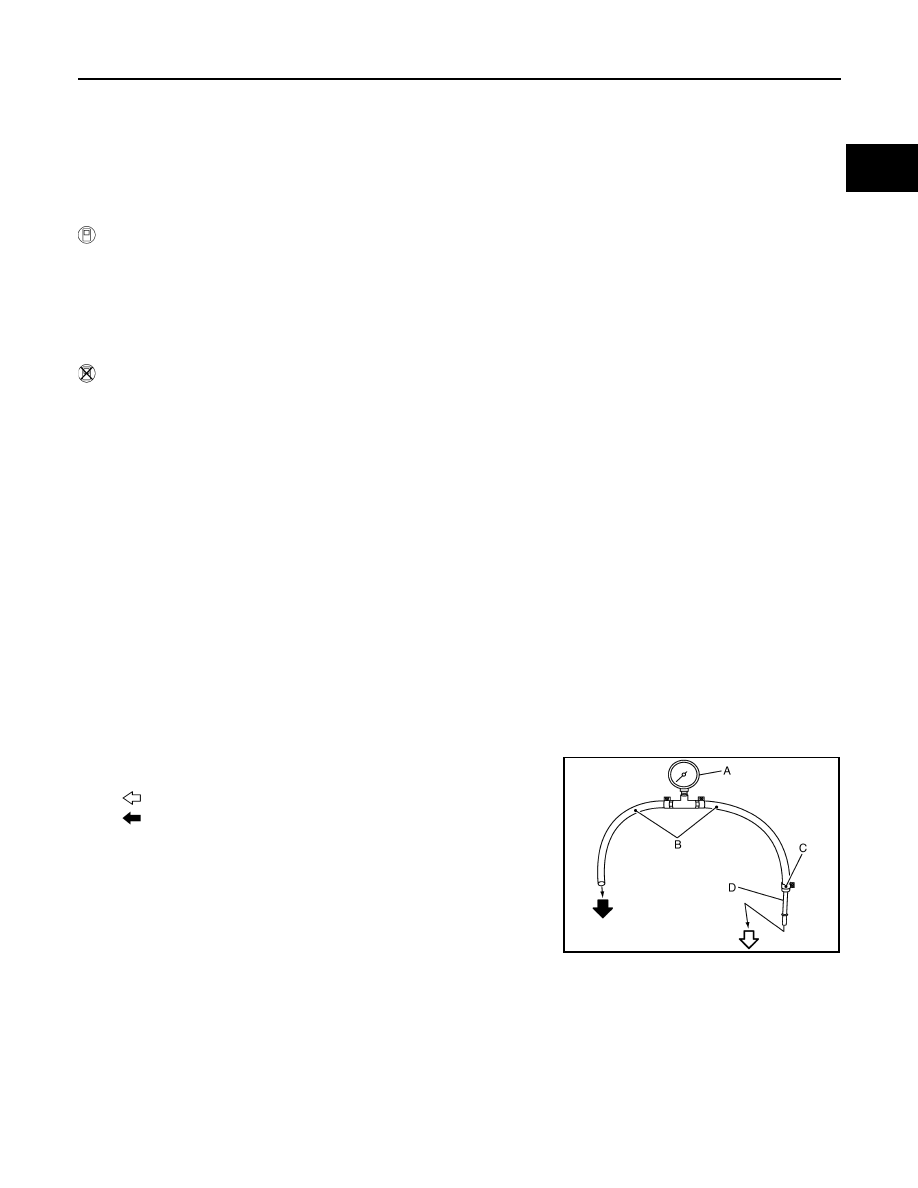

1.

Release fuel pressure to zero.

2.

Prepare fuel hose for fuel pressure check B and fuel tube
adapter (KV10118400) D, then connect fuel pressure gauge A.
•

: To quick connector

•

: To fuel tube (engine side)

• C: Clamp
•  Use suitable fuel hose for fuel pressure check (genuine NIS-

SAN fuel hose without quick connector).

• To avoid unnecessary force or tension to hose, use moder-

ately long fuel hose for fuel pressure check.

• Do not use the fuel hose for checking fuel pressure with dam-

age or cracks on it.

• Use Pressure Gauge to check fuel pressure.

3.

Remove fuel hose.
• Do not twist or kink fuel hose because it is plastic hose.

PBIB2982E
