Nissan Tiida C11. Manual - part 473





EC-542

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

P1212 TCS COMMUNICATION LINE

P1212 TCS COMMUNICATION LINE

Description

INFOID:0000000001693359

This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.

DTC Logic

INFOID:0000000001693360

DTC DETECTION LOGIC

NOTE:
• If DTC P1212 is displayed with DTC U1000 U1001, first perform the trouble diagnosis for DTC U1000

U1001. Refer to

EC-481, "DTC Logic"

.

• If DTC P1212 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer

to

EC-482, "DTC Logic"

.

Freeze frame data is not stored in the ECM for this self-diagnosis.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 10 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-542, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001693361

Go to

BRC-86, "Work Flow"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1212

TCS communication line

ECM can not receive the information from
“ABS actuator and electric unit (control
unit)” continuously.

• Harness or connectors

(The CAN communication line is open or short-
ed.)

• ABS actuator and electric unit (control unit)
• Dead (Weak) battery

P1217 ENGINE OVER TEMPERATURE

EC-543

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1217 ENGINE OVER TEMPERATURE

DTC Logic

INFOID:0000000001693362

DTC DETECTION LOGIC

NOTE:
• If DTC P1217 is displayed with DTC U1000 U1001, first perform the trouble diagnosis for DTC U1000

U1001. Refer to

EC-481, "DTC Logic"

.

• If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer

to

EC-482, "DTC Logic"

.

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Refer to

CO-11, "Inspection"

. Also,

replace the engine oil. Refer to

LU-7, "Draining"

.

1.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to

MA-20, "SAE Viscosity Number"

.

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-543, "Component Function Check"

.

NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-544, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000001693363

1.

PERFORM COMPONENT FUNCTION CHECK-I

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1217

Engine over tempera-
ture (Overheat)

• Cooling fan does not operate properly (Over-

heat).

• Cooling fan system does not operate proper-

ly (Overheat).

• Engine coolant was not added to the system

using the proper filling method.

• Engine coolant is not within the specified

range.

• Harness or connectors

(The cooling fan circuit is open or short-
ed.)

• IPDM E/R (Cooling fan relay-1, -2, -3)
• Cooling fan motor
• Radiator hose
• Radiator
• Radiator  cap
• Reservoir tank
• Water pump
• Thermostat

EC-544

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

P1217 ENGINE OVER TEMPERATURE

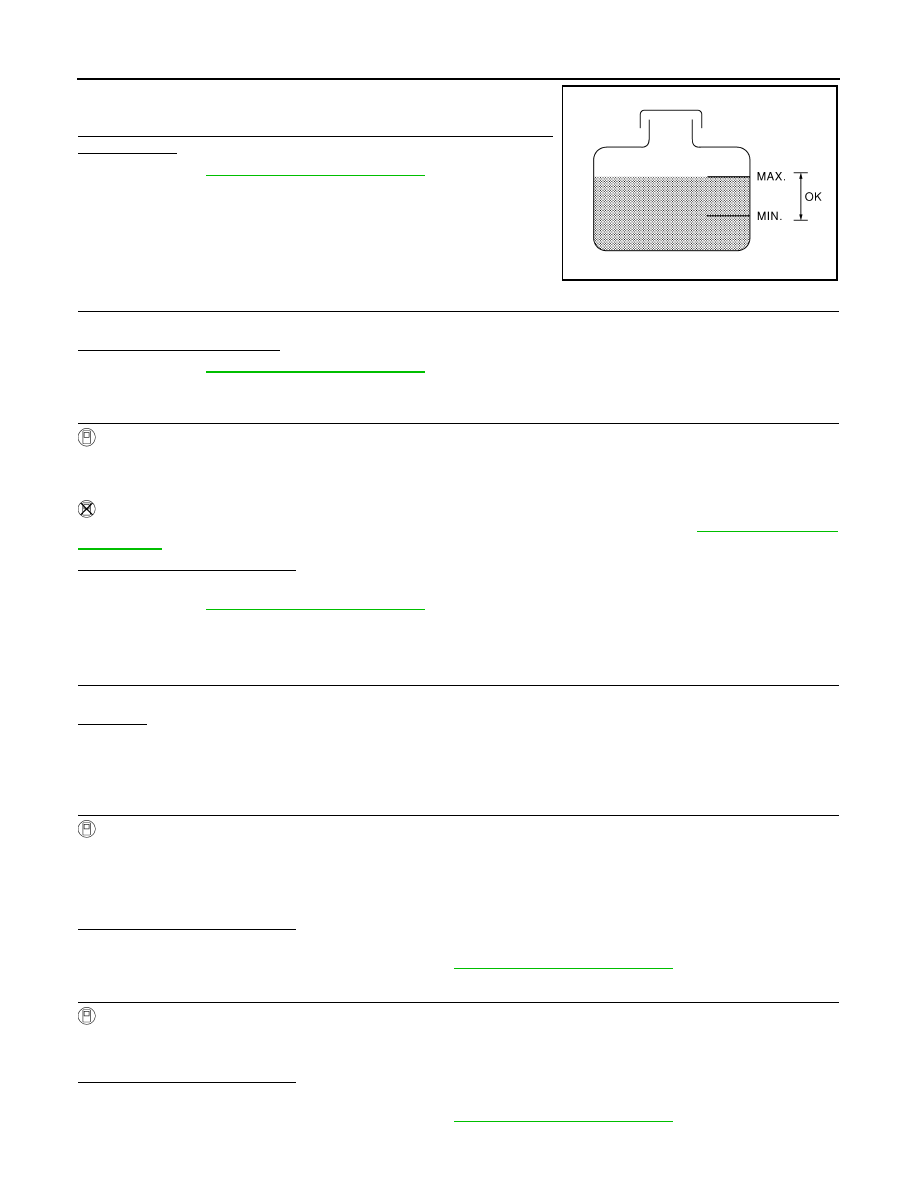

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?

YES

>> Go to

EC-544, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-II

Confirm whether customer filled the coolant or not.

Did customer fill the coolant?

YES

>> Go to

EC-544, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-III

With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.

3.

Make sure that cooling fan motor operate at each speed (LOW/HI).

Without CONSULT-III

Perform IPDM E/R auto active test and check cooling fan motors operation, refer to

PCS-10, "Diagnosis

Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-544, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001693364

1.

INSPECTION START

Do you have CONSULT-III?

Yes or No

Yes

>> GO TO 2.

No-1

>> With A/C models: GO TO 4.

No-2

>> Without A/C models: GO TO 5

2.

CHECK COOLING FAN LOW SPEED OPERATION

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III and touch “LOW” on the CON-
SULT-III screen.

3.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check cooling fan control circuit. Refer to

EC-593, "Diagnosis Procedure"

.

3.

CHECK COOLING FAN HIGH SPEED OPERATION

 With CONSULT-III

1.

Touch “HIGH” on the CONSULT-III screen.

2.

Make sure that cooling fan operates at higher speed than low speed.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Check cooling fan control circuit. Refer to

EC-593, "Diagnosis Procedure"

.

SEF621W

P1217 ENGINE OVER TEMPERATURE

EC-545

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

CHECK COOLING FAN LOW SPEED OPERATION

 Without CONSULT-III

1.

Start engine and let it idle.

2.

Turn air conditioner switch ON.

3.

Turn blower fan switch ON.

4.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Check cooling fan speed control circuit. Refer to

EC-593, "Diagnosis Procedure"

.

5.

CHECK COOLING FAN LOW SPEED OPERATION

 Without CONSULT-III

1.

Perfom IPDM E/R auto active test and check cooling fan motor operation. Refer to

PCS-10, "Diagnosis

Description"

.

2.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Check cooling fan speed control circuit. Refer to

EC-593, "Diagnosis Procedure"

6.

CHECK COOLING FAN HIGH SPEED OPERATION.

 Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Turn air conditioner switch and blower fan switch OFF.

3.

Disconnect engine coolant temperature sensor harness connector.

4.

Connect 150

 resistor to engine coolant temperature sensor harness connector.

5.

Restart engine and make sure that cooling fan operates at higher speed than low speed.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Check cooling fan speed control circuit. Refer to

EC-593, "Diagnosis Procedure"

.

7.

CHECK COOLING SYSTEM FOR LEAK

Check cooling system for leak. Refer to

CO-11, "Inspection"

.

Is leakage detected?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following for leak. Refer to

CO-11, "Inspection"

.

• Hose
• Radiator
• Water pump
• Reservoir tank

>> Repair or replace.

9.

CHECK RESERVOIR TANK CAP

Check radiator cap. Refer to

CO-14, "Checking Radiator Cap"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace radiator cap.

10.

CHECK THERMOSTAT

Check thermostat.
Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Replace thermostat.
