AIR CONDITIONING CUT CONTROL

• When refrigerant pressure is excessively low or high.

Component Parts Location

INFOID:0000000001693473

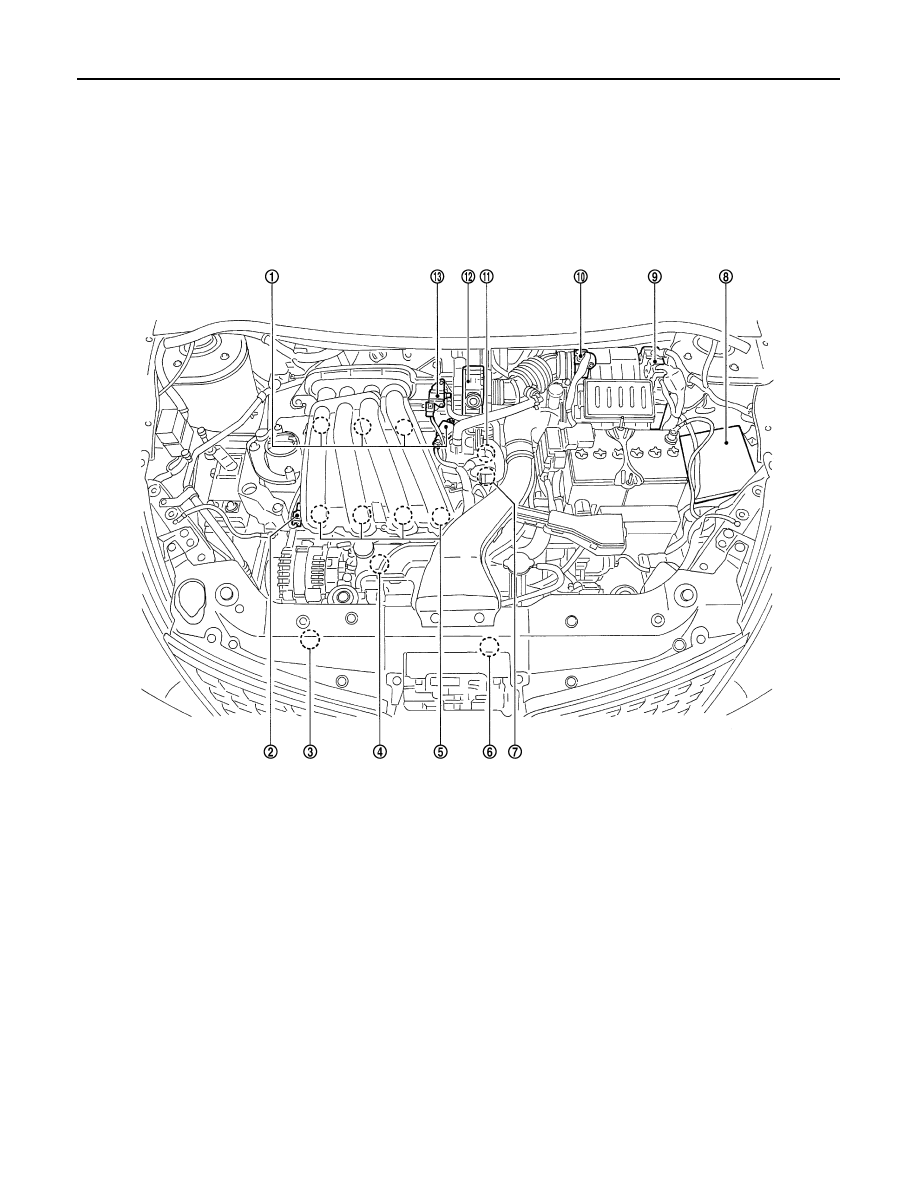

1.

Ignition coil (with power transistor)
and spark plug

2.

Intake valve timing control solenoid
valve

3.

Refrigerant pressure sensor

4.

Knock sensor

5.

Fuel injector

6.

Cooling fan motor

7.

Camshaft position sensor (PHASE)

8.

IPDM E/R

9.

ECM

10. Mass air flow sensor (with intake air

temperature sensor)

11.

Engine coolant temperature sensor

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

PBIB2939E

AIR CONDITIONING CUT CONTROL

EC-419

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

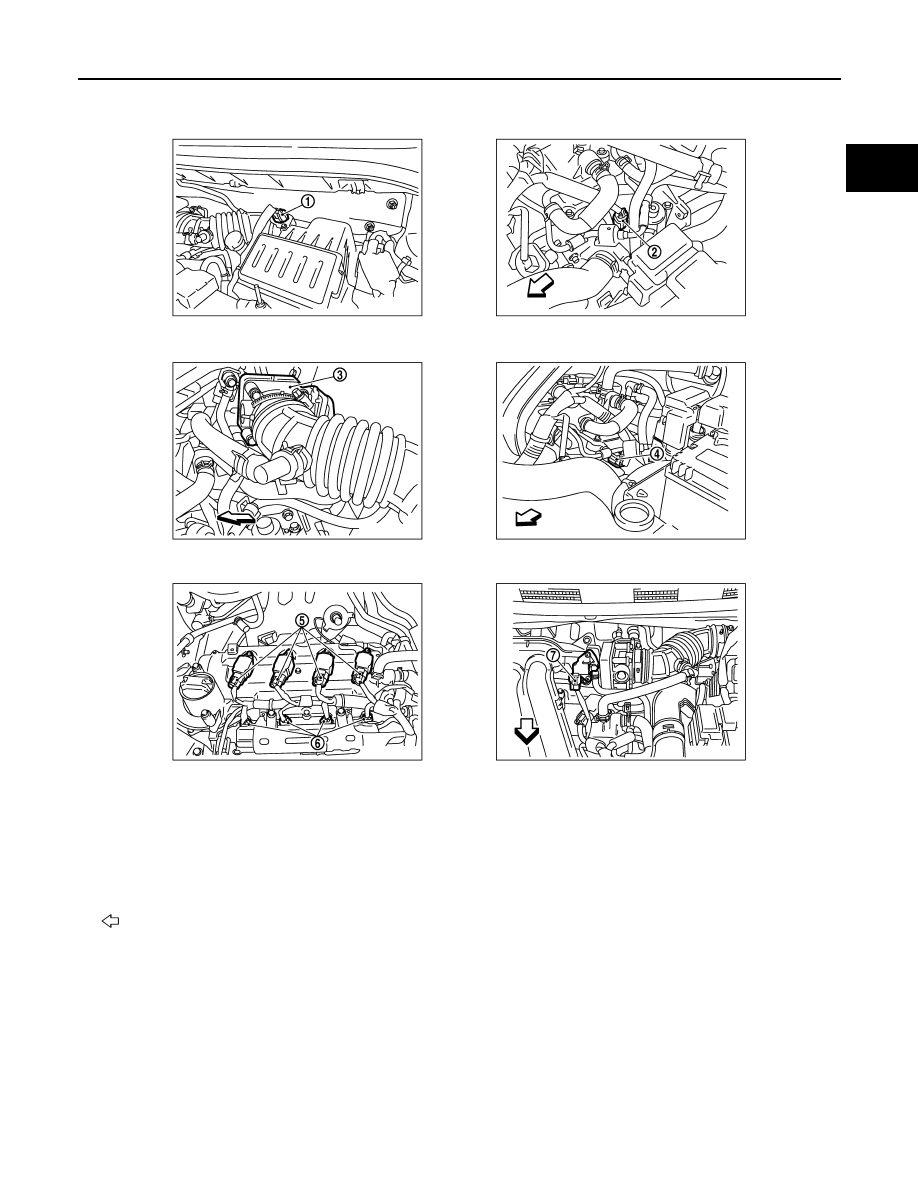

1.

Mass air flow sensor
(with intake air temperature sensor)

2.

Engine coolant temperature sensor

3.

Electric throttle control actuator

4.

Camshaft position sensor (PHASE)

5.

Ignition coil (with power transistor)

6.

Fuel injector

7.

EVAP canister purge volume control
solenoid valve

Vehicle front

PBIB2940E

EC-420

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

AIR CONDITIONING CUT CONTROL

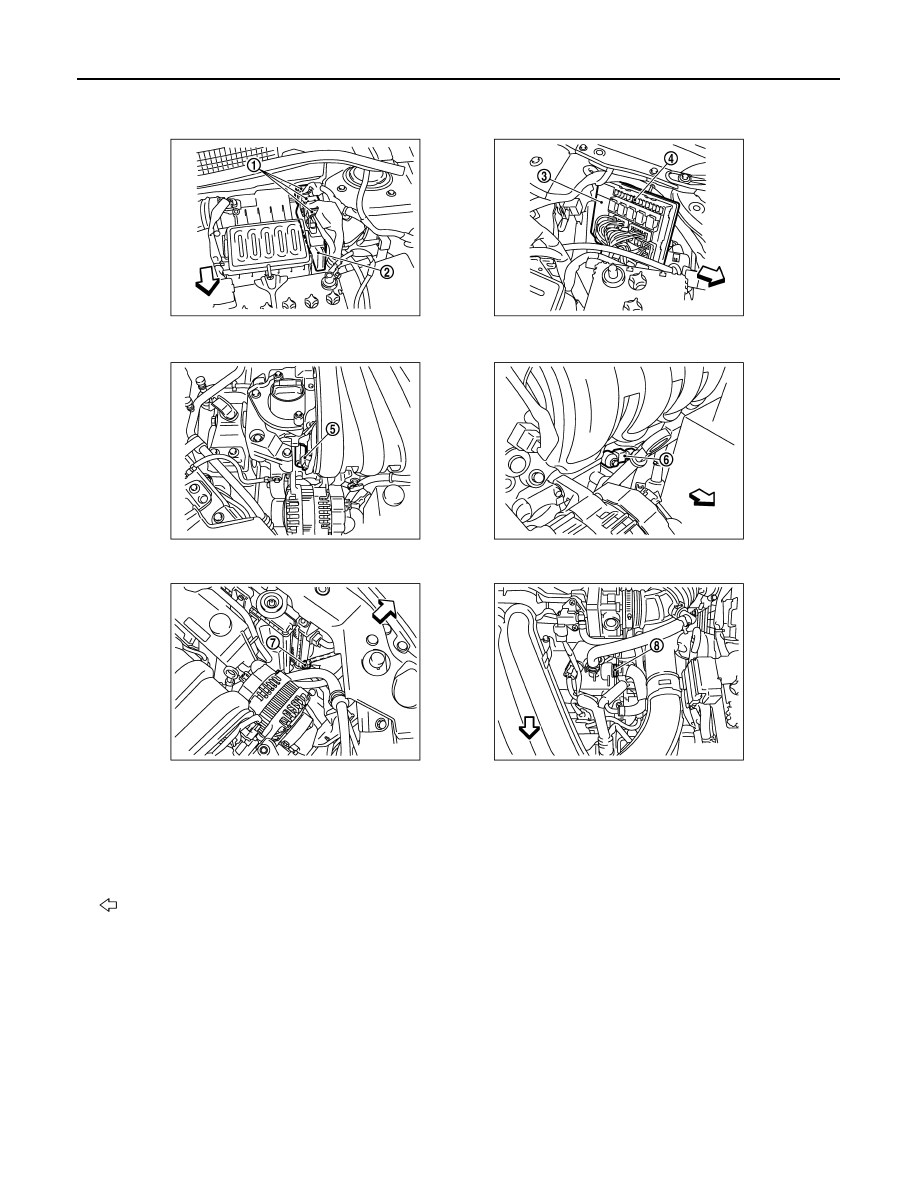

1.

ECM harness connectors

2.

ECM

3.

IPDM E/R

4.

Fuel pump fuse (15A)

5.

Intake valve timing control solenoid
valve

6.

Knock sensor

7.

Refrigerant pressure sensor

8.

PCV valve

Vehicle front

PBIB2941E

AIR CONDITIONING CUT CONTROL

EC-421

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

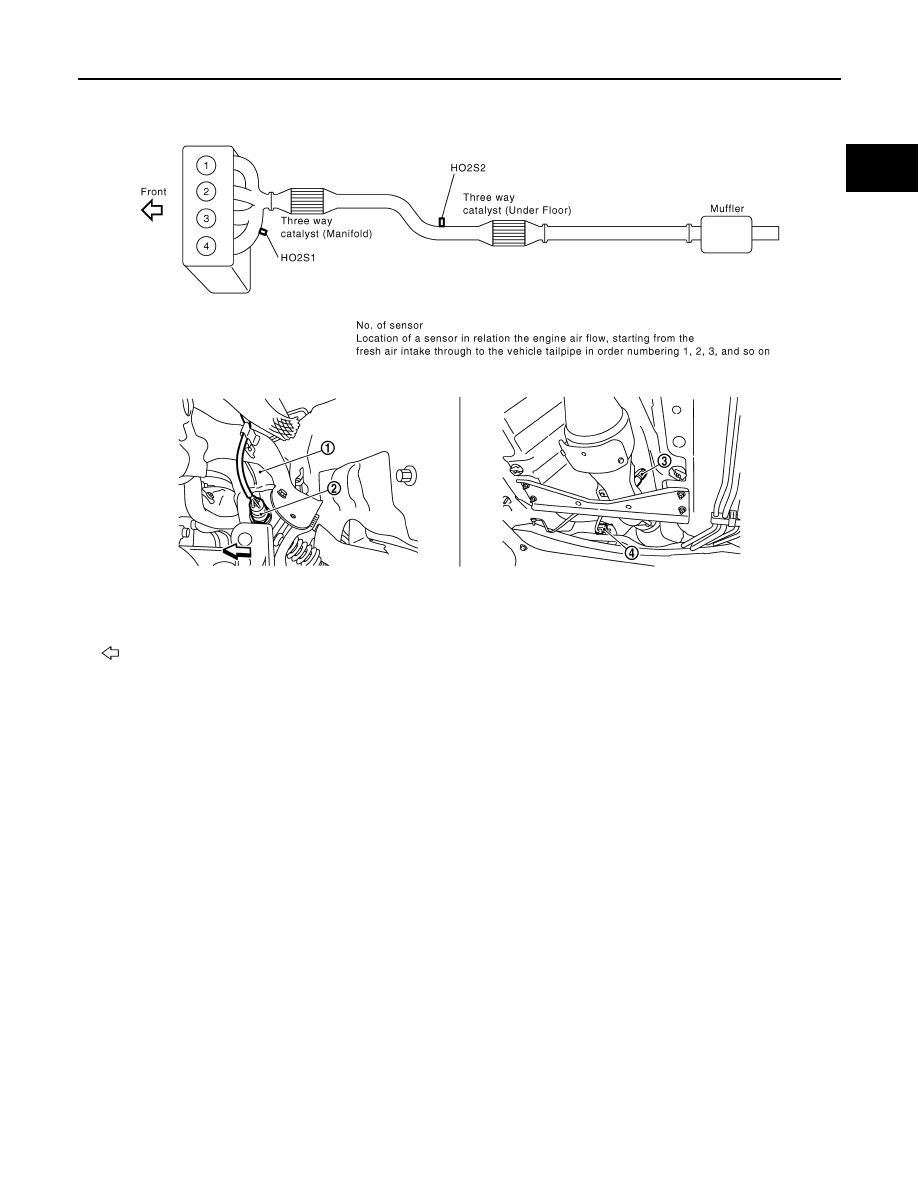

1.

Exhaust manifold

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

PBIB2942E

PBIB2943E
