EC-406

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

MULTIPORT FUEL INJECTION SYSTEM

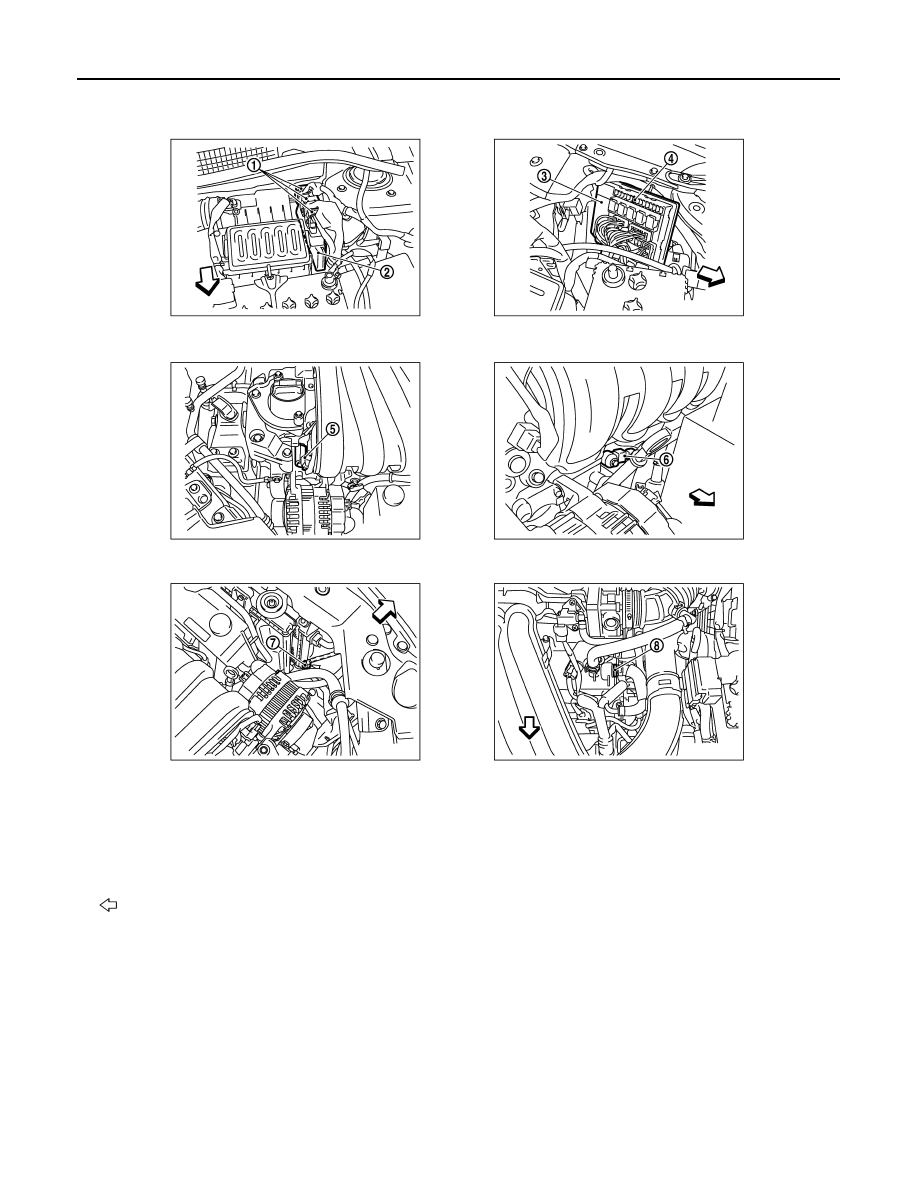

1.

ECM harness connectors

2.

ECM

3.

IPDM E/R

4.

Fuel pump fuse (15A)

5.

Intake valve timing control solenoid
valve

6.

Knock sensor

7.

Refrigerant pressure sensor

8.

PCV valve

Vehicle front

PBIB2941E

MULTIPORT FUEL INJECTION SYSTEM

EC-407

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

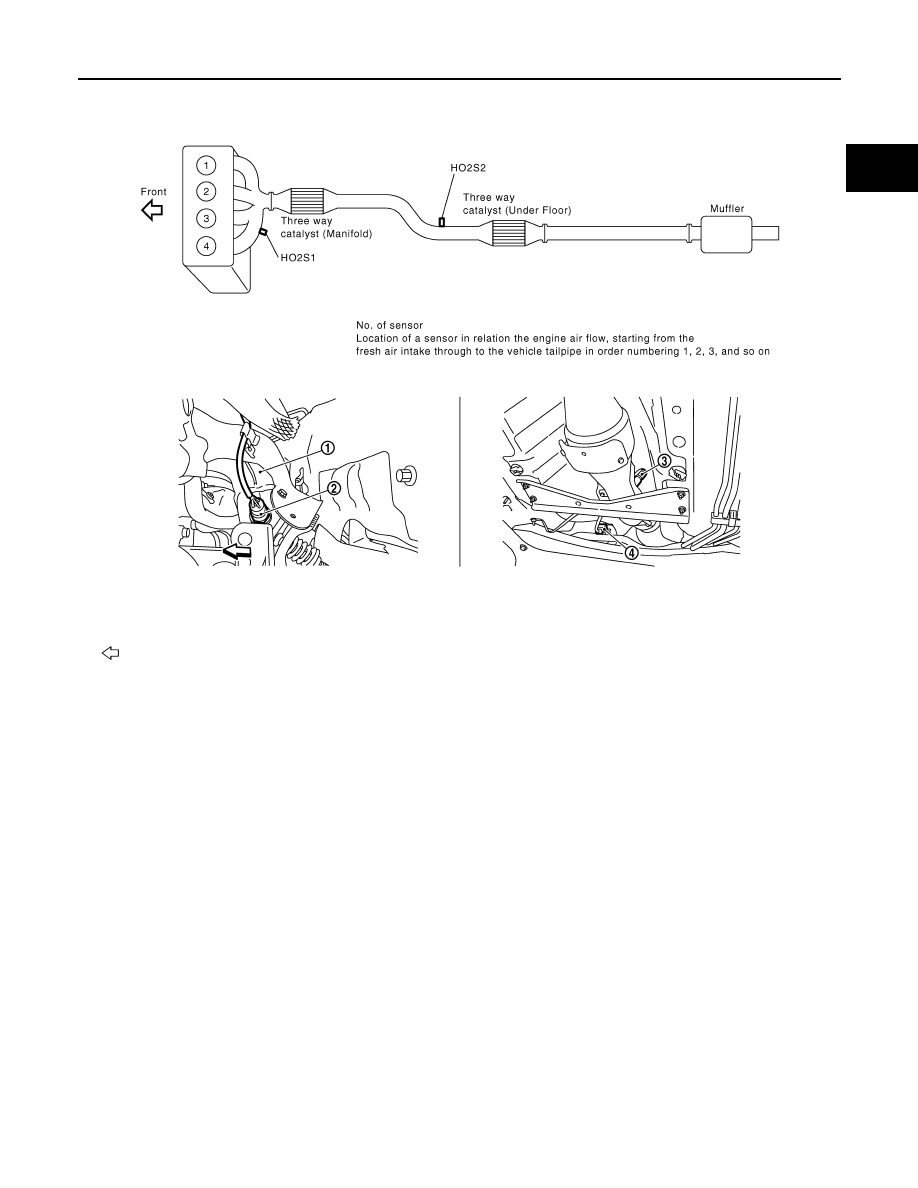

1.

Exhaust manifold

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

PBIB2942E

PBIB2943E

EC-408

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

MULTIPORT FUEL INJECTION SYSTEM

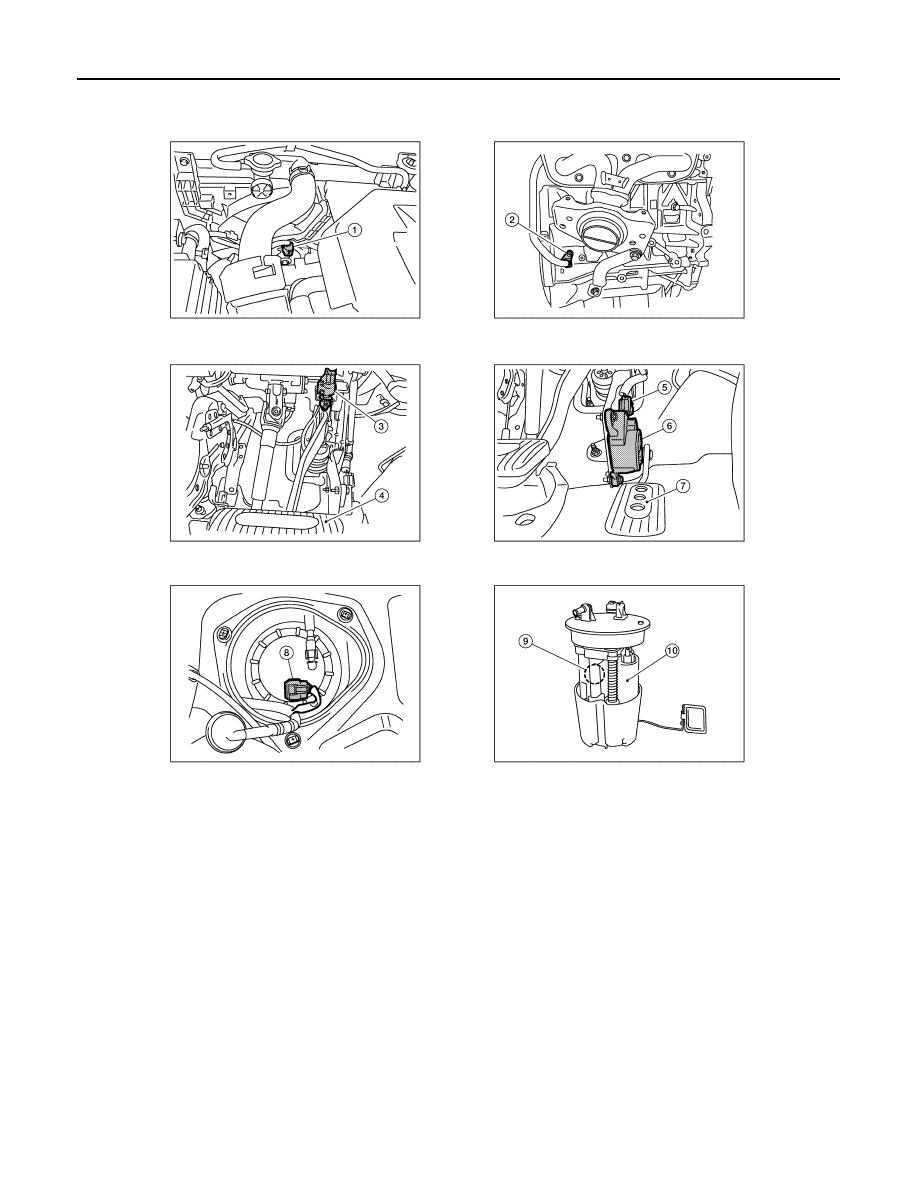

1.

Cooling fan motor harness connec-
tor

2.

Crankshaft position sensor

3.

Stop lamp switch

4.

Brake pedal

5.

Accelerator pedal position sensor
harness connector

6.

Accelerator pedal position sensor

7.

Accelerator pedal

8.

Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)

9.

Fuel pressure regulator

10. Fuel pump

AWBIA0044ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-409

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

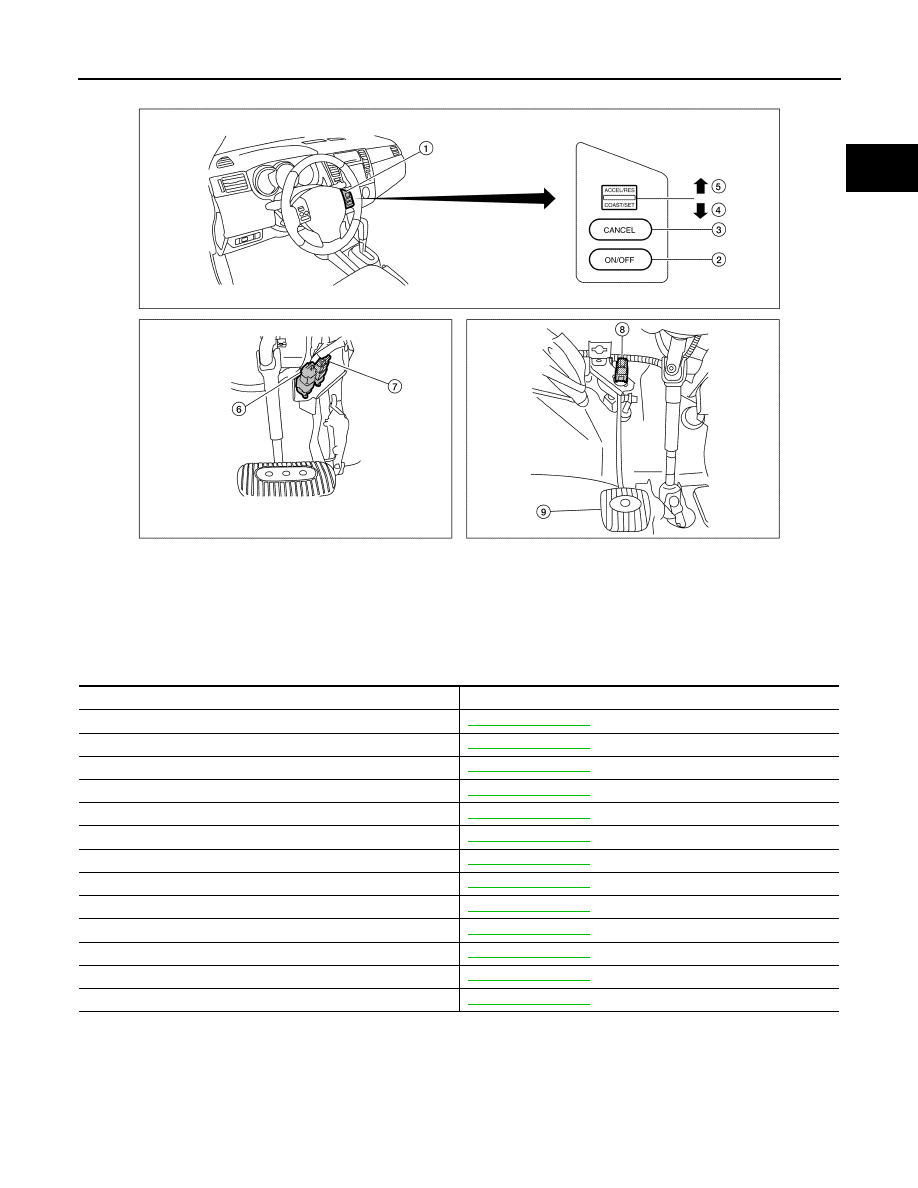

Component Description

INFOID:0000000001693466

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELERATE switch

6.

ASCD brake switch

7.

Stop lamp switch

8.

ASCD clutch switch

9.

Clutch pedal

ALBIA0273ZZ

Component

Reference

Accelerator pedal position sensor

EC-572, "Description"

Camshaft position sensor (PHASE)

EC-520, "Description"

Crankshaft position sensor (POS)

EC-516, "Description"

Engine coolant temperature sensor

EC-492, "Description"

Fuel injector

EC-602, "Description"

Heated oxygen sensor 1

EC-608, "Description"

Heated oxygen sensor 2

EC-616, "Description"

Intake air temperature sensor

EC-623, "Description"

Knock sensor

EC-514, "Description"

Mass air flow sensor

EC-487, "Description"

Park/neutral position (PNP) switch

EC-566, "Description"

Throttle position sensor

EC-495, "Description"

Vehicle speed sensor

EC-634, "Description"
