EC-378

< ON-VEHICLE MAINTENANCE >

[HR16DE (WITH EURO-OBD)]

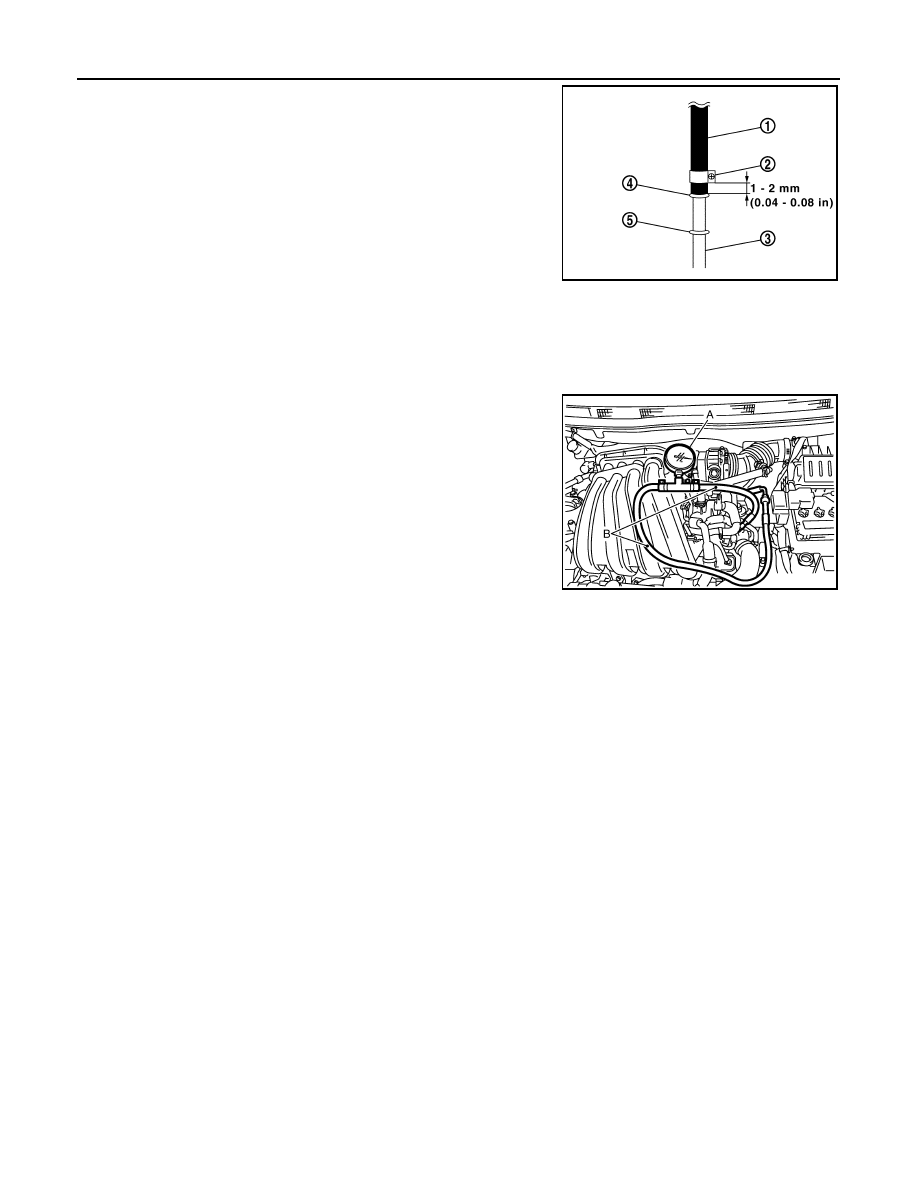

FUEL PRESSURE

4.

Connect fuel hose for fuel pressure check (1) to fuel tube
(engine side) with clamp (2) as shown in the figure.
• No.2 spool (5)
• Wipe off oil or dirt from hose insertion part using cloth moist-

ened with gasoline.

• Apply proper amount of gasoline between top of the fuel tube

(3) and No.1 spool (4).

• Insert fuel hose for fuel pressure check until it touches the

No.1 spool on fuel tube.

• Use NISSAN genuine hose clamp (part number: 16439 N4710

or 16439 40U00).

• When reconnecting fuel line, always use new clamps.
• Use a torque driver to tighten clamps.
• Install hose clamp to the position within 1 - 2 mm (0.04 - 0.08 in).

• Make sure that clamp screw does not contact adjacent parts.

5.

Connect fuel tube adapter to quick connector.
• A: Fuel pressure gauge
• B: Fuel hose for fuel pressure check

6.

After connecting fuel hose for fuel pressure check, pull the hose
with a force of approximately 98 N (10 kg, 22 lb) to confirm fuel
tube does not come off.

7.

Turn ignition switch ON and check for fuel leakage.

8.

Start engine and check for fuel leakage.

9.

Read the indication of fuel pressure gauge.
• Do not perform fuel pressure check with system operating.

Fuel pressure gauge may indicate false readings.

• During fuel pressure check, confirm for fuel leakage from fuel connection every 3 minutes.

10. If result is unsatisfactory, go to next step.

11. Check the following.

• Fuel hoses and fuel tubes for clogging
• Fuel filter for clogging
• Fuel pump
• Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.

Tightening torque:

1 - 1.5 N·m (0.1 - 0.15 kg-m, 9 - 13 in-lb)

At idling:

Approximately 350 kPa (3.5 bar, 3.57 kg/cm

2

, 51 psi)

PBIB2983E

PBIB2984E

EVAPORATIVE EMISSION SYSTEM

EC-379

< ON-VEHICLE MAINTENANCE >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

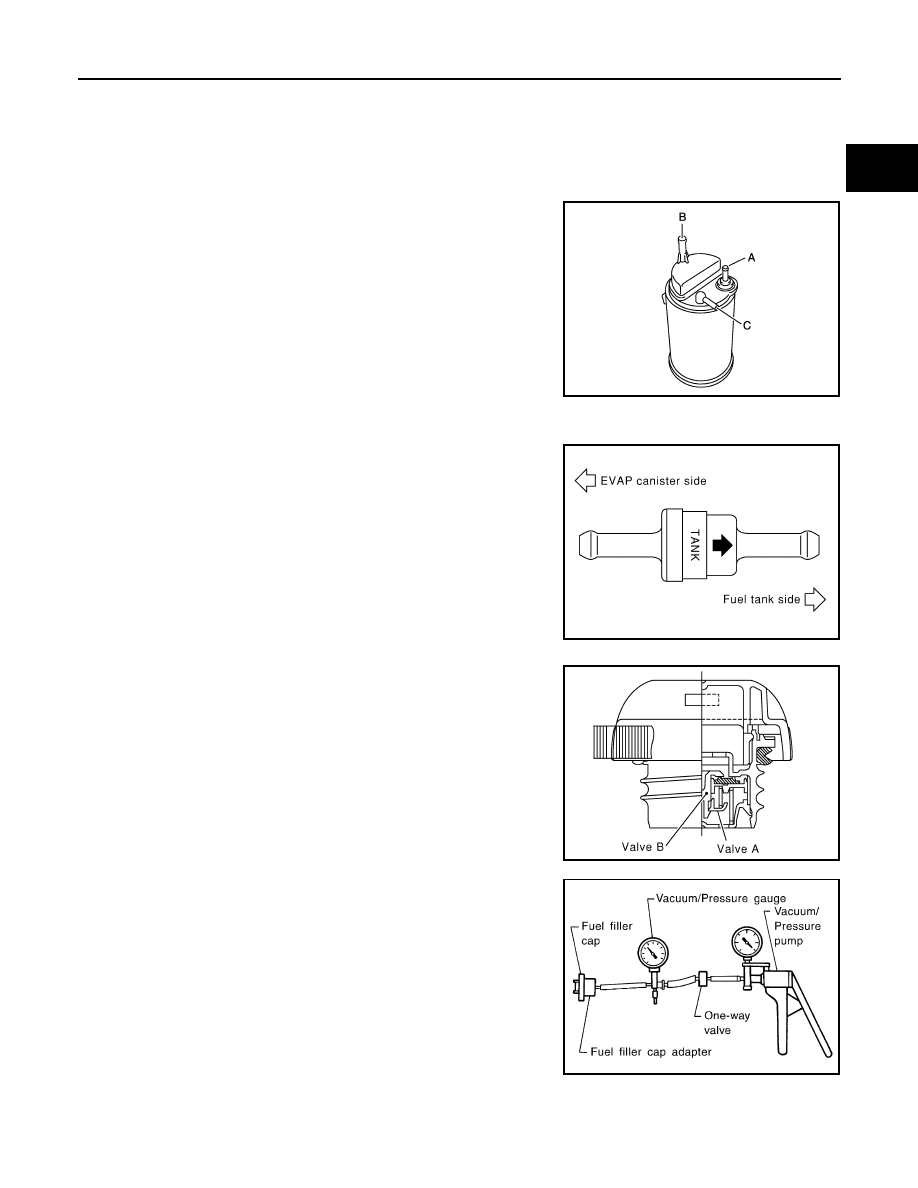

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000001161422

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

Check EVAP canister as follows:

a.

Block port (B). Orally blow air through port (A).
Check that air flows freely through port (C).

b.

Block port (A). Orally blow air through port (B).
Check that air flows freely through port (C).

3.

Visually inspect the fuel check valve for cracks, damage, loose connections chafing and deterioration.

4.

Check fuel check valve as follows:

a.

Blow air through connector on the fuel tank side. A considerable
resistance should be felt and a portion of air flow should be
directed toward the EVAP canister side.

b.

Blow air through connector on EVAP canister side. Air flow
should be smoothly directed toward fuel tank side.

c.

If fuel check valve is suspected or not properly functioning in
step 1 and 2 above, replace it.

5.

Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.

a.

Wipe clean valve housing.

b.

Check valve opening pressure and vacuum.

c.

If out of specification, replace fuel filler cap as an assembly.

PBIB0663E

SEF552Y

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/

cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –

0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

EC-380

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE (WITH EURO-OBD)]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000001161423

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000001161424

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000001161425

Mass Air Flow Sensor

INFOID:0000000001161426

*: Engine is warmed up to normal operating temperature and running under no load.

Transmission

Condition

Specification

A/T

No load* (in P or N position)

700

±

50 rpm

M/T

No load* (in Neutral position)

650

±

50 rpm

Transmission

Condition

Specification

A/T

No load* (in P or N position)

6

±

 5

°

 BTDC

M/T

No load* (in Neutral position)

6

±

 5

°

 BTDC

Condition

Specification (Using CONSULT-III or GST)

At idle

10 – 35 %

At 2,500 rpm

10 – 35 %

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle

1.0 – 1.3V*

Mass air flow (Using CONSULT-III or GST)

1.0 – 4.0 g·m/sec at idle*

2.0 – 10.0 g·m/sec at 2,500 rpm*

DIAGNOSIS AND REPAIR WORKFLOW

EC-381

< BASIC INSPECTION >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

BASIC INSPECTION

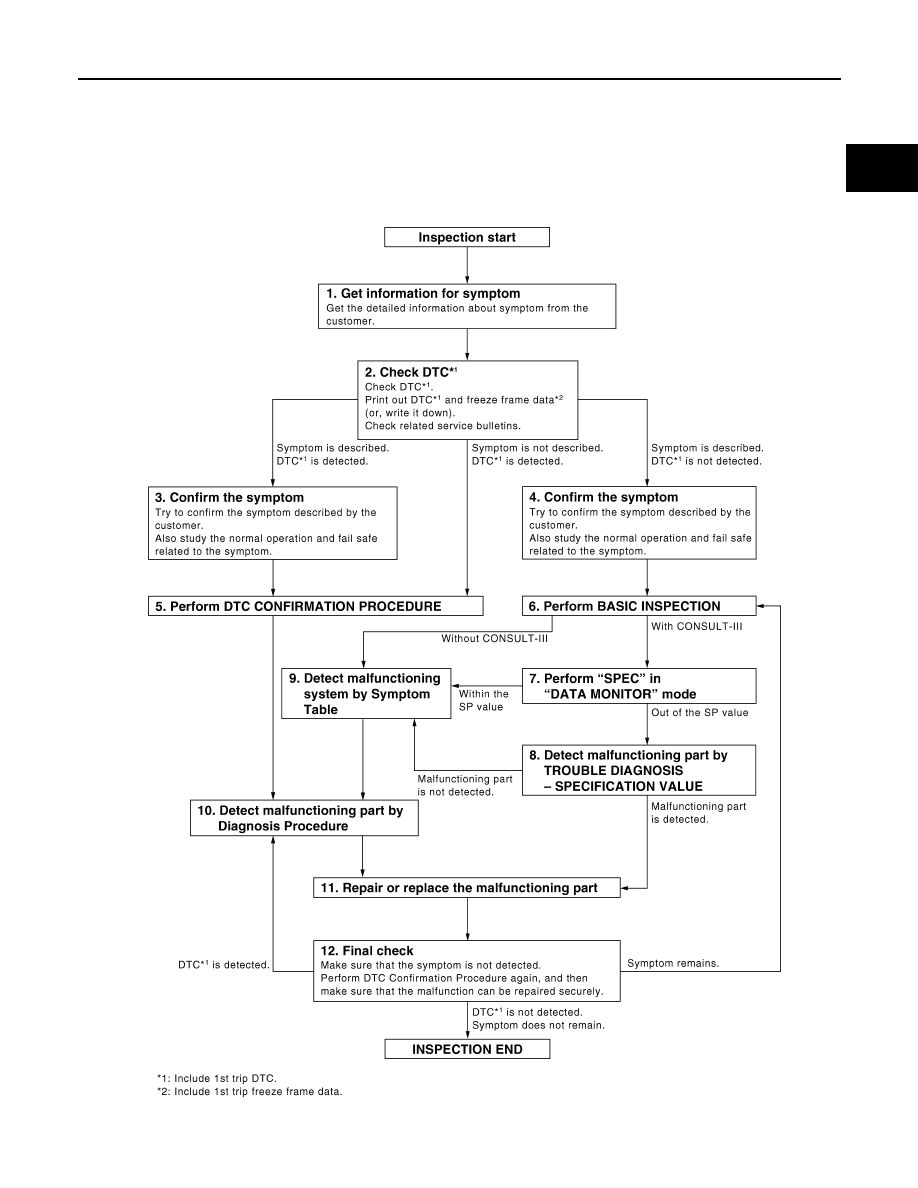

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001161427

OVERALL SEQUENCE

DETAILED FLOW

JMBIA0078GB
