Nissan Tiida C11. Manual - part 428

EC-362

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ECM

P0705

0705

PNP SW/CIRC

—

—

2

×

TM-44

P0710

0710

ATF TMP SEN/CIRC

—

—

2

×

TM-48

P0720

0720

VEH SPD SEN/CIR AT*

6

—

—

2

×

TM-52

P0725

0725

ENGINE SPEED SIG

—

—

2

×

TM-56

P0731

0731

A/T 1ST GR FUNCTN

—

—

2

×

TM-59

P0732

0732

A/T 2ND GR FUNCTN

—

—

2

×

TM-62

P0733

0733

A/T 3RD GR FUNCTN

—

—

2

×

TM-65

P0734

0734

A/T 4TH GR FUNCTN

—

—

2

×

TM-68

P0740

0740

TCC SOLENOID/CIRC

—

—

2

×

TM-73

P0744

0744

A/T TCC S/V FNCTN

—

—

2

×

TM-76

P0745

0745

L/PRESS SOL/CIRC

—

—

2

×

TM-81

P0750

0750

SFT SOL A/CIRC

—

—

1

×

TM-85

P0755

0755

SFT SOL B/CIRC

—

—

1

×

TM-89

P1065

1065

ECM BACK UP/CIRCUIT

—

—

2

×

EC-217

P1111

1111

INT/V TIM C/CIRC

—

—

2

×

EC-219

P1121

1121

ETC ACTR-B1

—

—

1

×

EC-222

P1122

1122

ETC FUNCTION/CIRC-
B1

—

—

1

×

EC-224

P1124

1124

ETC MOT PWP

—

—

1

×

EC-228

P1126

1126

ETC MOT PWP-B1

—

—

1

×

EC-228

P1128

1128

ETC MOT-B1

—

—

1

×

EC-231

P1143

1143

HO2S1 (B1)

×

×

2

×

EC-233

P1144

1144

HO2S1 (B1)

×

×

2

×

EC-238

P1146

1146

HO2S2 (B1)

×

×

2

×

EC-243

P1147

1147

HO2S2 (B1)

×

×

2

×

EC-250

P1212

1212

TCS/CIRC

—

—

2

—

EC-256

P1217

1217

ENG OVER TEMP

—

—

1

×

EC-257

P1225

1225

CTP LEARNING-B1

—

—

2

—

EC-261

P1226

1226

CTP LEARNING-B1

—

—

2

—

EC-263

P1229

1129

SENSOR POWER/CIRC

—

—

1

×

EC-265

P1564

1564

ASCD SW

—

—

1

—

EC-267

P1572

1572

ASCD BRAKE SW

—

—

1

—

EC-270

P1574

1574

ASCD VHL SPD SEN

—

—

1

—

EC-278

P1610

1610

LOCK MODE

—

—

2

—

SEC-12

P1611

1611

ID DISCARD IMM-ECM

—

—

2

—

SEC-12

P1615

1615

DIFFERENCE OF KEY

—

—

2

—

SEC-12

P1706

1706

P-N POS SW/CIRCUIT

—

—

2

×

EC-280

P1760

1760

O/R CLTCH SOL/CIRC

—

—

2

×

TM-93

P1805

1805

BRAKE SW/CIRCUIT

—

—

2

—

EC-283

P2122

2122

APP SEN 1/CIRC

—

—

1

×

EC-286

P2123

2123

APP SEN 1/CIRC

—

—

1

×

EC-286

P2127

2127

APP SEN 2/CIRC

—

—

1

×

EC-290

DTC*

1

Items

 (CONSULT-III screen

terms)

SRT code

Test value/

Test limit

(GST only)

Trip

MI

Reference

page

CONSULT-III

GST*

2

ECM*

3

ECM

EC-363

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*1: 1st trip DTC No. is the same as DTC No.

*2: This number is prescribed by ISO 15031-5.

*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.

*4: The troubleshooting for this DTC needs CONSULT-III.

*5: When engine is running, MI may flash. For details, refer to

EC-94, "Diagnosis Description"

.

*6: When the fail-safe operations for both self-diagnoses occur, the MI illuminates.

How to Set SRT Code

INFOID:0000000001161410

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each
diagnosis may require a long period of actual driving under various conditions.

WITH CONSULT-III

Perform corresponding DTC CONFIRMATION PROCEDURE one by one based on Performance Priority in
the table on “SRT Item”.

WITHOUT CONSULT-III

The most efficient driving pattern in which SRT codes can be properly set is explained on the next page. The
driving pattern should be performed one or more times to set all SRT codes.

P2128

2128

APP SEN 2/CIRC

—

—

1

×

EC-290

P2135

2135

TP SENSOR-B1

—

—

1

×

EC-294

P2138

2138

APP SENSOR

—

—

1

×

EC-297

DTC*

1

Items

 (CONSULT-III screen

terms)

SRT code

Test value/

Test limit

(GST only)

Trip

MI

Reference

page

CONSULT-III

GST*

2

ECM*

3

EC-364

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ECM

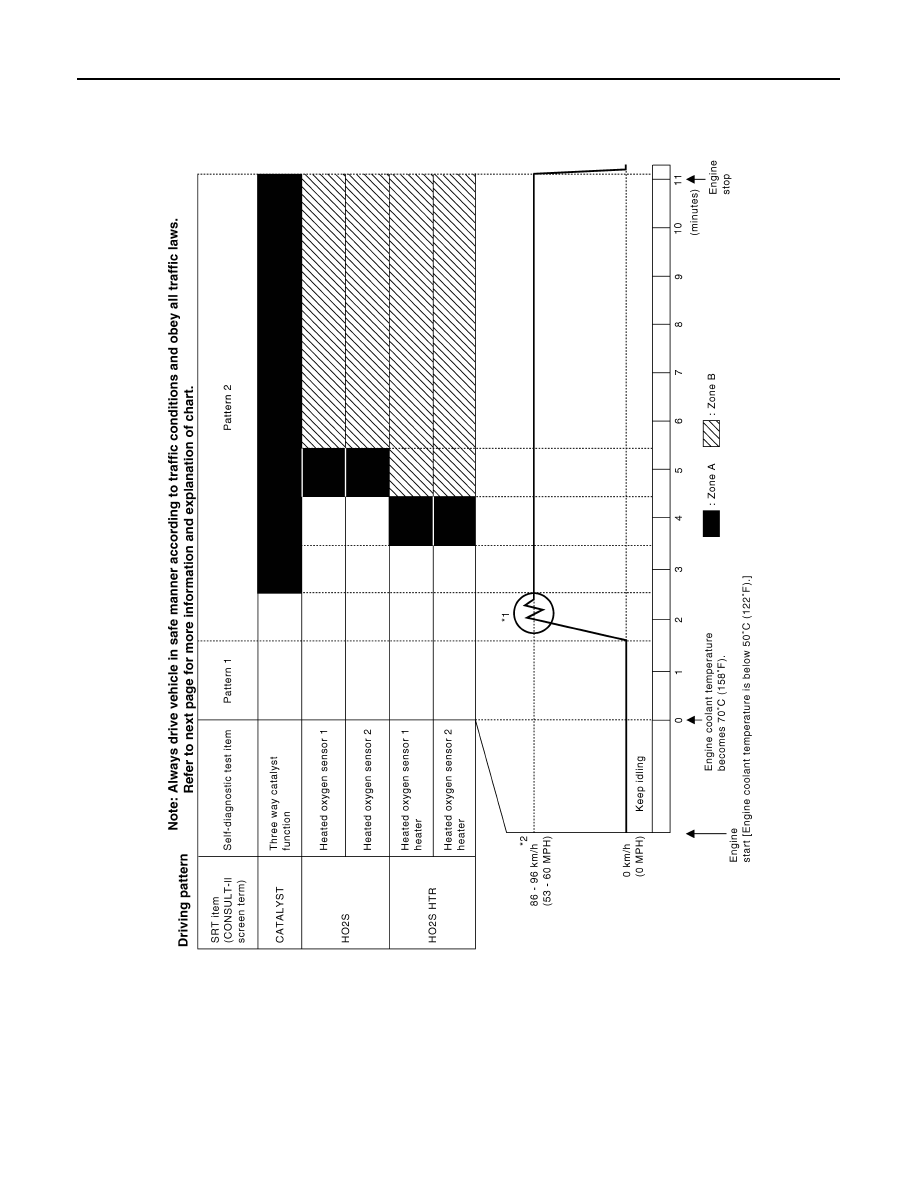

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.

*: Normal conditions refer to the following:

PBIB2451E

ECM

EC-365

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• Sea level
• Flat road
• Ambient air temperature: 20 - 30

°

C (68 - 86

°

F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°

C (68 - 86

°

F)], diagno-

sis may also be performed.

Pattern 1:
• The engine is started at the engine coolant temperature of

−

10 to 35

°

C (14 to 95

°

F)

(where the voltage between the ECM terminal 38 and ground is 3.0 - 4.3V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°

C

(158

°

F) (where the voltage between the ECM terminal 38 and ground is lower than 1.4V).

Pattern 2:
• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

Test Value and Test Limit

INFOID:0000000001161411

The following is the information specified in Service $06 of ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.

Item

Self-diagnostic test item

DTC

Test value

(GST display)

Test limit

TID

CID

CATALYST

Three way catalyst function

P0420

01H

81H

Min.

P0420

02H

81H

Min.

HO2S

Heated oxygen sensor 1

P0133

09H

04H

Max.

P1143

0AH

84H

Min.

P1144

08H

04H

Max.

P0132

0CH

04H

Max.

P0134

0DH

04H

Max.

Heated oxygen sensor 2

P0139

19H

86H

Min.

P1147

1AH

86H

Min.

P1146

1BH

06H

Max.

P0138

1CH

06H

Max.

HO2S HEATER

Heated oxygen sensor 1 heater

P0135

29H

08H

Max.

2AH

88H

Min.

Heated oxygen sensor 2 heater

P0141

2DH

0AH

Max.

2EH

8AH

Min.
