EC-98

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective self-diagnoses have at least one OK result.

 Case 2 above

If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”.

 Case 3 above

The table above shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-diagnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-diagnosis to be executed twice (Case 3) for the following
reasons:
• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
• When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis

memory must be erased from ECM after repair.

• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.

NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.

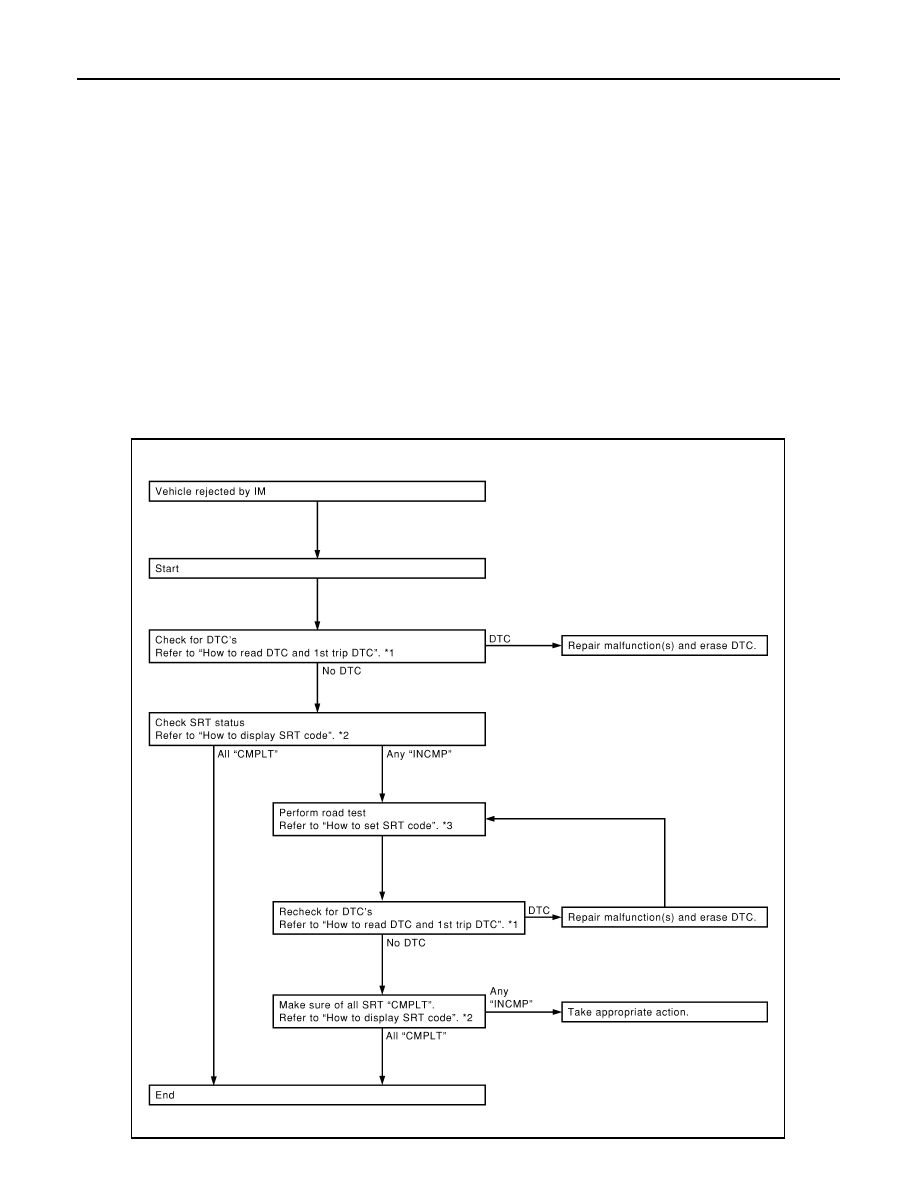

SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence on the next page.

SEF573XB

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-99

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

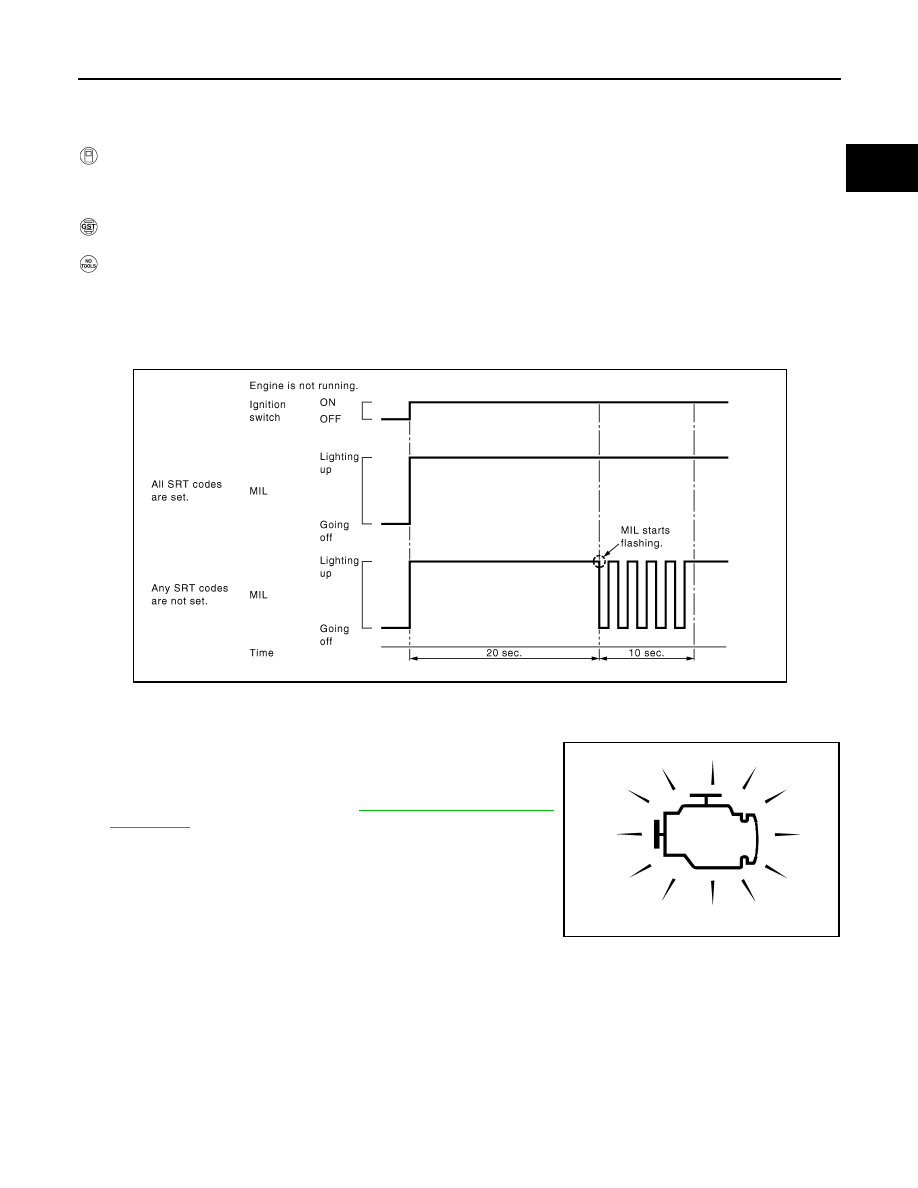

How to Display SRT Status

WITH CONSULT-III

Selecting “SRT STATUS” in “DTC CONFIRMATION” mode with CONSULT-III.
For items whose SRT codes are set, a “CMPLT” is displayed on the CONSULT-III screen; for items whose
SRT codes are not set, “INCMP” is displayed.

WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

 NO TOOLS

A SRT code itself can not be displayed while only SRT status can be.

1.

Turn ignition switch ON and wait 20 seconds.

2.

SRT status is indicated as shown below.
• When all SRT codes are set, MI lights up continuously.
• When any SRT codes are not set, MI will flash periodically for 10 seconds.

MALFUNCTION INDICATOR (MI)

Description

The MI is located on the instrument panel.
1.

The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, refer to

EC-324, "Component Func-

tion Check"

.

2.

When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.

On Board Diagnostic System Function

The on board diagnostic system has the following four functions.

*1

“How to Read DTC and 1st Trip DTC” *2

“How to Display SRT Status”

*3

“How to Set SRT Code”

PBIB2317E

SAT652J

EC-100

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

MI Flashing Without DTC

If the ECM is in Diagnostic Test Mode II, MI may flash when engine is running. In this case, check ECM diag-
nostic test mode. How to switch the diagnostic test function modes, and details of the above functions are
described later.
The following emission-related diagnostic information is cleared when the ECM memory is erased.
• Diagnostic trouble code
• 1st trip diagnostic trouble code
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values

Diagnostic Test Mode I — Bulb Check

In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to

EC-

324, "Component Function Check"

.

Diagnostic Test Mode I — Malfunction Warning

This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)

Diagnostic Test Mode II — Self-diagnostic Results

In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MI as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MI does not illuminate in diagnostic test mode
I (Malfunction warning), all displayed items are 1st trip DTCs. If only one code is displayed when the MI illumi-

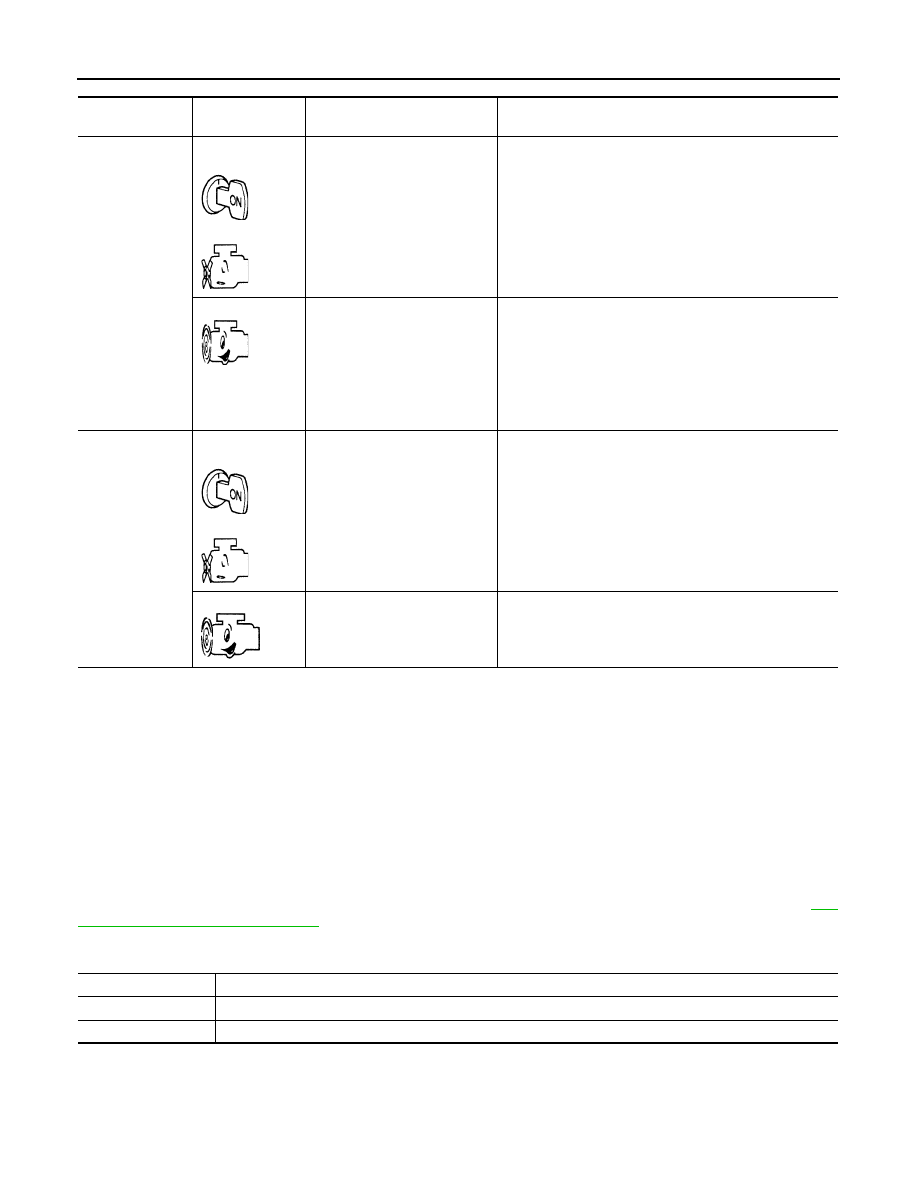

Diagnostic Test
Mode

KEY and ENG.
Status

Function

Explanation of Function

Mode I

Ignition switch in
ON position

Engine stopped

BULB CHECK

This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.

Engine running

MALFUNCTION
WARNING

This is a usual driving condition. When a malfunction is de-
tected twice in two consecutive driving cycles (two trip de-
tection logic), the MI will light up to inform the driver that a
malfunction has been detected.
The following malfunctions will light up or blink the MI in the
1st trip.
• Misfire (Possible three way catalyst damage)
• One trip detection diagnoses

Mode II

Ignition switch in
ON position

Engine stopped

SELF-DIAGNOSTIC
RESULTS

This function allows DTCs and 1st trip DTCs to be read.

Engine running

HEATED OXYGEN SENSOR 1
MONITOR

This function allows the fuel mixture condition (lean or rich),
monitored by heated oxygen sensor 1, to be read.

MI

Condition

ON

When the malfunction is detected.

OFF

No malfunction.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-101

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

nates in diagnostic test mode II (SELF-DIAGNOSTIC RESULTS), it is a DTC; if two or more codes are dis-
played, they may be either DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified
codes can be identified by using the CONSULT-III or GST. A DTC will be used as an example for how to read
a code.

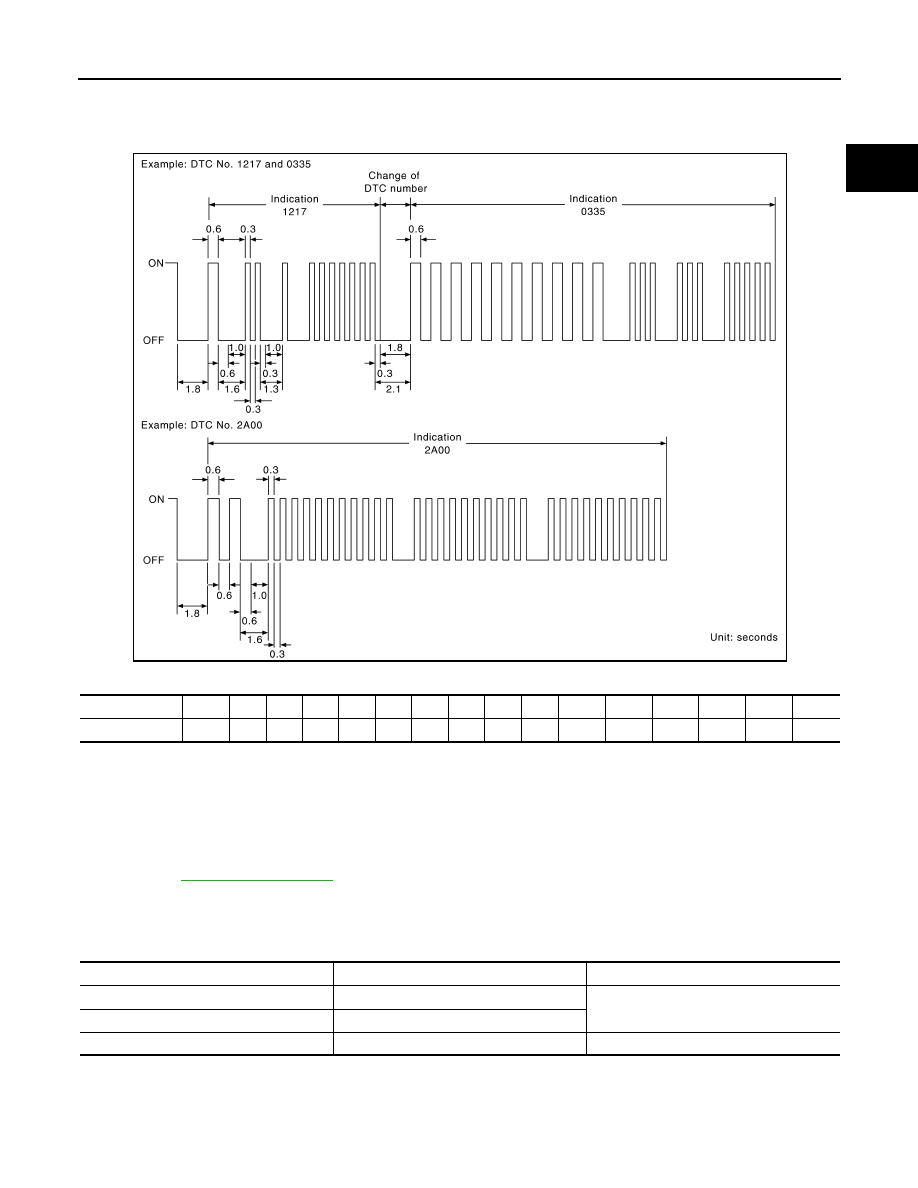

A particular trouble code can be identified by the number of four-digit numeral flashes as follows.

The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds consisting of an ON (0.6-sec-
ond) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See

EC-361, "DTC Index"

)

Diagnostic Test Mode II — Heated oxygen sensor 1 monitor

In this mode, the MI displays the condition of the fuel mixture (lean or rich) which is monitored by the heated
oxygen sensor 1.

*: Maintains conditions just before switching to open loop.

To check the heated oxygen sensor 1 function, start engine in the Diagnostic Test Mode II and warm it up until
engine coolant temperature indicator points to the middle of the gauge.
Nest run engine at about 2,000 rpm for about 2 minutes under no load conditions. Then make sure that the MI
comes ON more than 5 times within 1 seconds with engine running at 2,000 rpm under no load.

Number

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

Flashes

10

1

2

3

4

5

6

7

8

9

11

12

13

14

15

16

PBIB3005E

MI

Fuel mixture condition in the exhaust gas

Air fuel ratio feedback control condition

ON

Lean

Closed loop system

OFF

Rich

*Remains ON or OFF

Any condition

Open loop system
