EC-34

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

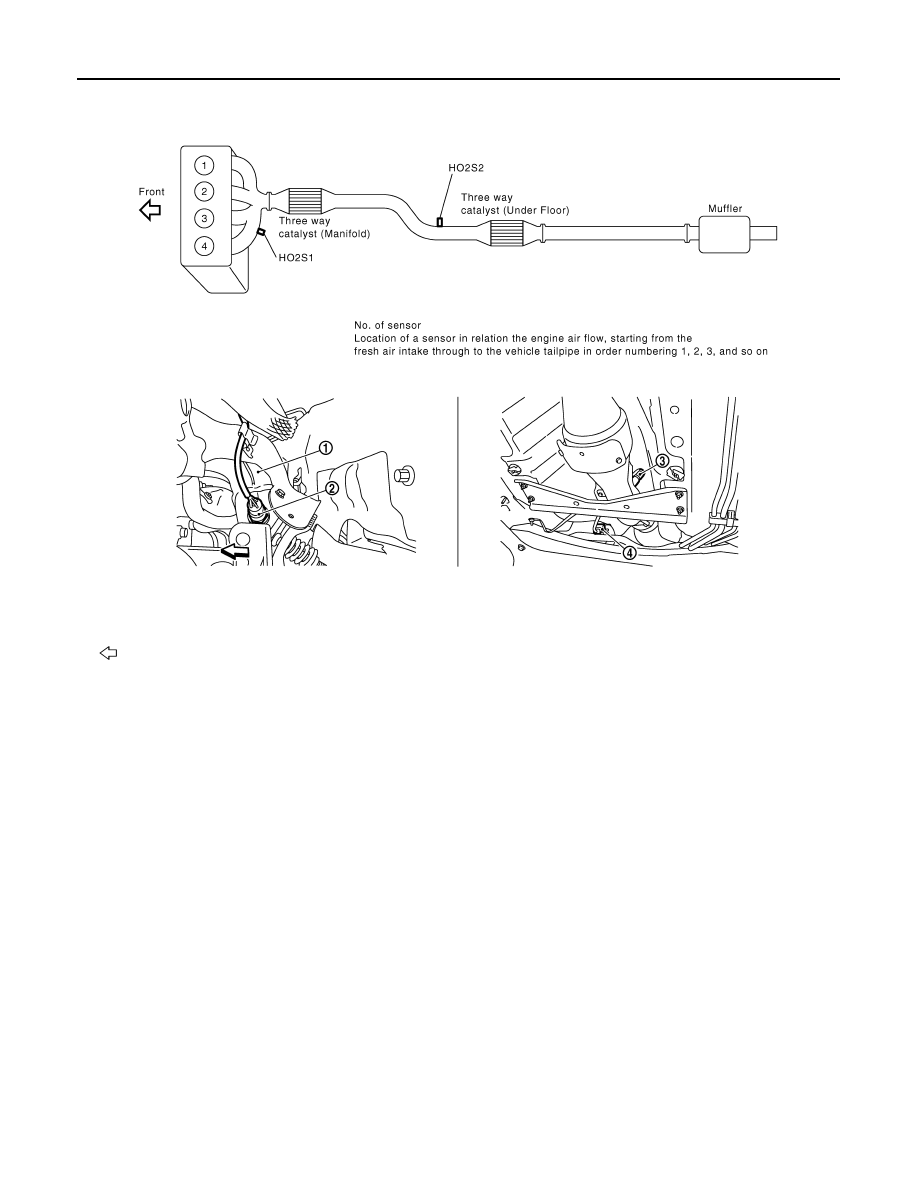

1.

Exhaust manifold

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

PBIB2942E

PBIB2943E

ENGINE CONTROL SYSTEM

EC-35

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

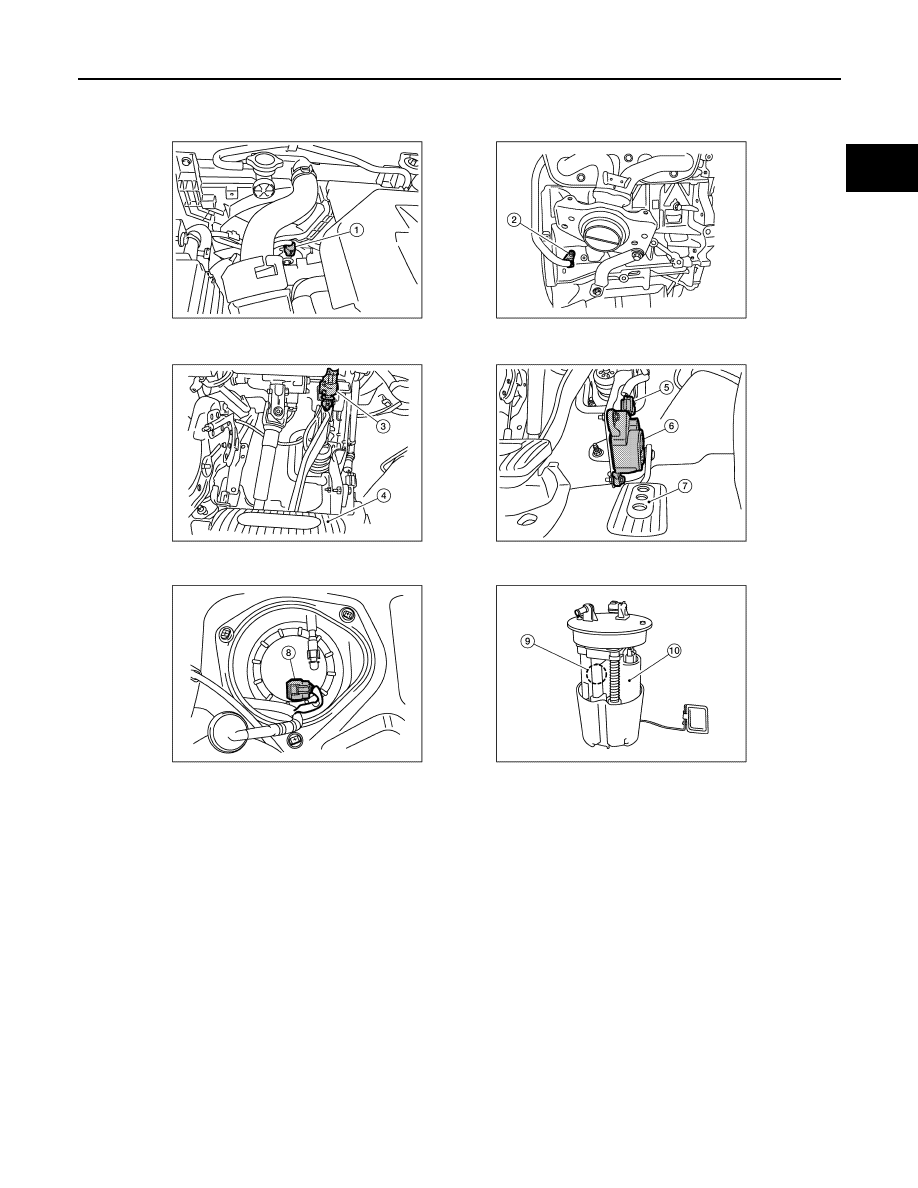

1.

Cooling fan motor harness connec-
tor

2.

Crankshaft position sensor

3.

Stop lamp switch

4.

Brake pedal

5.

Accelerator pedal position sensor
harness connector

6.

Accelerator pedal position sensor

7.

Accelerator pedal

8.

Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)

9.

Fuel pressure regulator

10. Fuel pump

AWBIA0044ZZ

EC-36

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

Component Description

INFOID:0000000001161141

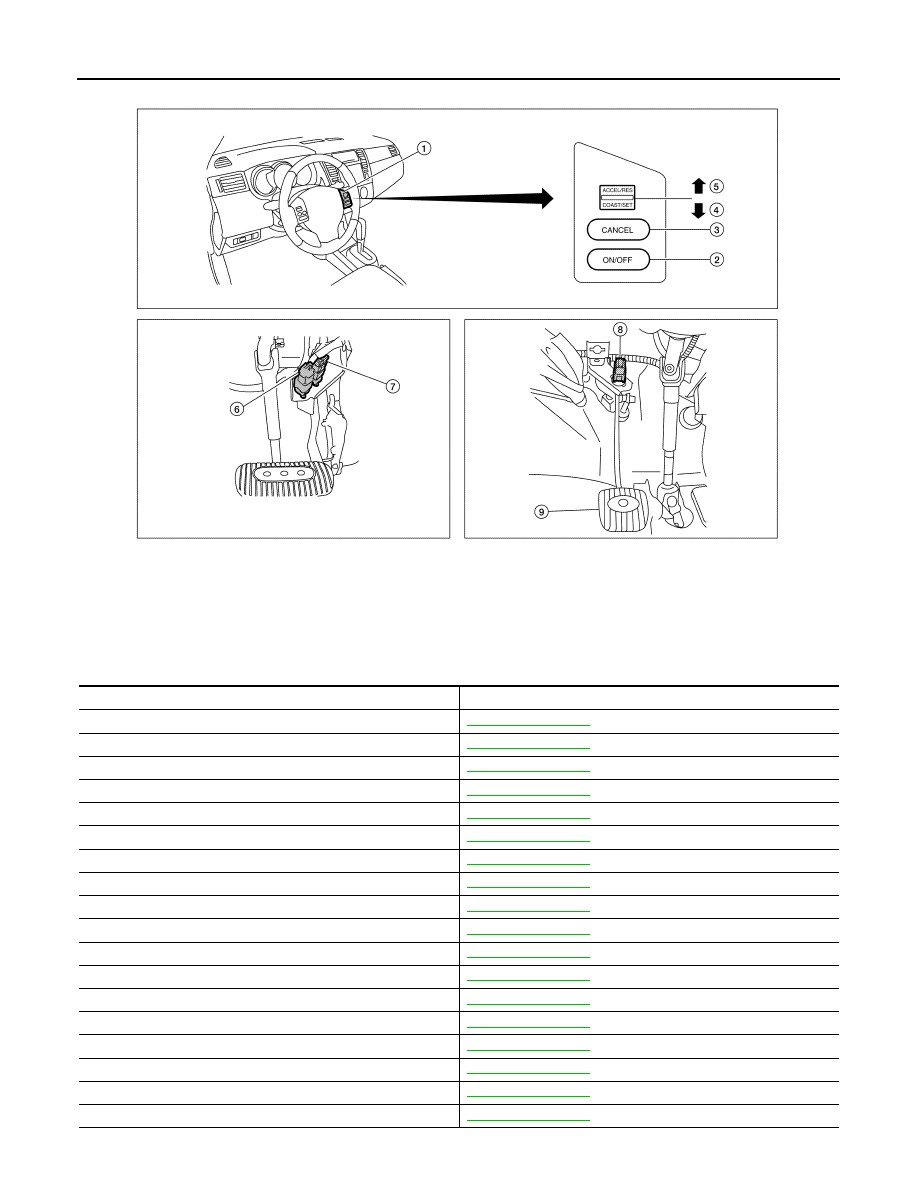

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELERATE switch

6.

ASCD brake switch

7.

Stop lamp switch

8.

ASCD clutch switch

9.

Clutch pedal

ALBIA0273ZZ

Component

Reference

Accelerator pedal position sensor

EC-286, "Description"

ASCD brake switch

EC-270, "Description"

ASCD steering switch

EC-267, "Description"

ASCD vehicle speed sensor

EC-278, "Description"

Camshaft position sensor (PHASE)

EC-201, "Description"

Crankshaft position sensor (POS)

EC-197, "Description"

Cooling fan motor

EC-307, "Description"

Electric throttle control actuator

EC-222, "Description"

Engine coolant temperature sensor

EC-142, "Description"

Fuel injector

EC-313, "Description"

Fuel pump

EC-316, "Description"

Heated oxygen sensor 1

EC-148, "Description"

Heated oxygen sensor 1 heater

EC-163, "Description"

Heated oxygen sensor 2

EC-166, "Description"

Heated oxygen sensor 2 heater

EC-176, "Description"

Ignition signal

EC-319, "Description"

Intake air temperature sensor

EC-139, "Description"

Intake valve timing control solenoid valve

EC-219, "Description"

ENGINE CONTROL SYSTEM

EC-37

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Knock sensor

EC-195, "Description"

Mass air flow sensor

EC-134, "Description"

Park/neutral position switch

EC-280, "Description"

PCV valve

EC-325, "Description"

Refrigerant pressure sensor

EC-326, "Description"

Stop lamp switch

EC-283, "Description"

Throttle control motor

EC-231, "Description"

Throttle control motor relay

EC-228, "Description"

Throttle position sensor

EC-187, "Description"

Vehicle speed sensor

EC-213, "Description"
