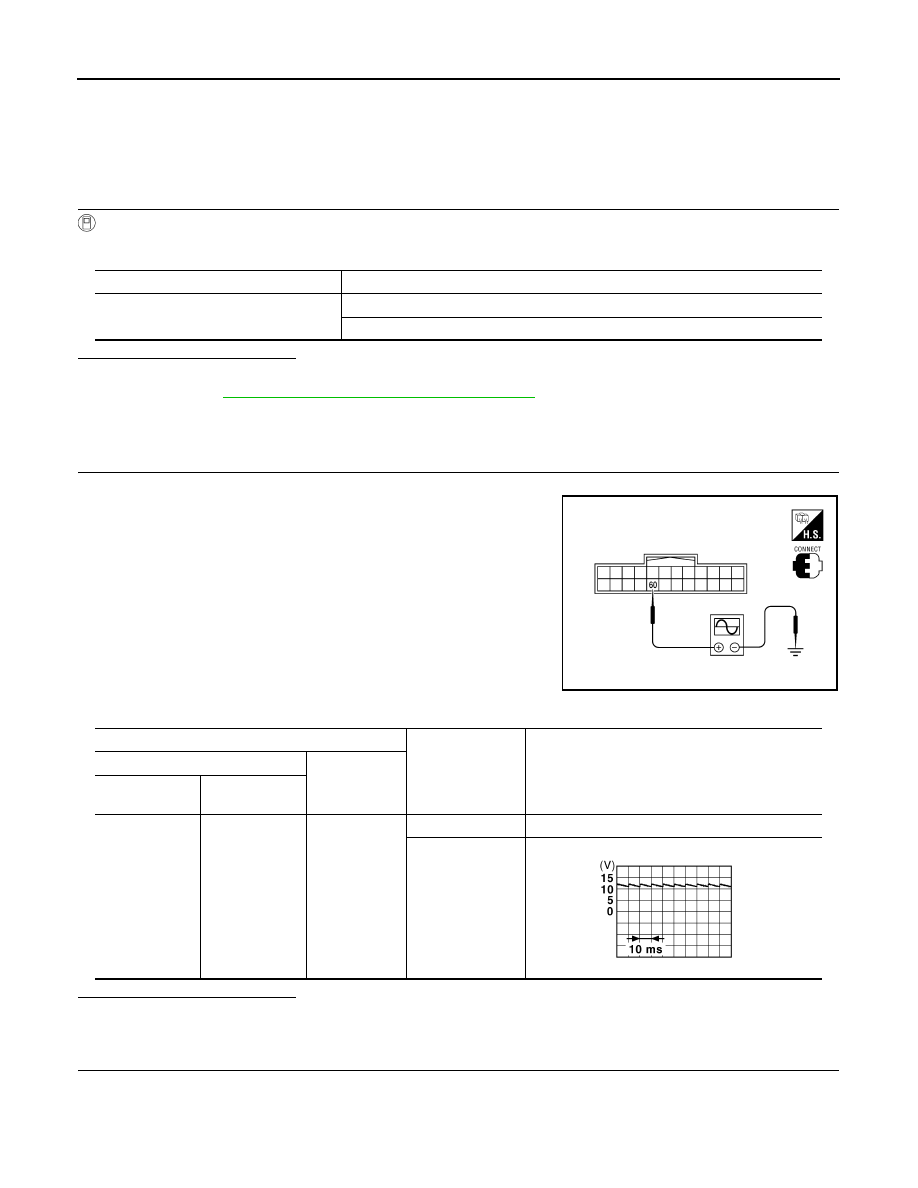

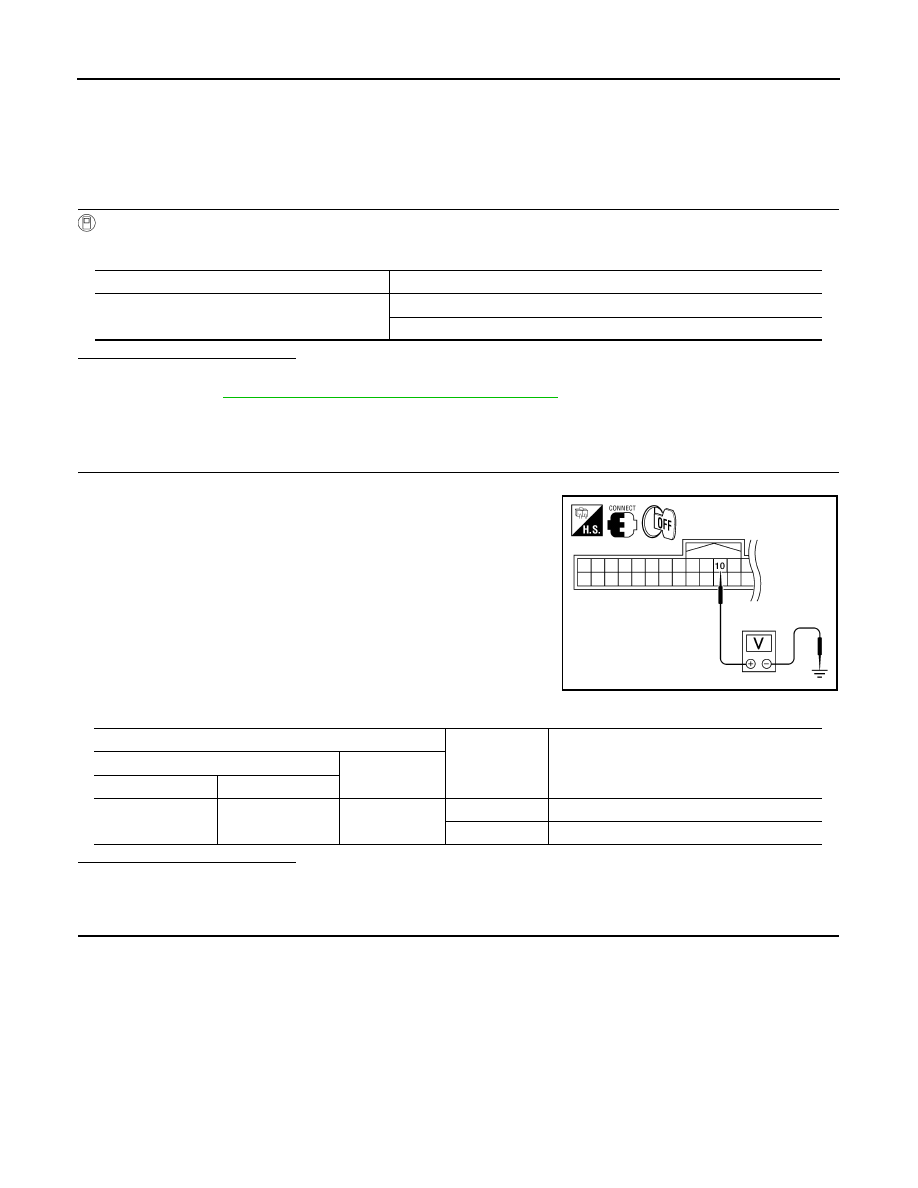

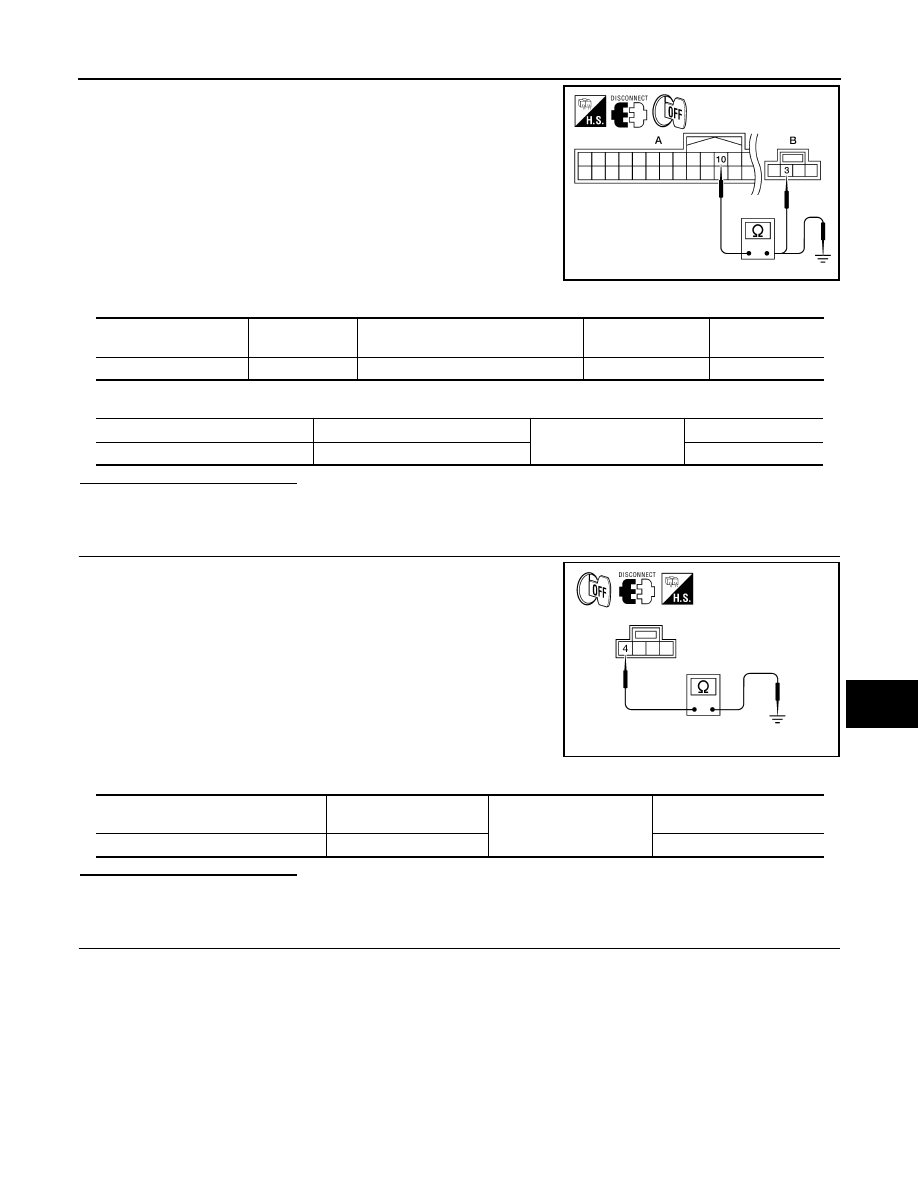

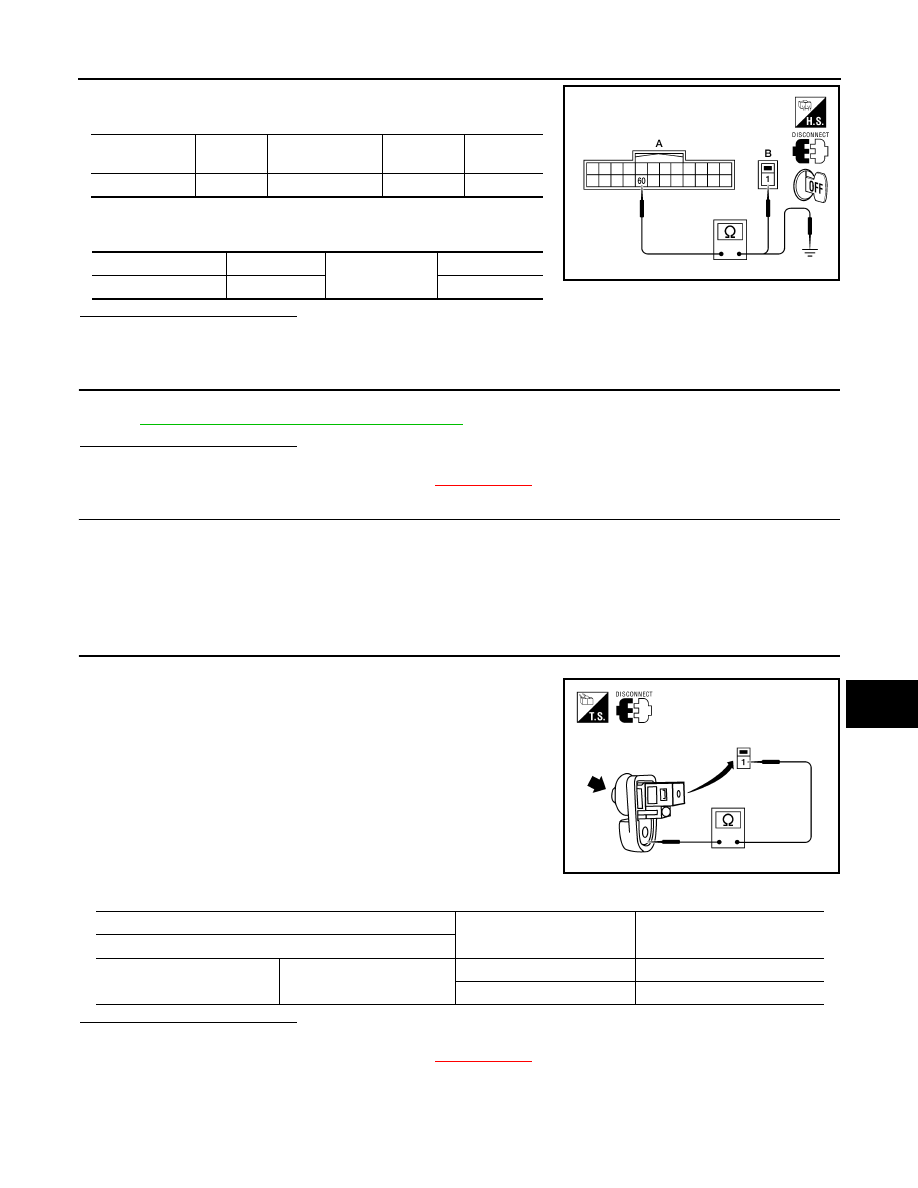

DLK-650 < COMPONENT DIAGNOSIS > [WITHOUT I-KEY, WITH SUPER LOCK] DOOR SWITCH REAR RH : Description INFOID:0000000001530771 Detects door open/close condition. REAR RH : Component Function Check INFOID:0000000001530772 1. CHECK FUNCTION With CONSULT-III Check door switches “DOOR SW-RR” in “Data Monitor” mode with CONSULT-III. Is the inspection result normal? YES >> Door switch is OK. NO >> Refer to DLK-650, "REAR RH : Diagnosis Procedure" REAR RH : Diagnosis Procedure INFOID:0000000001530773 1. CHECK DOOR SWITCH INPUT SIGNAL 1. Turn ignition switch OFF. 2. Check signal between BCM connector and ground with oscillo- Is the inspection result normal? YES >> GO TO 4. NO >> GO TO 2. 2. CHECK DOOR SWITCH CIRCUIT 1. Disconnect BCM connector. Monitor item Condition DOOR SW-RR OPEN :ON CLOSE :OFF ALKIA0754ZZ Terminals Door condition Voltage (V) (Approx.) (+) (–) BCM connector Terminal M19 60 Ground OPEN 0 CLOSE JPMIA0011GB |
