BCM (BODY CONTROL MODULE)

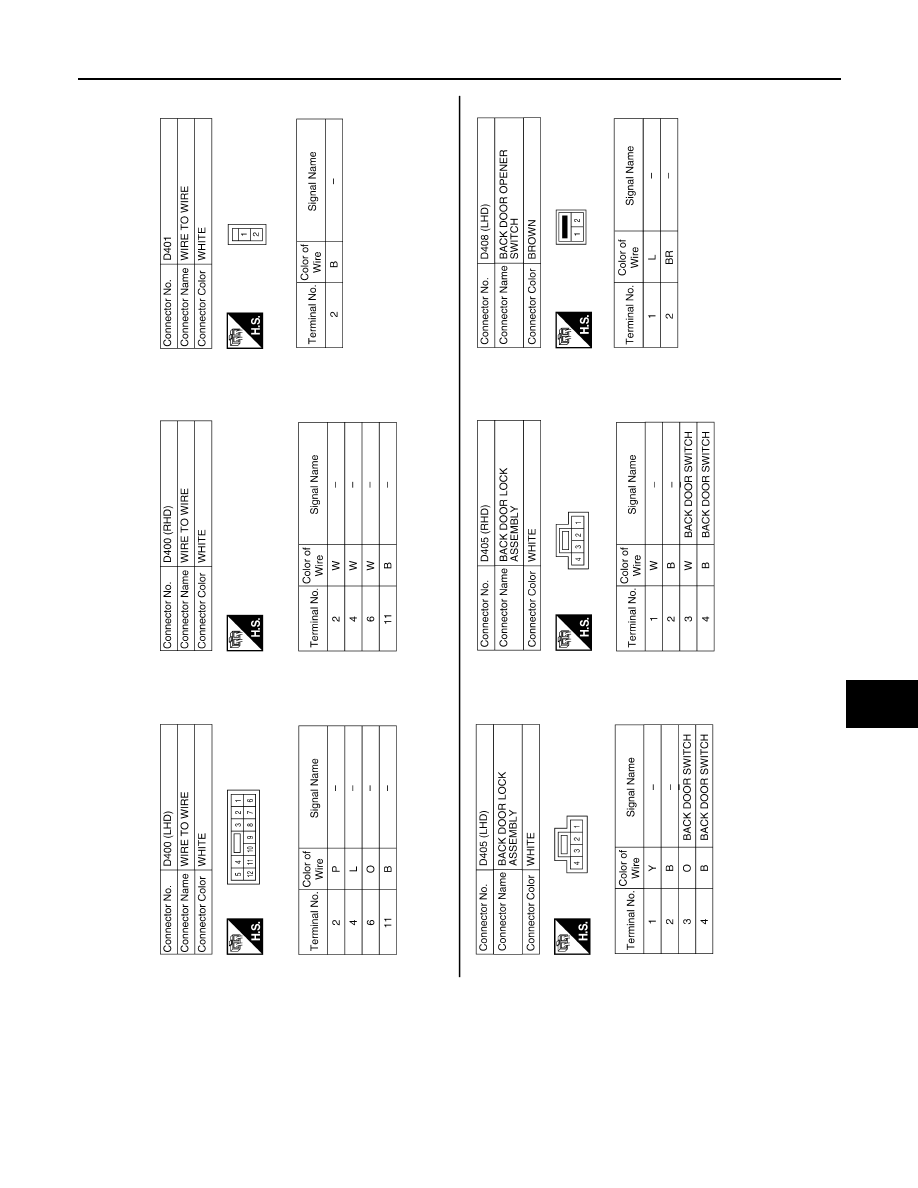

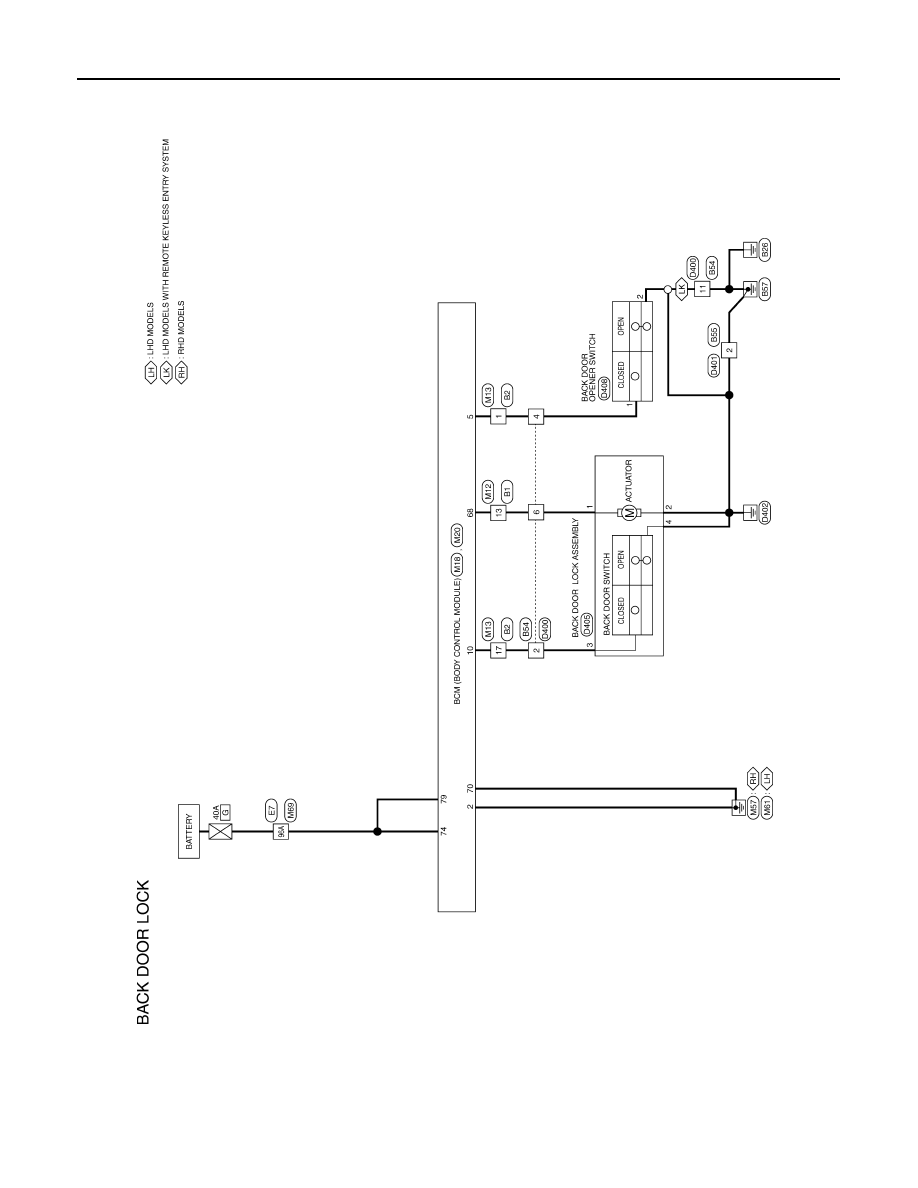

Wiring Diagram - BACK DOOR OPENER SYSTEM -

INFOID:0000000001530838

ALKWA0118GB

BCM (BODY CONTROL MODULE)

DLK-559

< ECU DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA1152GB

DLK-560

< ECU DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

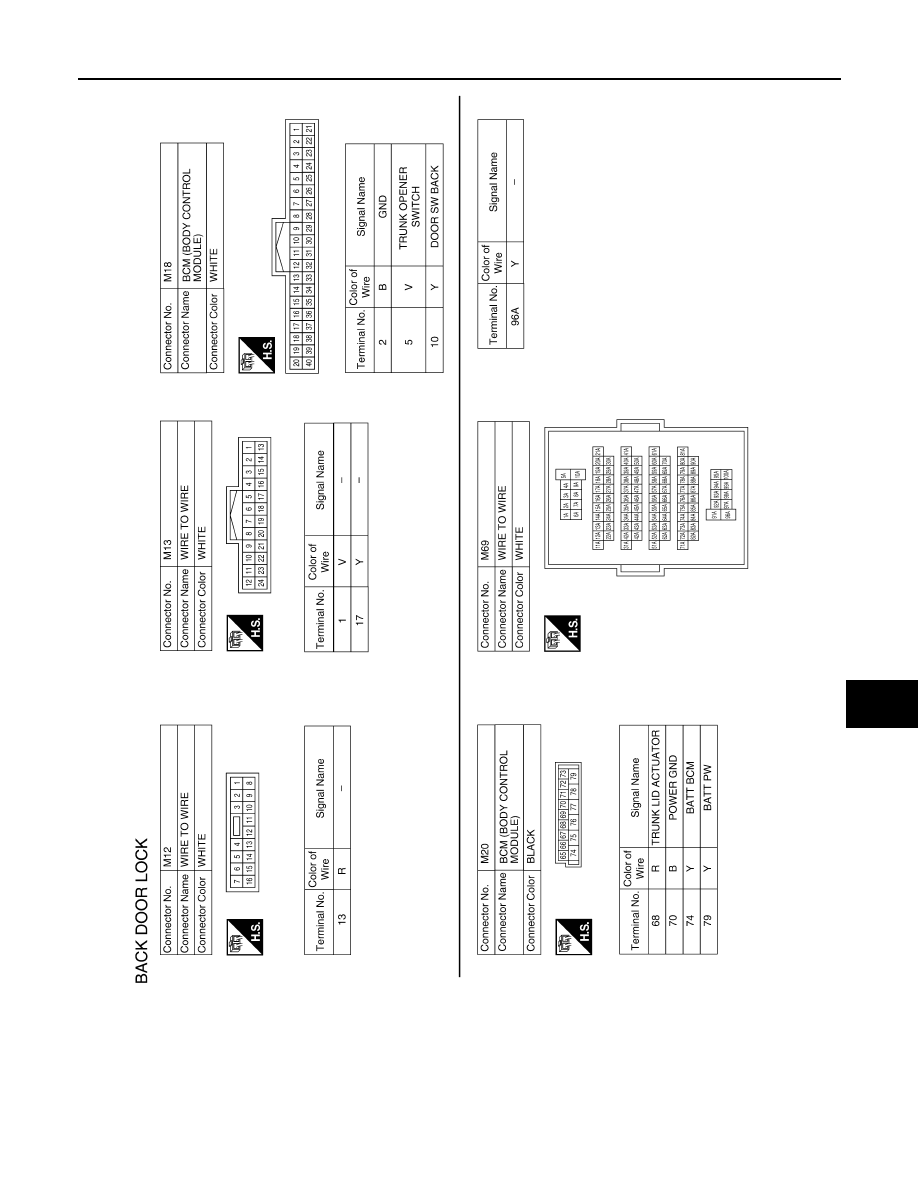

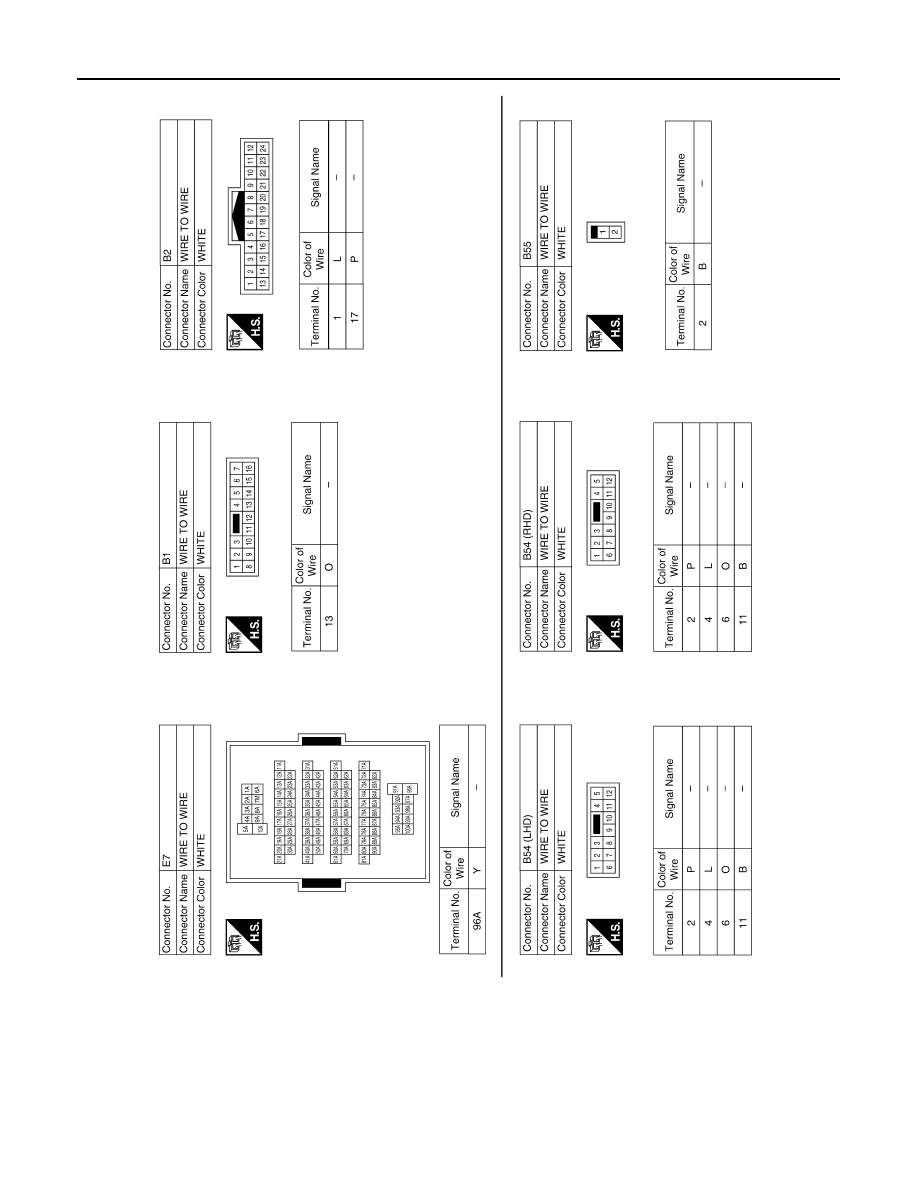

BCM (BODY CONTROL MODULE)
