FILAMENT

ON-VEHICLE REPAIR

FILAMENT

Inspection and Repair

INFOID:0000000001697576

INSPECTION

1.

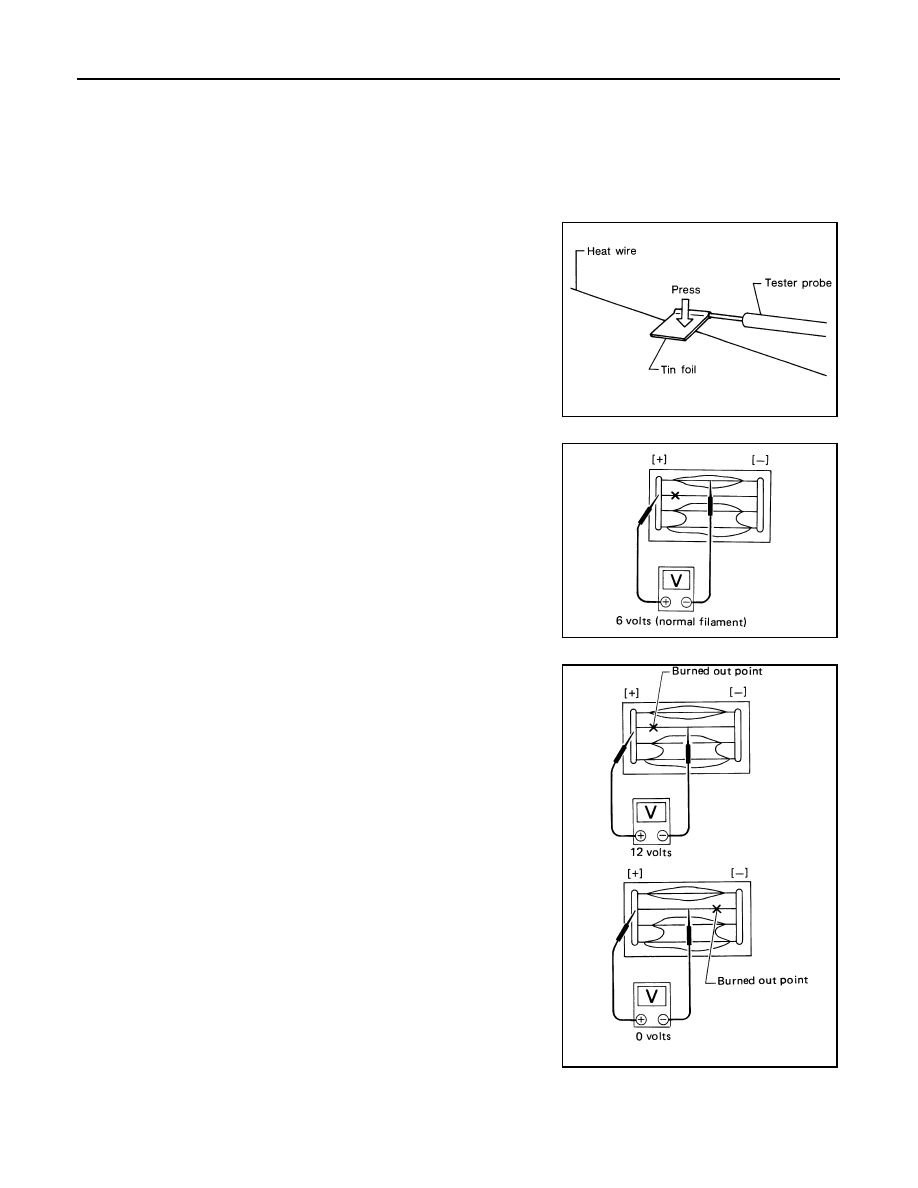

When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

REPAIR

REPAIR EQUIPMENT

• Conductive silver composition (Dupont No. 4817 or equivalent)

SEL122R

SEL263

SEL265

FILAMENT

DEF-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

• Ruler 30 cm (11.8 in) long
• Drawing pen
• Heat gun
• Alcohol
• Cloth

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

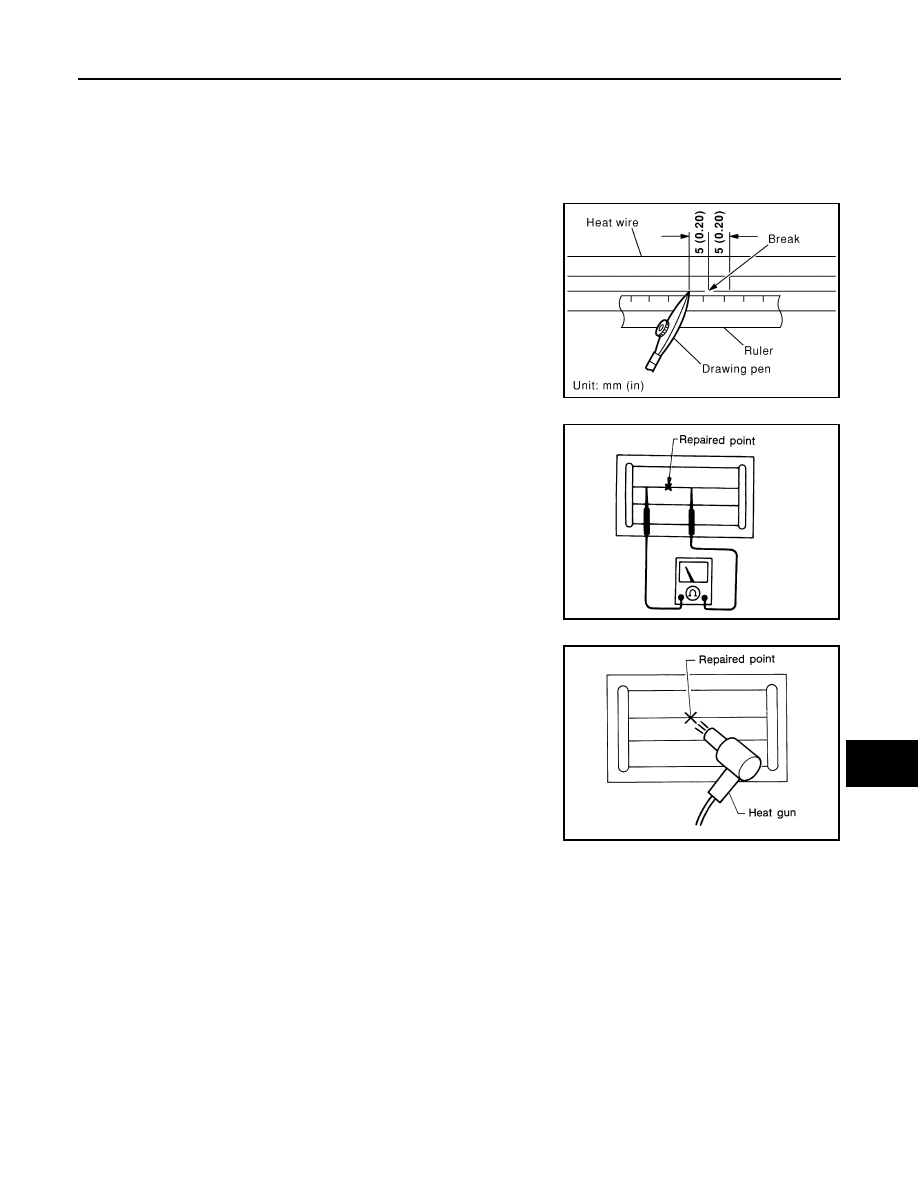

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

SPECIAL REPAIR REQUIREMENT

PIIA0215E

SEL012D

SEL013D

DEF-38

< ON-VEHICLE REPAIR >

CONDENSER

CONDENSER

Exploded View

INFOID:0000000001697577

Refer to

DEF-38, "Exploded View"

.

Removal and Installation

INFOID:0000000001697578

REMOVAL

1.

Remove the rear seat cushion and the rear seat back.
Refer to

XX-XX, "*****"

.

2.

Remove the rear kickplate, rear wheel well garnish and the rear pillar finisher.
Refer to

XX-XX, "*****"

.

3.

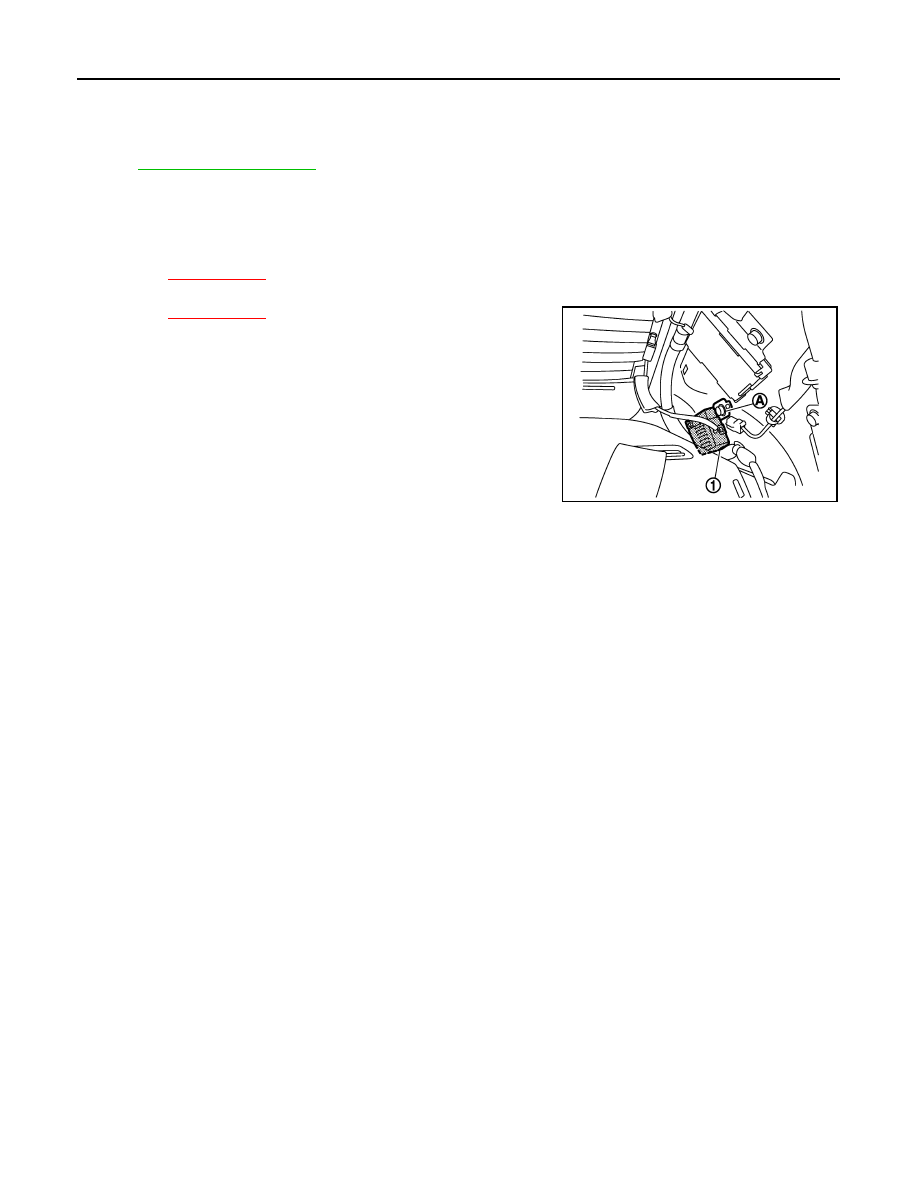

Remove bolt (A), and then remove condenser (1) from the vehi-
cle body.

INSTALLATION

Install in the reverse order of removal.

JMLIA0013ZZ
