WCS-18

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (METER)

DIAGNOSIS SYSTEM (METER)

CONSULT-III Function (METER/M&A)

INFOID:0000000001728303

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULTS

Display Item List

Refer to

MWI-54, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

METER/M&A diagnosis mode

Description

SELF-DIAG RESULTS

Displays combination meter self-diagnosis results.

DATA MONITOR

Displays combination meter input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

SPEED METER [km/h] or [mph]

X

X

Displays the value of vehicle speed signal.

SPEED OUTPUT [km/h] or [mph]

X

X

Displays the value of vehicle speed signal, which is transmitted to
each unit with CAN communication.

TACHO METER [rpm]

X

X

Displays the value of engine speed signal, which is input from ECM.

W TEMP METER [

°

C] or [

°

F]

X

X

Displays the value of engine coolant temperature signal, which is in-
put from ECM.

FUEL METER [lit.]

X

X

Displays the value, which processes a resistance signal from fuel
gauge.

DISTANCE [km] or [mile]

X

X

Displays the value, which is calculated by vehicle speed signal, fuel
gauge and fuel consumption from ECM.

FUEL W/L [ON/OFF]

X

X

Displays [ON/OFF] condition of low-fuel warning lamp.

C-ENG W/L [ON/OFF]

X

Displays [ON/OFF] condition of malfunction indicator lamp.

SEAT BELT W/L [ON/OFF]

X

Indicates [ON/OFF] condition of seat belt warning lamp.

BUZZER [ON/OFF]

X

X

Displays [ON/OFF] condition of buzzer.

DOOR W/L [ON/OFF]

X

Displays [ON/OFF] condition of door warning lamp.

HI-BEAM IND [ON/OFF]

X

Displays [ON/OFF] condition of high beam indicator.

TURN IND [ON/OFF]

X

Displays [ON/OFF] condition of turn indicator.

FR FOG IND

X

Displays [ON/OFF] condition of front fog lamp indicator.

RR FOG IND

X

Displays [ON/OFF] condition of rear fog lamp indicator.

OIL W/L [ON/OFF]

X

Displays [ON/OFF] condition of oil pressure warning lamp.

LIGHT IND

X

Displays [ON/OFF] condition of exterior lamp indicator.

VDC/TCS IND [ON/OFF]

X

Displays [ON/OFF] condition of VDC OFF indicator lamp.

ABS W/L [ON/OFF]

X

Displays [ON/OFF] condition of ABS warning lamp.

SLIP IND [ON/OFF]

X

Displays [ON/OFF] condition of SLIP indicator lamp.

BRAKE W/L [ON/OFF]

X

Displays [ON/OFF] condition of brake warning lamp.*

OIL LEVEL IND

X

Displays [ON/OFF] condition of oil level indicator.

KEY G W/L [ON/OFF]

X

Displays [ON/OFF] condition of key green warning lamp.

KEY R W/L [ON/OFF]

X

Displays [ON/OFF] condition of key red warning lamp.

KEY KNOB W/L [ON/OFF]

X

Displays [ON/OFF] condition of key knob warning lamp.

PNP P SW

X

X

Displays [ON/OFF] condition of inhibitor P switch.

WCS

DIAGNOSIS SYSTEM (METER)

WCS-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:

Some items are not available due to vehicle specification.

*: The monitor will indicate “OFF” even though the brake warning lamp is on if either of the following conditions exist.

• The parking brake is engaged

• The brake fluid level is low

PNP N SW

X

X

Displays [ON/OFF] condition of inhibitor N switch.

O/D OFF SW

X

Displays [ON/OFF] condition of O/D OFF switch.

BRAKE SW [ON/OFF]

X

Displays [ON/OFF] condition of parking brake switch.

P RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift P range indicator.

R RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift R range indicator.

N RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift N range indicator.

D RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift D range indicator.

2 RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift 2 range indicator.

1 RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift 1range indicator.

O/D OFF W/L

X

Displays [ON/OFF] condition of O/D OFF indicator lamp.

CRUISE IND [ON/OFF]

X

Displays [ON/OFF] condition of CRUISE indicator.

EPS W/L

X

Displays [ON/OFF] condition of EPS warning lamp.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

WCS-20

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

BUZZER

BUZZER : CONSULT-III Function (BCM - BUZZER)

INFOID:0000000001722925

CONSULT-III APPLICATION ITEMS

DATA MONITOR

ACTIVE TEST

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

IGN ON SW
[On/Off]

Status of ignition switch judged by BCM.

KEY IN SW
[On/Off]

Status of key switch judged by BCM.

DOOR SW-DR
[On/Off]

Status of front door switch (driver side) judged by BCM.

DOOR SW-AS
[On/Off]

Status of front door switch (passenger side) judged by BCM.

DOOR SW-RR
[On/Off]

Status of rear door switch RH judged by BCM.

DOOR SW-RL
[On/Off]

Status of rear door switch LH judged by BCM.

BACK DOOR SW-
[On/Off]

Status of back door switch judged by BCM.

LIGHTING SW
[On/Off]

Status of lighting switch judged by BCM using the combination switch readout function.

CDL LOCK SW
[On/Off]

Status of door lock switch judged by BCM.

CDL UNLOCK SW
[On/Off]

TRNK OPNR SW
[On/Off]

Status of trunk opener switch judged by BCM.

Display item

[Unit]

Description

KEY REMINDER WARN

The key warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

BACK DR OPEN WARN

The back door open warning operation can be checked by operating the relevant function (On/Off).

DOOR WARNING IND

The door open warning operation can be checked by operating the relevant function (On/Off).

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER

COMBINATION METER : Diagnosis Procedure

INFOID:0000000001728304

1.

CHECK FUSES

Check for blown combination meter fuses.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1.

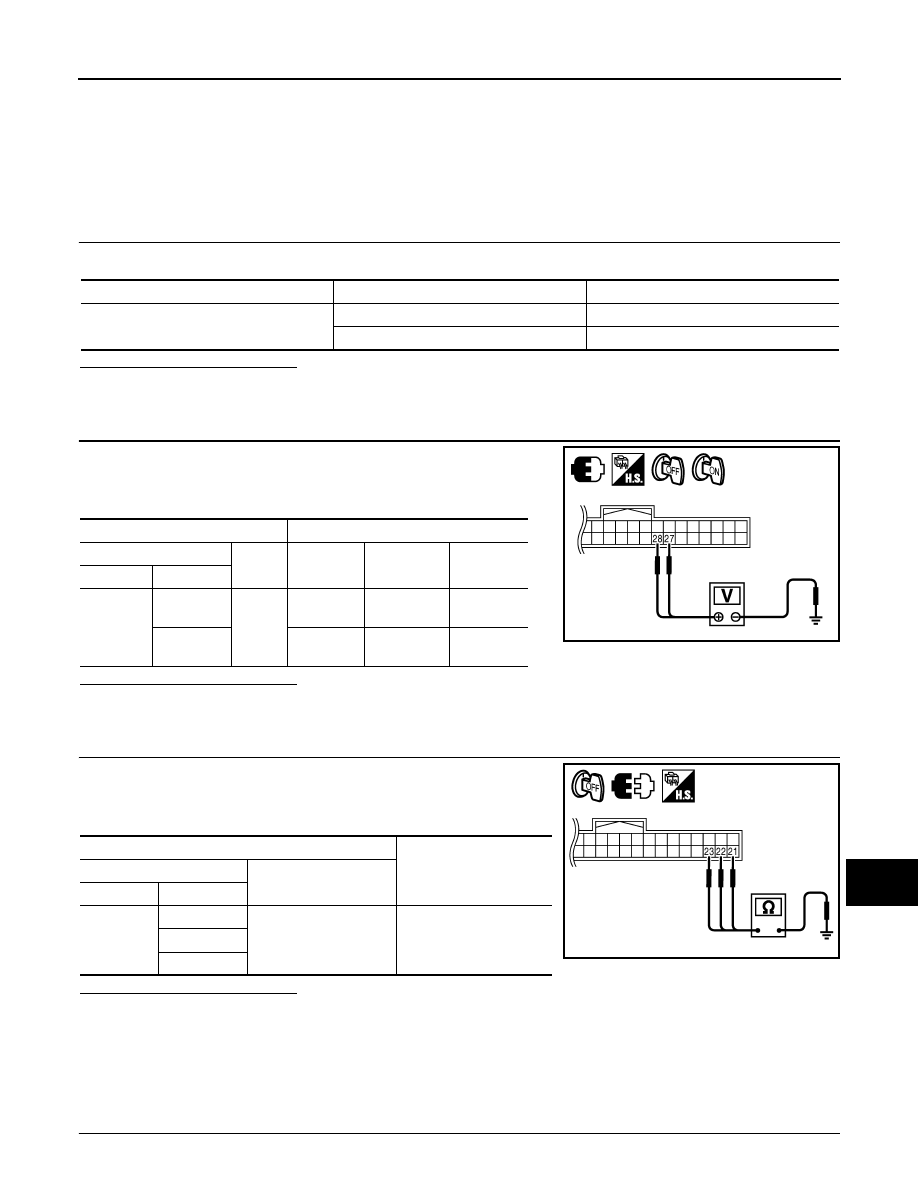

Disconnect combination meter connector M24.

2.

Check voltage between combination meter harness connector
M24 terminals 27, 28 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check harness for open between combination meter and fuse.

3.

GROUND CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Check continuity between combination meter harness connector
M24 terminals 21, 22, 23 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair harness or connector.

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000001728305

1.

 CHECK FUSES AND FUSIBLE LINK

Unit

Power source

Fuse No.

Combination meter

Battery 13

Ignition switch ON or START

3

Terminals

Ignition switch position

(+)

(–)

OFF

ON

START

Connector

Terminal

M24

27

Ground

Battery
voltage

Battery
voltage

Battery
voltage

28

0V

Battery
voltage

Battery
voltage

PKIC0700E

Terminals

Continuity

(+)

(–)

Connector

Terminal

M24

21

Ground

Yes

22

23

PKIC0701E
