Check at Idle

INFOID:0000000001726684

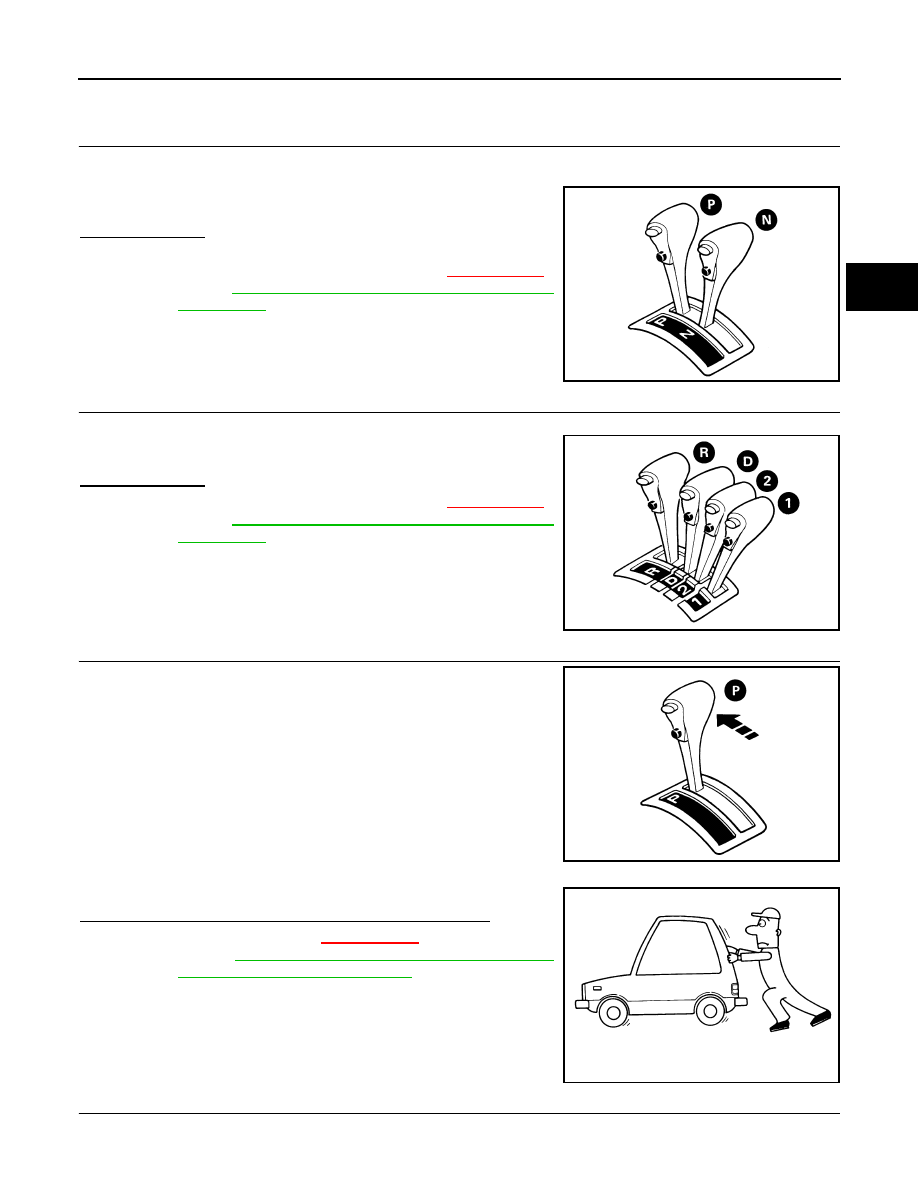

1.

CHECK ENGINE START

1.

Park vehicle on flat surface.

2.

Turn ignition switch ON. (Do not start engine.)

3.

Move selector lever to “P” or “N” position.

4.

Turn ignition switch to “START” position.

Is engine started?

YES

>> GO TO 2.

NO

>> • Stop “Road Test”. Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "Engine Cannot Be Started in "P" and

"N" Position"

.

2.

CHECK ENGINE START

1.

Turn ignition switch ON. (Do not start engine.)

2.

Move selector lever to “R”, “D”, “2” or “1” position.

3.

Turn ignition switch to “START” position.

Is engine started?

YES

>> • Stop “Road Test”. Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "Engine Cannot Be Started in "P" and

"N" Position"

.

• Continue “Road Test”.

NO

>> GO TO 3.

3.

CHECK VEHICLE MOVE

1.

Move selector lever to “P” position.

2.

Turn ignition switch OFF.

3.

Release parking brake.

4.

Push vehicle forward or backward.

Does vehicle move when it is pushed forward or backyard?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-140, "In "P" Position, Vehicle Moves For-

ward or Backward When Pushed"

.

• Continue “Road Test”.

NO

>> GO TO 4.

4.

CHECK VEHICLE MOVE

1.

Apply parking brake.

SAT769B

SAT770B

SAT768B

SAT796A

TM-484

< ON-VEHICLE MAINTENANCE >

[TYPE 2 (4AT: RE4F03B)]

ROAD TEST

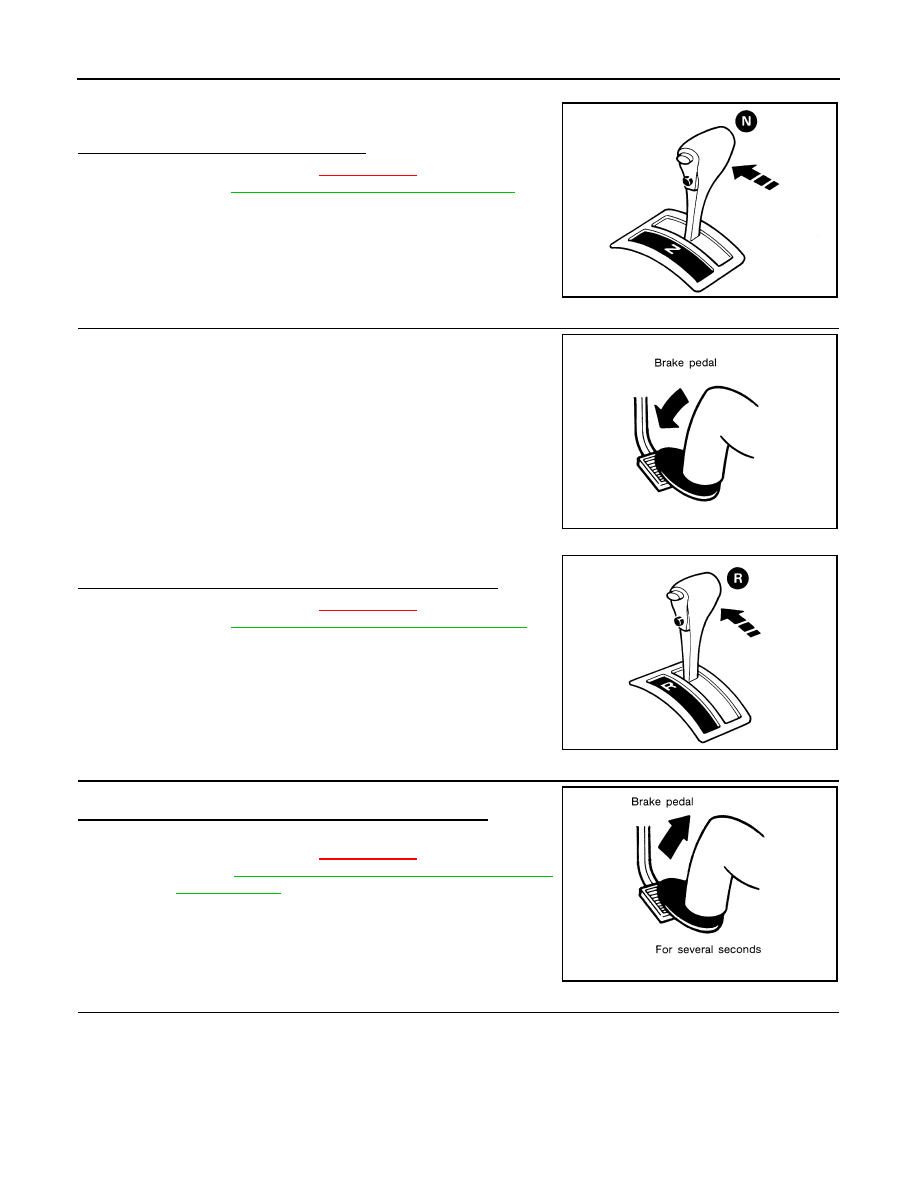

2.

Start engine.

3.

Move selector lever to “N” position.

4.

Release parking brake.

Does vehicle move forward or backward?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-141, "In "N" Position, Vehicle Moves"

.

• Continue “Road Test”.

NO

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to “R” position.

Is there large shock when changing from “N” to “R” position?

YES

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-142, "Large Shock "N"

→

 "R" Position"

  .

• Continue “Road Test”.

NO

>> GO TO 6.

6.

CHECK VEHICLE MOVE

Release foot brake for several seconds.

Does vehicle creep backward when foot brake is released?

YES

>> GO TO 7.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-142, "Vehicle Does Not Creep Backward

in "R" Position"

.

• Continue “Road Test”.

7.

CHECK VEHICLE MOVE

SAT771B

SAT797A

SAT772B

SAT799A

ROAD TEST

TM-485

< ON-VEHICLE MAINTENANCE >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

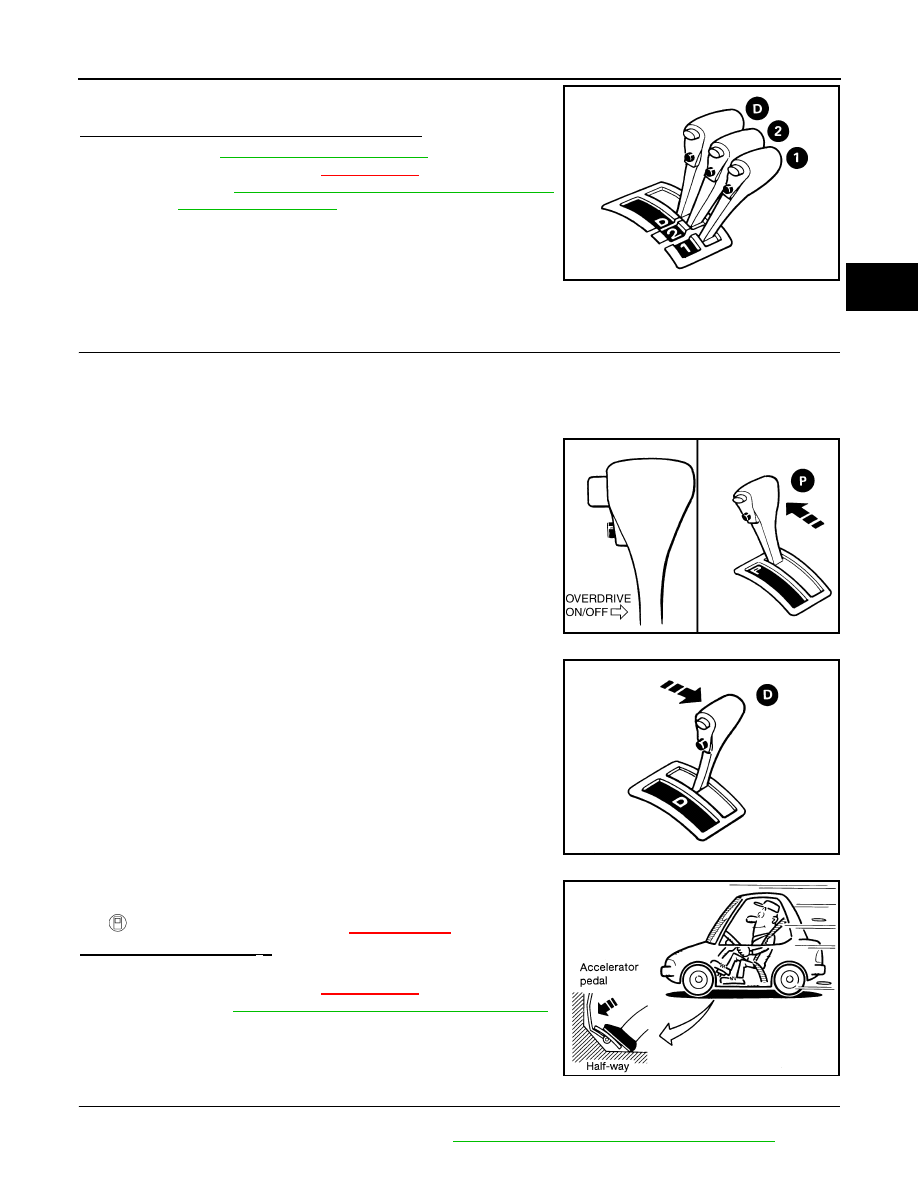

Move selector lever to “D”, “2” and “1” positions and check if vehicle
creeps forward.
Does vehicle creep forward in all three positions?

YES

>> GO TO

TM-485, "Cruise Test - Part 1"

.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-144, "Vehicle Does Not Creep Forward in

"D", "2" or "1" Position"

.

• Continue “Road Test”.

Cruise Test - Part 1

INFOID:0000000001726685

1.

CHECK STARTING GEAR (D

1

) POSITION

1.

Drive vehicle for approximately 10 minutes to warm engine oil and ATF up to operating temperature.

2.

Park vehicle on flat surface.

3.

Push overdrive control switch. (OD OFF indicator lamp is off.)

4.

Move selector lever to “P” position.

5.

Start engine.

6.

Move selector lever to “D” position.

7.

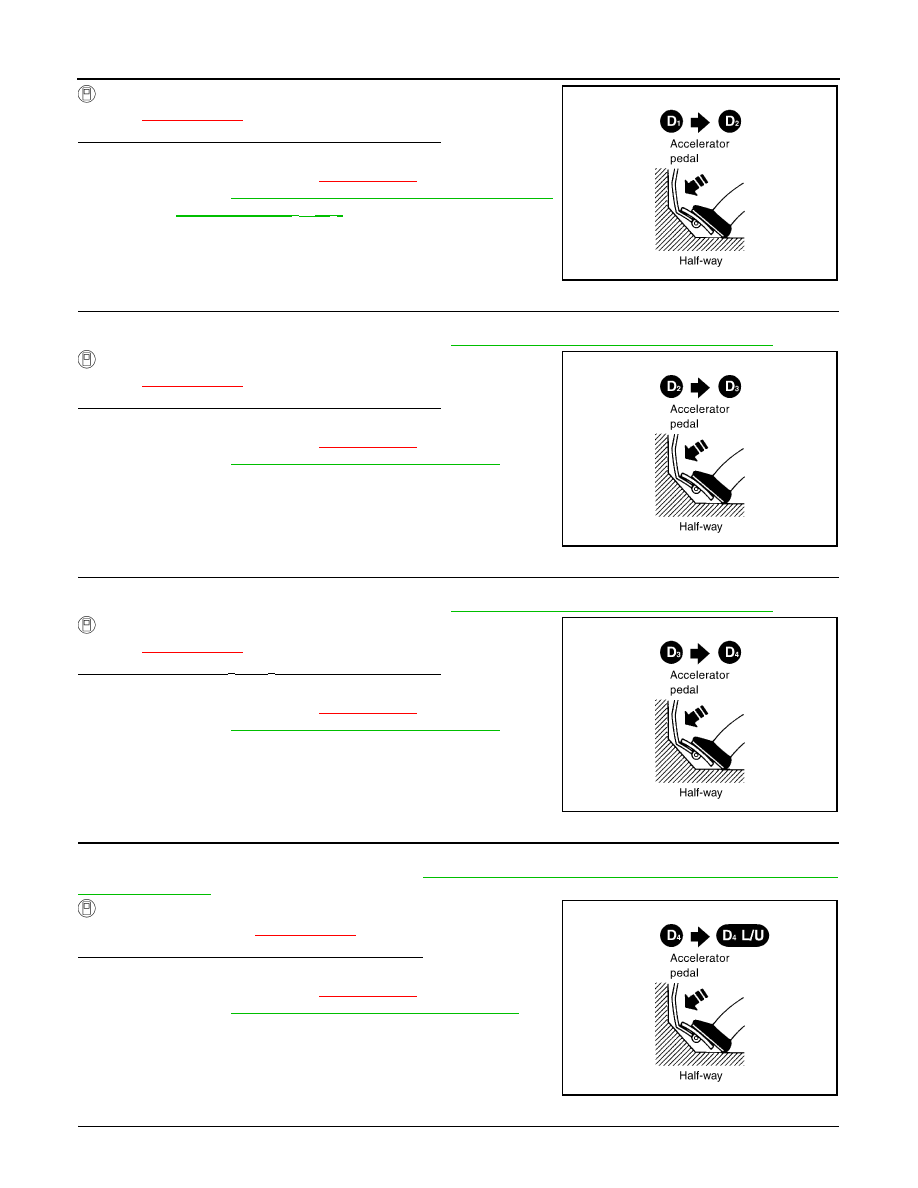

Accelerate vehicle by constantly depressing accelerator pedal
half-way.

 Read gear position. Refer to

XX-XX, "*****"

.

Does vehicle start from D

1

?

YES

>> GO TO 2.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-145, "Vehicle Cannot Be Started from D

1

"

.

• Continue “Road Test”.

2.

CHECK SHIFT-UP (D

1

TO D

2

)

Check shift-up (D

1

 to D

2

).

Specified speed when shifting from D

1

 to D

2.

Refer to

TM-490, "Vehicle Speed When Shifting Gears"

.
